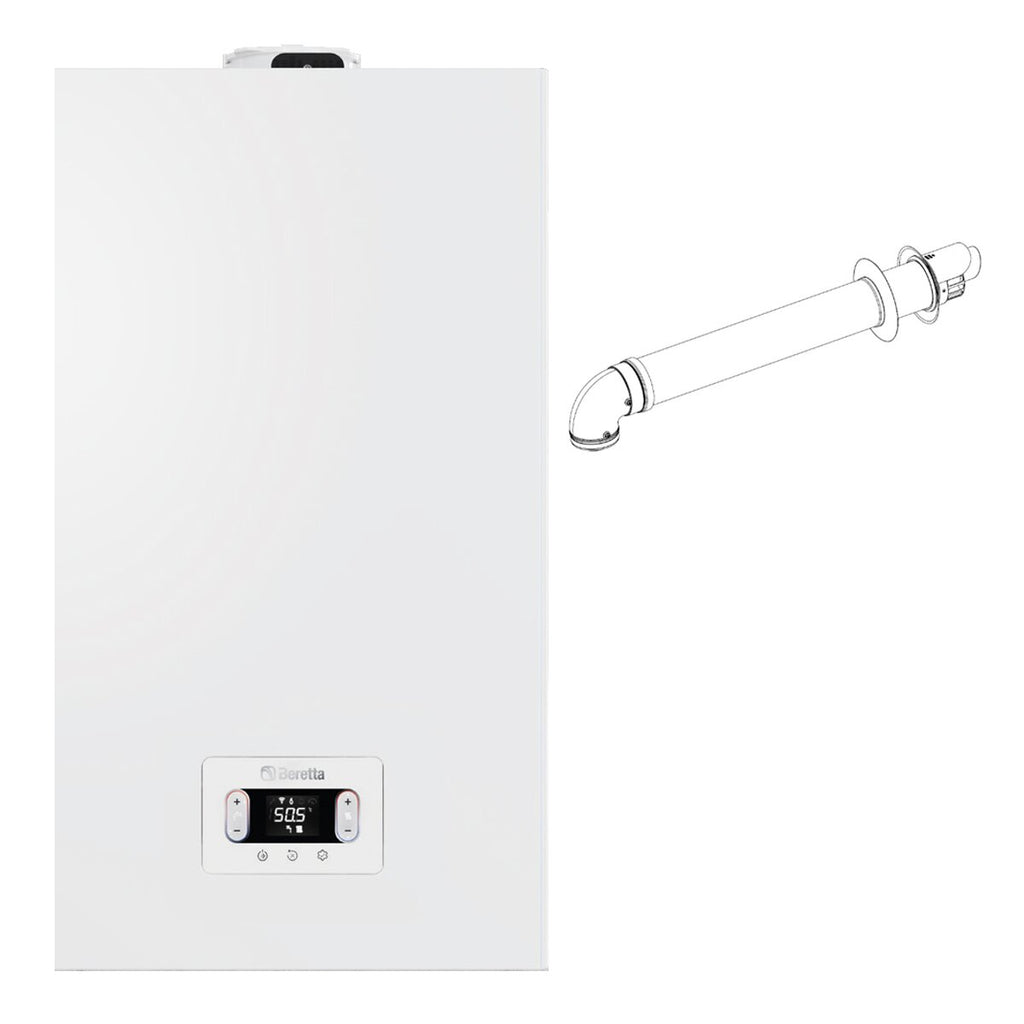

Beretta CIAO X 30C condensing boiler sealed chamber 24 kW methane LPG with coaxial flue gas exhaust kit

Beretta CIAO X 30C condensing boiler sealed chamber 24 kW methane LPG with coaxial flue gas exhaust kit

Beretta CIAO X 30C condensing - 17.2 l/min.

Natural Gas Boiler - Convertible to LPG and Propane Air

24 kW – Ideal for heating up to 150 m2 with an average height of 2.7 m

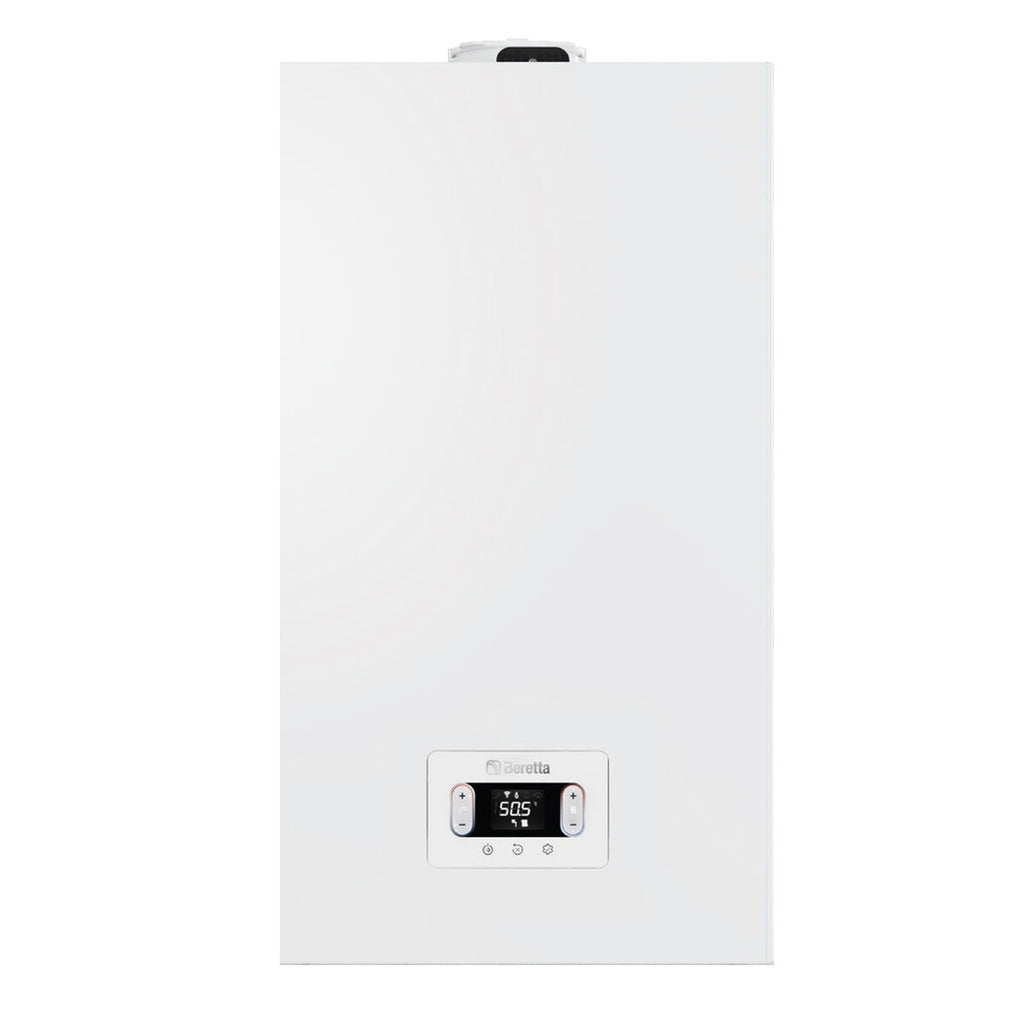

THE BOILER

Heir to one of the best-selling boilers ever, the CIAO by Beretta , the new CIAO X collects the best of this legacy and evolves by looking to the future between energy saving and technological innovation .

Of its predecessors, the Beretta CIAO X condensing boiler certainly maintains the reliability , ease of use and great versatility . However, it has been renewed and improved, both inside and out: inside, thanks to its new high-performance steel condensing exchanger and the brand new sanitary exchanger with larger plates ; outside, in the clean and modern design and in the user interface, a technological but simple and intuitive to use touch panel.

The CIAO X condensing boiler by Beretta therefore has a heart of steel: its stainless steel condensing exchanger offers unparalleled performance, up to 93% average Erp efficiency . The exchanger is made up of a single coil wrapped in stainless steel with a high section that guarantees greater efficiency and longer-lasting cleaning over time because it is highly resistant to the corrosion typical of acid condensation from condensing boilers. The flow rate remains constant and clogging is limited thanks to the geometry of the exchanger; the exchanger is also accessible from the front for maintenance thanks to a guide system that allows for easy disassembly and reassembly.

The exchanger on the domestic circuit has also been optimised with high-performance plates to allow, through the Preheating function, to have domestic hot water quickly at a stable temperature .

The high efficiency modulating circulation pump (EEI ≤ 0.2) of the CIAO X boiler allows for improved performance and lower electrical consumption as well as greater durability of the components. The CIAO X   It differs from other condensing boilers for its greater efficiency with the same fuel used. In fact, the modulation range of this line of boilers reaches up to 1:8 of the nominal power: when the room is heated, the boiler is able to reduce the flame to an eighth of the maximum to keep the temperature constant, in this way not only does it not turn off but it guarantees greater efficiency and silence , thermal changes and electricity consumption decrease . It is therefore possible to avoid continuous switching on and off and also keep expenses under control.

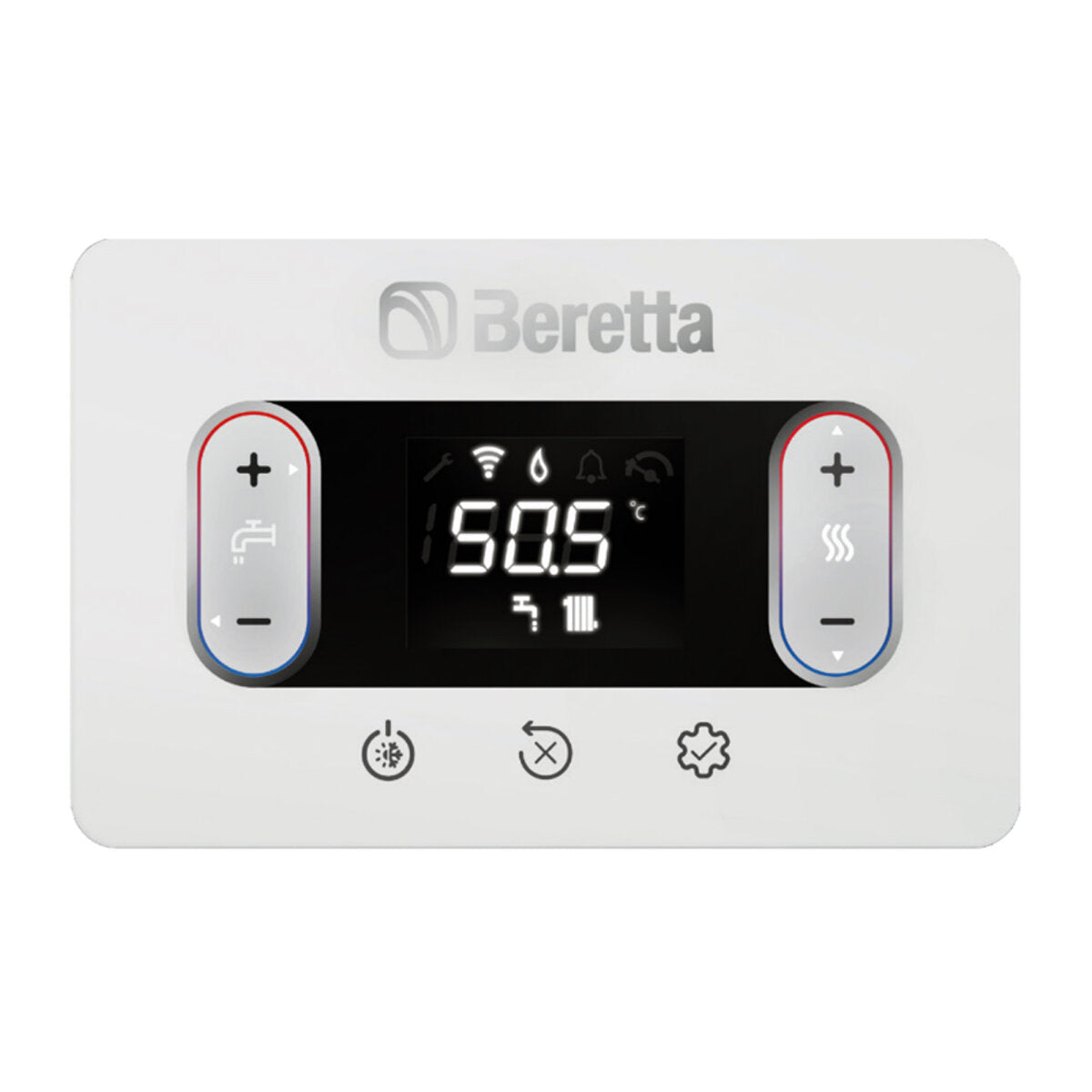

The Beretta CIAO X boiler also has a modern touchpad user interface : the very intuitive control has a backlit LCD display that communicates with the user via representative icons ; seven function keys around the edge allow access to all the boiler settings and parameters, activating a buzzer to confirm each operation. From the display it is possible to program weekly boiler on and off times and activate or deactivate the Preheating function on the domestic hot water circuit.

The Beretta CIAO X condensing boiler is designed for both indoor and outdoor installation and for built-in installation : thanks to its IPX5D protection rating (protection from water jets and dust), its compact size that allows it to be placed even in a kitchen cabinet, and its high level of silence , this boiler can easily adapt to different installation needs and be integrated into new building projects as well as redevelopment projects. The hydraulic unit with DIN connections also makes it ideal for replacements.

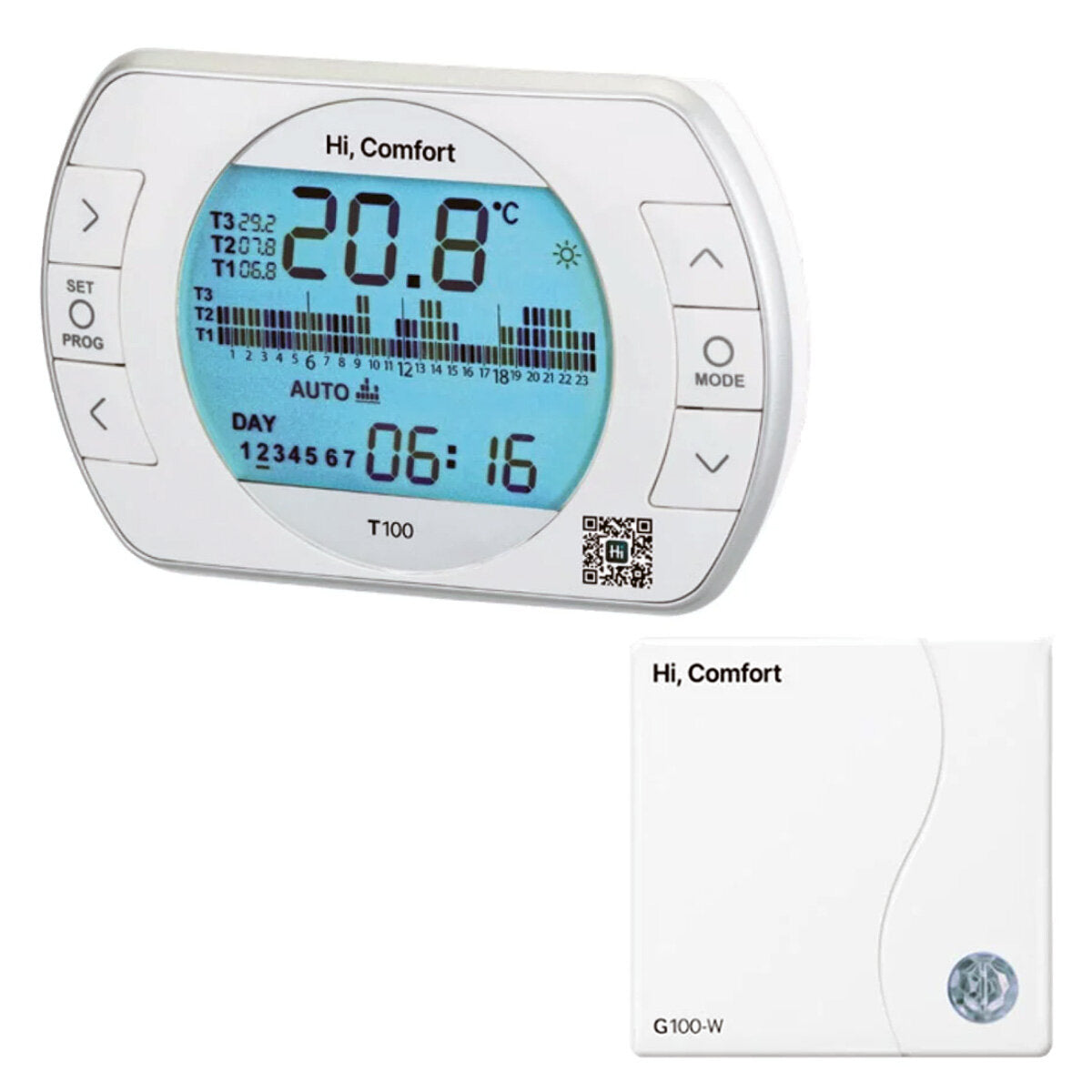

The boiler is also designed to be combined with the latest generation chronothermostats such as the HiComfort T100 or HiComfort T100 Wi-Fi by Beretta (available for purchase separately) which make it manageable from anywhere simply by using a smartphone or tablet.

As regards emissions into the atmosphere, the CIAO burner   X is premixed and reaches the NOx6 level allowing the levels of burnt gases to always be kept low.

The HELLO   X is a HYDROGEN READY boiler, that is, it is designed to operate with gas and hydrogen mixtures up to 20% which   makes it possible to reduce final consumption while always keeping an eye on environmental protection.

The boiler is designed to operate on methane gas as standard but can be converted to operate on LPG or propane air by requesting conversion to the Beretta CAT during the first start-up phase.

The boiler has a flue gas flange with quick-tightening safety collar installed as standard, making installation operations simpler and quicker.

GUARANTEED SAVINGS AND HIGH COMFORT

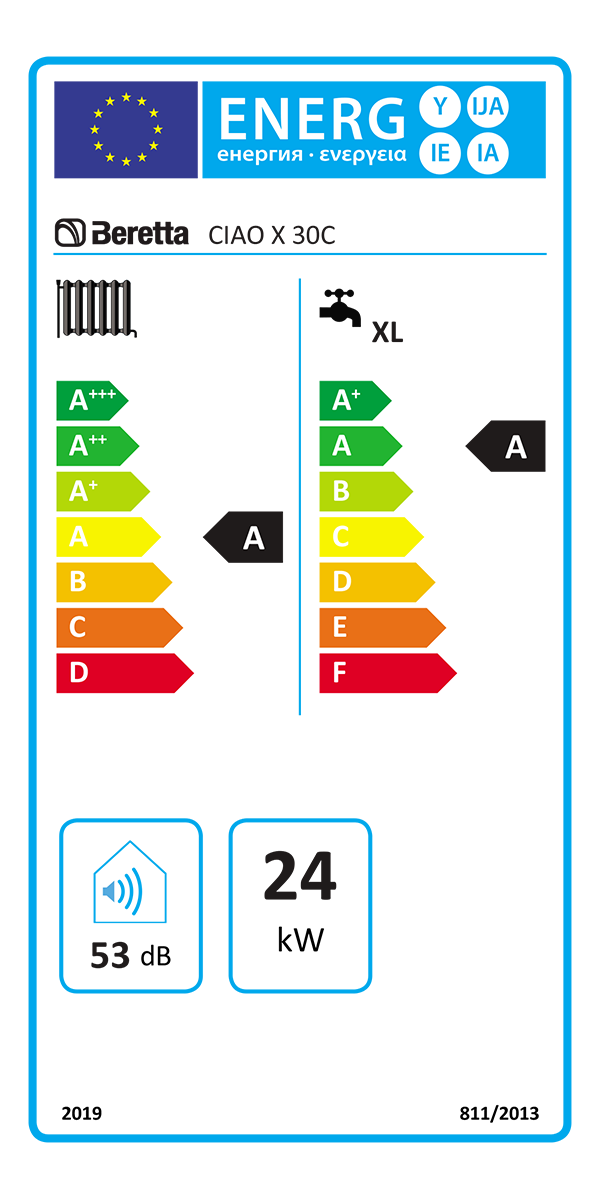

Thanks to its innovative technological features, the CIAO   X fits perfectly into the family of Beretta boilers that are attentive to consumption management combined with high efficiency and low emissions and therefore respect for the environment, reaching an energy class of A+ if combined with a latest-generation control such as the HiComfortT100 or HiComfortT100 Wi-Fi by Beretta (optional).

DIMENSIONS

Height: 700 mm - Width: 400 mm - Depth: 275 mm

Weight: 30 kg.

WARRANTY

The guarantee is the official Beretta one and lasts 24 months .

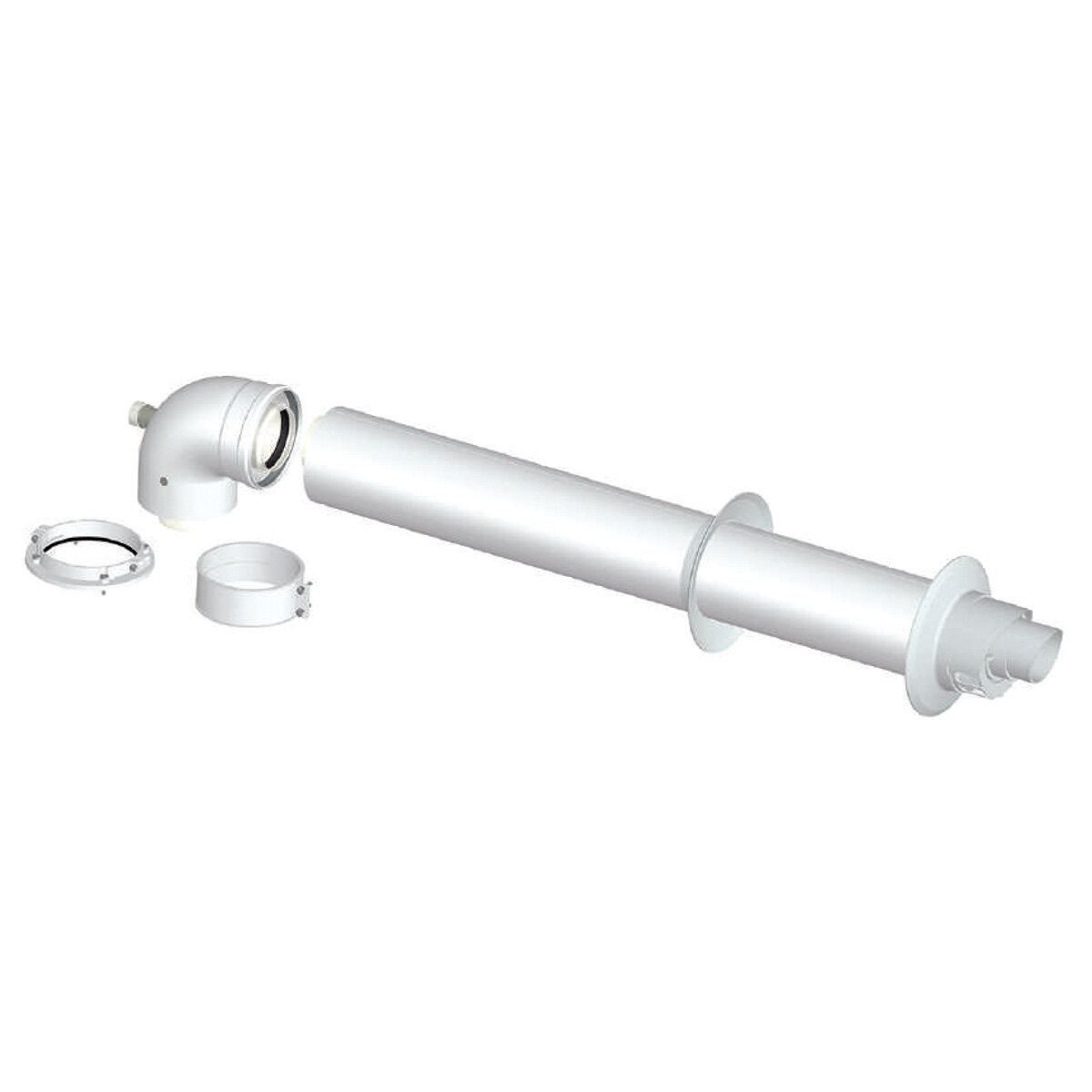

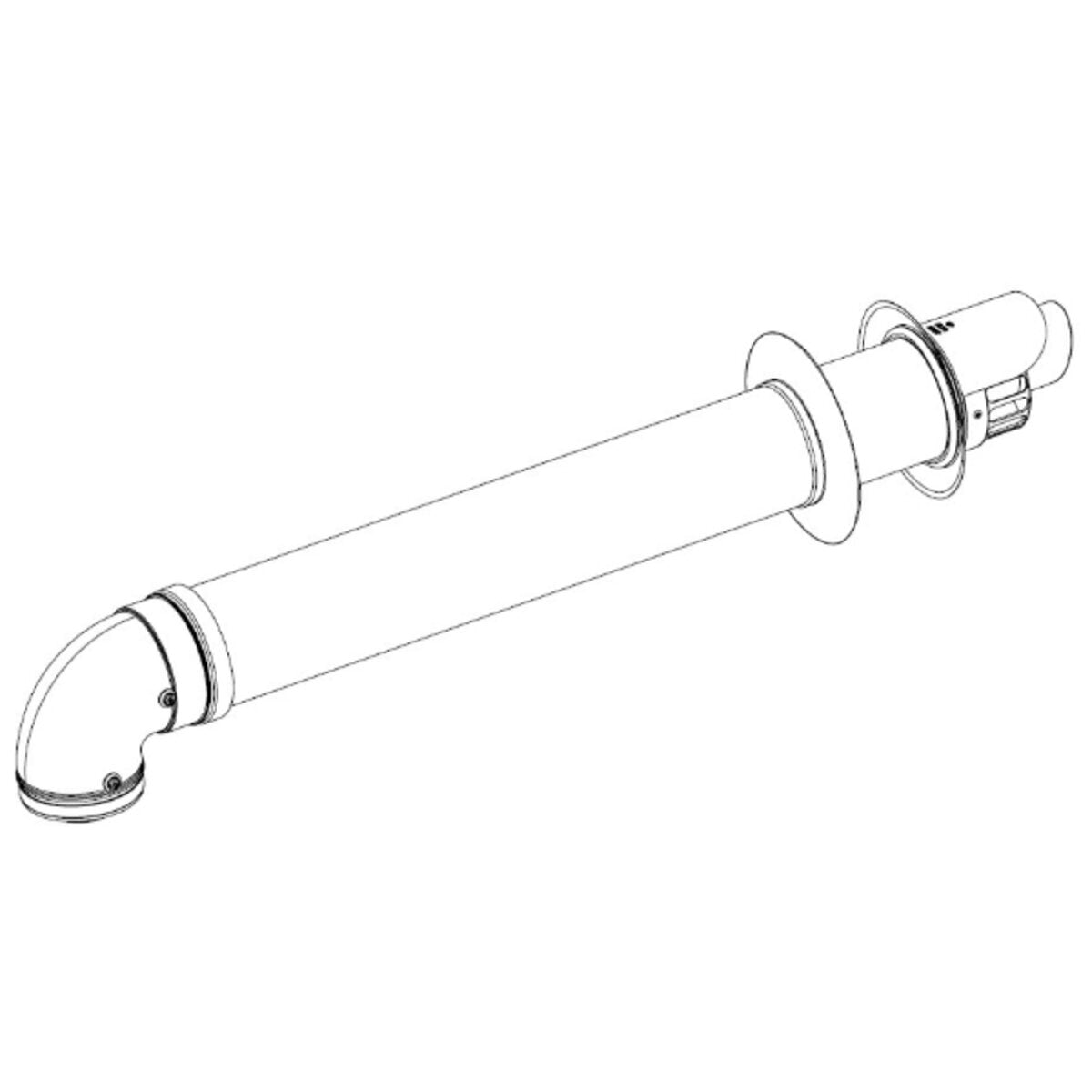

HORIZONTAL EXHAUST KIT 60/100 FOR BERETTA CONDENSING BOILERS

Horizontal kit for smoke exhaust and air intake; for Beretta condensing boilers. COMPATIBLE WITH EXCLUSIVE EVO X - MYNUTE EVO X - EXCLUSIVE X - MYNUTE X - MYNUTE BOX - CIAO X - METEO X - BLR.

The kit, 1 m long, is composed of:

- Pc. 1 - external pipe with a diameter of 100 mm. for the exhaust of fumes which contains an internal pipe with a diameter of 60 mm. for the air intake; complete with anti-wind terminal;

- Pz. 1 - Concentric curve;

- Pz. 1 - Internal rosette;

- Pz. 1 - External rosette;

- Pc. 1 - Pipe clamp diam. 100 mm.;

- Pc. 1 - Pack of screws and gaskets;

- Pc. 1 - Assembly instructions

WARRANTY

The warranty is the official Beretta Italia one and lasts 2 years.
