DAILY DIGITAL CHRONOTHERMOSTAT WITH KNIGHTS BOILER CONTROL FREETIME+ SEITRON
Code TCD01B
The SEITRON FREETIME+ digital chronothermostat with riders allows you to comfortably remotely control a boiler, a pellet stove, a heat pump or any other device that can usually be managed with a thermostat or on-off chronothermostat or with a switch, whether they are installed in the outside or inside the house.
FREETIME+ is one of the most versatile and easy to use programmable thermostats. It is equipped with a backlit display through which it provides all the operating information. Suitable for all heating or cooling systems, it has a beautiful design that allows it to be placed in any environment, whether classic or modern.
GUARANTEED SAVINGS AND HIGH COMFORT

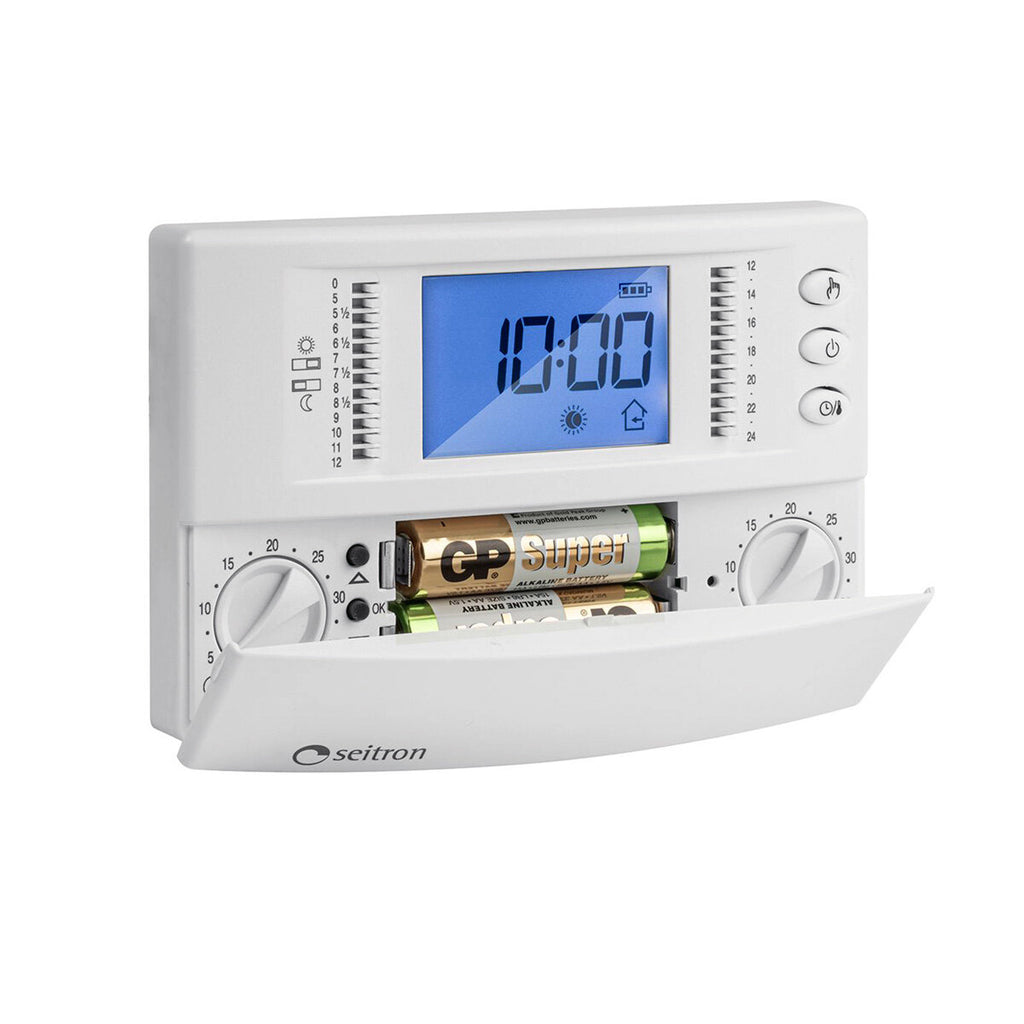

The FREETIME+ SEITRON digital chronothermostat with riders has many functions and is very easy to program ! Its display allows you to check all the functions and programming settings. Extremely easy to use because it offers daily time programming with time intervals specifically designed for the widest fields of use (they vary from 5 continuous hours for the 00:00-05:00 time band to adjustments in operating periods equal to 30 minutes each for the time band that goes from 05:00 to 09:00 and in operating periods equal to 60 minutes each for the time band that goes from 09:00 to 24:00). Each single operating period can manage a Comfort or Reduced operating band with temperatures that can be set for each of them using two comfortable and clear knobs with indication of the degrees to be set; the knobs remain hidden under a cover which also hides the controls for programming the clock and the summer/winter function as well as the battery compartment. But FREETIME+ also allows manual switching on and off of the boiler using a special button on the front panel together with the general switch-off button of the chronothermostat and the button for displaying the room temperature or the current time .
The FREETIME+ digital chronothermostat also has the Antifreeze Function with the possibility of setting the temperature to protect the system from any damage caused by too cold temperatures and the Hysteresis Adjustment Function to set the internal temperature difference between switching the device off and on again connected heating system (boiler, pellet stove, heat pump, etc.) when the set room temperature is reached.
It is also arranged for the connection of a remote probe (not supplied in the package).
Installation is simple ; the chronothermostat is powered by two 1.5 V AA alkaline batteries for which the charge level is always shown on the display.
TECHNICAL FEATURES
- Powered by 2 x 1.5V AA batteries
- Battery life (years) >1
- Daily Programming
- Hot/Cold On/Off operation
- 2 settable temperatures (Comfort - Reduced)
- Setting range 5 .. 35°C
- Adjustable antifreeze 0°C .. 25.0°C
- Internal NTC sensor (10K Ohm @ 25°C)
- Backlit 3-digit LCD temperature display
- Output (relay) 5(1)A @ 250V~ SPDT
- IP30 degree of protection
- Class Reg.2013/811/CE IV = 2.0%
WARRANTY
The warranty is the official Seitron one and has a duration of 24 months.
