Zucchetti R99684 built-in bath/shower body

Roll over image to zoom in Click on image to zoom

Zucchetti R99684 built-in bath/shower body

Name: Zucchetti R99684 built-in bath/shower body
Brand: Zucchetti
SKU: R99684
Price: 79.19 EUR
Availability: InStock

Save 38%

ZucchettiSKU: R99684

Price:

€79,19 €128,10

Quantity:

Share this product

Code: R99684
ID code: 5D6D1A
Pre-code: ZUC
Short description: The Zucchetti R99684 built-in part is the ideal technical body for bath-shower mixers with diverter, designed for concealed wall installation. It allows the management of two water outlets (shower and second user) ensuring functionality and maximum aesthetic purity. Compatible with Zucchetti built-in mixers, such as the GILL ZGL127 series, it ensures high performance and reliability over time.
Category: Accessories
Type: Tap accessories
Series: SUP
Benefits
WiFi: No
Type of sanitary ware: BathtubShower

Download technical specifications

Zucchetti R99684 built-in part for bath-shower mixers with diverter

The Zucchetti R99684 built-in part is the technical body designed for wall-mounted single-lever bath/shower mixers with diverter. Belonging to the Zucchetti Built-in Parts category, it represents the fundamental basis for ensuring functionality, reliability, and seamless integration in built-in shower systems.

Technical structure for built-in installation

Designed to be fully integrated into the wall, the R99684 conceals all the technical components, leaving only the external part of the mixer exposed. This creates a clean, modern, and minimalist aesthetic, ideal for designer bathrooms.

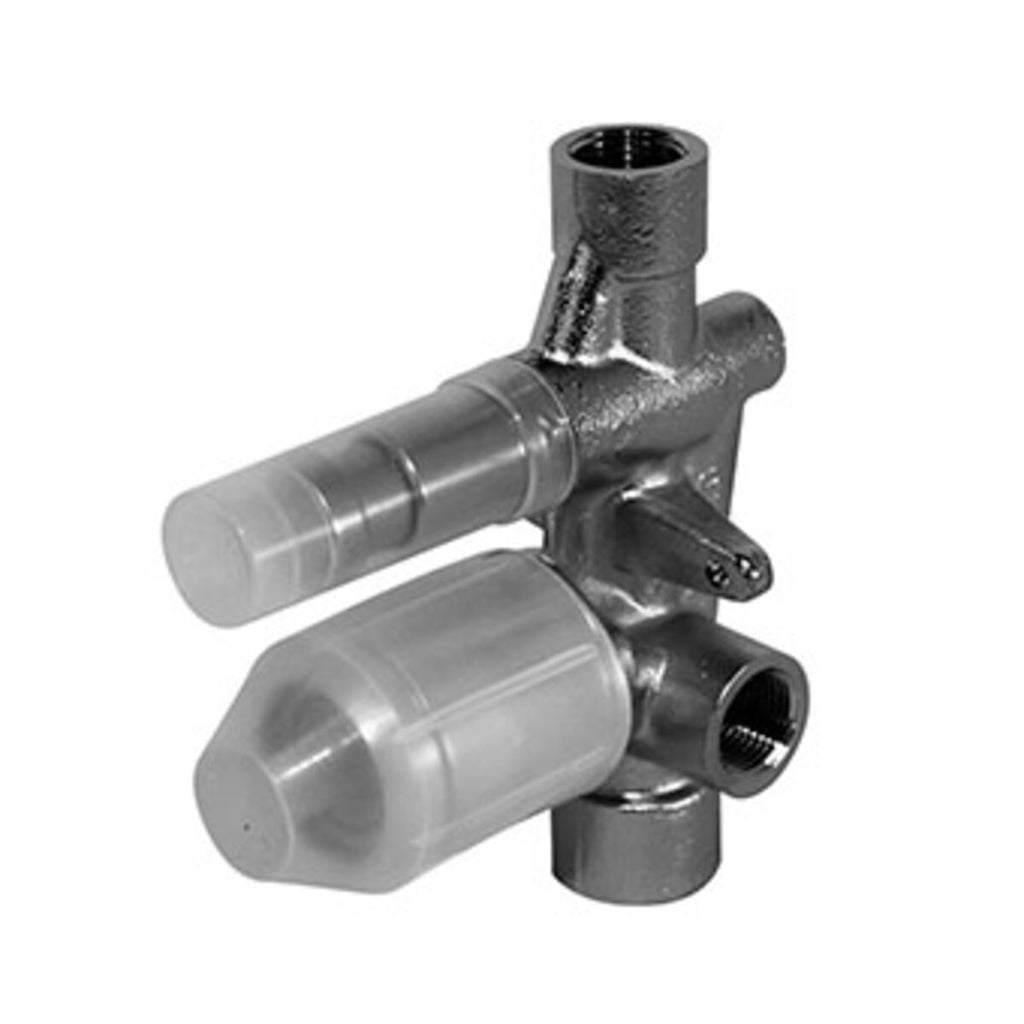

The body is equipped with plastic protections for the installation and finishing phase, facilitating assembly and preventing damage during work (visible in the technical drawing on page 2).

Integrated diverter and double outlet

The built-in part integrates a system with internal diverter , which allows the management of two water outlets:

primary outlet (e.g. shower head or bath spout)
secondary outlet (e.g. shower)

This configuration allows for versatile and complete use of the shower system.

High performance

As highlighted in the chart on page 3:

Primary output: up to approximately 34 l/min at 5 bar
Secondary output: up to approximately 30 l/min at 5 bar

It therefore guarantees high performance and a plentiful and constant flow of water, ideal for both showers and filling the bathtub.

Technical features

Type: built-in part for bath-shower mixer with diverter
Installation: wall-mounted
Diverter: integrated for double outlet

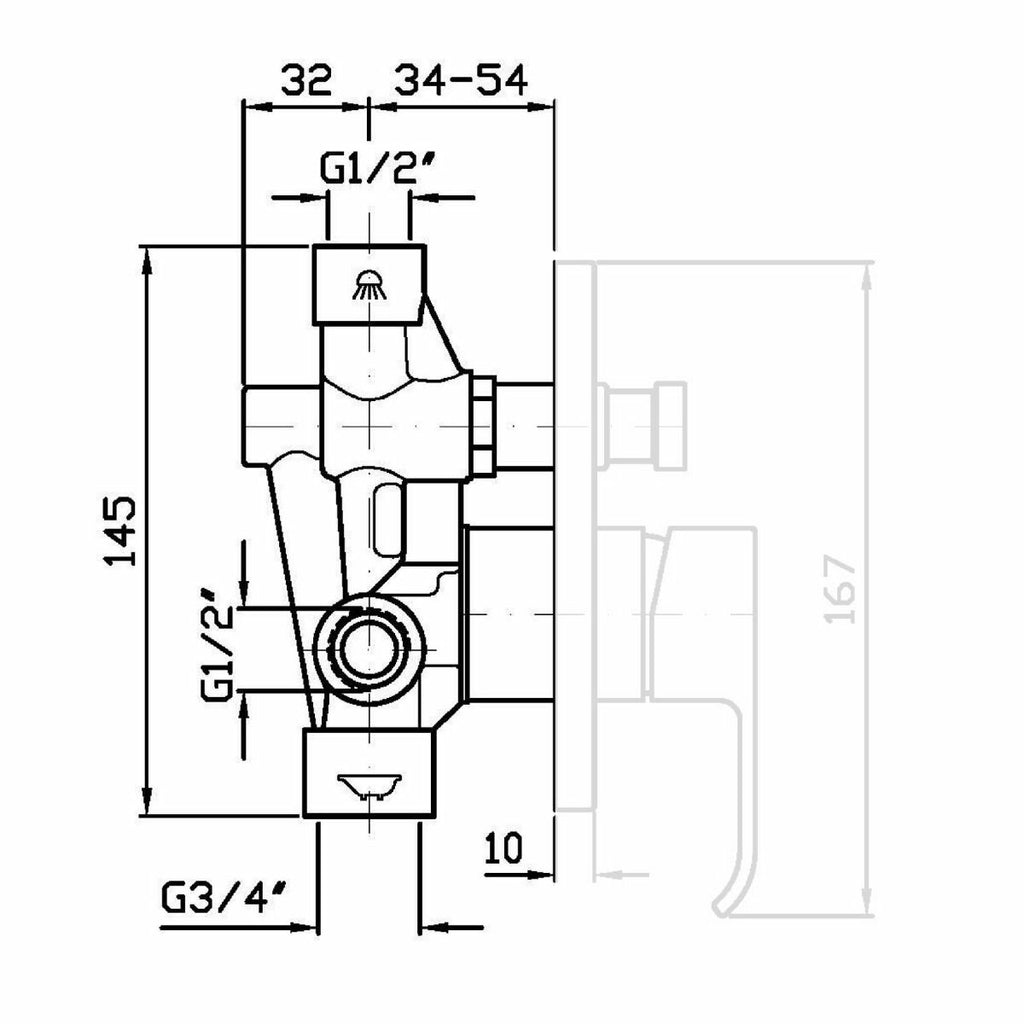

Attacks:
- G1/2” inputs
- G1/2” top outlet
- G3/4” lower outlet (as per technical drawing page 2)
Recess depth: minimum approximately 50 mm – maximum 80 mm
Weight: about 1.44 kg

Compatibility

The R99684 built-in part is designed to be used with Zucchetti external mixers equipped with a diverter, in particular:

GILL - NIKKO - RIVO series (LAB line)

ZGL127 (built-in bath-shower)
ZKK127 (built-in bath-shower)
ZRV127 (built-in bath-shower)

In general:

Zucchetti built-in bath-shower mixers with diverter compatible with this built-in body

Note: it is always recommended to check compatibility with the specific external code, but R99684 is one of the standard Zucchetti bodies for 2-way configurations (shower + secondary outlet) .
