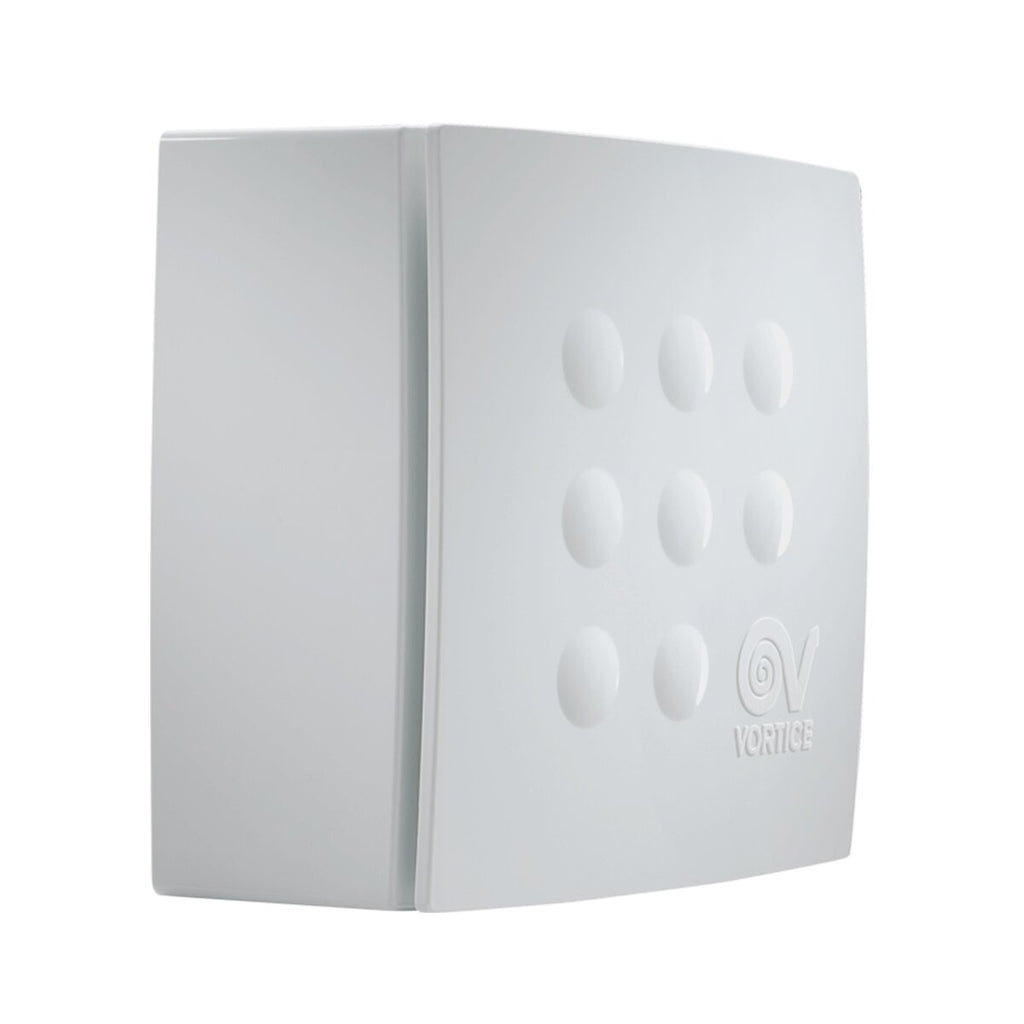

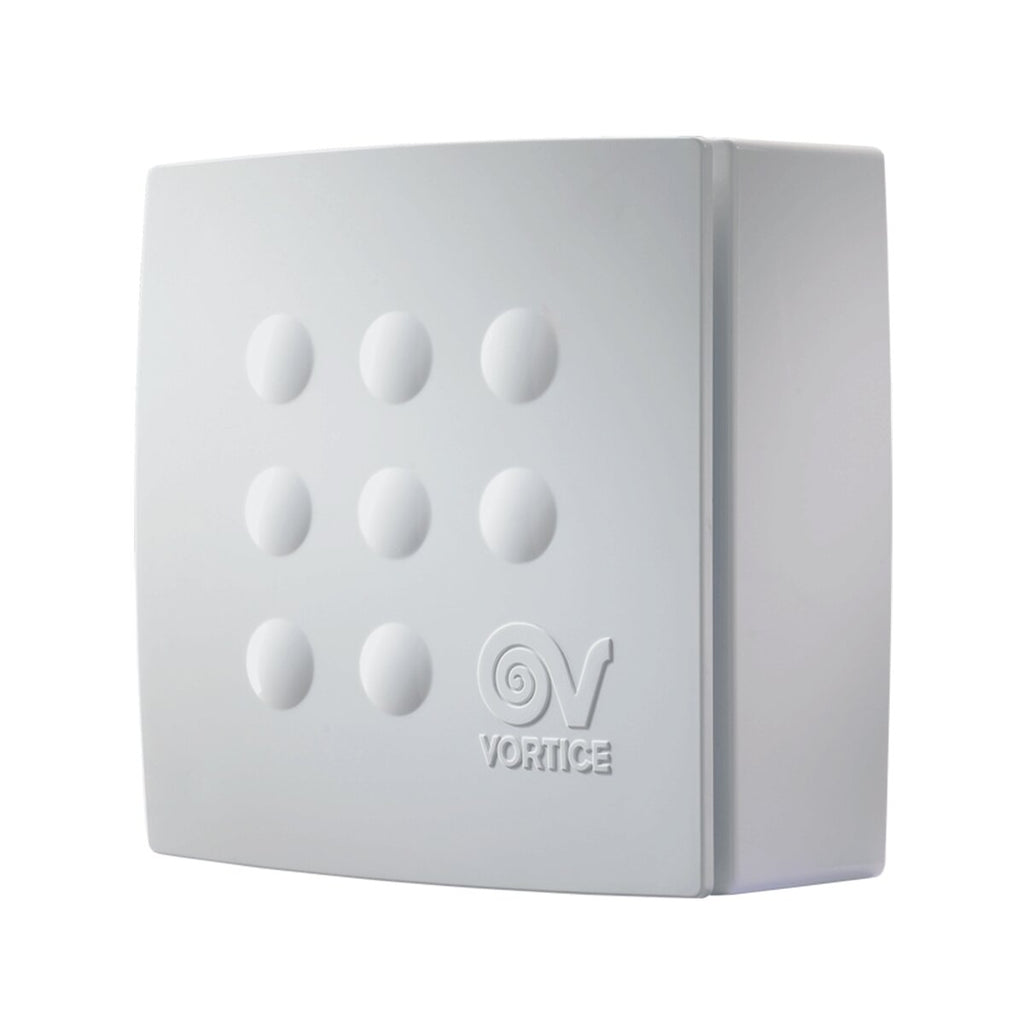

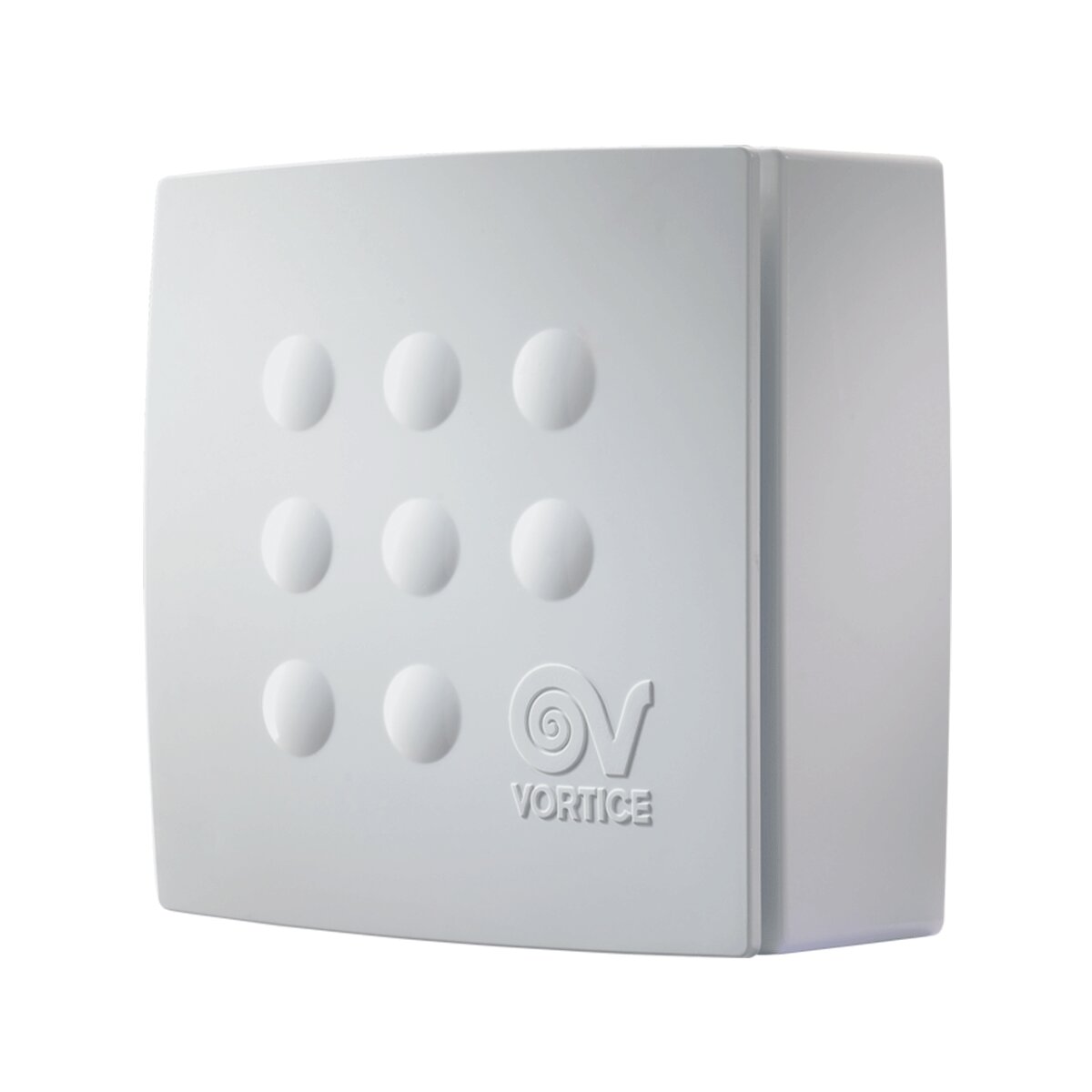

Vortice VORT QUADRO Micro 80 T duct centrifugal extractor with Timer Ø 80 mm

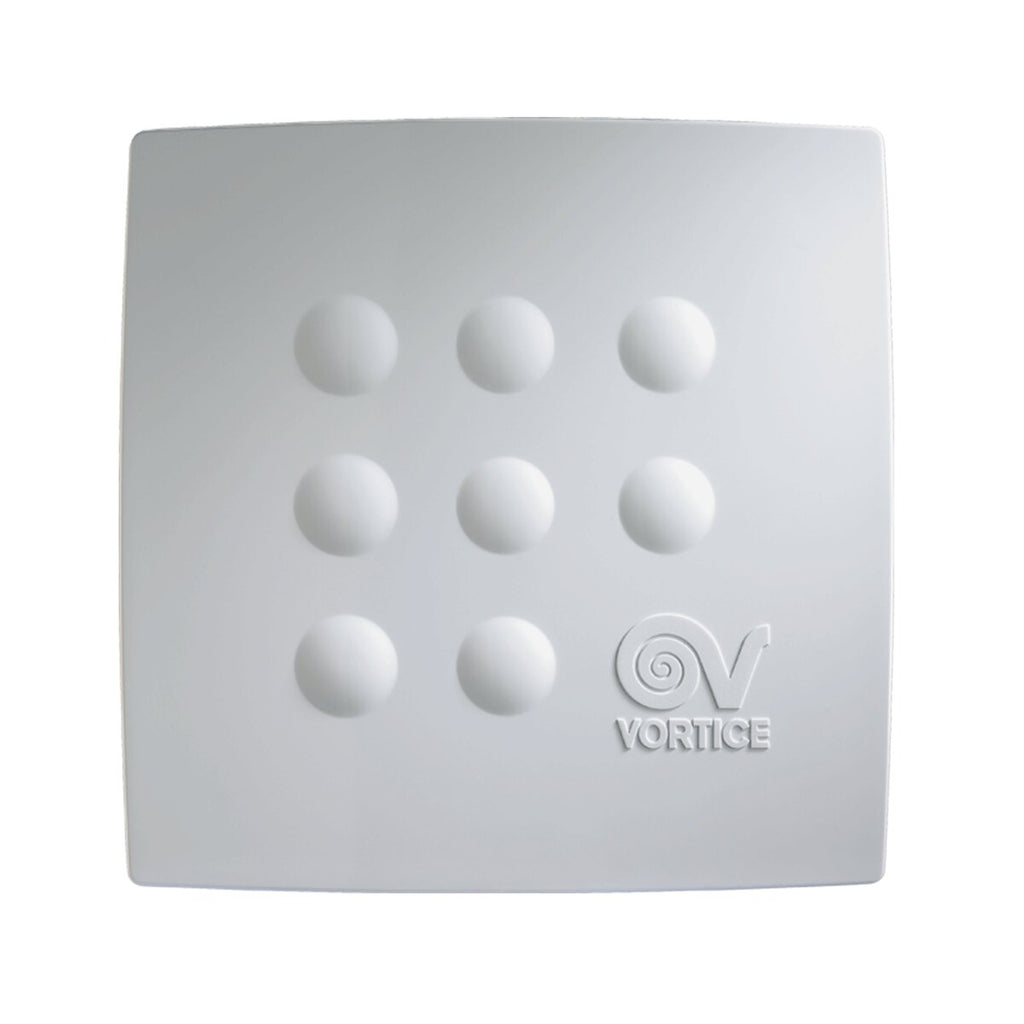

The Vortice Micro 80 T centrifugal extractor fan is the ideal solution for the ventilation of small, medium or large residential and commercial premises whose floor plan requires exhaust canalisation. With a refined design, designed to be inserted into environments and have a very low visual impact, this vacuum cleaner is made up of a linear and elegant front panel which hides the hole behind it, becoming a refined and peculiar design accessory.
Equipping your home with an extractor fan is the right choice to make if you want to allow safe air exchange, extract saturated air from the rooms, bad odors and guarantee greater healthiness of the environments. To this end, Vortice Micro 80 T has been designed with some technical features that make it one of the most sought-after and high-performance vacuum cleaners on the market: made of shock-proof and anti-UV white ABS plastic resin with a nominal diameter of 80 mm, it has a min. 60 m3/h and max 85 m3/h; polyurethane air filters and non-return valves integrated into the exhaust pipes, to prevent the return of air and bad odors when the appliance is turned off; it has a 2-speed induction type motor with starting capacitor combined with a forward blade centrifugal impeller and is also equipped with a protection thermofuse and self-lubricating bushings to contain noise emissions and guarantee regular operation of the product for durations adequate for the typical applications; furthermore, compared to other products of the same type, it is equipped with an electronic timer, therefore it is possible to set the automatic switch-off, to be carried out during the installation phase in the range 3'-20' (default setting 3').
These technical details provide a final product capable of carrying out the assigned task very well, safely and meticulously. Thanks to this technology, the energy efficiency of the properties in which we live is improved, reducing heating and air conditioning costs, but above all it really promotes well-being and living comfort, also significantly affecting the reduction of airborne transmission of infectious forms.
The installation is on the wall and must be carried out by expert and authorized technical personnel. IMQ and IMQ PERFORMANCE certified safety and performance.
TECHNICAL FEATURES
- Ø Drain 73.5 mm
- Nominal duct diameter 80 mm
- Frequency 50 Hz
- IP X4 Protection Grade
- Class II insulation (no earthing required)
- Voltage (V) 220-240
- Sound emission in free field [dB(A)] 3m 28.7
- Range:
- Max flow rate at max speed. (l/s) 24
-
Max flow rate at max speed. (m³/h) 85
-
Max flow rate at min speed. (l/s) 17
-
Max flow rate at min speed. (m³/h) 60
DIMENSIONS
- Width 239 mm_Height 239 mm_Depth 117 mm
- Weight: 1.81kg
WARRANTY
The guarantee is the official Vortice one and lasts 2 years.
