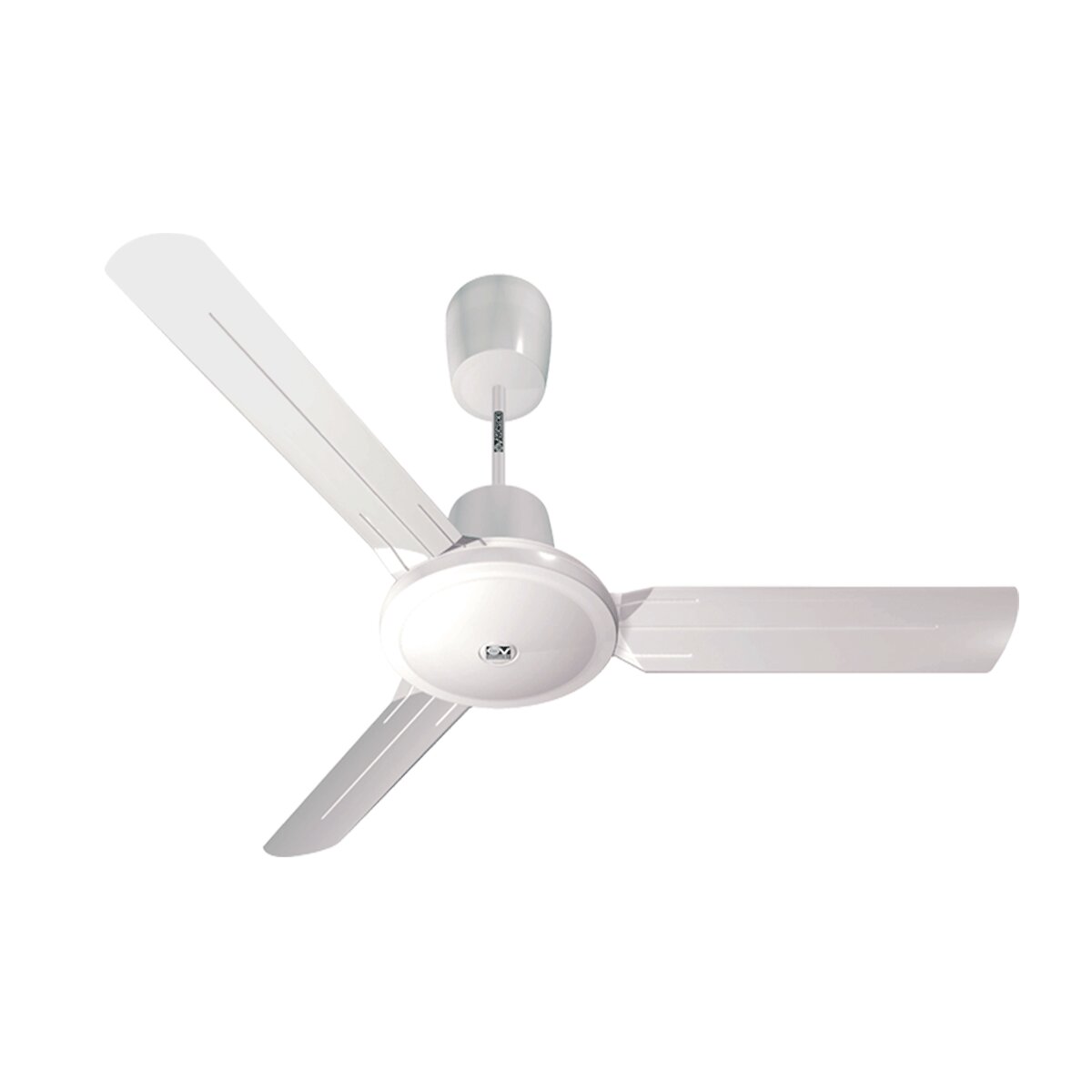

Vortice NORDIK EVOLUTION R 160/60'' 3-blade reversible ceiling fan White
The Vortice NORDIK EVOLUTION ceiling fan is the ideal solution for cooling air in small and medium-sized domestic and commercial environments. Modern and elegant design that manages to enhance the environment by virtue of its linear and subtle shapes, filling the spaces in a refined way and configuring itself as an aesthetically pleasing furnishing accessory, capable of giving added value to the room (bedrooms, studios, living rooms, shops, restaurants, bars).
It has several advantages: it is reversible , which means that it is possible to reverse the direction of the air flow by directing it from bottom to top to create an indirect flow capable of improving the lateralization of heat in winter, reducing the temperature difference between the floor ( colder) and the ceiling (warmer); it is economical , consuming only a maximum of 70 W, it allows you to reduce consumption without sacrificing comfort, especially on sultry summer days; it is silent , with only 55.6 dB(A) of sound power, they are also suitable for bedrooms for night-time use; they are easy to install and multitask because they can also be used as chandeliers with the help of special kits.
It is equipped with a self-protected external rotor type motor , operating clockwise and anti-clockwise, with a shaft mounted on ball bearings to guarantee maximum performance in conditions of prolonged use both at the maximum rated temperature and at low speeds; equipped with 3 blades in electro-galvanized sheet steel with a diameter of 1600 mm , painted with white scratch-resistant polyester paint as well as the 375 mm long steel support rod ; the electrical connection covers located at the end of the rod are made of shock-proof and UV-resistant thermoplastic resin (PP) , while the upper and lower engine covers are made of ABS, a thermoplastic resin with great resistance to aging caused by rays UV.
The Vortice Nordik Evolution ceiling fan, in addition to fulfilling its primary function of cooling rooms, can also be used as a chandelier and performs a dual function very well; to this end, however, it is necessary to purchase the optional EVOLUTION LIGHT KIT ES (code 0000022414 available on Climamarket) . Furthermore, it is possible to manage them using the VORTICE control units or the TELENORDIK 5TR remote control , both optional and available on Climamarket (code 0000012963 and code 0000022386) .
Installation is simple and quick and must be carried out by expert and qualified technical personnel ; the fan includes the accessory bag containing everything necessary for assembling the blades, the steel ceiling attachment hook for absolute safety in service and the anti-vibration rubber for fixing to the ceiling.
The Vortice NORDIK EVOLUTION fan can be used in addition to or as an alternative to more demanding air conditioning systems. Further information on technical and installation specifications are contained in the user manual supplied with the product and in the attached technical data sheet .
NB: for dimensions , including light kit, please refer to the attached technical data sheet .
WARRANTY
The guarantee is the official Vortice one and lasts 2 years.
