Valsir Tropea S Fixsystem mechanical built-in cistern
Tropea S is the famous series of WC cisterns by Valsir , a company that has been designing and manufacturing state-of-the-art thermo-hydraulic components for more than 35 years and of recognized quality throughout the sector. The wide range of structures and accessories available make the Tropea S line the most suitable solution for your needs because it is able to guarantee great versatility in the installation phase.

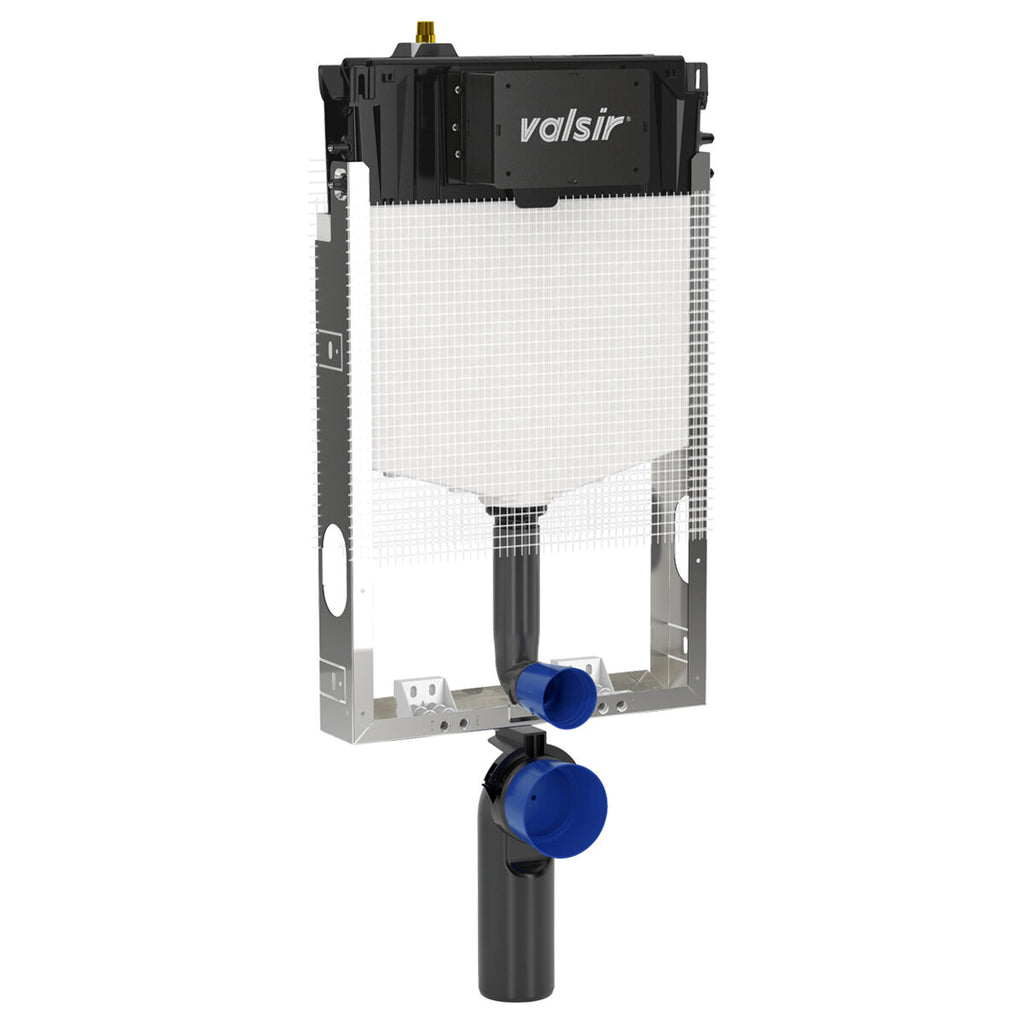

In particular, the Tropea S Fixsystem mechanical built-in cistern is designed for the installation of wall-hung WC pans with brick walls. The Fixsystem structure is equipped with an elongated space-saving toilet curve that allows the cistern to be installed in walls of just 90 mm. Innovative and avant-garde, the cistern is recessed into the masonry.
The structure and all anchor points are entirely made of galvanized steel to guarantee maximum resistance to corrosion.
The Tropea S Fixsystem box offers greater comfort , thanks to the choice of container material which ensures high absorption of acoustic vibrations. The internal components of Tropea S have been certified, according to ISO EN 3822, in class I of silence both at 3 and at 5 bar, at the prestigious Fraunhofer Institute in Stuttgart.
The actuation can be either mechanical, pneumatic, electronic, electronic and mechanical, or mechanical and pneumatic at the same time. The rubber components comply with EN 681/WC, guaranteeing unparalleled quality and resistance to chemical agents. With Tropea S the adjustment of the discharge is very simple and can be set at 6/3, 4.5/3 or 4/2 liters in full compliance with the protection of environmental resources and the principles of Green Building.
The drain valve, patented by Valsir , guarantees cleaning of any type of pan, even rimless . In addition, the materials of the drain valve and float prevent scale build-up.
Everything needed for installation is included in the package. The Tropea S Fixsystem cistern is supplied 100% pre-assembled so as to speed up and simplify installation on site. The revolving inlet connection also facilitates the installation phase of the box.
Technical features:
- Recessed installation in the wall
- Mounting accessories supplied
- 100% pre-assembled cassette for quick and easy installation
- Compatible with any type of vase
- Very simple flush adjustment that can be set at 6/3, 4.5/3 or 4/2 litres
Measures:
- Thickness: 90mm
- Height: 1072mm
- Width: 484mm
WARRANTY
The guarantee is the official Valsir one and has a duration of 2 years .
