Valsir T-58 lowered siphon in PP for D 90 shower tray
To integrate the waste lines, Valsir offers a wide range of innovative and patented solutions suitable for every need and type of installation.
The Valsir T-58 lowered siphon, with its 58 mm height, represents the ideal solution for installations where the thickness dedicated to the systems is limited, thus reducing the interventions to embed the trap body in the slab.
COMPATIBILITY
The T-58 lowered siphon is compatible with the main HDPE polyethylene, PP/PP3 polypropylene, Triplus, Silere or PVC waste systems. It is compatible with all shower trays with a 90 mm diameter hole, guaranteeing high performance even in combination with the most modern and design shower solutions. The T-58 lowered siphon is ideal for creating floor-level showers, thus becoming the perfect solution for creating showers in nursing homes, clinics, hospitals, rest homes and in all those environments where the absence of architectural barriers is required to offer maximum accessibility for people with reduced mobility and wheelchair users.
FUNCTIONALITY AND COMFORT
The T-58 lowered siphon by Valsir adapts to shower trays of different shapes, types and materials including acrylic, ceramic and stone. It also has a double flow rate compared to traditional products (according to the EN 274 standard): the flow rate of 48 l/min allows use with high flow shower heads. T-58 can be completely inspected: normal cleaning operations can be carried out with quick and simple operations. Also, it has a high resistance to odors (700 Pa), well beyond the regulatory requirements (400 Pa according to EN 1253).
PRODUCT FEATURES:
- Functional and innovative design
- Compatible with all types of pipes on the market
- Products with technologically advanced materials
- Adjustable systems for sophisticated installations
- The product, its recyclability and the production processes used are based on the Green Building principles
- Siphon height of only 58 mm, including gasket
- Double hydraulic guard
- Complete inspection
- Connection to the Ø 50 exhaust system

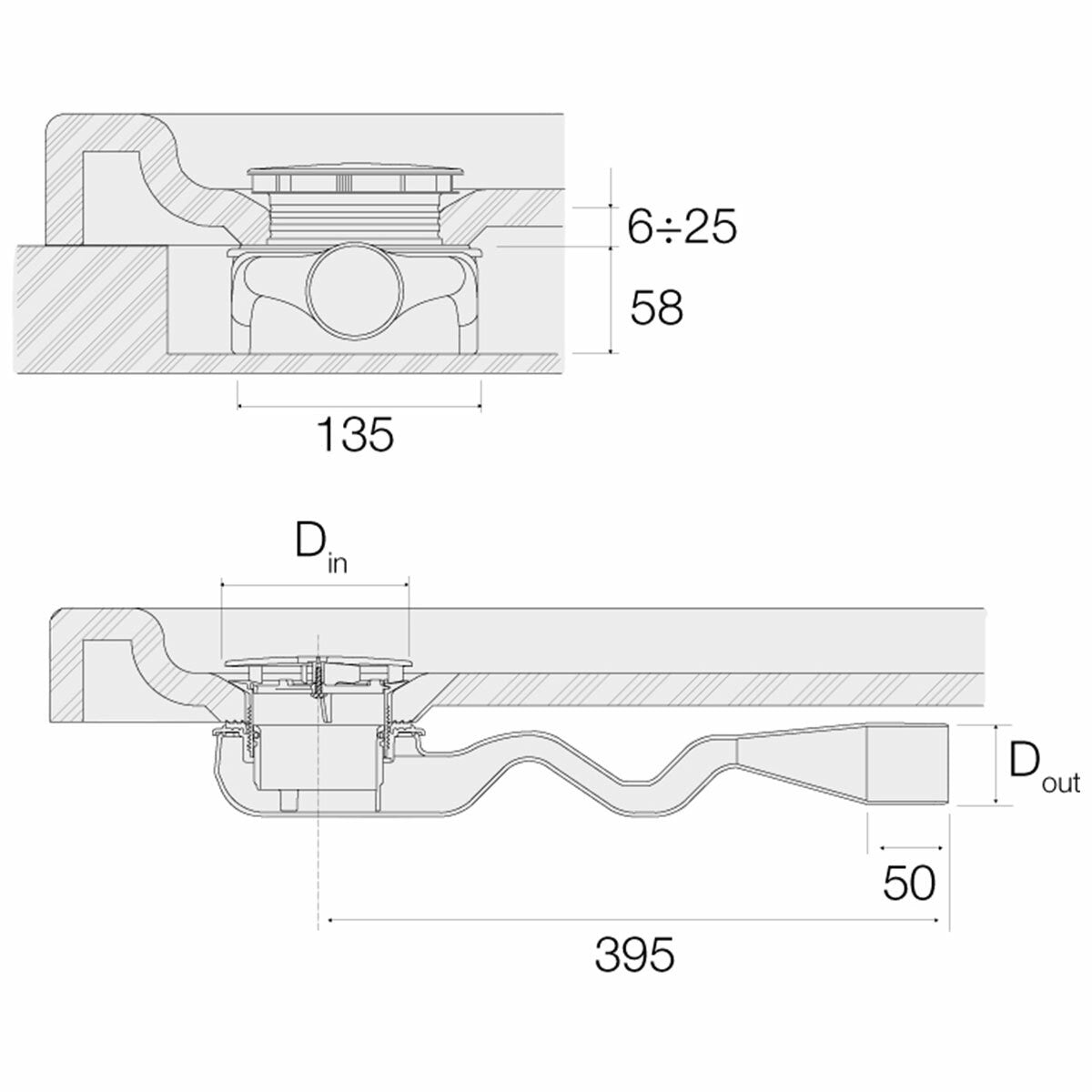

MEASURES:
Height: 58mm
Length: 395mm
Connection Ø 50
WARRANTY
The warranty is the official Valsir one and has a duration of 2 years.
