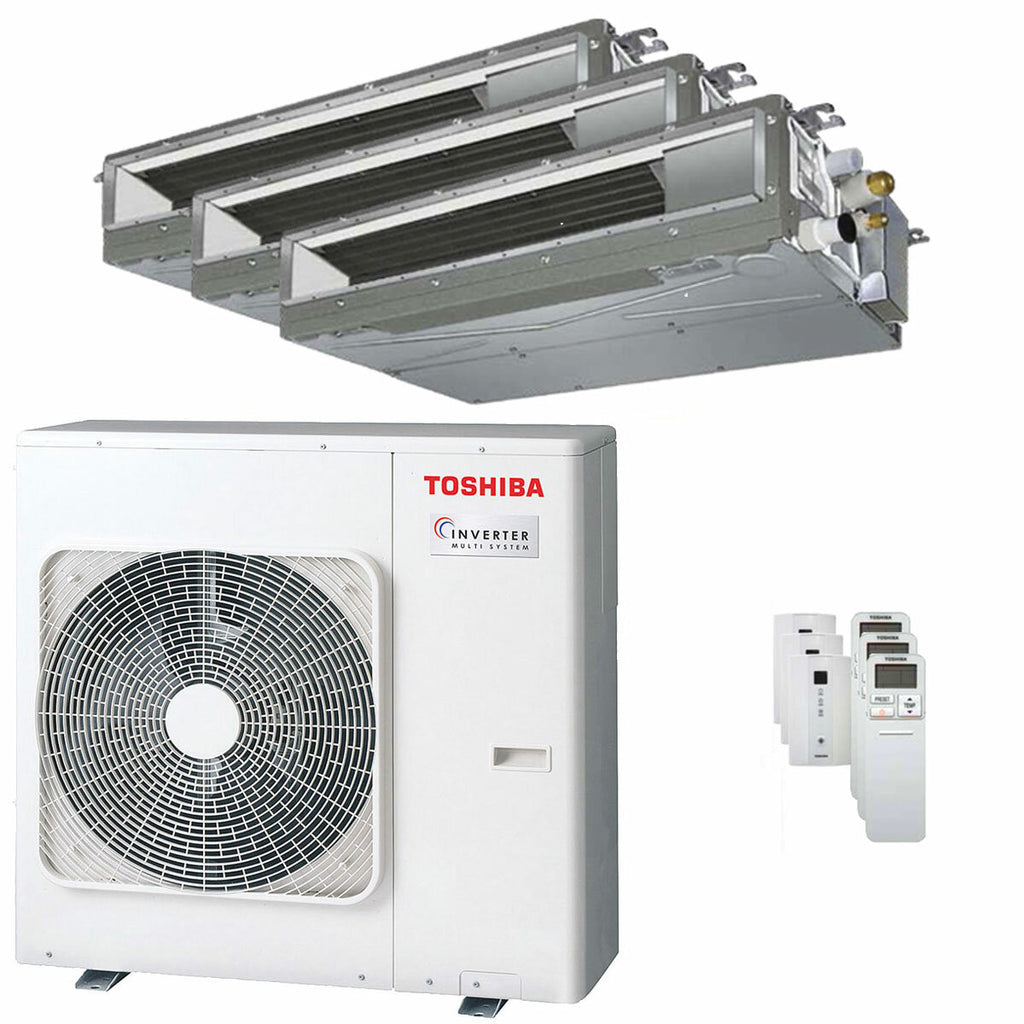

Toshiba ducted U2 trial split air conditioner 7000+9000+22000 BTU inverter A+++ external unit 7 kW The air conditioner kit is equipped with the following indoor units:
- 1 x 7000 BTU - Ideal for rooms from 10 to 15 sqm with an average height of 2.7 m
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 22000 BTU - Ideal for rooms from 65 to 85 sqm with an average height of 2.7 m
Toshiba 's Natur32 family also includes among its components the U2 Multi series of ducted air conditioners: available in six sizes and with four different settable prevalence levels , rich in functionality and above all easy and versatile to install (with a height of only 210 mm!), combined with Toshiba multi-split inverter external units, guarantee excellent performance and high energy savings .

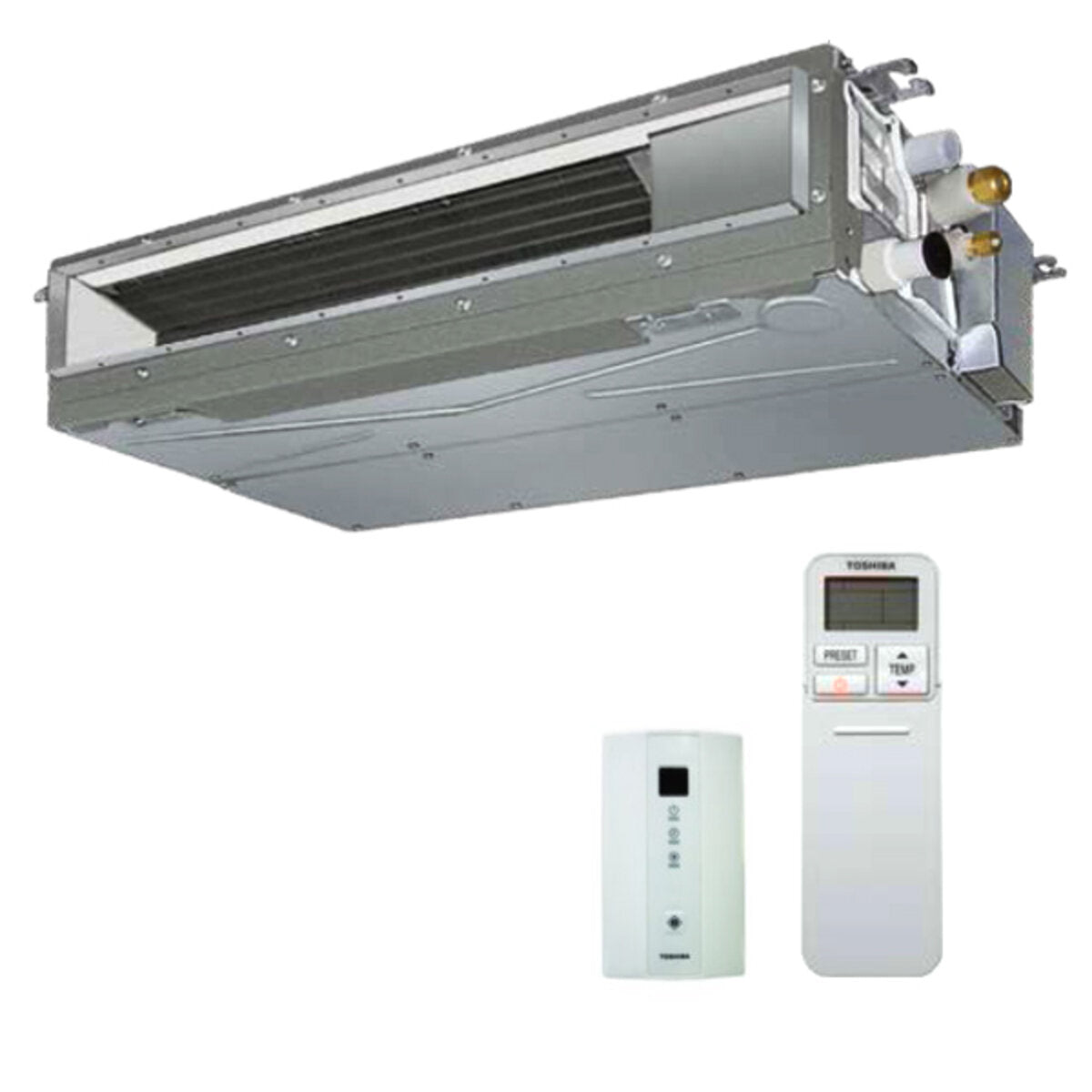

With the Toshiba U2 Multi built-in ducted air conditioner, the internal unit is mounted in a hidden position, generally in a false ceiling and the air spreads into the room through a special ventilation opening. The advantages of ducted air conditioners consist in particular of the possibility of air conditioning the rooms without the internal unit being visible, to the benefit of aesthetics and the possibility of using the walls for our furnishings. With the installation of a built-in air conditioner, there is well-being but it is not there. . . the air conditioner!
GUARANTEED SAVINGS
The internal unit of the Toshiba Ducted U2 Multi air conditioner offers great comfort and excellent performance in both cooling and heating and satisfies many air conditioning needs thanks to its four different adjustable head levels (from 10 to 45 Pa) which allow you to optimize the flow of the air based on the length of the channels and the desired comfort. By taking advantage of the Toshiba inverter system, it achieves the best energy efficiency classes . It has very low consumption, which is further reduced thanks to the additional energy saving functions ; manages to create superior comfort since the temperature is always kept constant.
DESIGN
The Toshiba Ductable U2 Multi air conditioner allows you to use maximum imagination in the architecture of the environments where it is installed. Its "invisible" presence allows rooms to be air conditioned easily thanks also to the small size of the internal units ( only 210 mm thick ) which allows them to be integrated into the most unexpected places in the room. Suitable for installation anywhere, in homes, commercial activities, offices and hotel environments. The internal unit is already equipped with a condensate drain pump; the air intake can be carried out both from the rear and from the bottom which makes the installation operations even simpler. The air conditioner is already supplied complete with remote control and infrared receiver .
BREATHE CLEAN AIR
Toshiba's U2 Multi ducted indoor units do not have a standard air filter but the same can be purchased as an optional kit. The filter removes the most common harmful agents allowing the air conditioner to always return clean air; It is easily removable for cleaning.
The internal unit is also self-cleaning : after switching off, the fan continues to operate for up to thirty minutes to dry the heat exchange coil and eliminate any residual humidity still present.
PERFECT CLIMATE AND RELAXATION
The Toshiba U2 Multi ducted air conditioner quickly reaches and always maintains the set temperature constant, without fluctuations; it offers optimal comfort as it distributes the air extremely silently and in a truly imperceptible way thanks also to the hidden position of the built-in split.
Thanks to the practical remote control supplied, it is possible to manage, in addition to the classic heat, cold and dehumidification settings, multiple functions: the QUIET mode, to reduce the speed of the already very silent fan to a minimum; the COMFORT SLEEP function to ensure peaceful sleep at the ideal temperature; ECO mode to automatically manage the temperature based on that of the external environment; the convenient PRESET function which allows you to store the user's favorite settings and recall them automatically; the HI POWER function which allows you to quickly cool or heat at maximum power. Furthermore, a convenient TIMER will allow you to set up to eight daily operating intervals for each day of the week.
Toshiba's U2 Multi ducted indoor units can be managed via a wired wall control (code RB-RWS21-E which can be purchased separately); they also offer the possibility of being controlled remotely via smartphone or tablet by purchasing a WiFi control with Infrared receiver separately (code INWFIUNI001I000) which will make them manageable through the Toshiba & WI-FI App.
ACCESSORIES SUPPLIED AS STANDARD WITH EACH INDOOR UNIT
- Remote control with infrared receiver.
WARRANTY
The warranty is the official Toshiba one and lasts 24 months.

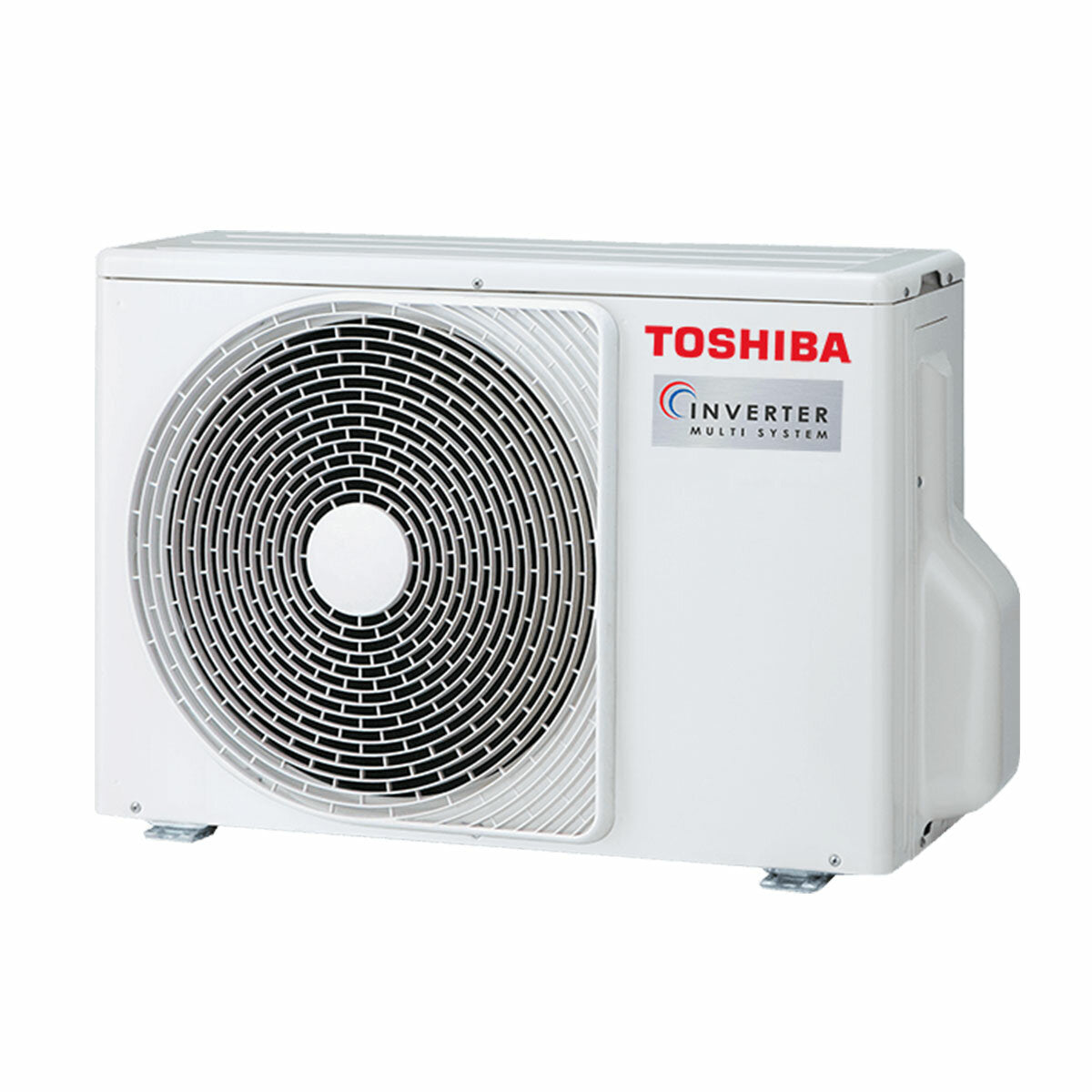

THE OUTDOOR UNIT
The external units for multisplits in the Toshiba G3 series are part of the NatuR32 family of the Japanese brand , particularly innovative and very attentive to the environment thanks to the adoption of R32 gas with low environmental impact. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to that of its predecessor R410A.
The two-connection external unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.
The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.
This external unit allows you to connect and power three Toshiba internal units of any series, even of different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS
The Toshiba G3 multisplit outdoor unit always provides a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment that needs to be air conditioned. This new model offers high performance and great comfort in both cooling and heating. Thanks to the DC Hybrid Inverter system, the external unit allows for high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes, up to A+++ for cooling and A++ for heating, and reduces waste to a minimum . The efficient Twin Rotary compressor allows further savings, as well as guaranteed well-being, thanks to the maintenance of a constant temperature without fluctuations . It also boasts unparalleled silence, fully respecting your own sleep and that of others, as it is also equipped with the Quiet mode which further lowers the sound pressure level of the unit with a simple touch on the remote control. The innovative construction technology of the compressor allows for simplified maintenance and makes it particularly robust, which benefits its durability over the years.
Particularly resistant to bad weather and atmospheric agents, the G3 external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Toshiba one and lasts 2 years.
