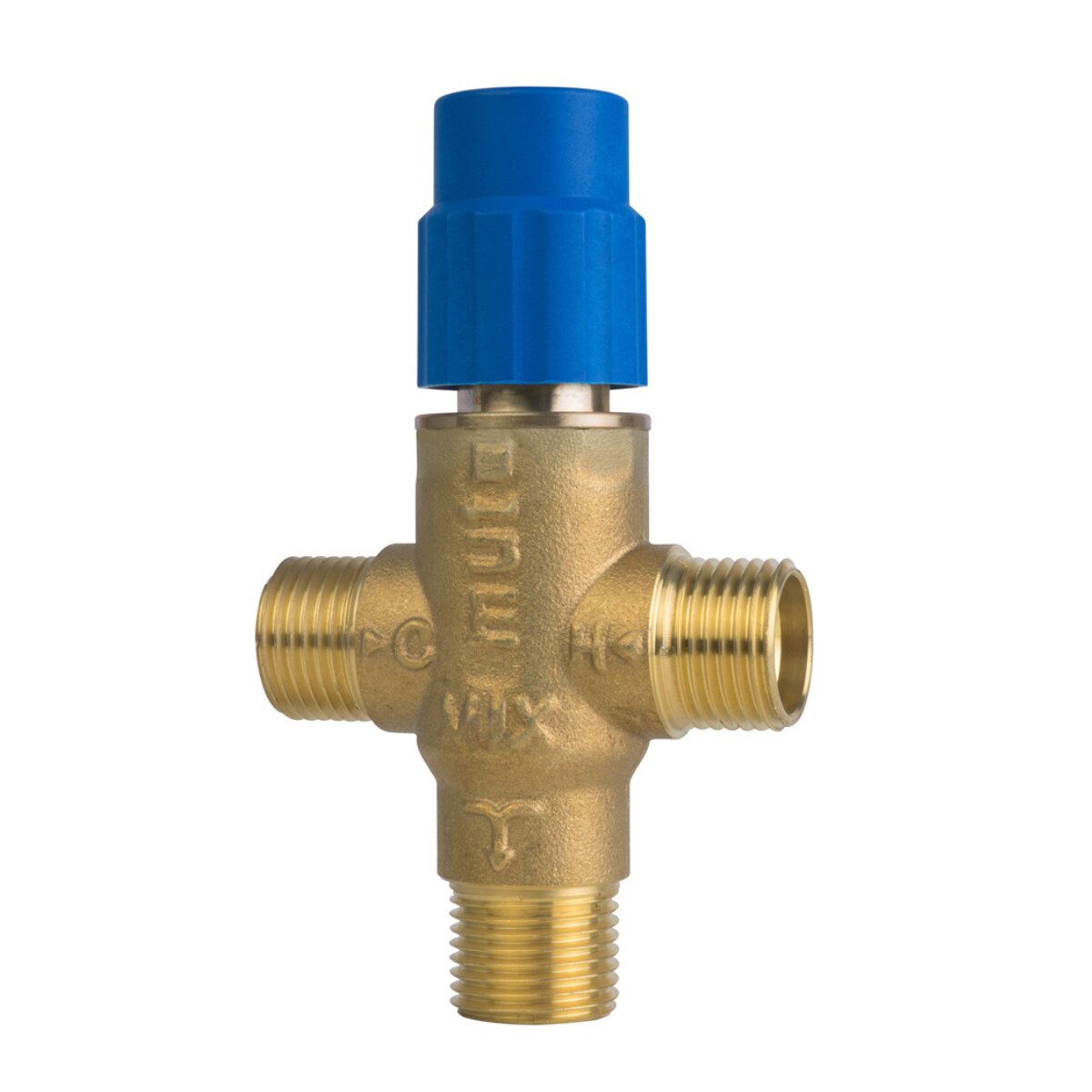

Thermostatic mixing valve MUT TWR-RA Ø3/4 30÷60°C with unions
The MUT TWR-RA thermostatic mixing valve is designed for use in domestic hot water production systems and is designed to maintain a constant temperature of the mixed water sent to the users.
Thermostatic operation allows the valve to automatically adjust the mixing of hot and cold water, maintaining a stable outlet temperature even in the presence of variations in temperature, supply pressure and inlet water flow rate .
The MUT RA series features a regulation range specifically designed for centralized hot water production systems and is equipped with an internal anti-scale coating , useful for limiting the formation of deposits inside the device and maintaining its correct functioning over time.
The MUT 7.030.01123 , model TWR-RA 20 E solar , is an adjustable thermostatic mixing valve DN20 with Ø3/4 connections and is supplied complete with unions .
The temperature of the mixed fluid can be adjusted within a range between 30 and 60°C , with a declared accuracy of ±2°C . The nominal pressure of the valve is PN10 , while the flow coefficient Kvs is equal to 1.7 m³/h .
The maximum permissible fluid temperature is 120°C , while the maximum permissible ratio between the pressures of the hot water and cold water inlets is 2:1 .
Installation must be carried out by expert and qualified technical personnel , following the instructions given in the official MUT technical documentation.
NB: for information regarding dimensions, overall dimensions and installation methods, please refer to the product technical data sheet .
TECHNICAL CHARACTERISTICS
- DN: 20
- Connections: Ø3/4
- Nozzles included
- Drive type: thermostatic
- Outlet temperature regulation range: 30÷60°C
- Regulation accuracy: ±2°C
- Maximum fluid temperature: 120°C
- Nominal pressure: PN10
- Flow coefficient Kvs: 1.7 m³/h
- Maximum ratio between hot/cold or cold/hot inlet pressure: 2:1
- Internal anti-limescale coating
- Suitable for domestic hot water production systems
WARRANTY
The warranty is the official MUT one and lasts 2 years .
