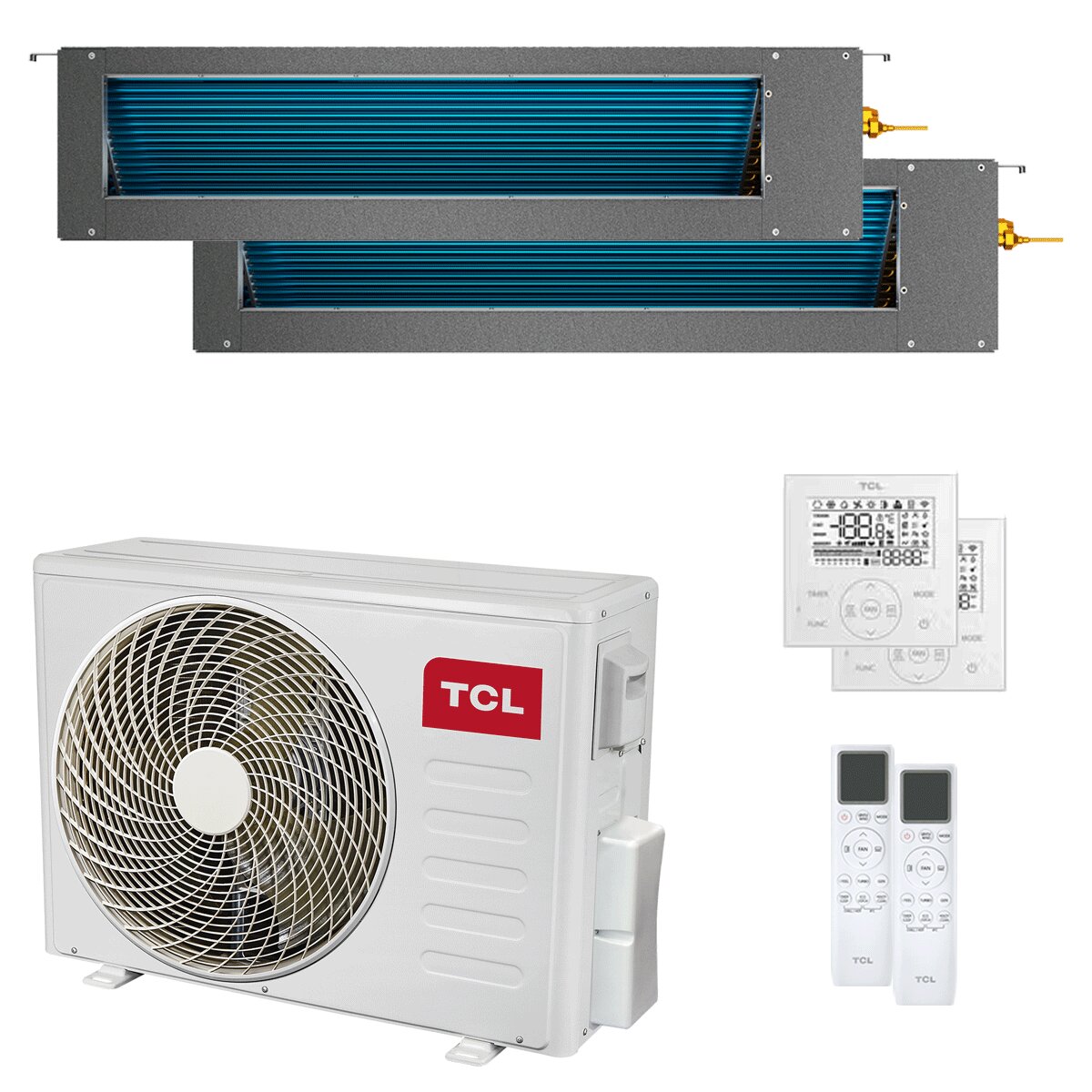

TCL Ducted Air Conditioner D Series dual split 9000+9000 BTU inverter A++ wifi external unit 5.1 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
The TCL ductable air conditioner Series D is the ideal choice for those who want a powerful, discreet and versatile air conditioning system, capable of integrating perfectly into any environment without aesthetic compromises. Thanks to its hidden installation in the false ceiling , it guarantees a homogeneous and silent diffusion of air, keeping the rooms cool in summer and warm in winter, with an energy efficiency that optimizes consumption .
TCL, an international brand recognized for the technological innovation and reliability of its products, offers with this ductable line a smart solution that combines high performance and intelligent control. The range is designed to meet the comfort needs of residential and commercial spaces, thanks to an adjustable air flow, flexible static pressures and advanced management via app or remote control.

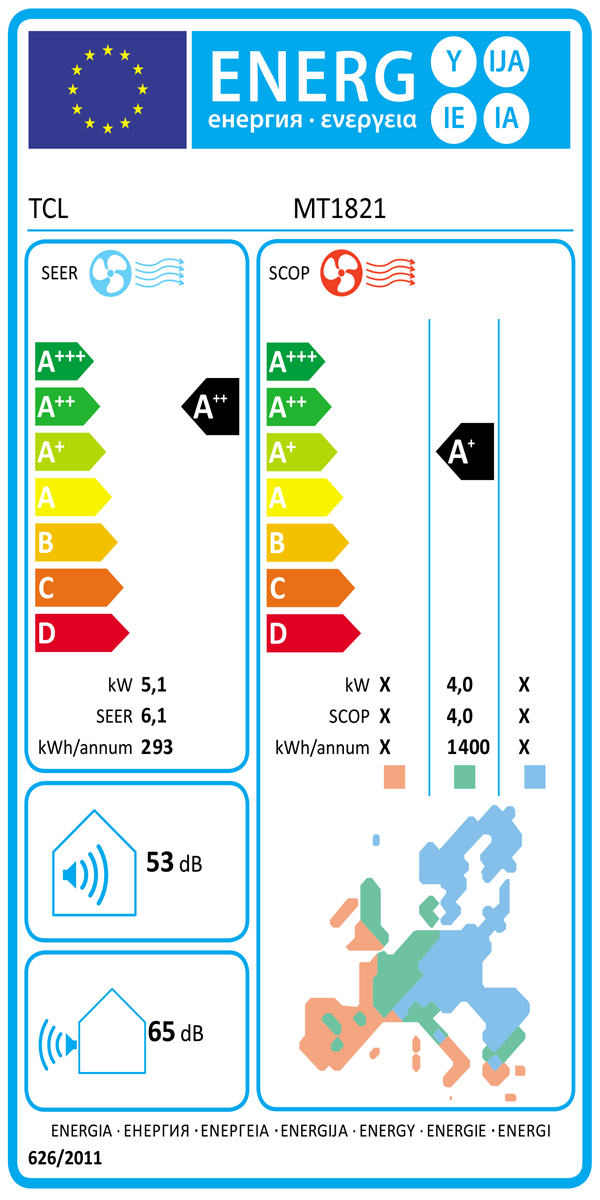

Silent, it offers incredible performance in energy class A++/A+ cold/hot and reduces environmental impact thanks to the use of R32 gas .
DESIGN AND AIR QUALITY

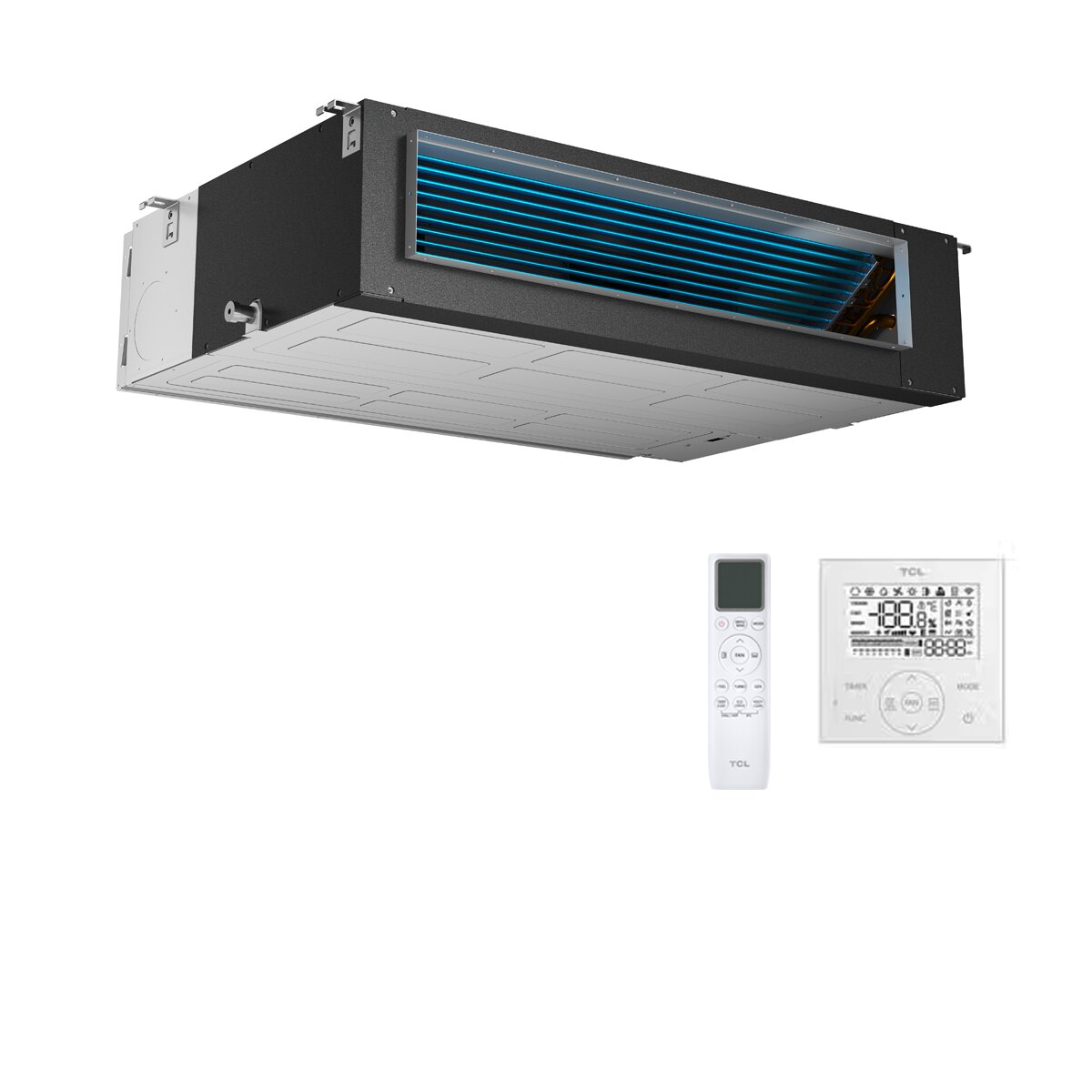

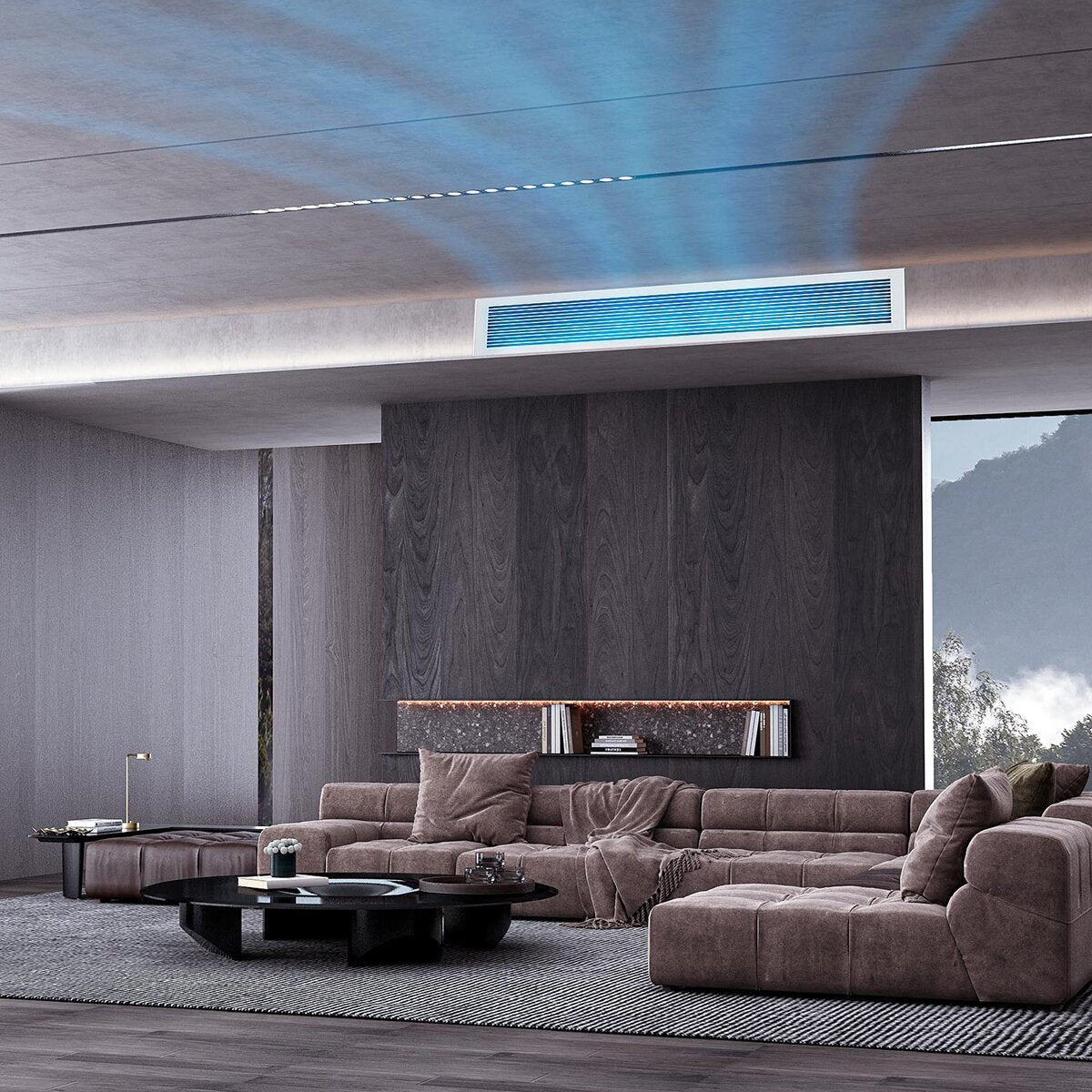

The TCL D Series ducted air conditioner is designed to fit perfectly into any environment, thanks to an ultra-compact and linear design , ideal for installations in low false ceilings. With a reduced height and a body designed to facilitate access to the internal components, the unit adapts to both modern residential spaces and professional contexts, ensuring maximum aesthetic discretion and operational silence . The delivery grille can be customized based on the layout of the environment, leaving visible only what is needed: clean and conditioned air.
In addition to thermal comfort, TCL has also paid great attention to air quality. The unit is equipped with high-density filters capable of capturing dust, pollen, spores and micro-particles suspended in the environment, ideal for ensuring a healthy environment, especially in the presence of allergy sufferers or children.
TECHNOLOGY, EFFICIENCY AND COMFORT GUARANTEED
The TCL D-Series ducted air conditioner combines advanced technology, intelligent functionality and flexible design, positioning itself as one of the most complete and reliable solutions for residential and light-commercial air conditioning.
The technological heart of the system is represented by TCL's proprietary AI Inverter technology , capable of modulating the compressor power in real time. This allows the set temperature to be reached quickly , maintained stable within a precise threshold of ±0.5°C , avoiding temperature changes and a significant energy saving of up to 60% compared to traditional on/off systems. The result is optimal comfort in every season, with a significant reduction in electricity consumption and compressor wear.
To ensure maximum installation flexibility, the unit is equipped with an integrated condensate lifting pump capable of raising water up to 1200 mm . This feature is particularly useful in contexts where the drain cannot be positioned by gravity, such as in low false ceilings or basements.

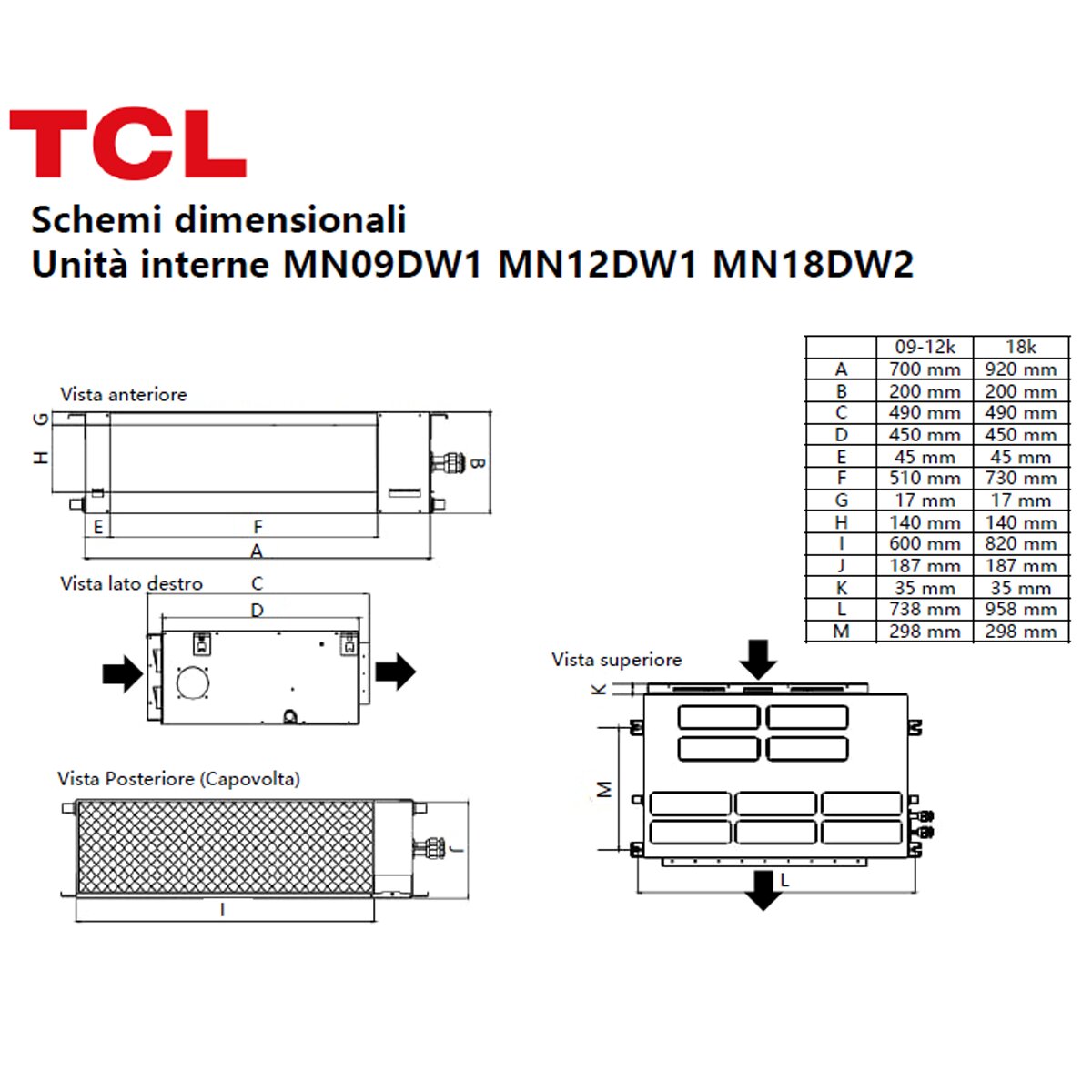

The structure of the internal unit includes a reversible air intake , which allows the installer to choose between: intake from the lower panel (bottom intake) or intake from the rear (rear intake). This guarantees greater adaptability to the architectural conditions of the environment, without sacrificing efficiency or uniformity of the air flow.
The fan is designed to adapt to ducted networks of varying length and complexity. It is possible to adjust the external static pressure on four levels , up to a maximum of 100 Pa , maintaining a constant air distribution even in the presence of multiple vents or long ducts.
For more complex systems, the system is equipped with a ModBus RTU interface , which allows its integration into Building Management Systems (BMS) . Furthermore, it has external ON/OFF contacts , useful for interaction with window sensors, access badges or home automation control units, making it perfectly compatible with advanced control logics.
All heat exchangers in the system are treated with special anti-corrosion coatings, which prolong their service life and improve their performance in difficult environmental conditions (coastal areas, humid or industrial environments).
The unit can be managed via a wired wall control panel and/or infrared remote control (included as standard only for sizes 9-12-18K). This dual feature allows flexible management in domestic environments, offices or technical rooms.
Furthermore, the ductable series is compatible with the TCL Home app, which allows remote control via smartphone thanks to the WiFi included as standard . Via the app it will be possible to turn the unit on or off, change the temperature, mode and ventilation settings, program timers and customized scenarios, monitor consumption. Furthermore, it is compatible with voice assistants such as Google Assistant and Amazon Alexa , allowing even more immediate and integrated management in the home automation system.
ACCESSORIES INCLUDED
- Wired wall control and remote control (only for sizes 9-12-18k)
- Built-in WiFi.
WARRANTY
The warranty is the official TCL one and lasts 2 years.

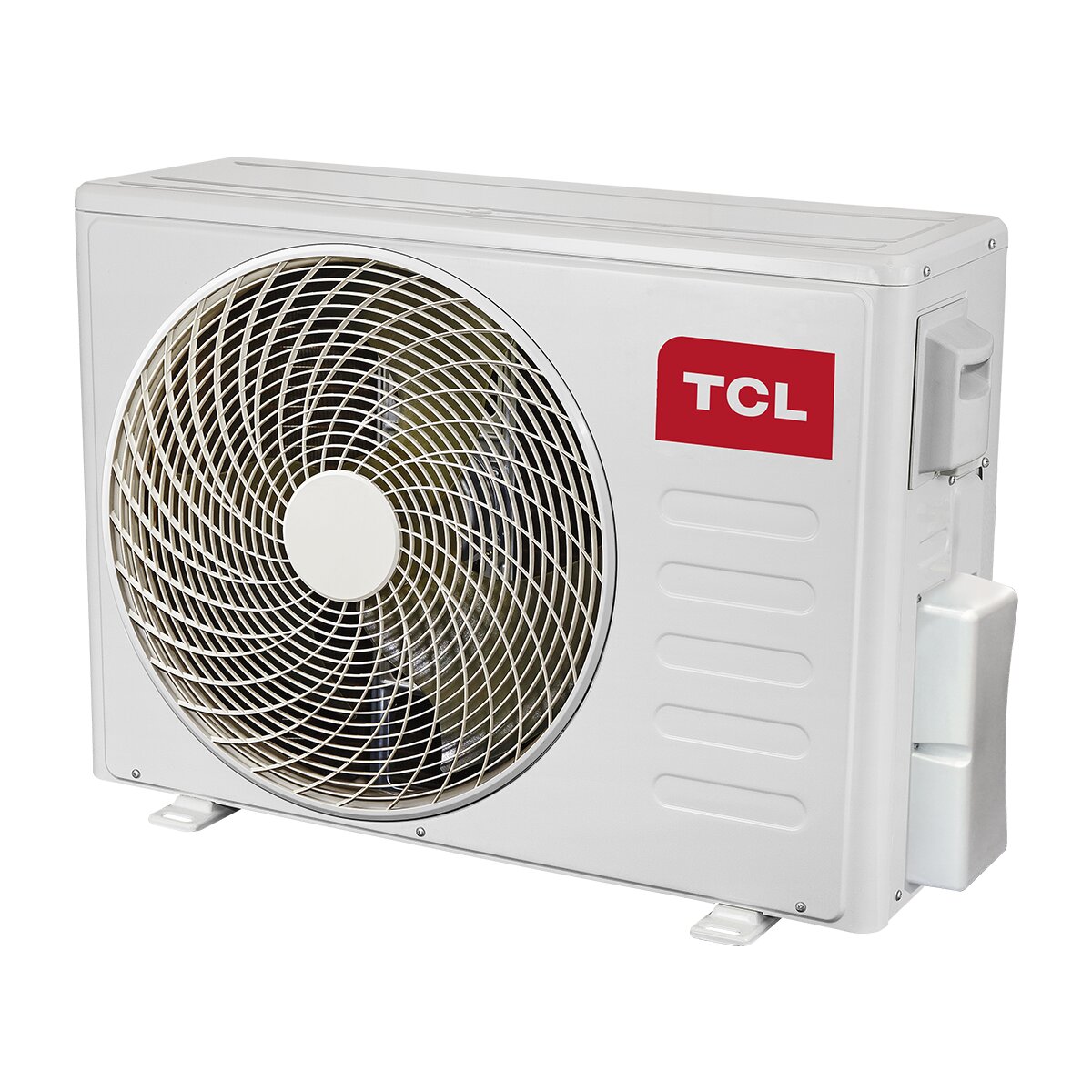

THE EXTERNAL UNIT
The new TCL Multi Free Match Series dual split outdoor unit represents excellence in residential and commercial air conditioning, combining technological innovation , high performance and attention to the environment.
The Dual Split external unit is the ideal solution for those who want to air condition two rooms independently and efficiently , using a single external motor. Designed with advanced technologies, this unit allows you to connect two internal units (even of different types), ensuring a customized climate in each room and at the same time optimizing the external space and energy consumption.
TECHNOLOGY, EFFICIENCY AND SAVINGS GUARANTEED
Compact, silent and versatile, the Multi Free Match series represents the perfect choice for apartments, offices or small commercial establishments that require targeted and sustainable climate comfort.
Thanks to the latest generation inverter compressor , the Dual Split modulates the power based on real needs, ensuring energy savings of up to 30% compared to traditional systems. The system works as a heat pump , making it ideal not only for summer cooling, but also for heating during the colder months.
The use of environmentally friendly R32 refrigerant helps reduce environmental impact, while improving system efficiency and ensuring excellent performance even at low temperatures.
It operates in cooling mode with external temperatures between -15°C and +15°C, while in heating mode, performance is certified with temperatures ranging from -15°C to +24°C.
The electrical consumption of the units during Stand By condition is extremely low, to the advantage of energy efficiency and savings on the bill: better performance and lower consumption.
The heat exchangers are treated with a coating that increases their resistance to corrosion.
The refrigerant pipes for connecting the internal units to the external ones can be very long, in order to guarantee a flexible installation in any context.
WARRANTY
The warranty is the official TCL one and lasts 2 years.
