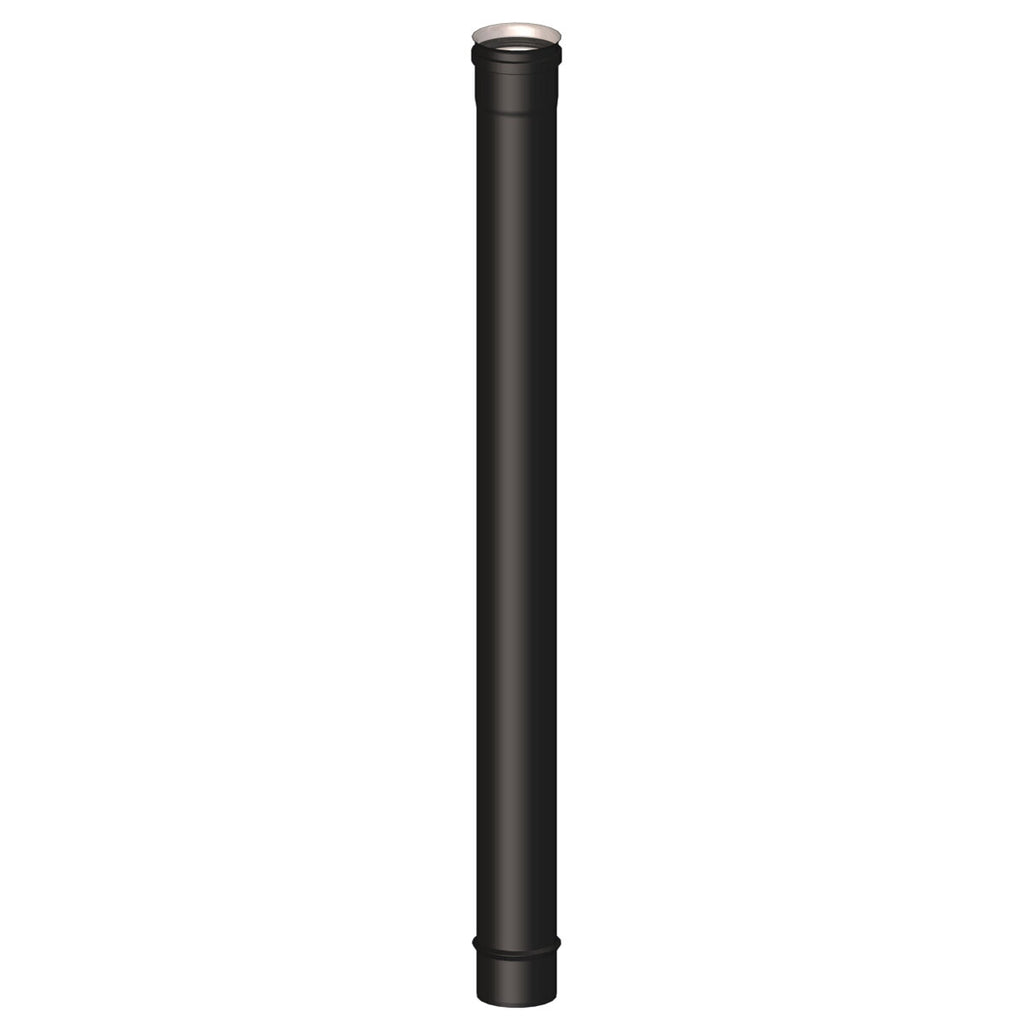

STRAIGHT ELEMENT LENGTH 1000 MM. MALE/FEMALE - Ø 80 MM. - FOR PELLET STOVE AND PELLET BOILER FUME EXHAUST - MADE OF STEEL - MATT BLACK COLOR
This straight element is part of the STABILE NPS Fume Exhaust System family.
The components of the STABILE NPS Fume Exhaust System were created to be used with pellet stoves and pellet boilers, which expel fumes at high temperatures up to 300° C. if installed without gasket, or up to 200° C. when installed with gasket .
The elements of the STABILE NPS series are made of highly resistant AISI 316L stainless steel , with a thickness of 0.4 mm; the black powder coating is carried out according to the highest quality standards to last a long time.
They enjoy the best Classes of temperature, pressure, resistance to condensation, resistance to corrosion, resistance to soot fire.
They are complete with gaskets made of a black silicone elastomer, already assembled; the gaskets are profiled with three lips and are EN 14241-1 certified.
The products of the STABILE NPS series have obtained the CE Certificate for the control of production systems in the factory (n° 0407-CPR-1478) pursuant to EU Regulation 305/2011; comply with EN 1856-2:2009 | 0407 | Istituto Giordano SpA specific for metal chimneys (internal ducts and metal smoke ducts); have obtained the CE Marking Declaration of Performance no. 54 - DoP - 01.07.2013.
The STABILE NPS system is installed as a smoke duct and complies with UNI 10683 and UNI 11278 standards.
The products are covered by RC stipulated with Zurich nr. 920b3680.
DIMENSIONS
Length: 1000mm.
Diameter 80mm.
