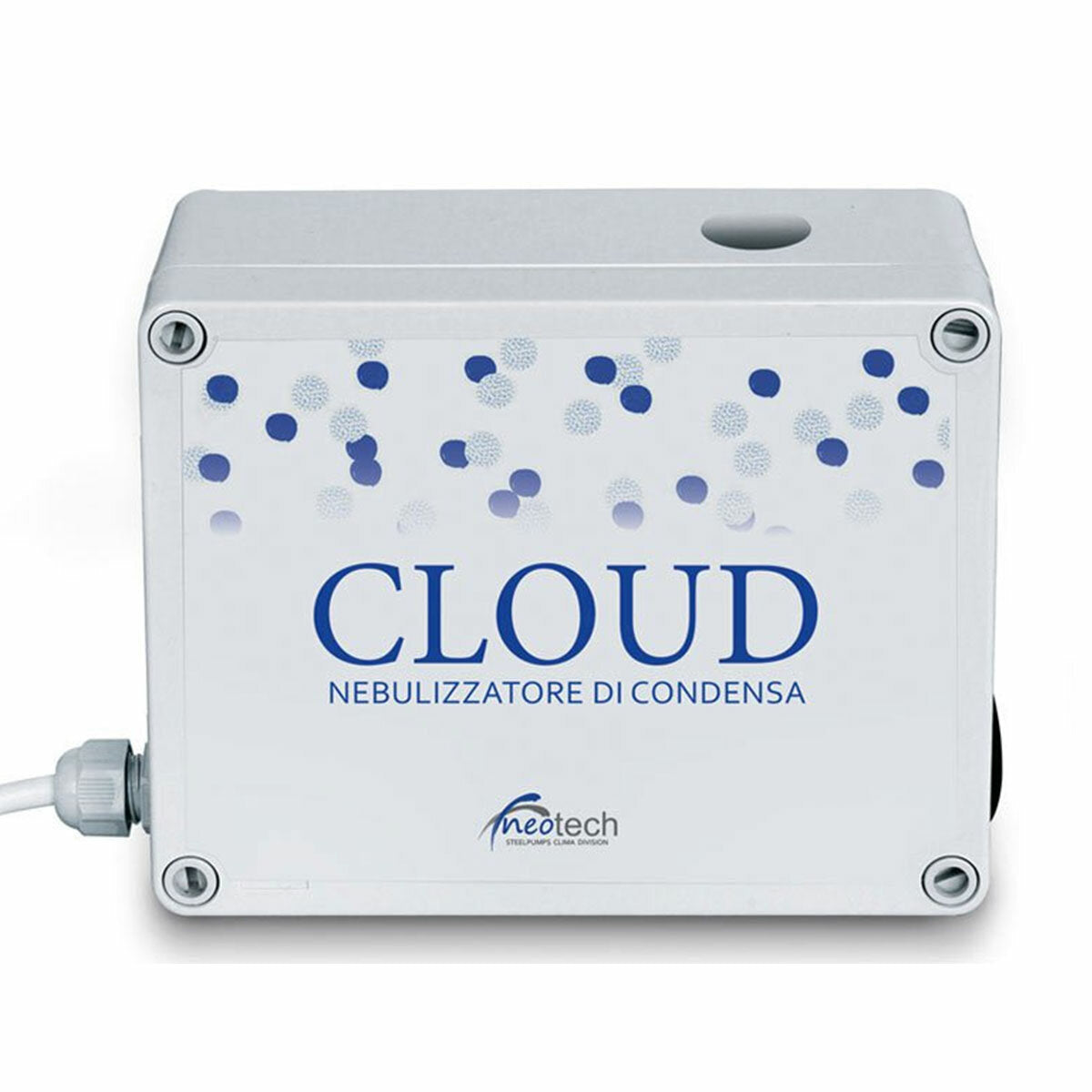

Steelpumps Neotech Cloud condensate nebulizer
The Steelpumps Neotech Cloud mini condensate pump is an automatic pump for nebulizing the condensate drains of air conditioning systems, to be installed in the event of the impossibility of installing a condensate drain. Steelpumps Neotech Cloud obviating the problem of installing the condensate drain, replacing itself, offers a solution that also allows you to save on installation costs as it does not require ad hoc pipes .
This small and extremely efficient and functional pump has been designed to dispose of the condensate produced by mono and multi split air conditioners or air conditioners up to 8 kW by nebulization , an operation which takes place in an imperceptible and silent way, in fact it has a sound level of 35 dbA .
The Steelpumps Neotech Cloud mini pump has an intelligent operation because it is activated automatically, the water is micro-filtered using the principle of osmosis and is vaporized thanks to the pressure exerted by the pump , the only limitation of use is constituted by the fact that it cannot be used with dirty water. It can be used for both internal and external discharges, with the possibility of fixing the nozzle anywhere on the wall or on the external unit.
To ensure correct operation, this mini pump must be installed so that the delivery pipe remains on the right-hand side and the nebulizer is positioned horizontally, in order to avoid overflowing from the collection tank. It can be installed both inside and outside the home and fixed to the wall using the 4 fixing tabs. Since it requires both a hydraulic and an electrical connection , installation must be carried out by qualified personnel, who will also provide for the first start-up, guaranteeing its correct functioning and duration over time.
Technical features
- Supply voltage: 230V ~ 50Hz
- Max absorption: 70 W
- Max flow rate: 5 l/h
- Max head: 25 bar
- Degree of protection: IP 44
- Entrance: Ø 10/20 mm
- Delivery: Ø 6 mm
- Max condensing temperature: 40°C
- Condensate PH: 6÷ 8
- Input filter: yes
- Dimensions: Width 200mm x Height 154mm x Depth 85mm
Composition and accessories
- Pump
- Tank with sensor
- Form
- Delivery pipe 1 m.
- Alimentation cable
- Fixing flaps
- Nozzle
- Input tang
- Straight delivery fitting
- Cable tie
- Clamp holder
Warranty
The guarantee is the official Steelpumps Neotech one and has a duration of 24 months.
