SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries

Roll over image to zoom in Click on image to zoom

SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries

Name: SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries
Brand: Sanitrit Sfa
SKU: SQ1
Price: 1643.17 EUR
Availability: InStock

BEST OFFERS -6%

Sanitrit SfaSKU: SQ1 ID:

Price:

€1.544,58 €2.415,60

Quantity:

Share this product

Code: SQ1
ID code: 5F0196
Pre-code: SFA
Short description: The Sanicubic 1 by SFA is an automatic lifting station with integrated macerator , designed to evacuate black and grey waste water from toilets, bathrooms, kitchens and laundries. Ideal for environments where gravity drainage is not possible, such as basements, garages and utility rooms , it allows you to connect multiple appliances at the same time. Equipped with a powerful 1500 W pump , it manages flow rates of up to 15 m³/h with a maximum head of 11 metres. It works automatically thanks to an internal pressure switch and integrates an acoustic and visual alarm system for safety control. The resistant polyethylene tank and the stainless steel macerator guarantee reliability and durability over time . Easy to install, it is the ideal solution for domestic systems or small commercial establishments.
Brand: Sanitrit Sfa
Category: Toilet shredder
Type

Download technical specifications

SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries

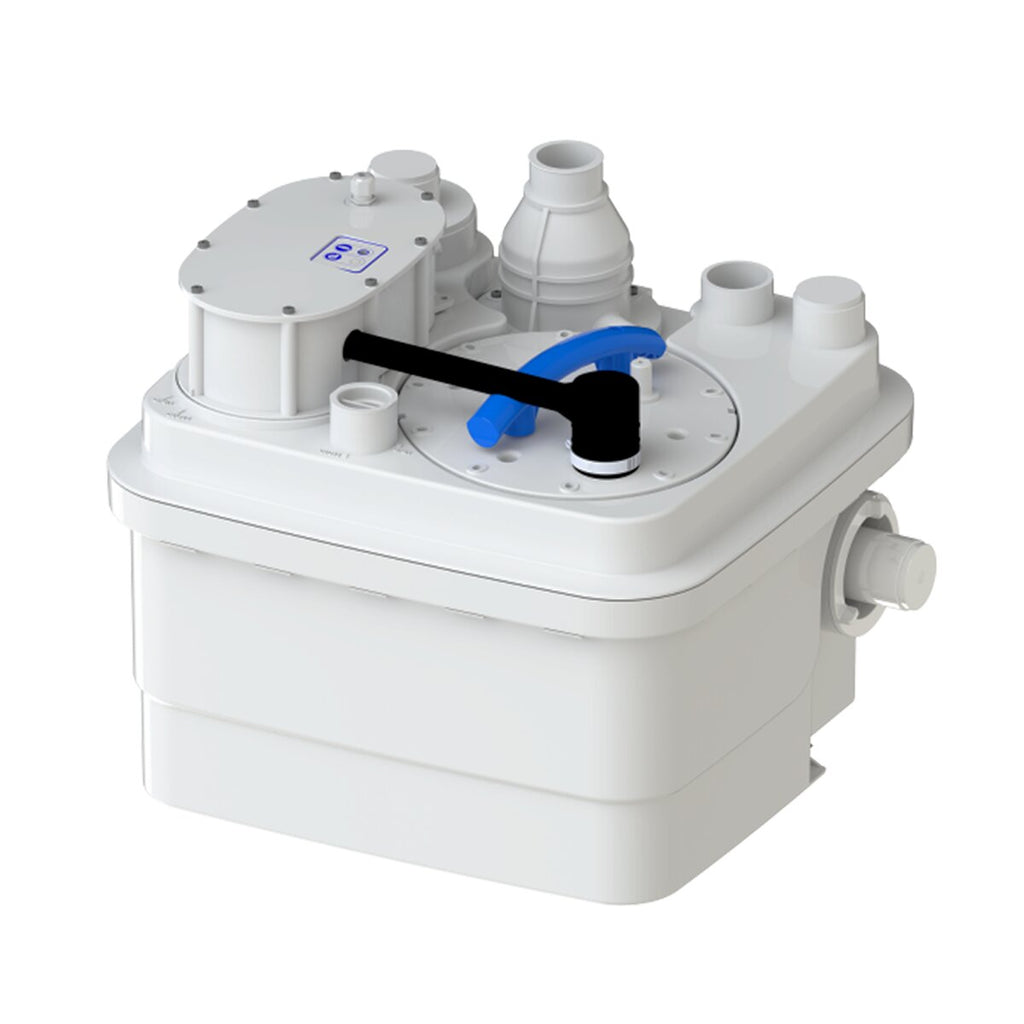

The Sanicubic 1 is an automatic wastewater lifting station designed for residential or light commercial use. It is ideal for all those situations where gravity flow to the sewer system is not possible, such as basements, garages or structures distant from the main drain stack.

Equipped with a ProX K2 system pump and a high-efficiency shredding blade , it easily handles water loaded with fecal material from toilets, showers, sinks, washing machines and dishwashers. The stainless steel shredding chamber guarantees maximum reliability and durability.

MAIN APPLICATIONS

Private homes with bathrooms or kitchens in the basement or cellar
Technical rooms, taverns, garages
Offices, shops, small workshops
Installations where gravity discharge is not possible

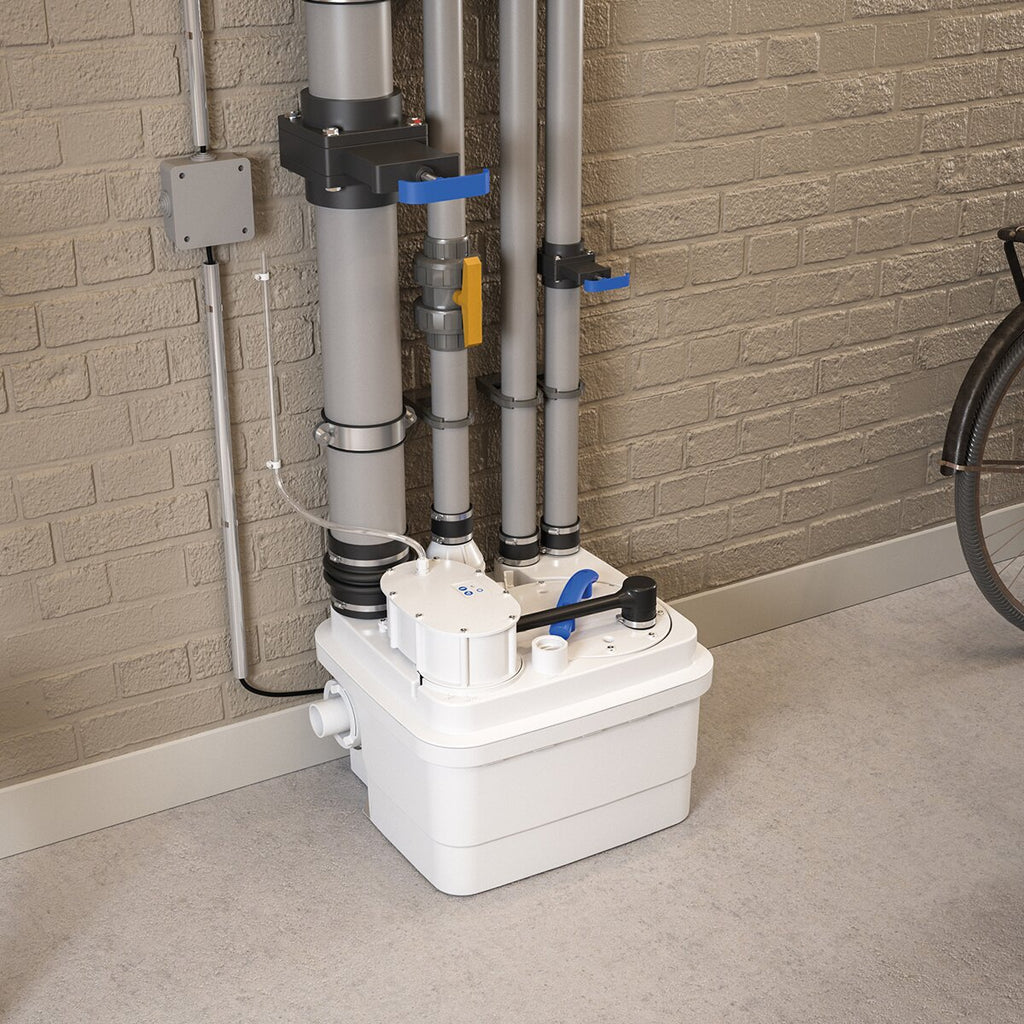

The Sanicubic 1 is installed directly on the floor, in an easily accessible point. It connects to the sanitary appliances via standard fittings and is ready to operate once connected to the power supply. The system activates automatically when the tub is filled, managing the lifting in a safe and silent way.

ADVANTAGES

Ideal for creating bathrooms or kitchens in rooms far from the waste pipe
Quiet and efficient operation
Professional shredder system
Easy installation and maintenance
Complies with EN 12050-1

TECHNICAL FEATURES

Number of inlets: 5 (4 lateral DN40/50/100 and 1 upper)
Outlet diameter: DN50
Maximum head: up to 11 m
Maximum flow rate: 15 m³/h
Motor power: 1,500 W
Power supply voltage: 220–240 V – 50 Hz
Operation type: Automatic start via pressure switch
Tub material: High resistance polyethylene
Built-in visual and audible alarm: Yes (included)

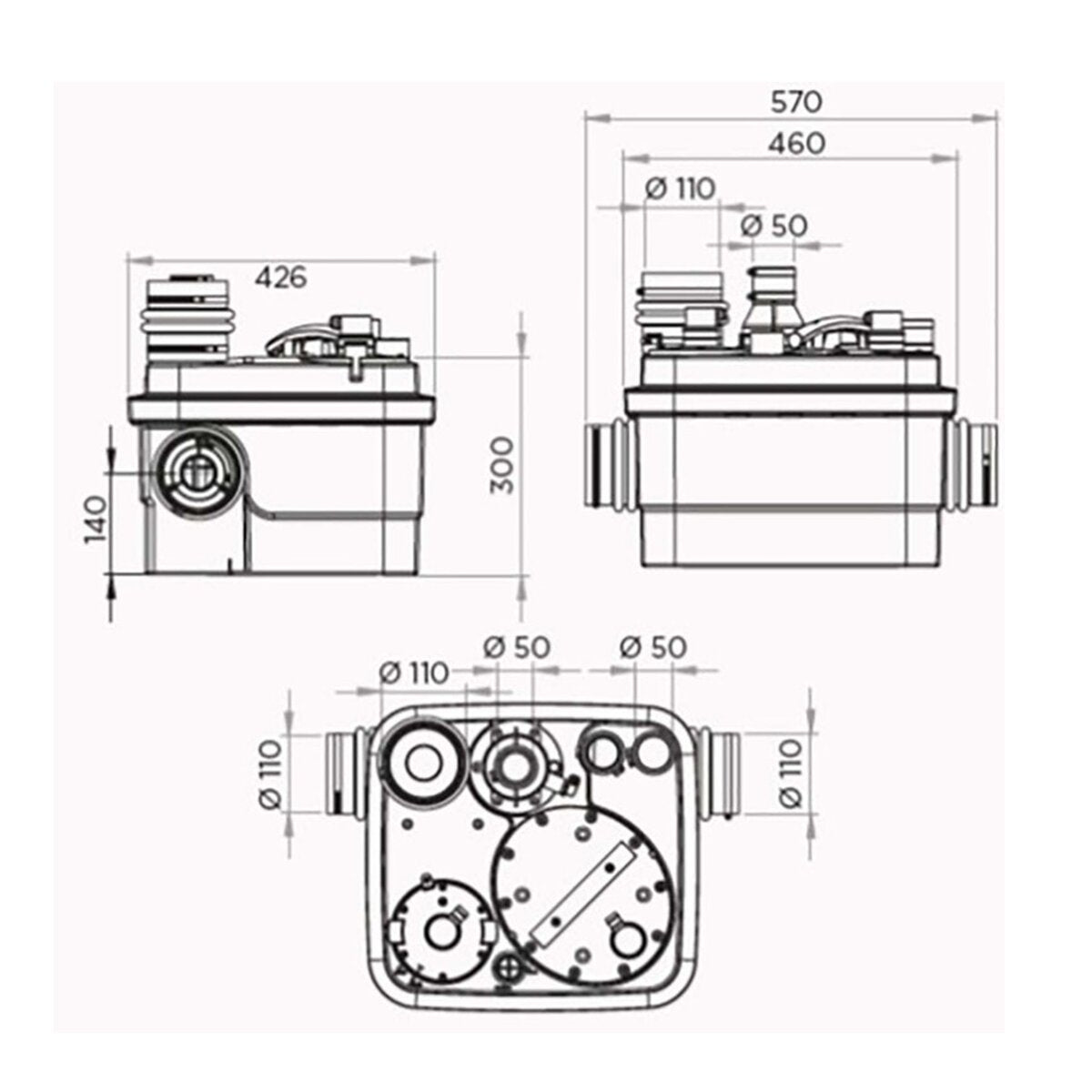

FURTHER SPECIFICATIONS AND DIMENSIONS ARE CONTAINED IN THE ATTACHED DATA SHEET.

WARRANTY

The warranty is the official SFA one and lasts 2 years.
