Sabiana Carisma Whisper fan coil CFF-ECM-MV-CB-TES 10 kW 1.10 - 0.92 SLIM
Suitable for rooms from 7 to 11 m2 with an average height of 2.7 m.
Heating yield kW 1.10 - Cooling yield kW 0.92.
For over 90 years, Sabiana has been designing and producing innovative products for heating and air conditioning suitable for residential or commercial environments, paying particular attention to energy saving and air quality but without neglecting shapes and designs capable of adapting harmoniously with the architectural structure of the building. The Carisma Whisper CFF-ECM fan coil unit combines high level performance and reduced overall dimensions with minimal energy consumption.
DESIGN
The design of the Carisma Whisper has made it the most popular in the category: it is the item most used by architects due to its particularly pleasant design and is ideal for installation in any environment, whether residential, commercial or hotel. Carisma Whisper has a very small size, with a depth that does not exceed 126 mm, a modern aesthetic that integrates perfectly with the furnishings of any type of home, maintaining excellent performance in terms of noise and consumption. The covering cabinet is made of galvanized sheet metal with a white plastic external coating. The delivery grille is adjustable and positioned on the upper part. As regards the internal structure , also made of galvanized sheet metal, it has a thickness of 1 mm and is composed of a rear wall and two lateral shoulders insulated with a 3 mm mattress.
FEATURES AND PERFORMANCE
The Carisma Whisper fan coil series is equipped with an innovative BLAC brushless synchronous motor, i.e. without brushes and without sensors, with permanent magnets, controlled by an inverter board installed on the motor. The high efficiency even at low rpm allows a large reduction in electrical consumption with absorption values not exceeding 5 Watts. The heat exchange battery is made up of copper tubes and aluminum fins. It is equipped with a honeycomb polypropene filter inserted in guides fixed on the internal structure which allow easy extraction.
The standard position of the hydraulic connections is on the left side, non-reversible.

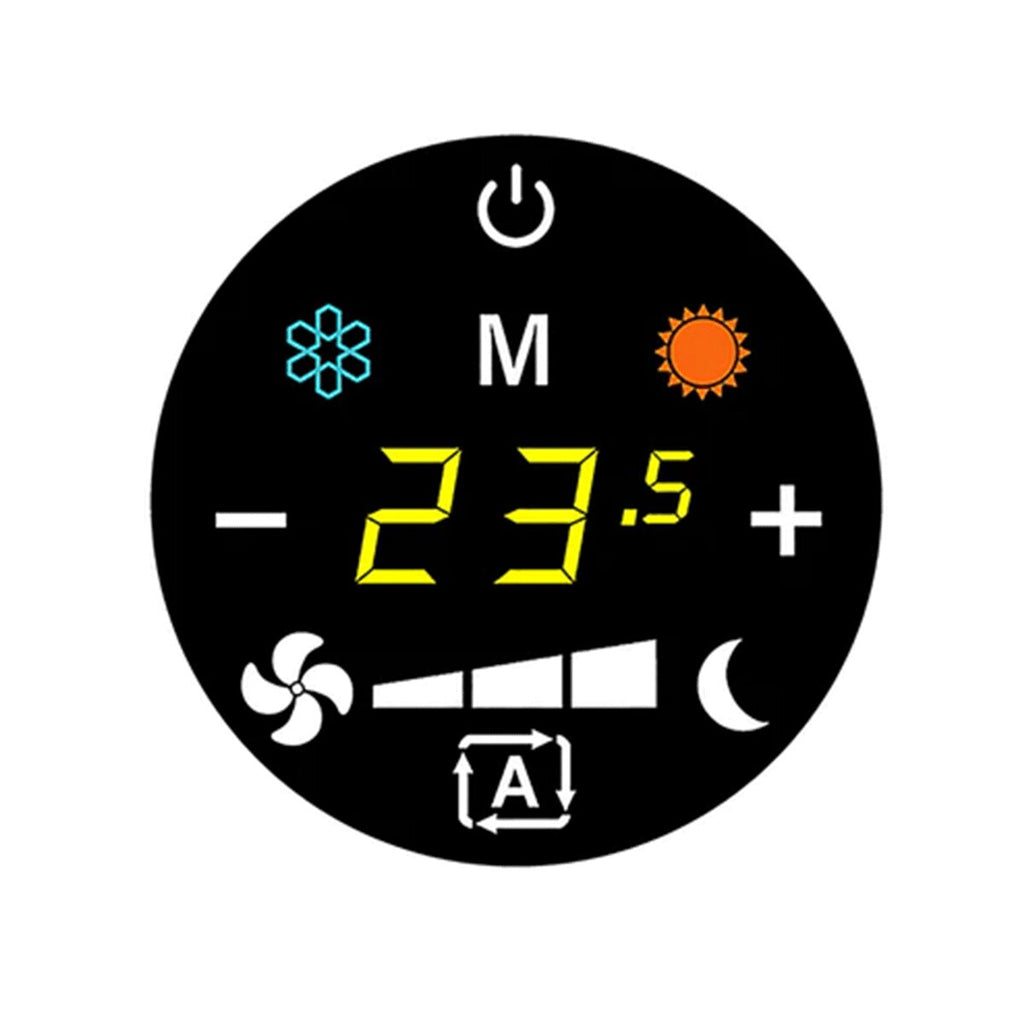

The Carisma Whisper fan coil is equipped with an on-board CB-Touch EASY control. It allows you to control and regulate the room temperature in a simple and intuitive way, by means of a probe positioned in the lower part of the appliance; it is possible to manage the various settings, turning the appliance on or on stand-by, heating, cooling or just ventilating the room, setting the desired temperature set and adjusting the fan operating speed according to your needs. After a period of 3 minutes from the last action, the brightness of the panel is specifically reduced (SLEEPING mode) to increase energy saving and comfort at night. Further information on the various technical specifications is contained in the user manual supplied with the product. Furthermore, the Carisma Whisper fan coil is already integrated with the UP-Touch EASY power unit.
ACCESSORIES

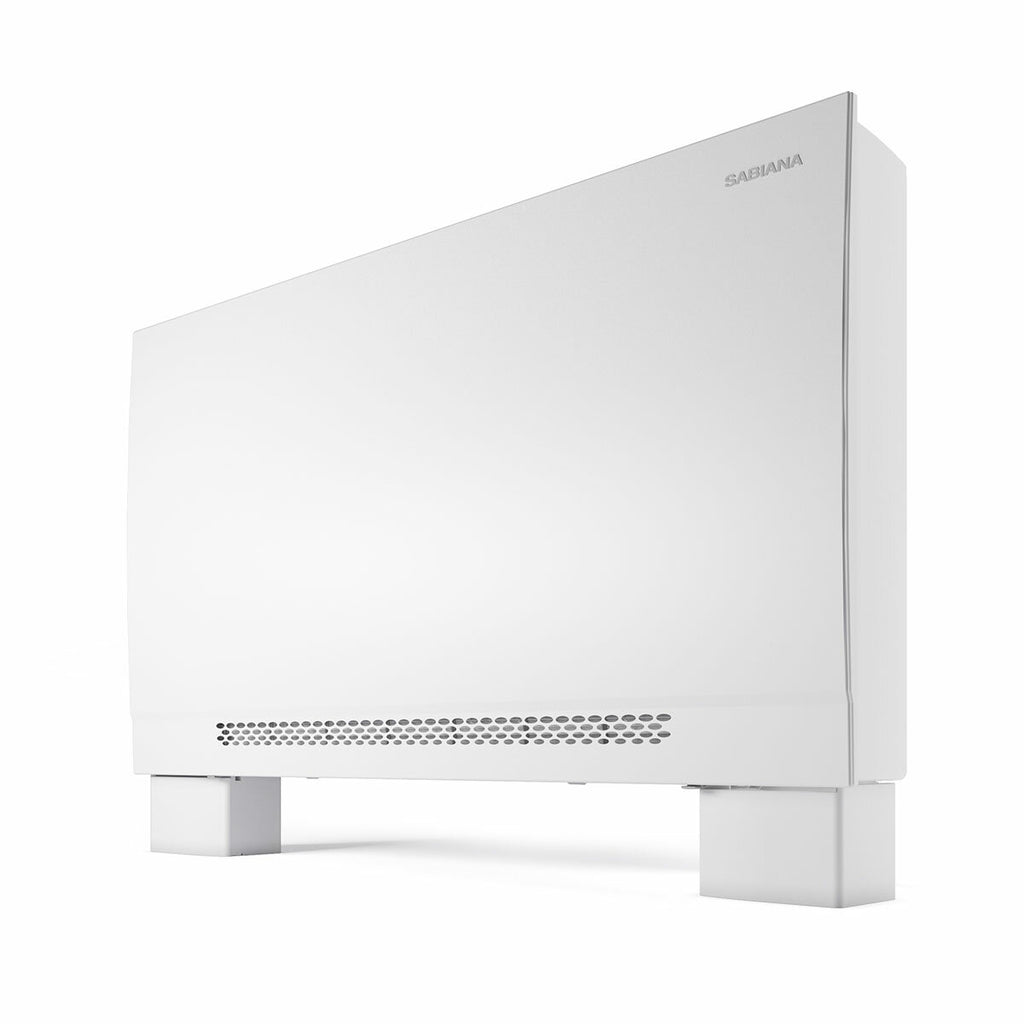

- Feet (to be purchased separately)
DIMENSIONS
Length: mm. 640 – Height: mm. 580 - Depth: mm. 126
WARRANTY
The guarantee is the official Sabiana one and lasts 2 years.
