AIR PELLET STOVE CAMINETTI MONTEGRAPPA NODO 4.2 kW WITH COATING IN BLACK PAINTED STEEL ENERGY CLASS A +.
Rated thermal power of 4.2 kW
Ideal for heating up to 50 m2 with an average height of 2.7 m
Since 1976, Caminetti Montegrappa has been offering reliable, efficient products that meet the needs of the most critical, always guaranteeing top-quality quality. Caminetti Montegrappa stoves are designed to guarantee economic and energy savings, ease of use, low emissions and environmental protection. The Nodo Pellet Stove, small and compact, is a ventilated hot air stove, a cutting-edge model for technological innovation, design, and performance in energy class A +.
DESIGN

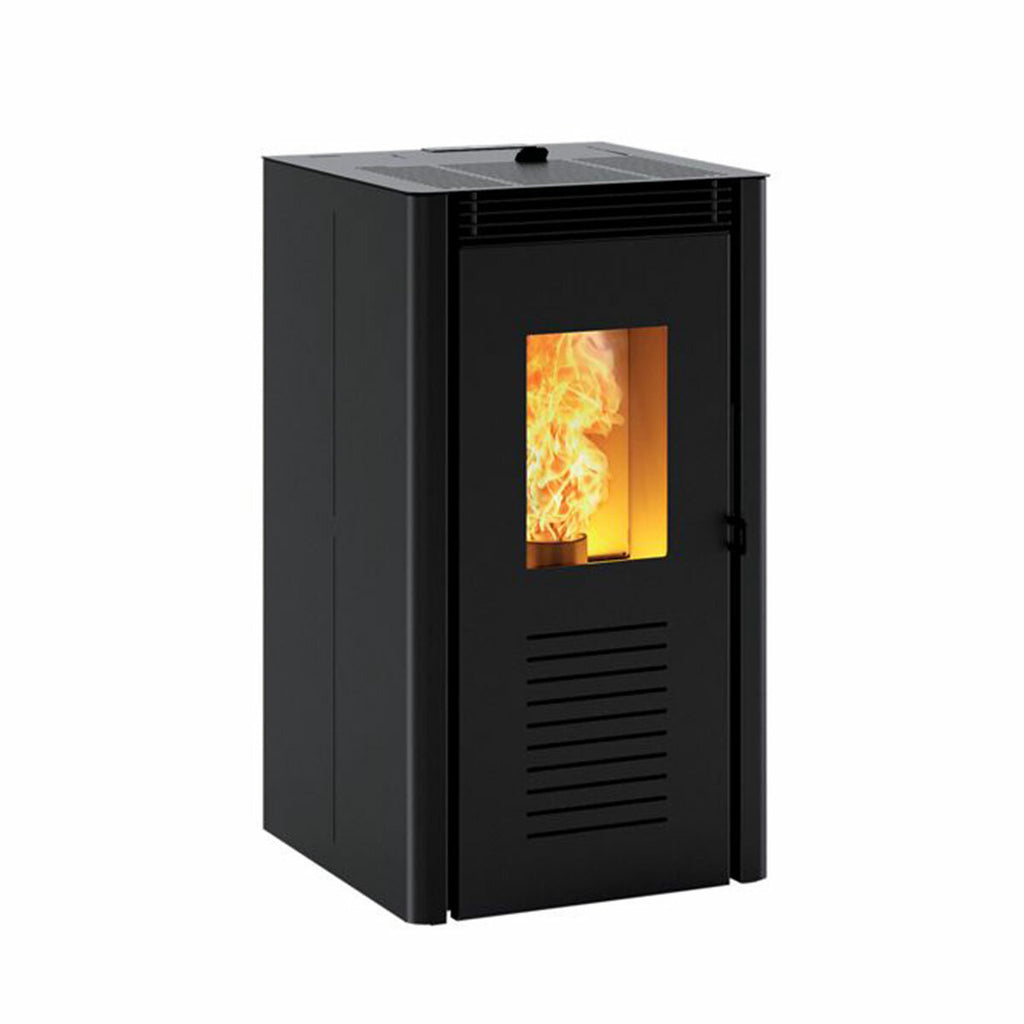

The Nodo pellet stove, in the black variant, gives grit to the environment in which it is installed. The painted steel cladding and the squared lines adapt to a more modern and minimalist type of furniture. The adjustable and non-slip feet allow for correct leveling, making the stove more stable and safe . From the black front, also square, it is possible to admire and enjoy the flames through the glass, above which the segmented slots for the air outlet in the upper part face. The upper smoke outlet is designed to reduce the overall space but, thanks to the arrangement, it is possible to opt for a rear smoke outlet where this need arises.
GUARANTEED SAVINGS AND HIGH COMFORT
The Nodo pellet stove by Caminetti Montegrappa is of the air type, i.e. it heats the environment in which it is installed by means of tangential ventilation and is able to give warmth to rooms up to about 50 square meters; all this with great energy efficiency (class A +) , low consumption , high comfort and extreme silence.
Caminetti Montegrappa has managed to concentrate various technological innovations within Nodo that make it a truly excellent purchase in terms of value for money. The cylindrical cast iron burner contributes to reducing consumption, an excellent heat conductor particularly suitable for stove coatings. To ensure that combustion can always take place with maximum efficiency depending on the type and quality of fuel used, the user can adjust the calibration of the pellet combustion through the programmable thermostat with manual operation, thanks to which it is possible to program the stove. Other features include the removable ash drawer and the removable hearth backrest.
CERTIFICATIONS
The Nodo pellet stove is ECODESIGN 2022 certified and 4-star CLEAN AIR . The two certifications were awarded by the autonomous bodies that evaluate them on the basis of European laws, energy efficiency and low emissions. The objective of ECODESIGN 2022 is to improve the environmental performance of the new biomass heat generators, ensuring compliance with the efficiency and emissions requirements set by the European directive 2009/125 / EC. Furthermore, Caminetti Montegrappa stoves are subjected to specific checks to verify their compliance with the emission and performance requirements. This is why buying a CLEAN AIR certified stove means choosing a reliable and efficient product with a view to safeguarding air quality.
TECHNICAL FEATURES
- Certified power: 4.2 kW
- Global thermal power: 4.5 kW
- Electric power: 350 W
- CO measured (at 13% oxygen): 0.010%
- Performance: 93.5%
- Fuel consumption: 0.95 kg / h
- Mass flow rate of the fumes: 3.2 g / s
- Smoke temperature: 106.2 ° C
- Draft (chimney depression): 6 Pa
- Tank capacity: 8 kg
- Autonomy: 8 h
- Smoke outlet pipe: diameter 80 mm
- Air inlet for combustion: 60x30 mm
- Heatable surface with certified power: 48 sqm
DIMENSIONS
Width: 450 mm - Height: 820 mm - Depth: 450 mm
Weight: 52 kg
WARRANTY
The warranty is the official CAMINETTI MONTEGRAPPA Italia guarantee and has a duration of 24 months.
