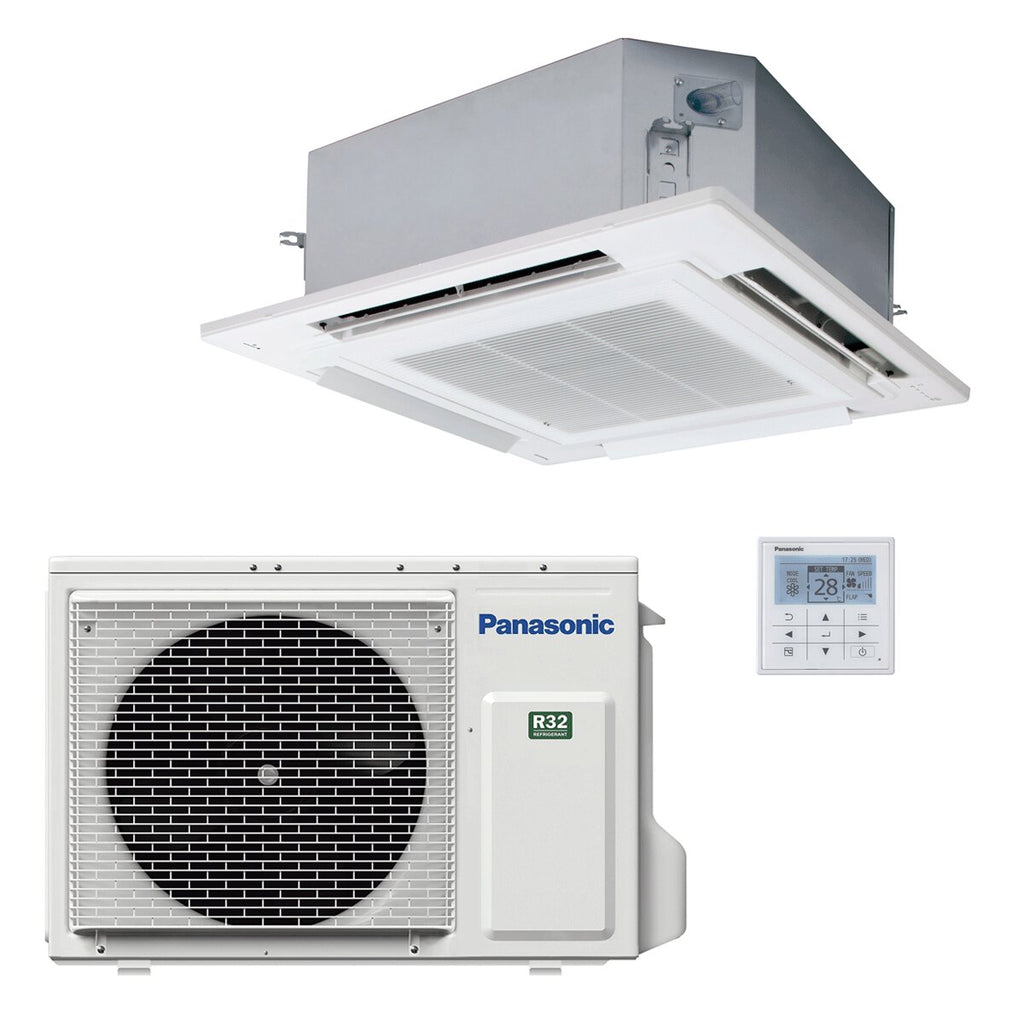

Panasonic PACi NX Standard 4-way Cassette Air Conditioner 21000 BTU R32 Inverter A++/A++
The air conditioner kit is equipped with the following internal units:
- 1 x 21000 BTU - Ideal for rooms up to 70 m2 with an average height of 2.70 m
The PACi NX series 4-way cassette air conditioner represents the result of the technology designed by the brand to maximize the comfort and benefits of air conditioning, in pure Panasonic style! The powerful turbo fan, Econavi technology and the advanced NANOE Furthermore, by using the R32 refrigerant gas with low environmental impact, it also aims to protect the environment, promoting savings and eco-sustainability.
The Panasonic ducted internal units of the PACi NX Series are used with the specific external units to create combinations of monosplit air conditioners in the range , extremely silent and with an operating range that ranges up to 43°C in cooling and -15°C in heating .
DESIGN AND AIR QUALITY

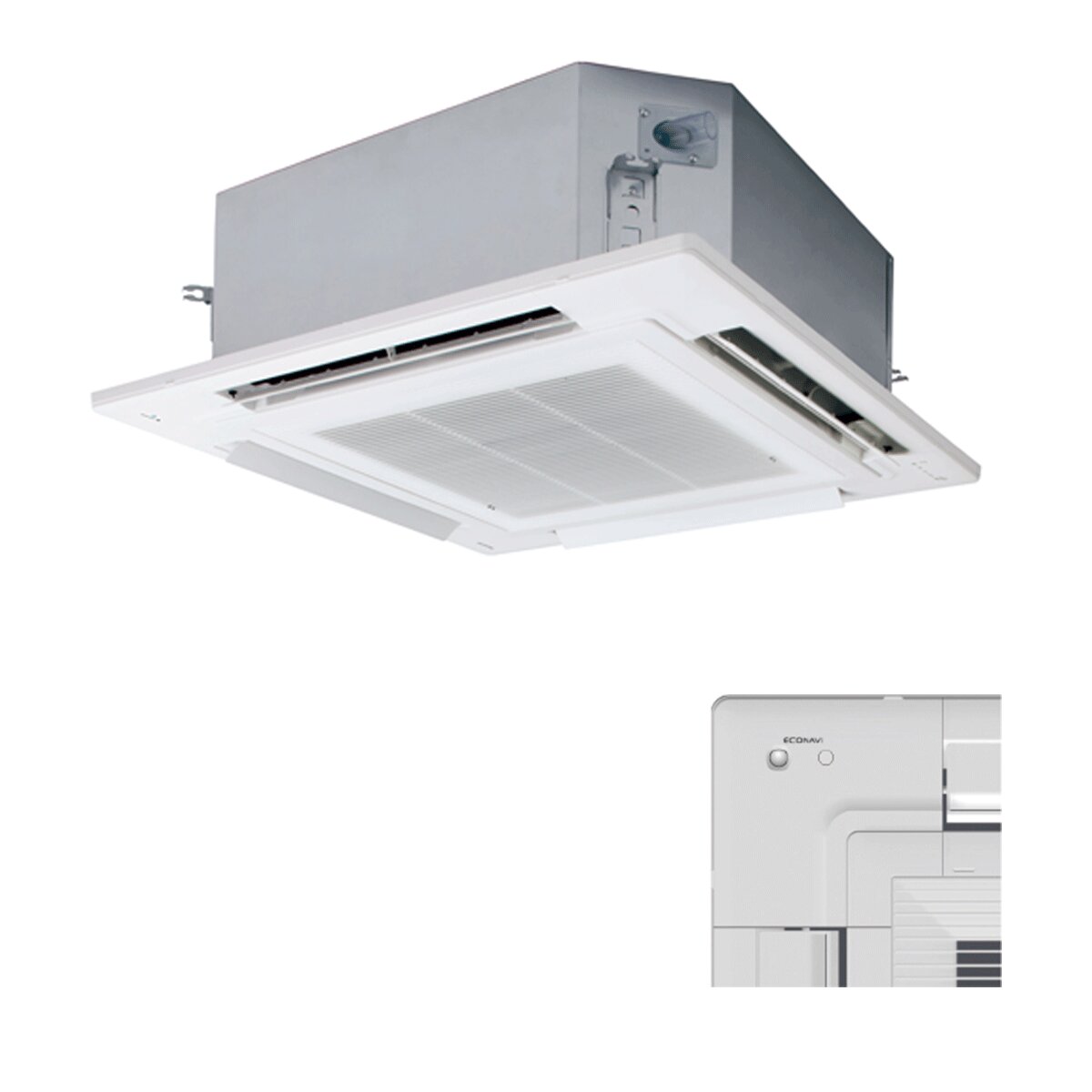

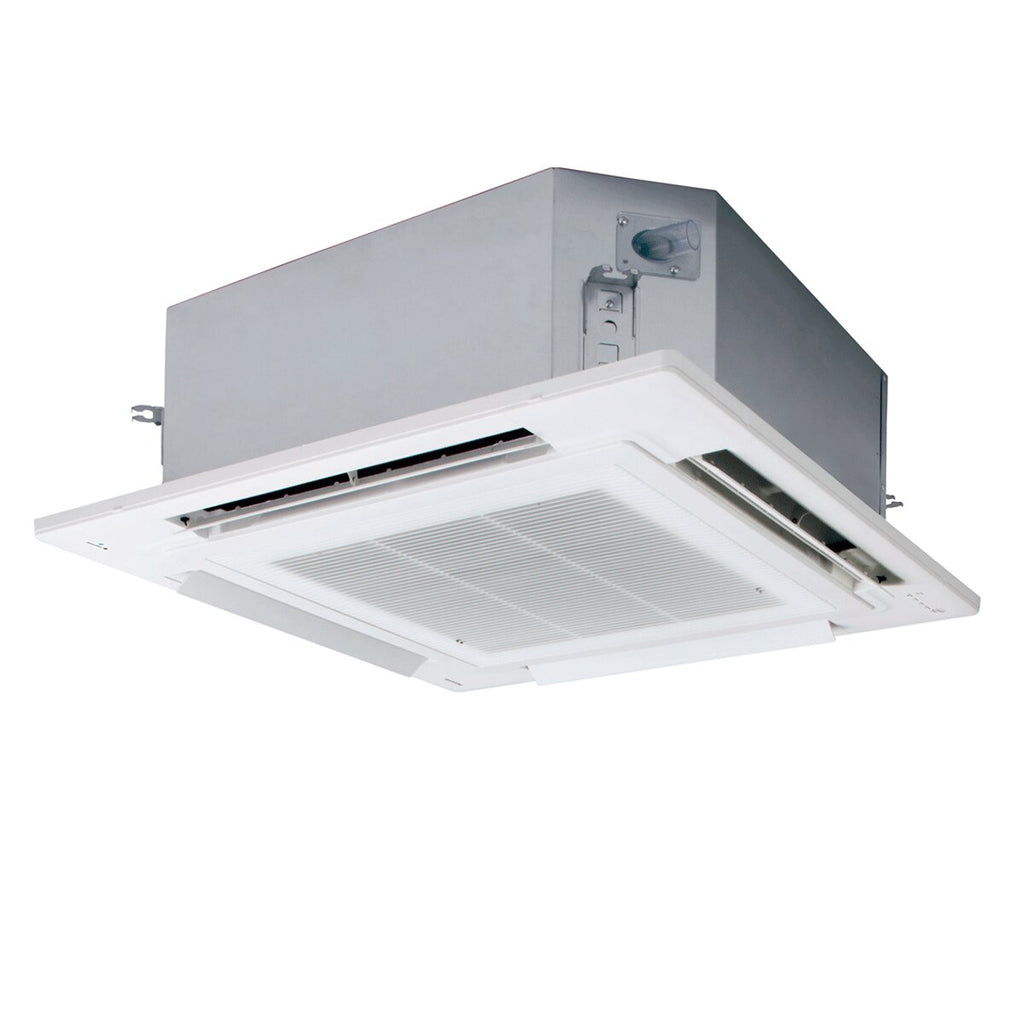

With its elegant and sober design, the PACi NX 4-way cassette lends itself to inclusion in any environment and style; it is mounted on the ceiling, generally embedded in a false ceiling, enhancing the surrounding spaces and becoming the focal point of the room. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the internal unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
But the most interesting innovation introduced by Panasonic concerns the air quality profile. This air conditioner uses NANOE X technology based on the benefits of hydroxyl radicals: hydroxyl radicals (also known as OH- radicals) are able to inhibit certain types of pollutants such as bacteria, viruses, moulds, pollen and other dangerous substances, but their peculiarity lies in their ability to act in depth, thus bringing benefits within the spaces in which we live by acting on furnishings and furniture. The NANOE X does not require maintenance or replacement as its atomisation electrode is enveloped by water during the generation process and is made of Titanium, it is a filter-less solution that improves the healthiness of environments in real terms. There is also a cleaning function for the indoor unit with NANOE X by means of a short operation in dehumidification mode.
TECHNOLOGY, COMFORT AND SAVINGS GUARANTEED
The Panasonic PACi NX 4-way cassette air conditioner contains advanced technologies to guarantee efficiency, energy saving, silence and comfort. It presents a series of top-of-the-category technical features, starting from the use of Inverter technology which allows for higher efficiency and lower costs . The inverter automatically adjusts the operating power, in this way there is more precise control of the desired temperature, a significant saving in electricity and a reduction in noise and vibrations; it also uses R32 refrigerant gas with low environmental impact.
It presents the traditional functions that can be set such as Cooling/Heating/Dehumidification and Ventilation , Timer and other functional modes for the comfort of air conditioning systems, but what is truly surprising is the extreme flexibility designed to facilitate installation and adapt it to the most varied architectural needs, without sacrificing the quality of performance which is very high for systems of this kind. These 4-way cassette units have a low weight , easy installation of the pipes and an integrated drain pump , fundamental characteristics for rapid installation and for meeting needs arising from architectural impediments of various kinds; furthermore, this box has been developed with a 3-wire communication mode which facilitates the replacement of old systems with 3-wire wiring, which is very frequent, therefore it is ideal for the renovations of small/medium commercial premises and beyond. The powerful, high-efficiency turbofan guarantees high performance and in silent mode the noise is reduced to a minimum to guarantee maximum comfort in living the rooms.
This cassette unit is equipped with the exclusive ECONAVI PANEL which integrates two sensors: the motion sensor and the floor temperature sensor . The first detects movements, activity levels and the absence of people in the environment, while the second detects the average floor temperature and activates circulation if the temperature is low. Both sensors detect and control energy waste , ensuring reliability and efficiency even in environments with very high ceilings (5 metres).

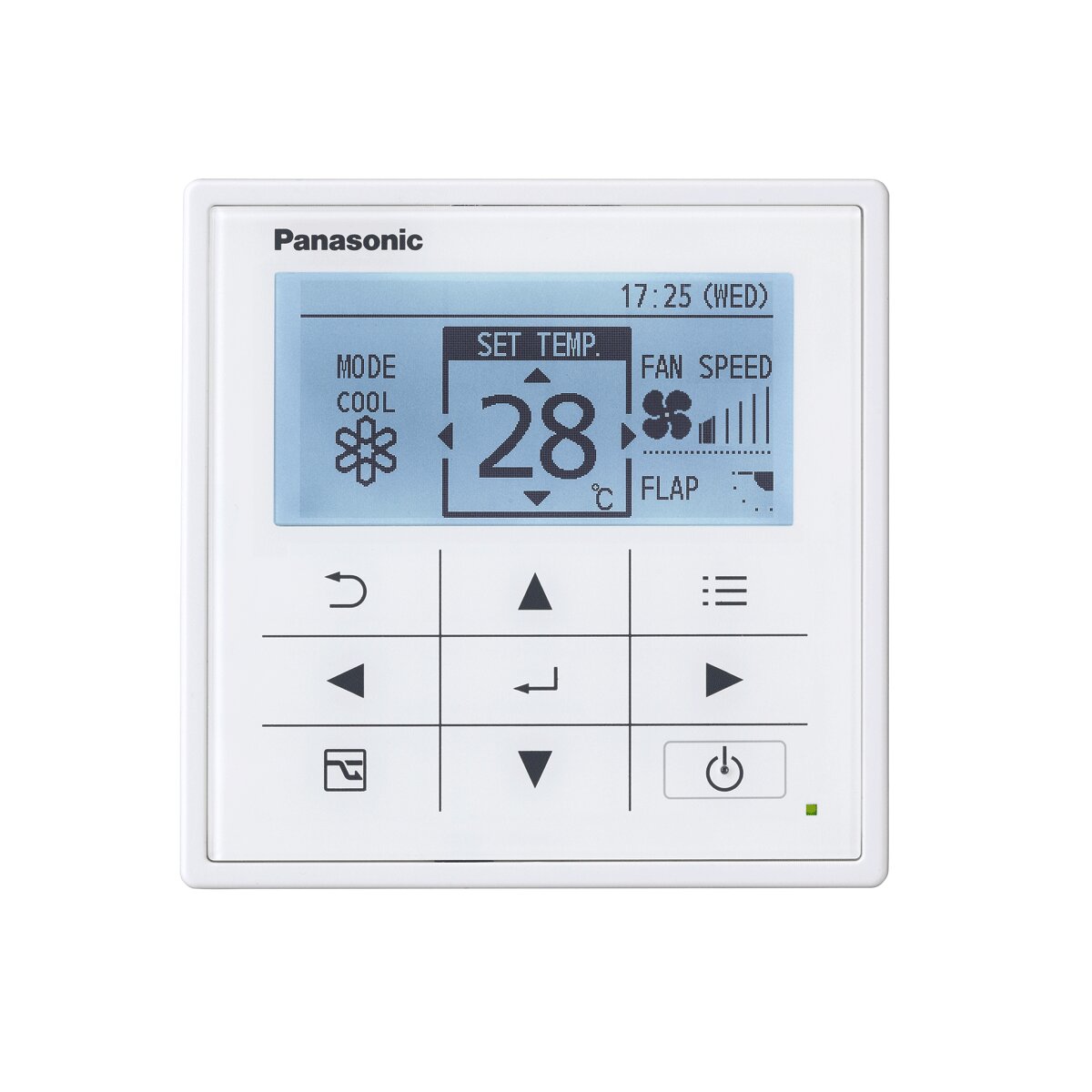

The management of the Panasonic PACi NX 4-way cassette air conditioner is entrusted to the wired control code. CZ-RTC5B : this module is equipped with touch controls and a backlit display , the display is via pictograms making both navigation in the menu and the selection of the various settable options very simple and intuitive; it also features the Econavi control function which allows you to manage the sensor on the panel with extreme ease. This series is also compatible with CONEX wired controls (optional) with IoT integration (currently not available on Climamarket). Furthermore, management can also take place via optional WiFi (currently not provided by Climamarket) via the Panasonic Comfort Cloud App , specially designed to simplify the management of all system functions from the comfort of your smartphone. Also compatible with BMS connectivity.
ACCESSORIES INCLUDED
- Wired control
- Econavi panel (90x90 mm)
WARRANTY
The warranty is the official Panasonic one and lasts 2 years.

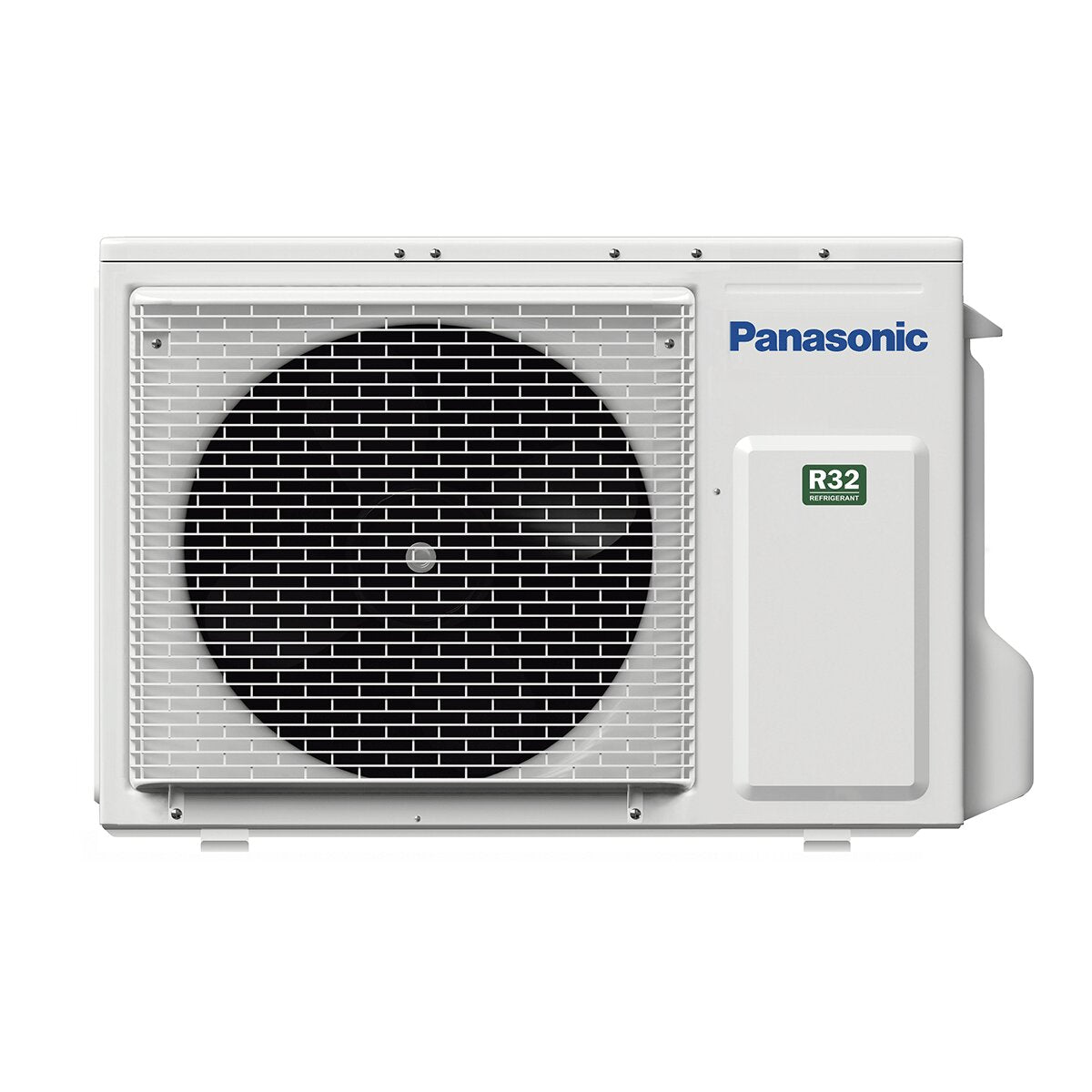

THE OUTDOOR UNIT
Panasonic's objectives include achieving very high efficiency with extremely competitive energy classes , both in cooling and heating (A++).
The external unit is the true beating heart of the air conditioner; it is environmentally friendly by virtue of the use of low GWP R32 gas and offers, thanks to the Inverter technology and the heat pump , always an operating power adequate to the real needs of the moment, both in summer for cooling and in winter for heating.
GUARANTEED SAVINGS
The external unit of the Panasonic PACi NX Series air conditioner always provides a power proportionate to the real air conditioning needs of the environment in which its internal unit is located.
The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up.
Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market .
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Panasonic one and lasts 2 years.
