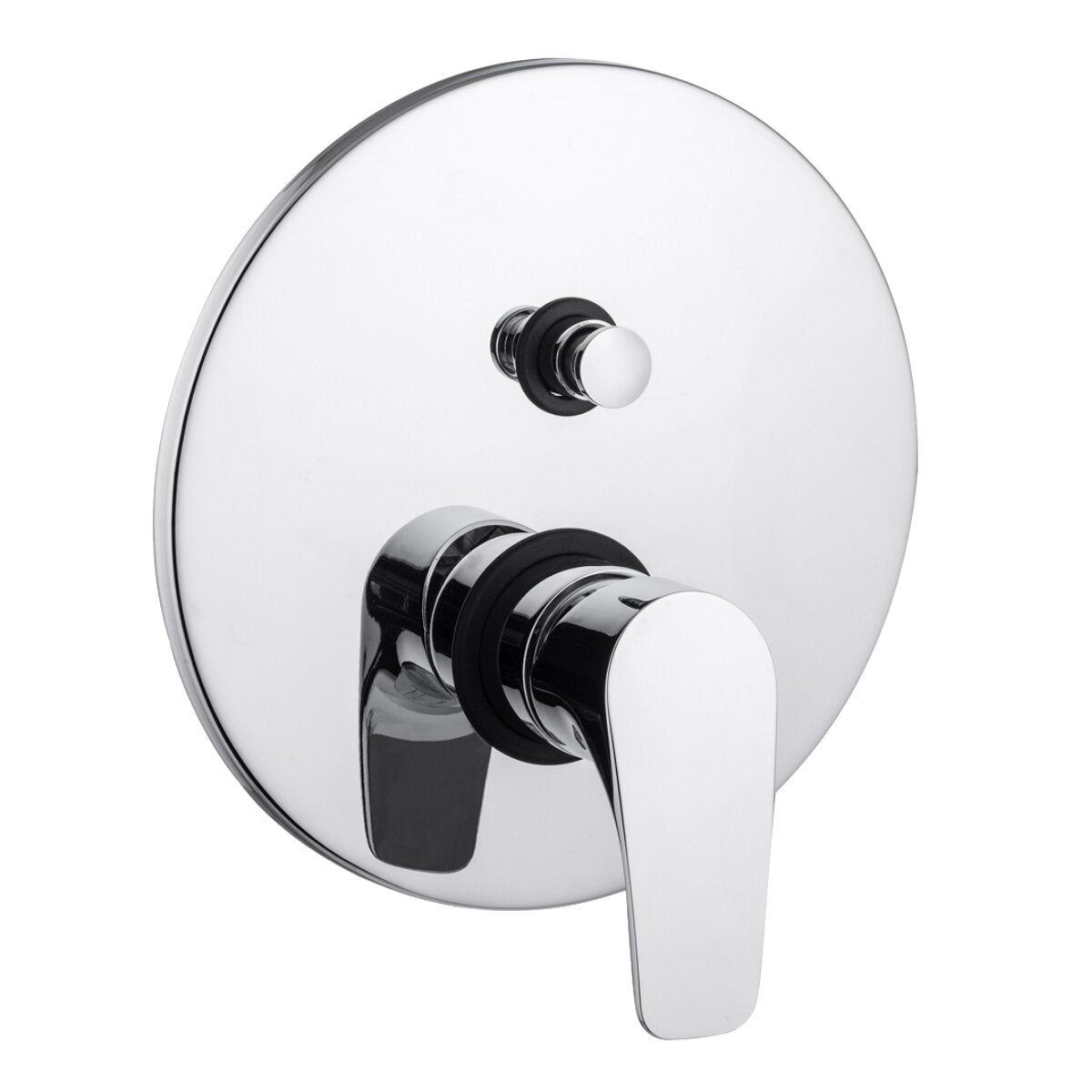

Paffoni LIME LM015 built-in shower mixer – 2 outlets with push-button diverter
The Paffoni LIME LM015 built-in shower mixer in chrome is a modern and complete solution for the bathroom, designed for built-in installations ( built-in body included ) with multiple outlets. Part of the LIME collection, it stands out for its elegant and minimal design, ideal for contemporary showers.
Modern design and large format plaque
The mixer features a 200 mm diameter circular metal plate , which enhances the product's aesthetics and allows for a clean integration into the wall. The polished chrome finish ensures brilliance, wear resistance, and ease of cleaning over time.
Precise and intuitive single-lever control
The single-lever control allows for smooth and progressive adjustment of temperature and flow rate. The ergonomic lever offers precise control of water flow, improving comfort in everyday use.
Cartridge and reliability
The mixer is equipped with a Ø35 mm ceramic disc cartridge , designed for:
- ensure precise adjustment
- ensure long-lasting durability over time
- resist wear and tear
ideal for frequent and continuous use.
Push button diverter for double outlet
The model is equipped with a push-button diverter , which allows you to manage 2 water outlets :
- for example shower head and hand shower
- or other shower configurations
allows for simple and immediate switching between the two functions
Complete flush-mounted installation
The mixer is supplied complete with:
- built-in body included
- metal plate Ø200 mm
- standard 1/2”G connections (hot/cold and top outlet)
- 3/4”G lower connection
ready-to-install solution for standard systems
Dimensions and configuration
From the technical drawing:
-
plate diameter: 200 mm
-
Installation depth: approx. 35–50 mm
-
connections: G1/2” and G3/4”
designed for optimal integration into the wall
Main features
- Built-in single-lever shower mixer
-
Polished chrome finish
- Ceramic disc cartridge
- 2 exits with push button diverter
- Built-in body included
- Metal plate Ø200 mm
-
1/2”G and 3/4”G connections
- Recessed wall installation
- Modern design LIME line
NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
WARRANTY
The warranty is the official Paffoni one and lasts 2 years.
