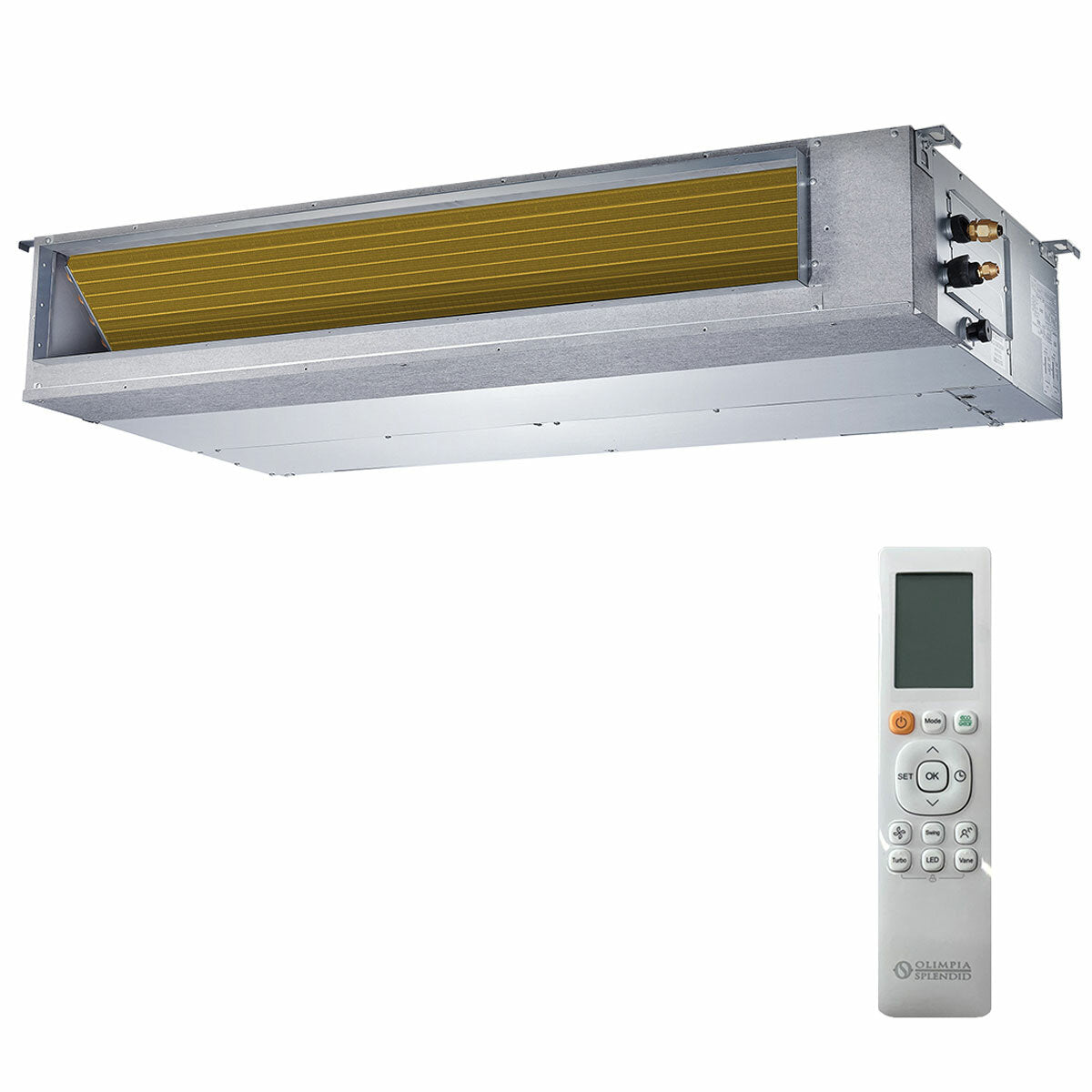

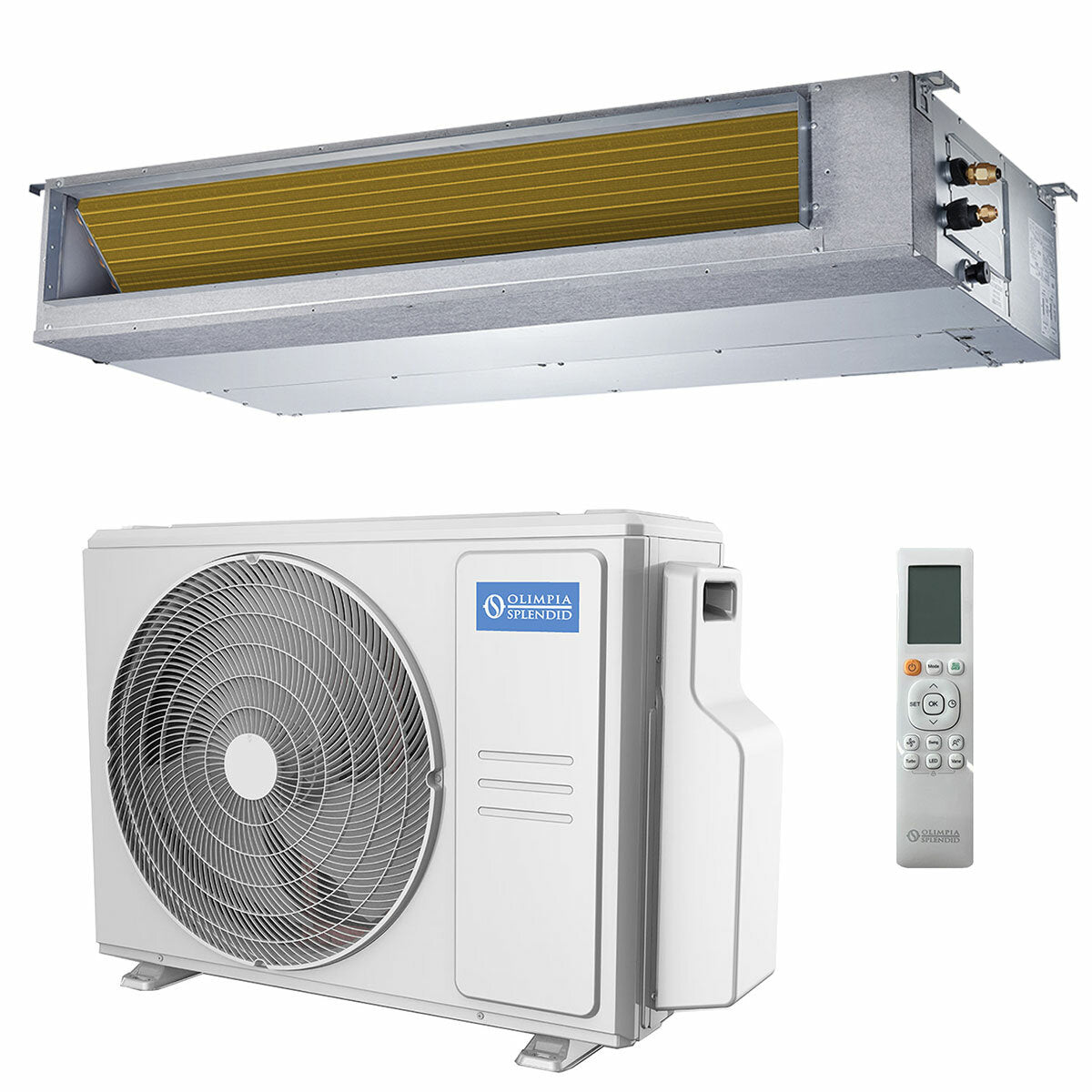

Olimpia Splendid Nexya S6 E Duct 36,000 BTU R32 Inverter A++/A+ Ducted Air Conditioner

The air conditioner kit is equipped with the following indoor units:

• 1 x 36000 BTU - Ideal for rooms from 100 to 140 sqm with an average height of 2.7 m

The Olimpia Splendid Nexya E Duct [OS5/S6+IS6] range represents the new generation of ducted inverter air conditioners designed for commercial applications and for the air conditioning of large spaces. The system uses high-efficiency DC Inverter technology with eco-friendly , low-GWP R32 refrigerant, ensuring high cooling and heating performance, optimized consumption, and silent operation.

Ducted installation allows for uniform air distribution through ducts and vents, keeping the indoor unit completely concealed in the false ceiling, leaving only the outlet grilles visible. This solution improves the aesthetics of the rooms, ensures uniform comfort even in large spaces, and allows for more discreet and effective air conditioning compared to traditional wall-mounted split systems.

The Nexya E Duct S6 series also stands out for its great installation flexibility thanks to the compact size of the internal units, the reversible air intake and the automated management of the air flow.

Design, air quality and environmental comfort

Nexya E Duct S6 indoor units are designed to adapt to different system configurations. The reversible air intake function allows the intake duct to be moved from the rear to the bottom of the unit by simply replacing a sheet metal panel. This allows the system to be installed even in suspended ceilings or utility rooms with limited space or unusual configurations.

The system also integrates an automated air flow function, which automatically adjusts operation based on the ducts connected to the unit, optimising comfort, available pressure and air distribution.

To improve indoor air quality, the units are equipped with:

• dust filtration
• dedicated intakes for external or fresh air
• Self Clean function, which automatically cleans and dries the evaporator, helping to reduce residual humidity, mold and impurities inside the unit.

The internal units also include:

• integrated condensate lifting pump
• external digital display to improve the reception of remote control signals
• adjustable static pressure up to 160 Pa, ideal even for more complex ducted systems.

Technology, functions and system management

The Nexya E Duct S6 range integrates numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.

The system manages: cooling, heating, dehumidification, ventilation ; Auto Mode: the Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and consumption; Sleep Mode: the Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: the Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort, particularly useful during night-time operation or in professional environments; Turbo Mode: the Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode: the Eco Mode function optimizes energy consumption while maintaining high performance and reducing electricity consumption during continuous operation; Power Gear: the Power Gear function allows you to select different operating power levels to balance performance and energy consumption based on the needs of the room; Temperature Sensor: the system uses the temperature sensor integrated into the remote control to detect the temperature in the area actually occupied by users more precisely; Self-diagnosis: the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart: In the event of a power outage, the Auto-restart function automatically restarts the air conditioner, maintaining the last settings stored before the blackout; Timer: The Timer allows you to program the air conditioner to automatically turn on and off according to your daily usage needs.

The system also features:

• terminals for remote ON/OFF control
• alarm contact for synchronization with external systems
• compatibility with Airzone control systems for advanced management of ducted air conditioning.

Management is via the remote control supplied as standard , intuitive and practical, furthermore, the Nexya E Duct S6 Olimpia Splendid series is set up for advanced management of the system via optional accessories to be purchased separately ( 4-wire wireless wall control B1234, wall-mounted wired control B0969, optional Wi-Fi disk kit B0970 for remote control of the air conditioner).

ACCESSORIES INCLUDED AS STANDARD

- Remote control.

WARRANTY

The warranty is the official one from Olimpia Splendid and lasts 2 years.

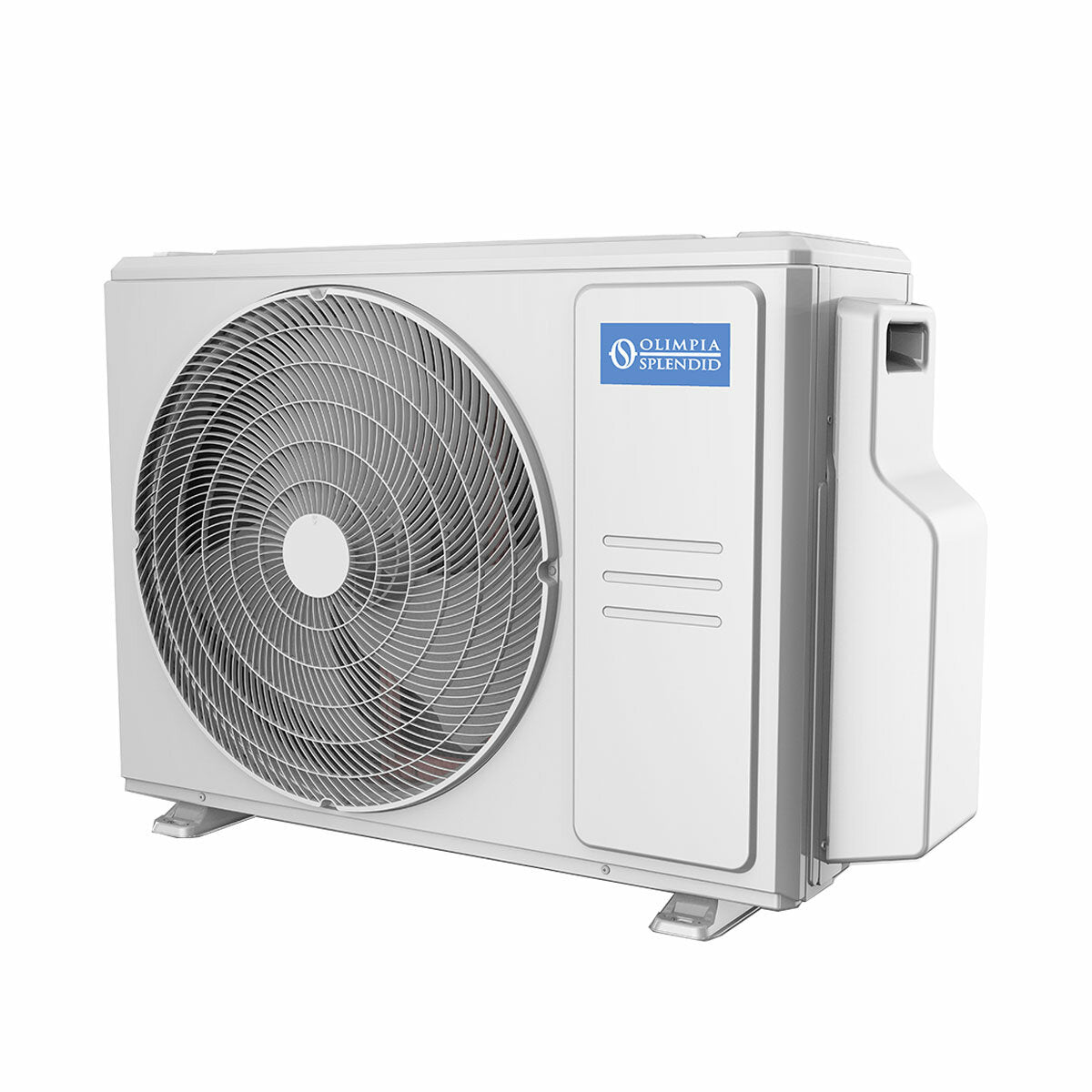

THE EXTERNAL UNIT

The 36,000 BTU external unit of the Olimpia Splendid NEXYA S5/S6 E Commercial air conditioner is a jewel of technology and represents the heart of the air conditioner.

The external units for monosplit systems allow you to connect only one internal unit, specifically the one with the power for which they are designed, in this case 36,000 BTU; in combination with the internal unit, they are generally used to air condition a single room .

These external units are very versatile, in fact they allow combinations with three different types of internal units: the Duct version, hidden, the Cassette and the Ceiling version, that is, on the ceiling, visible.

GUARANTEED SAVINGS

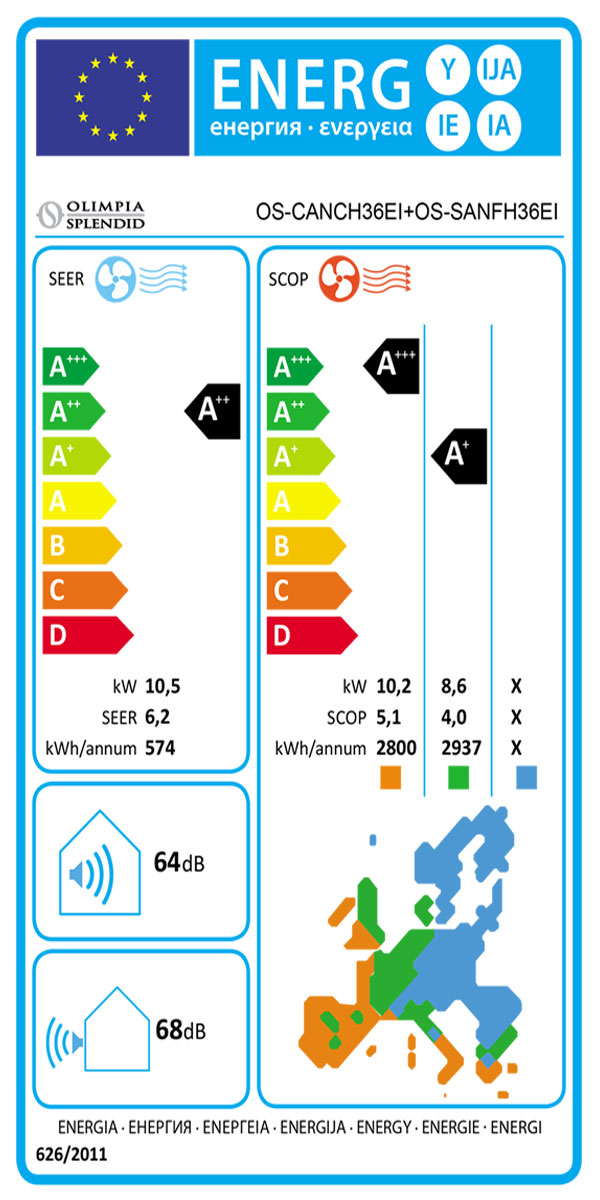

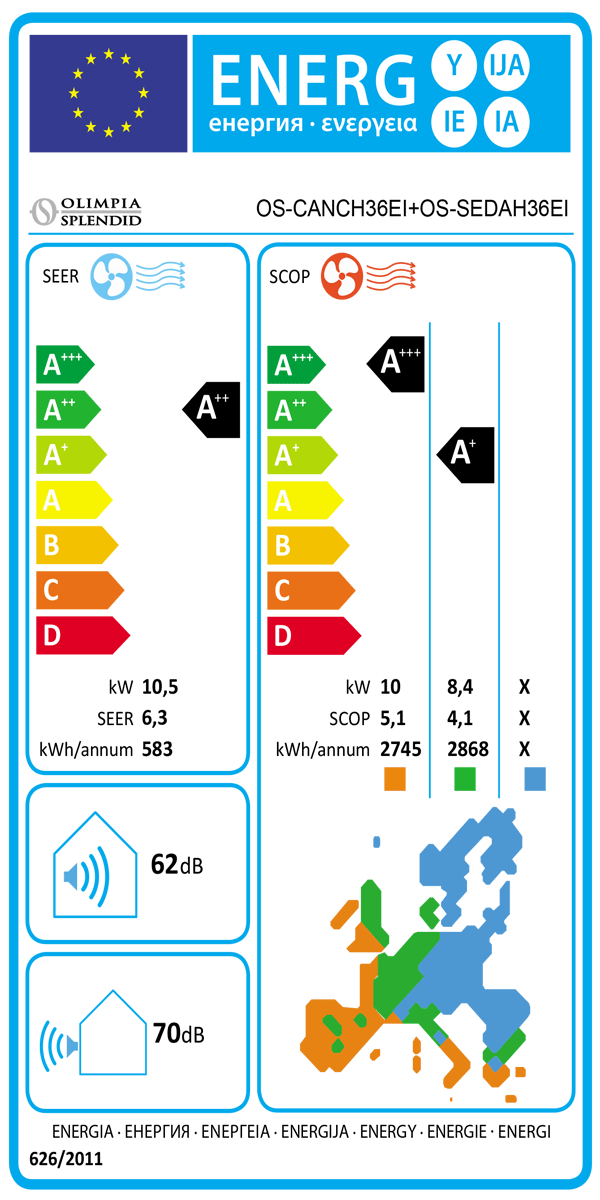

The NEXYA S5/S6 E Commercial outdoor unit always provides power proportionate to the actual air conditioning needs of the room in which its indoor unit is located. High performance and the great comfort produced are the distinctive features of the air conditioner both in summer for cooling and in winter for heating. The Olimpia Splendid Inverter System allows for extremely high energy savings and genuine attention to the environment.   The energy classes achieved are among the highest, up to A++ , and electricity consumption is always incredibly low . The variable speed compressor adjusts its rotation to the actual thermal load required by the indoor unit, significantly reducing consumption and maintaining a constant temperature without sudden changes . Thanks to its heat pump operation, the air conditioner can be used both for cooling in the summer and for heating in the winter.

The very silent compressor (max 70 dB(A)) helps you to respect your sleep and that of your neighbors.

It uses R32 gas for operation, which has a very low environmental impact, making a significant contribution to respecting nature and reducing energy consumption, thereby reducing your bills.

Thanks to the Hydrophilic Aluminum coating, these outdoor units are particularly suitable for installations in coastal areas or with high humidity in general; this coating allows the units to last up to 7 times longer than a traditional machine placed in the same environmental conditions.

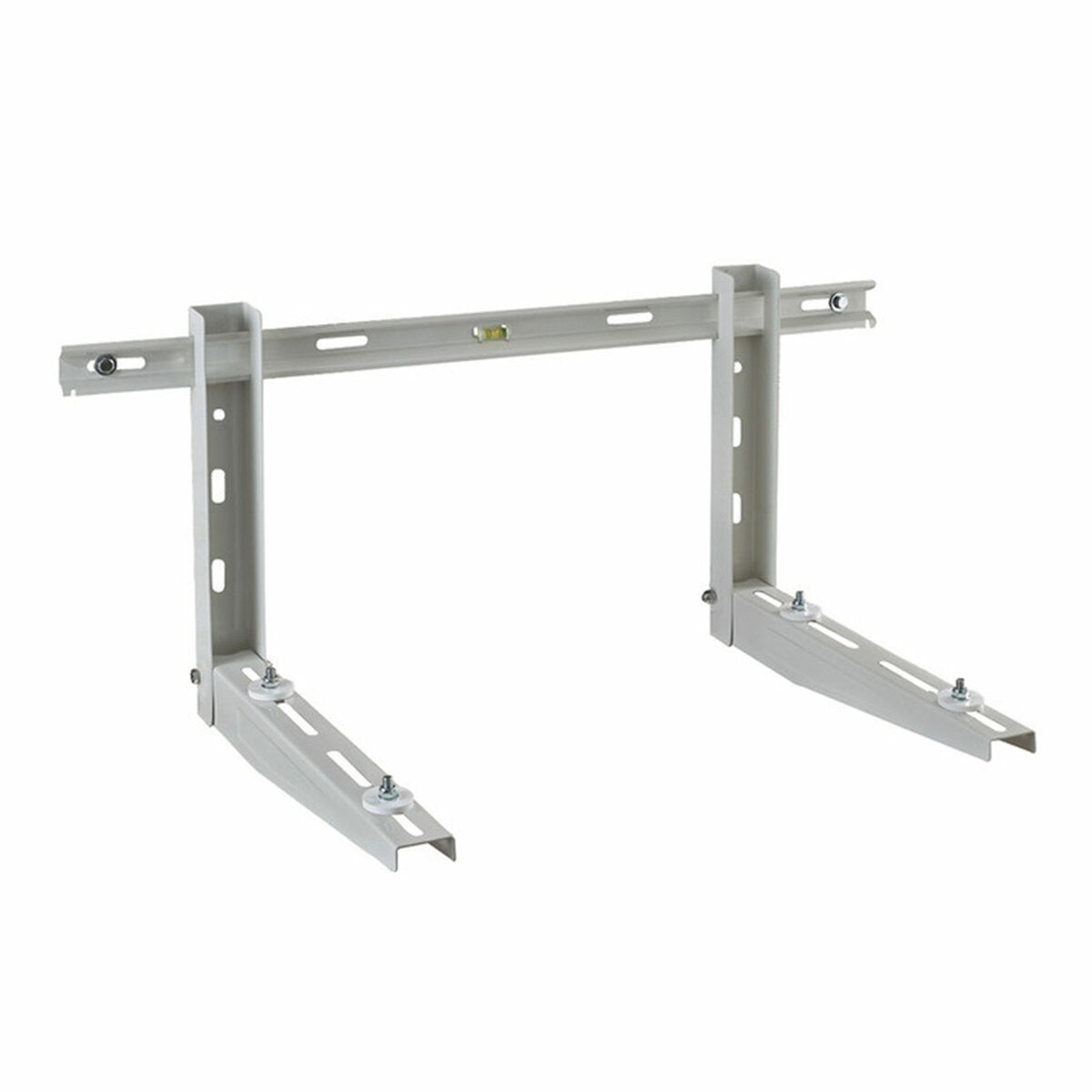

The external unit of the Olimpia Splendid monosplit NEXYA S5/S6 E Commercial air conditioner can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

There   The guarantee is the official Olimpia Splendid Italia one and lasts 24 months .
