Olimpia Splendid Nexya S6 E Cassette Quadri Split Air Conditioner 9000+9000+9000+9000 BTU Inverter A++ External Unit 8.2 kW

The air conditioner kit is equipped with the following indoor units:

• 4 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m

The Olimpia Splendid Nexya S6 E Cassette [OS5/S6+IS5/S6] range of inverter cassette air conditioners is designed for the climate control of commercial environments, offices, showrooms, and large professional spaces. Thanks to high-efficiency DC Inverter technology and the eco-friendly, low-GWP R32 refrigerant, the system guarantees high cooling and heating performance, optimized consumption, and quiet operation.

Ceiling installation with a cassette unit allows for uniform air distribution throughout the room, leaving only the decorative panel integrated into the false ceiling visible. This solution improves climate comfort, reduces the air conditioner's aesthetic impact, and optimizes air diffusion even in large spaces.

The Nexya S6 E Cassette range also stands out for its ultra-compact dimensions , especially the Compact 18 size, which occupies just 62x62 cm , facilitating installation even in suspended ceilings with limited space. All the monosplit outdoor units in the series are also single-fan, a solution that helps to reduce overall dimensions.

Design, air distribution and environmental quality

The Nexya S6 E Cassette indoor units are designed to ensure uniform comfort and optimised airflow distribution.

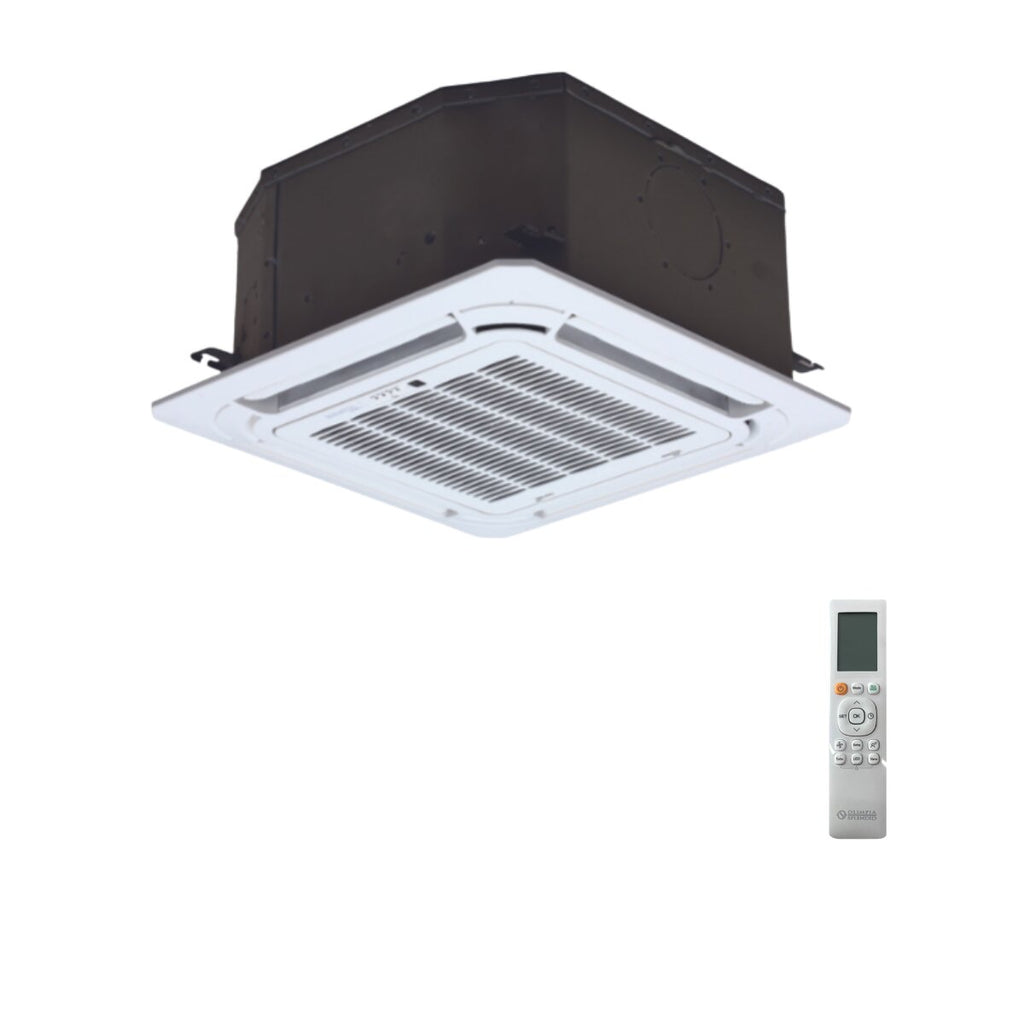

The internal unit is equipped with:

• decorative panel with integrated digital display
• independent flap management
• air exhaust vents even at the corners.

This configuration improves the diffusion of air in the room, reduces climate shadow areas and increases perceived comfort even in large or particularly busy rooms.

To improve indoor air quality, the system integrates:

• dust filtration
• dedicated outlets for the introduction of external or fresh air
• Self Clean function, designed to automatically clean and dry the evaporator, helping to reduce residual humidity and the formation of internal impurities.

The internal units are also equipped with:

• integrated condensate lifting pump
• provision for remote ON/OFF control
• Alarm contact for synchronization with external systems.

Technology, functions and system management

The Olimpia Splendid Nexya S6 E Cassette cassette air conditioners offer numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.

The air conditioner manages: cooling, heating, dehumidification, ventilation; Auto Mode: The Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and energy consumption; Sleep Mode: Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: The Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort during operation; Turbo Mode : Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode : The Eco Mode function optimizes energy consumption by reducing electricity consumption during continuous operation; Power Gear: The Power Gear function allows you to select different power levels to balance performance and energy consumption according to the needs of the room; Temperature Sensor: The system uses the integrated temperature sensor to detect the climatic conditions of the room more precisely and improve automatic regulation; Vertical Swing: The Vertical Swing function automatically manages the orientation of the flaps to improve air distribution and uniform air conditioning throughout the room; Self-diagnosis : the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart : in the event of a power failure, the Auto-restart function automatically restarts the system, maintaining the last stored settings; Automatic defrost : the automatic defrost function optimizes heat pump operation during the winter season, improving operational continuity and energy efficiency; Timer : the Timer allows you to program the air conditioner to automatically turn on and off based on daily usage needs.

The system is also designed for:

• remote control ON/OFF
• alarm synchronization
• integration with external system management devices.

The Nexya S6 E cassette air conditioner can be managed via the infrared remote control supplied as standard , and is also compatible with various optional remote control and management systems (to be purchased separately), including: 4-wire wireless wall control B1234, wall wired control B0969 , wireless split kit B1020 .

ACCESSORIES INCLUDED AS STANDARD

- Remote control

- Decorative panel with integrated digital display.

WARRANTY

The warranty is the official Olimpia Splendid one and lasts 2 years.

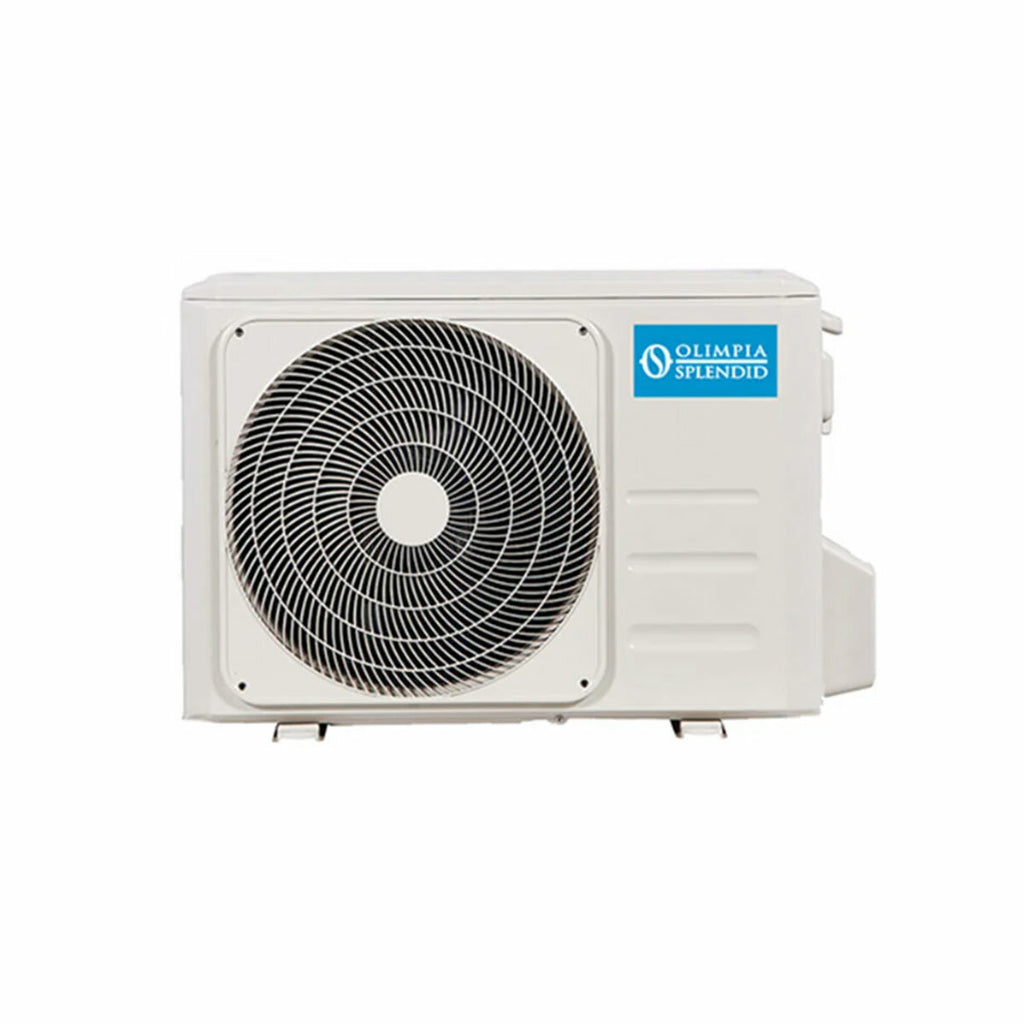

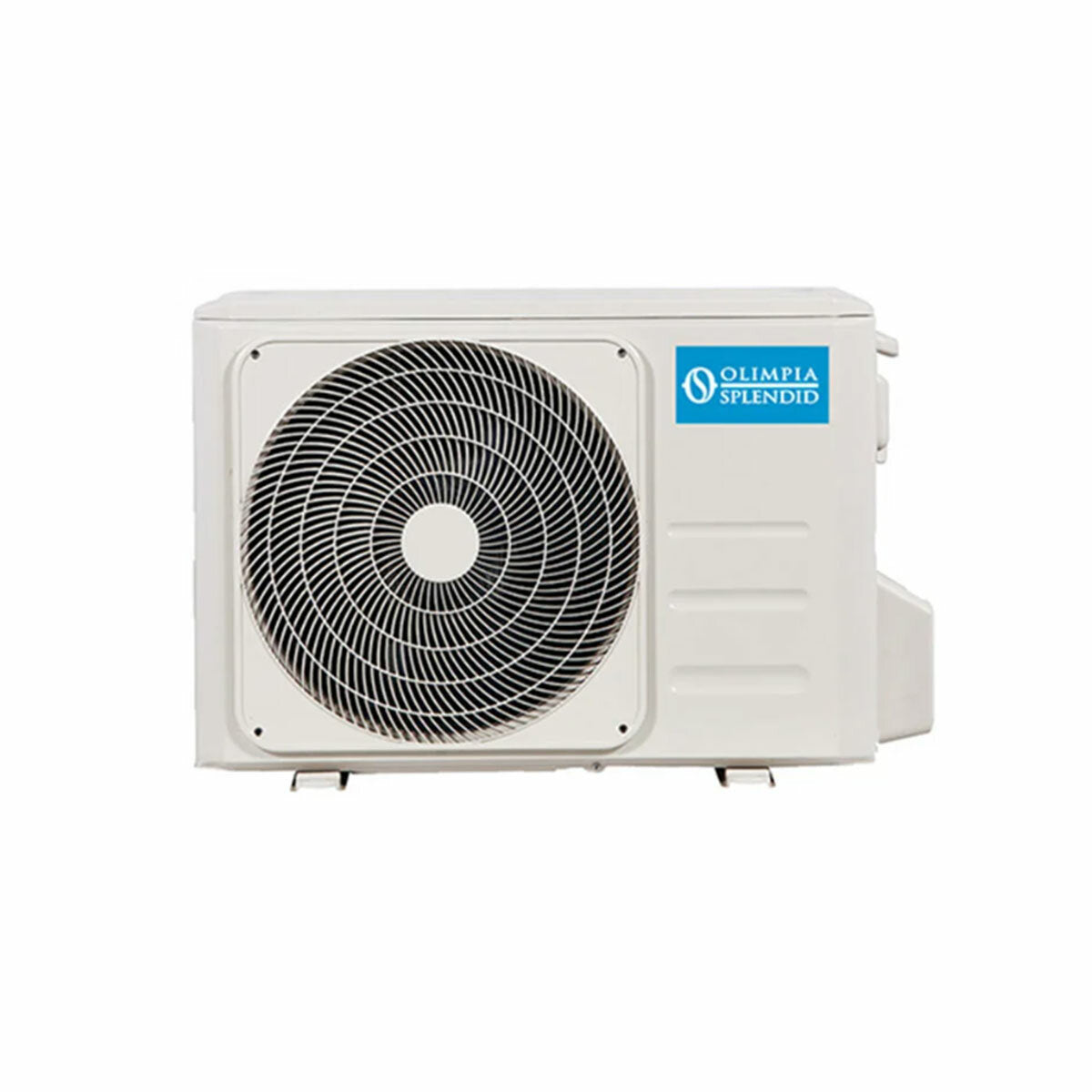

THE EXTERNAL UNIT

The External Unit for Olimpia Splendid multisplit air conditioners with four connections is equipped with a heat pump and inverter technology and represents the true heart of the air conditioner.

Multisplit outdoor units offer the great advantage of air conditioning multiple rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where space is limited for installing multiple outdoor units or when you want to reduce the visual impact of this air conditioning component on the facade of the property being air-conditioned. This outdoor unit allows you to connect and power two, three, or four OLIMPIA SPLENDID indoor units from all compatible series, even with different power ratings; the indoor units will always operate independently and each will be equipped with its own control.

GUARANTEED SAVINGS

The OLIMPIA SPLENDID multisplit outdoor unit for air conditioners always provides power truly proportionate to the number of indoor units operating and offers the option of installing the right air conditioner for the room being air-conditioned. The remarkable performance of the outdoor unit allows the connected indoor units to offer great comfort to users, whether using the system for cooling in the summer or heating in the winter. The Olimpia Splendid high-efficiency compressor ensures maximum efficiency with minimal electricity consumption; the inverter system increases savings and keeps set temperatures constant and without temperature fluctuations, ensuring maximum user comfort. The heat pump allows the air conditioner to be used both for cooling in the summer and for heating in the winter.

The very silent compressor helps you to respect your sleep and that of your neighbors.

For operation it uses R32 gas which has a very low environmental impact and therefore contributes significantly to respecting nature and reduces energy consumption , thus benefiting the cost of the bill.

The external unit of the Olimpia Splendid monosplit NEXIA S4 E inverter air conditioner can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

The guarantee is the official Olimpia Splendid one and lasts 24 months.
