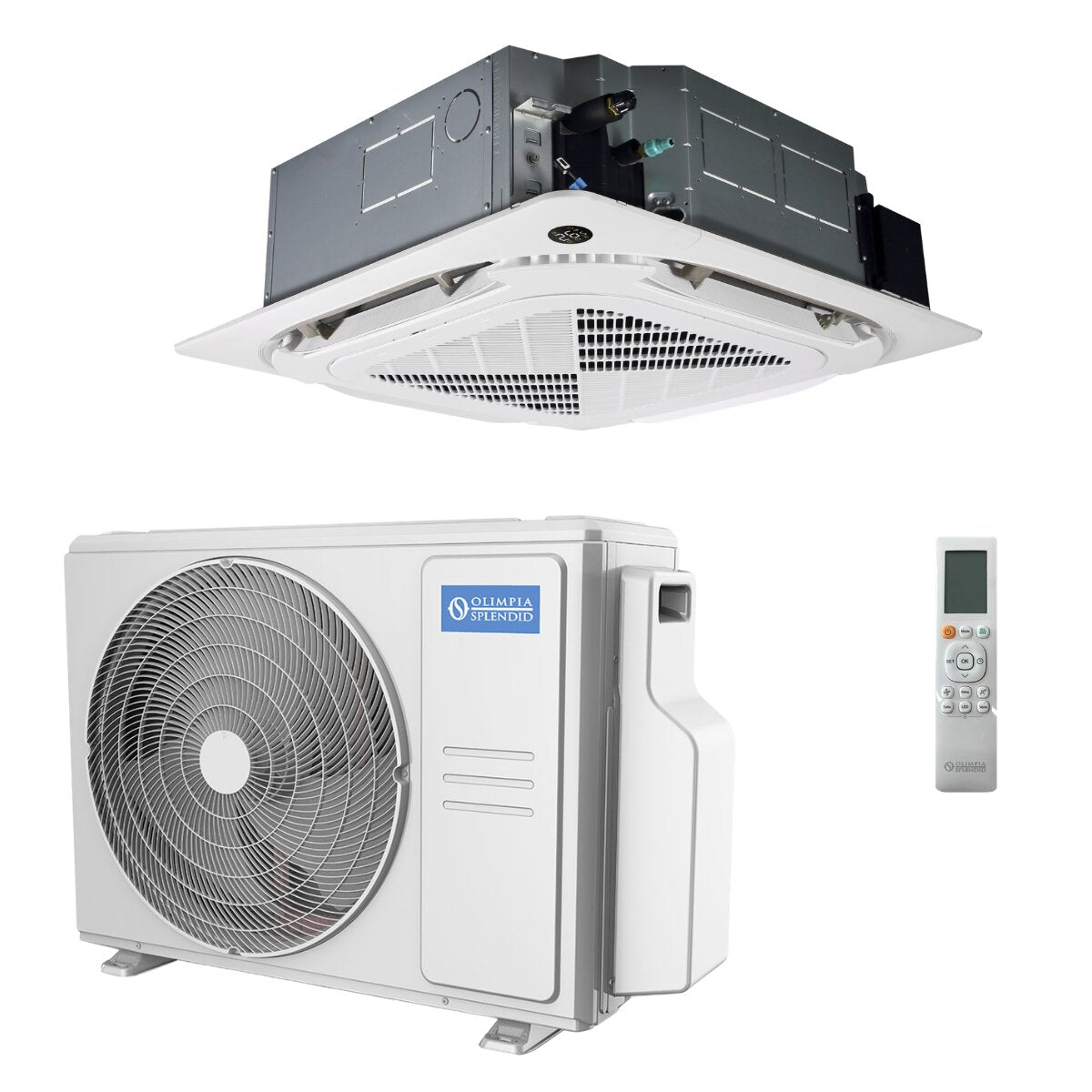

Olimpia Splendid Nexya S6 E Cassette Air Conditioner 36,000 BTU R32 Inverter A++/A+

The air conditioner kit is equipped with the following indoor units:

• 1 x 36000 BTU - Ideal for rooms from 100 to 140 sqm with an average height of 2.7 m

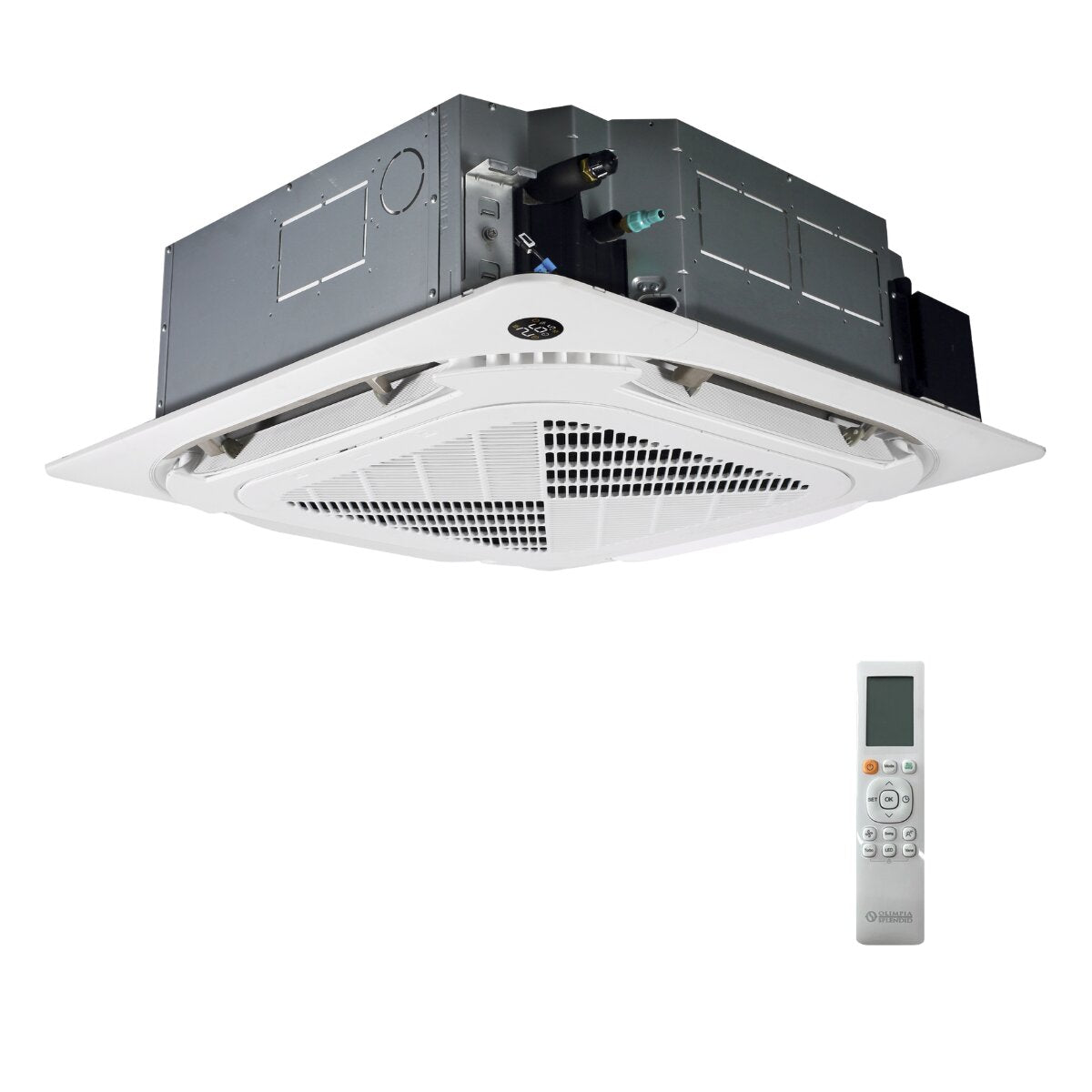

The Olimpia Splendid Nexya S6 E Cassette [OS5/S6+IS5/S6] range of inverter cassette air conditioners is designed for the climate control of commercial environments, offices, showrooms, and large professional spaces. Thanks to high-efficiency DC Inverter technology and the eco-friendly, low-GWP R32 refrigerant, the system guarantees high cooling and heating performance, optimized consumption, and quiet operation.

Ceiling installation with a cassette unit allows for uniform air distribution throughout the room, leaving only the decorative panel integrated into the false ceiling visible. This solution improves climate comfort, reduces the air conditioner's aesthetic impact, and optimizes air diffusion even in large spaces.

The Nexya S6 E Cassette range also stands out for its ultra-compact dimensions , especially the Compact 18 size, which occupies just 62x62 cm , facilitating installation even in suspended ceilings with limited space. All the monosplit outdoor units in the series are also single-fan, a solution that helps to reduce overall dimensions.

Design, air distribution and environmental quality

The Nexya S6 E Cassette indoor units are designed to ensure uniform comfort and optimised airflow distribution.

The internal unit is equipped with:

• decorative panel with integrated digital display
• independent flap management
• air exhaust vents even at the corners.

This configuration improves the diffusion of air in the room, reduces climate shadow areas and increases perceived comfort even in large or particularly busy rooms.

To improve indoor air quality, the system integrates:

• dust filtration
• dedicated outlets for the introduction of external or fresh air
• Self Clean function, designed to automatically clean and dry the evaporator, helping to reduce residual humidity and the formation of internal impurities.

The internal units are also equipped with:

• integrated condensate lifting pump
• provision for remote ON/OFF control
• Alarm contact for synchronization with external systems.

Technology, functions and system management

The Olimpia Splendid Nexya S6 E Cassette cassette air conditioners offer numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.

The air conditioner manages: cooling, heating, dehumidification, ventilation; Auto Mode: The Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and energy consumption; Sleep Mode: Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: The Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort during operation; Turbo Mode : Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode : The Eco Mode function optimizes energy consumption by reducing electricity consumption during continuous operation; Power Gear: The Power Gear function allows you to select different power levels to balance performance and energy consumption according to the needs of the room; Temperature Sensor: The system uses the integrated temperature sensor to detect the climatic conditions of the room more precisely and improve automatic regulation; Vertical Swing: The Vertical Swing function automatically manages the orientation of the flaps to improve air distribution and uniform air conditioning throughout the room; Self-diagnosis : the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart : in the event of a power failure, the Auto-restart function automatically restarts the system, maintaining the last stored settings; Automatic defrost : the automatic defrost function optimizes heat pump operation during the winter season, improving operational continuity and energy efficiency; Timer : the Timer allows you to program the air conditioner to automatically turn on and off based on daily usage needs.

The system is also designed for:

• remote control ON/OFF
• alarm synchronization
• integration with external system management devices.

The Nexya S6 E cassette air conditioner can be managed via the infrared remote control supplied as standard , and is also compatible with various optional remote control and management systems (to be purchased separately), including: 4-wire wireless wall control B1234, wall wired control B0969 , wireless split kit B1020 .

ACCESSORIES INCLUDED AS STANDARD

- Remote control

- Decorative panel with integrated digital display.

WARRANTY

The warranty is the official Olimpia Splendid one and lasts 2 years.

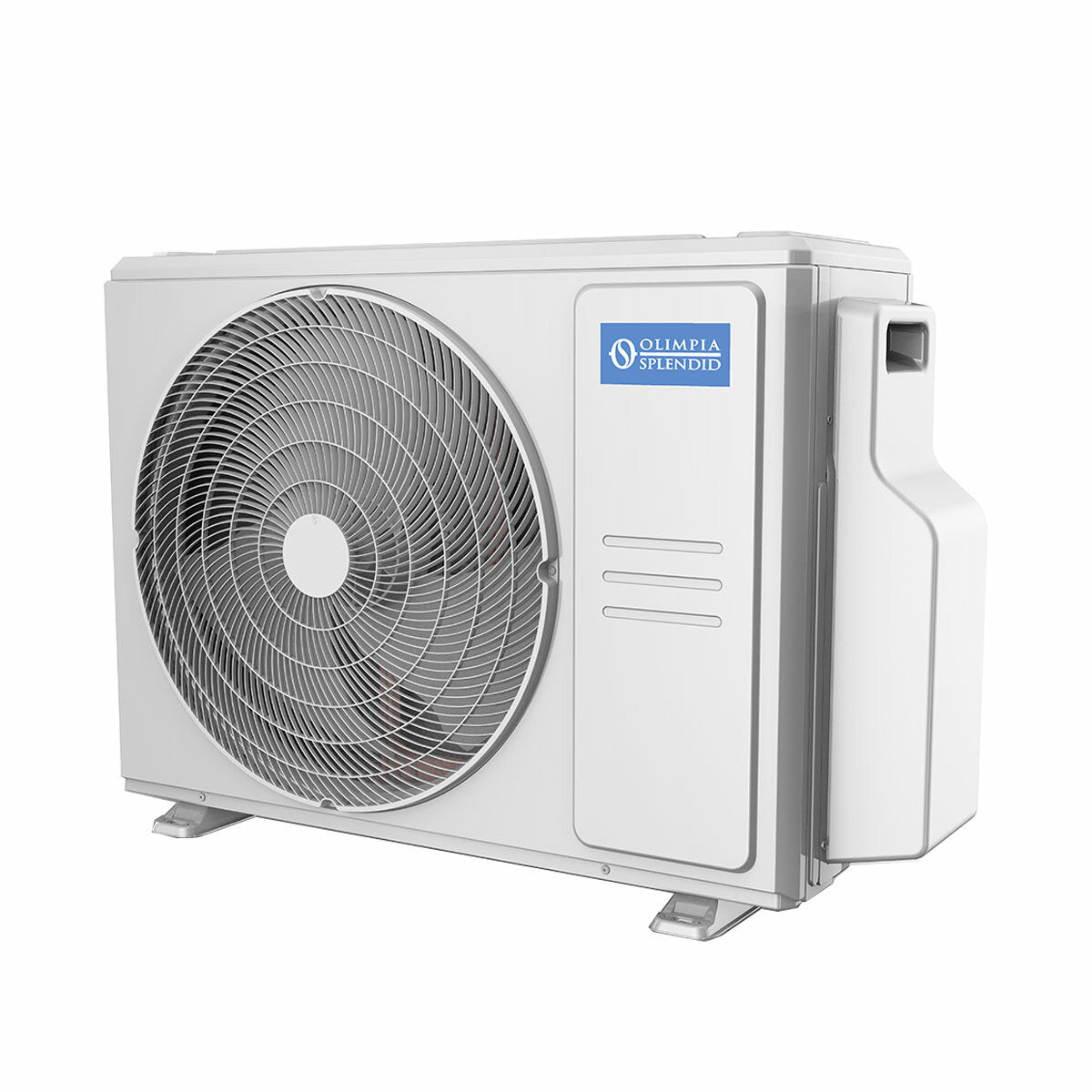

THE EXTERNAL UNIT

The 36,000 BTU external unit of the Olimpia Splendid NEXYA S5/S6 E Commercial air conditioner is a jewel of technology and represents the heart of the air conditioner.

The external units for monosplit systems allow you to connect only one internal unit, specifically the one with the power for which they are designed, in this case 36,000 BTU; in combination with the internal unit, they are generally used to air condition a single room .

These external units are very versatile, in fact they allow combinations with three different types of internal units: the Duct version, hidden, the Cassette and the Ceiling version, that is, on the ceiling, visible.

GUARANTEED SAVINGS

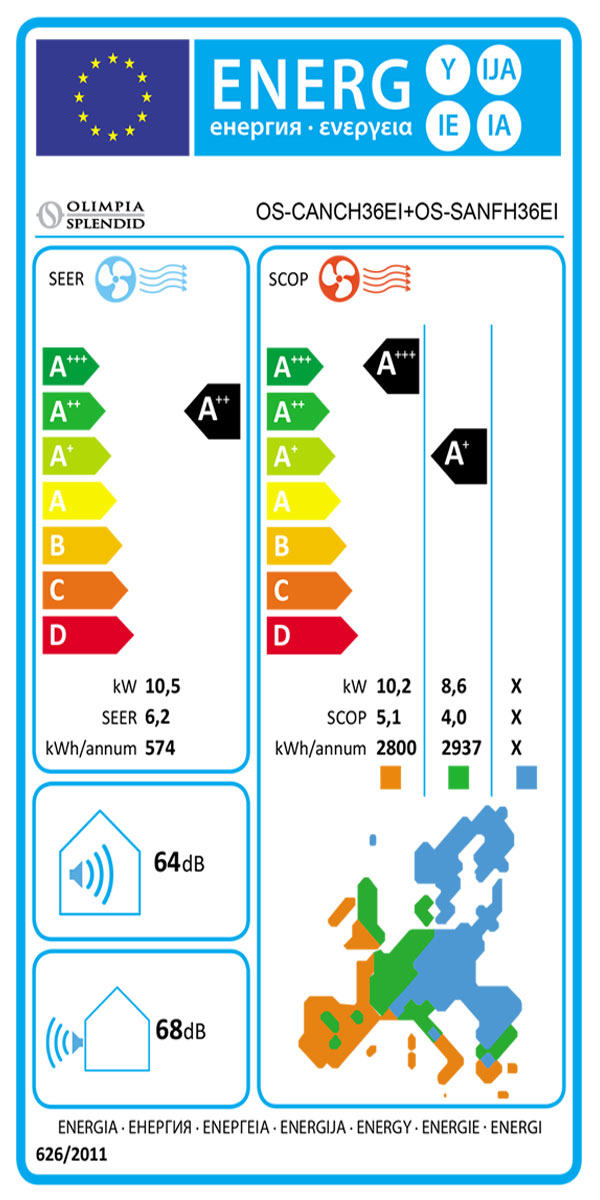

The NEXYA S5/S6 E Commercial outdoor unit always provides power proportionate to the actual air conditioning needs of the room in which its indoor unit is located. High performance and the great comfort produced are the distinctive features of the air conditioner both in summer for cooling and in winter for heating. The Olimpia Splendid Inverter System allows for extremely high energy savings and genuine attention to the environment.   The energy classes achieved are among the highest, up to A++ , and electricity consumption is always incredibly low . The variable speed compressor adjusts its rotation to the actual thermal load required by the indoor unit, significantly reducing consumption and maintaining a constant temperature without sudden changes . Thanks to its heat pump operation, the air conditioner can be used both for cooling in the summer and for heating in the winter.

The very silent compressor (max 70 dB(A)) helps you to respect your sleep and that of your neighbors.

It uses R32 gas for operation, which has a very low environmental impact, making a significant contribution to respecting nature and reducing energy consumption, thereby reducing your bills.

Thanks to the Hydrophilic Aluminum coating, these outdoor units are particularly suitable for installations in coastal areas or with high humidity in general; this coating allows the units to last up to 7 times longer than a traditional machine placed in the same environmental conditions.

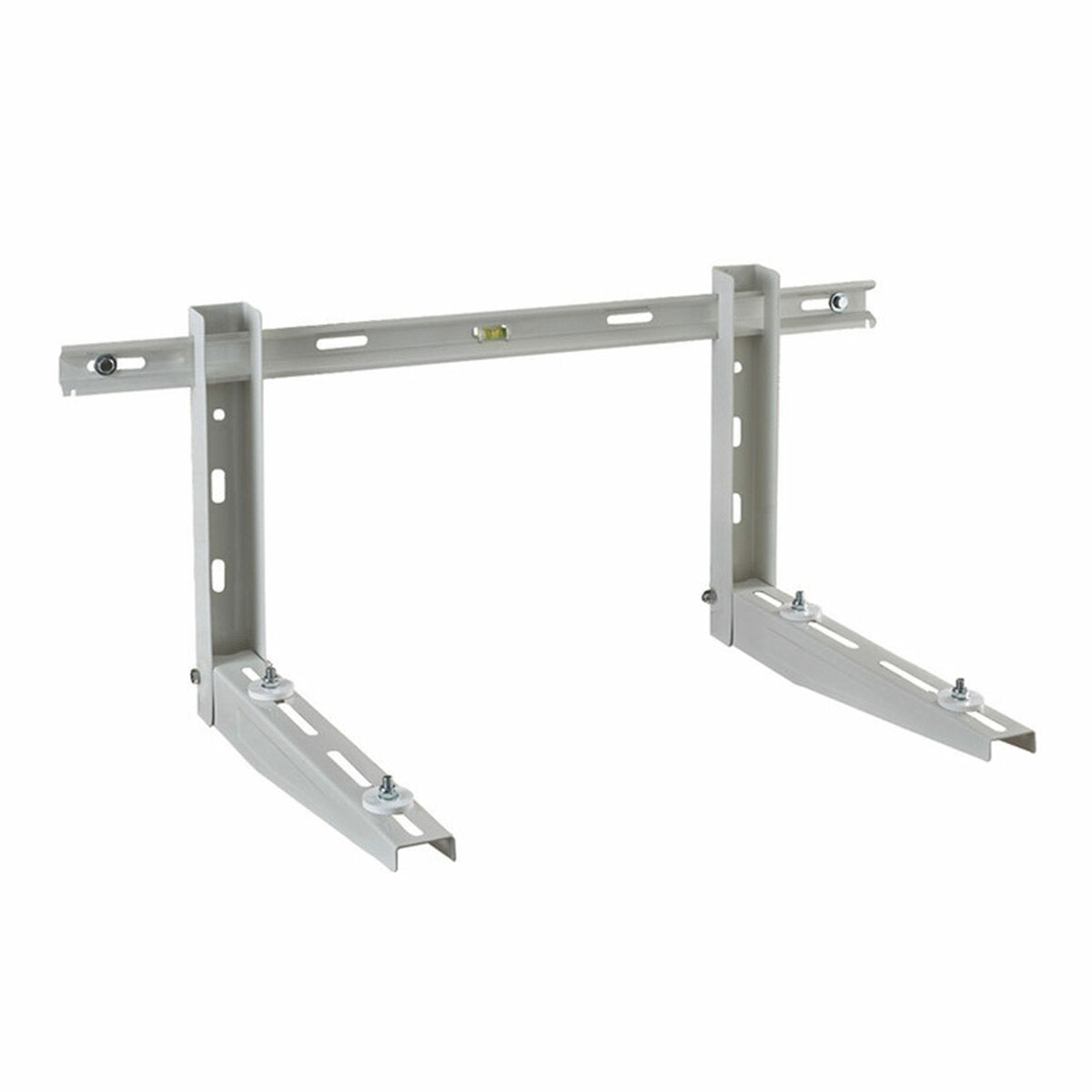

The external unit of the Olimpia Splendid monosplit NEXYA S5/S6 E Commercial air conditioner can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

There   The guarantee is the official Olimpia Splendid Italia one and lasts 24 months .
