Heating function: ideal for units of about 15 square meters with a calculated average height of 2.7 m
Cooling function: ideal for units of about 10 square meters with a calculated average height of 2.7 m
Heating output kW 1,55 - Cooling output kW 1,01.

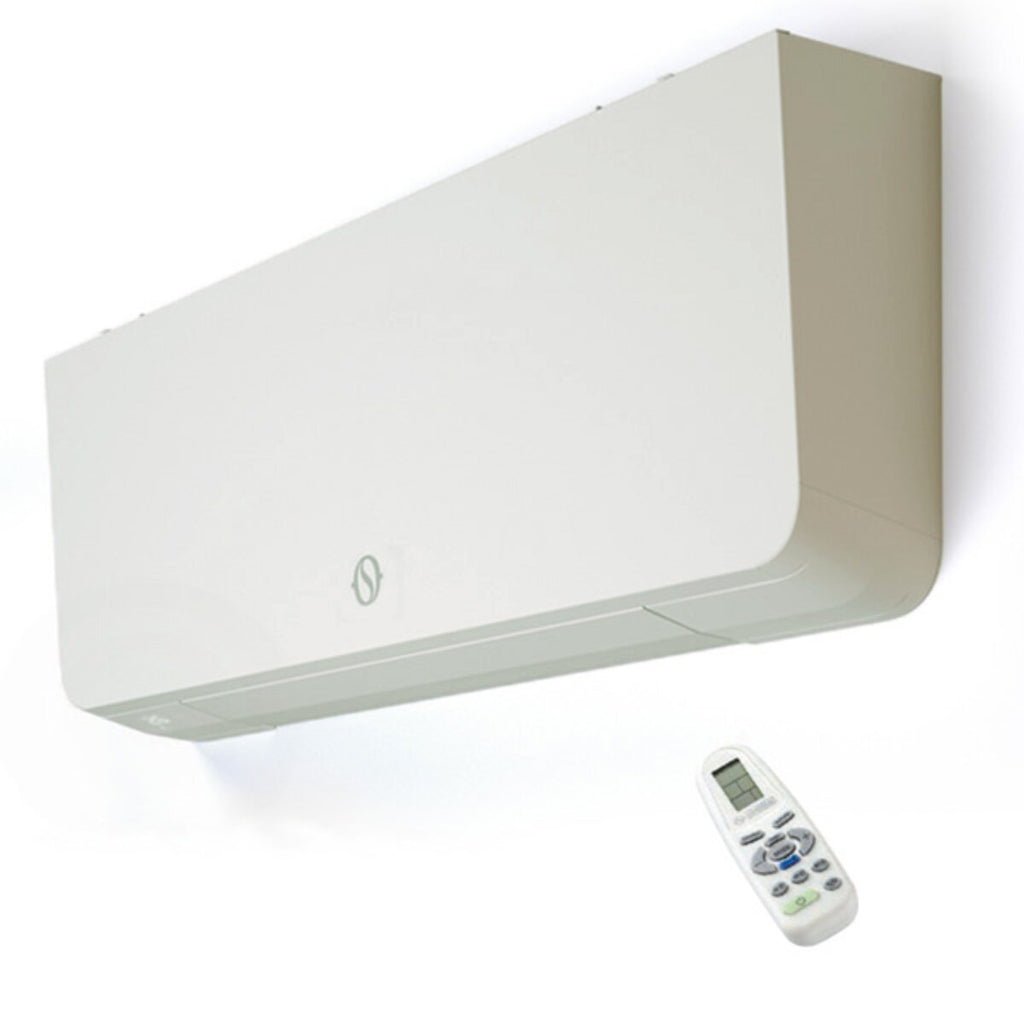

With the FAN COIL OLIMPIA SPLENDID Bi2 wall SLW inverter technology, design and innovation come together to create a high-end product. The Made in Italy design of the duo Ercoli & Garlandini has in fact allowed him to win the prestigious GOOD DESIGN AWARD for the excellence of its shapes in combination with high technology. The aesthetics of the Bi2 wall are characterized by clean lines, rounded corners and an ultra-compact thickness. The whole is completed by a sturdy metal body in the elegant white RAL 9003.

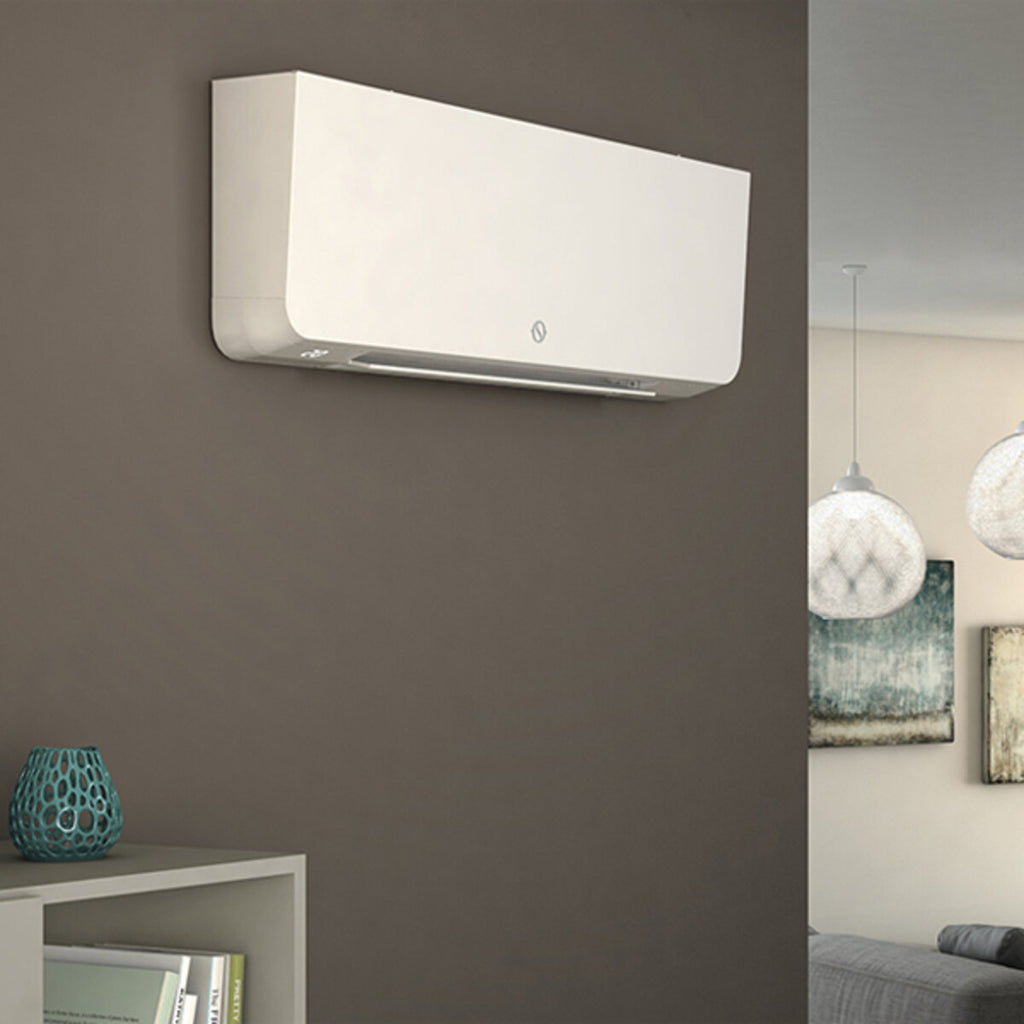

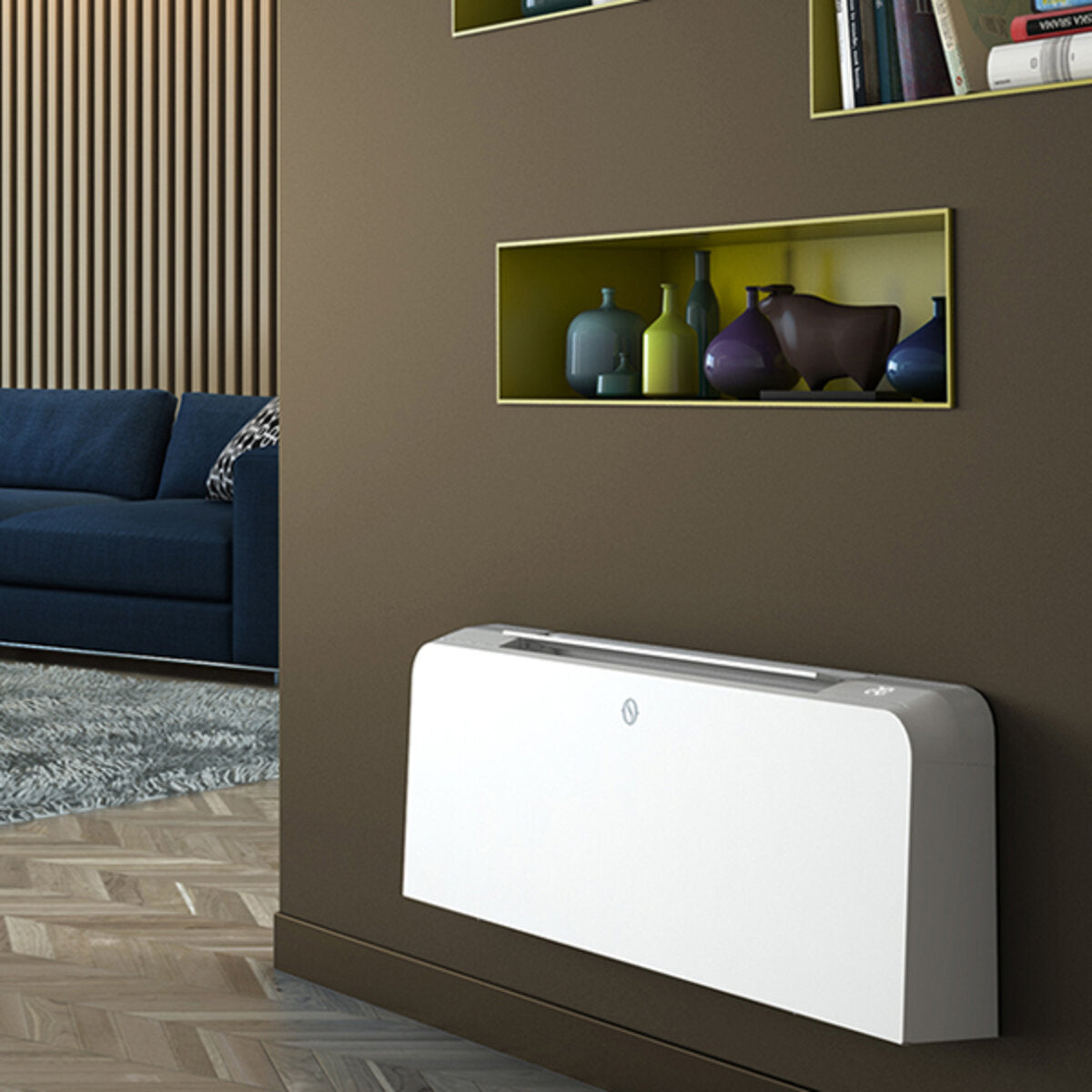

Bi2 wall is the first reversible hydronic fan coil: it offers the possibility of installation both on a high wall ( High Wall configuration) and low ( Console configuration) thanks to a simple combination of keys on the on-board control that allows you to rotate the digits of the display . By installing the machine on a high wall, the display will be positioned on the bottom left and the hydraulic connections on the right; with the low wall installation, the display will be on the top right and the hydraulic connections on the left. Where it was necessary to install several machines in a single environment in the different combinations, an elegant uniformity of furniture would be maintained.
The maximum thickness of only 150 mm (129 mm in the narrowest part, hence Total Flat ) make Bi2 wall one of the most compact fan coils in the sector and allow it to be installed in many environments, whether domestic, hotel or commercial, modern or classics.
Bi2 wall cools, heats, filters and dehumidifies the air offering maximum comfort in any type of environment.
HIGH TECHNOLOGY BUT GREAT SIMPLICITY OF USE
The fan coil unit, in this version, is equipped as standard with the TR Control ( Touch Remote ) on the machine and with a remote control for easy setting of the desired room temperature, of the operating mode (hot, cold, dehumidification, ventilation only or automatic) or of the timer.
The TR command also allows remote control with a wall command (Chronothermostat code B0736, sold separately) and can be interfaced with the most modern home automation systems thanks to the adoption of the Modbus RS485 signal protocol.
GUARANTEED SAVINGS AND HIGH COMFORT
The modulating electric motor of the OLIMPIA SPLENDID Bi2 wall SLW inverter FAN COIL is of the DC brushless type with inverter for which it automatically adjusts its speed according to the real needs of air conditioning in the environment and always allows for significant energy savings.
Bi2 wall is equipped with the Silent Technology system which guarantees high comfort with a minimum noise level thanks to the high efficiency tangential fan which allows to reach high air flow rates with minimum noise levels. The air delivery is ensured by a large motorized flap to direct the air flow according to the different needs.
The highly innovative heat exchange coil has made it possible to create a space-saving fan coil with a minimum thickness: it is classified as having high thermal efficiency because, despite the reduced overall dimensions, it always allows a very high water / air heat exchange.
In this version, the machine is equipped with a pre-assembled two-way valve.
DIMENSIONS
Length: 906 mm - Height: 380 mm - Min depth: 129 mm, max. 150 mm
WARRANTY
The guarantee is the Official Olimpia Splendid Italia one and has a duration of 24 months.
