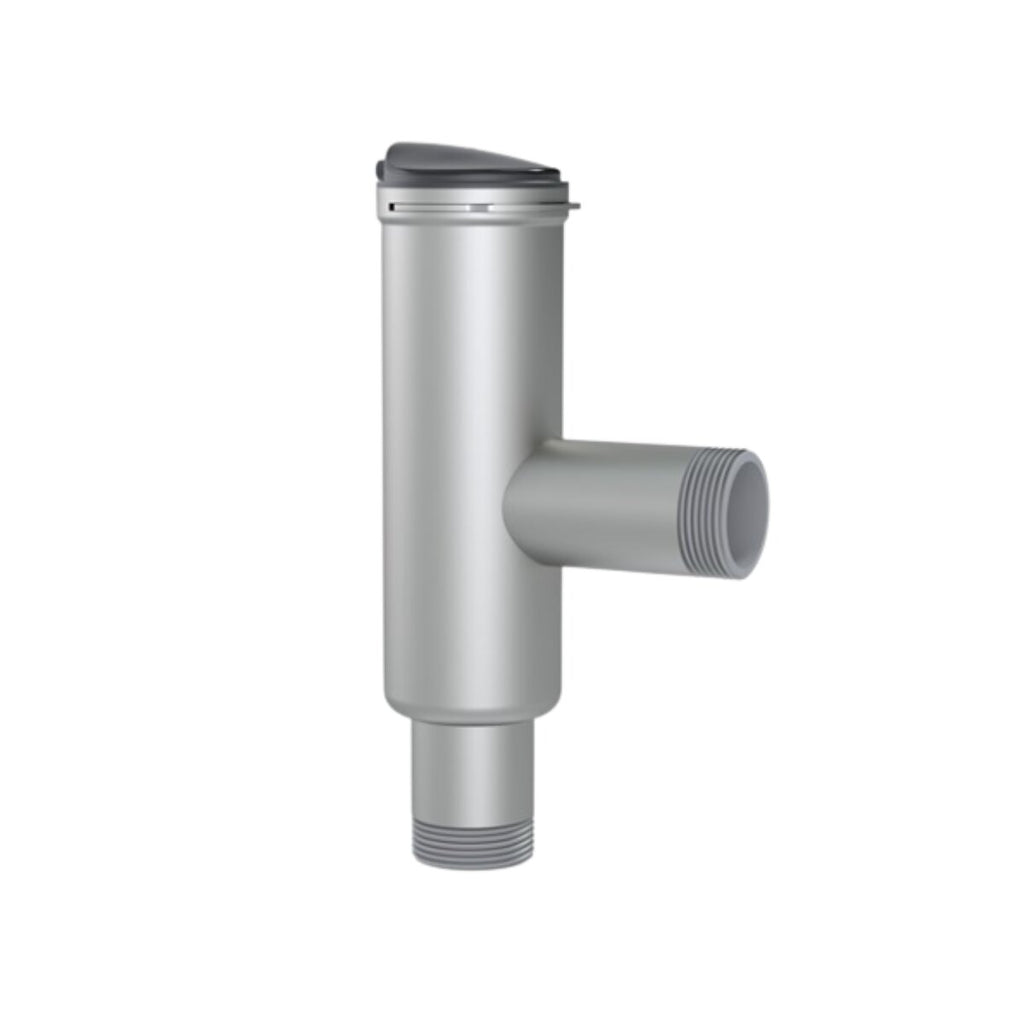

Maxiflame LK 770 AeroSafe M1¼ automatic deaerator
The LK 770 AeroSafe is an automatic deaerator designed for the continuous removal of air and gas from heating, cooling and heat pump systems .
Thanks to the large internal chamber and stainless steel mesh , it ensures effective air separation with automatic expulsion, improving the efficiency and longevity of the system. The side exhaust reduces the risk of ice and blockages, making it suitable for installation in cold environments.
Made of lead-free stainless steel , it ensures high reliability and durability over time. Maintenance is easy thanks to the quick-opening system for internal cleaning. Suitable for installation in heat pump systems, even with flammable refrigerants such as R290 , provided it is installed outdoors or in adequately ventilated areas.
Main technical features
- Connections: M 1¼” (male thread)
- Kvs: 20 m³/h
- Max pressure: 6 bar
- Operating temperature: 0°C ÷ 95°C
- Body material: stainless steel
- Compatible with water and glycol mixtures (max 50%)
Strengths
- Automatic elimination of air and gas
- Anti-freeze side exhaust
- Lead-free stainless steel construction
- Quick and easy maintenance
- Low pressure drop
NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
WARRANTY
The warranty is the official Maxiflame one and lasts 2 years.
