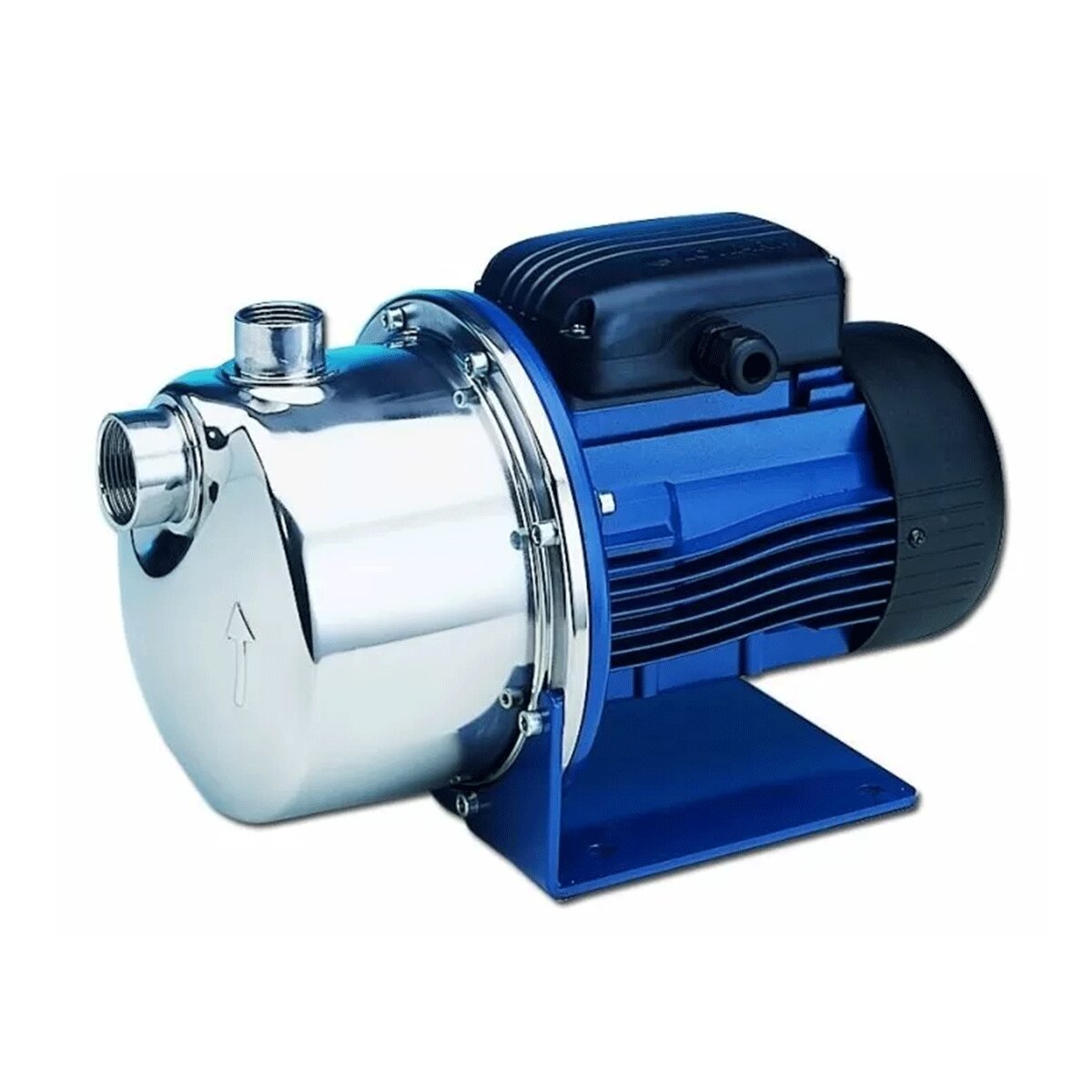

Lowara BGM11 series single-phase centrifugal self-priming pump
kW 1.1 HP 1.5 - Flow rate from 25 - 70 l/min Head from 43.9 - 30.0 m - Delivery 1” - Suction 1 1/4”
SELF-PRIMING CENTRIFUGAL PUMP HP 1.5 KW 1.1 SINGLE PHASE BG SERIES
The BGM11 monobloc self-priming centrifugal pump is the ideal electric pump for a wide range of applications but, in particular, for use with drinking water.
LARGE MODULARITY OF INSTALLATION AND USE
The BGM11 electric pump differs from other categories of self-priming pumps on the market thanks to its main feature: the built-in ejector system allows it to maintain priming even in the presence of dissolved gases in the water.
The pump body is made of AISI 316L stainless steel , the open, set-back impeller is made of AISI CF8M stainless steel , the mechanical seal complies with EN 12756 (ex DIN24960) standards, filling and drain plugs made of AISI 316L and flanges EN 1092-1 (ex UNI 2236) and DIN2532 standards.
APPLICATIONS
The BGM11 self-priming electric pump is ideal for use in various types of sectors: industrial washing, parts washing systems, washing in the food industry; emptying washing machines; industrial dishwashers; vacuum evaporators; painting systems; systems for the dyeing and textile industry; water supply, pressurization; irrigation; rainwater collection; swimming pools; fountains.
GUARANTEED SAVINGS AND HIGH COMFORT
Single-phase electric motor with IE2 efficiency class in compliance with the European ERP Ecodesign Directive 2009/125/EC . The massive use of pressed stainless steel ensures a superior level in terms of performance but also unalterability of the self-priming pump over time. The temperature of the liquid can vary from -10°C to +40°C and the operating pressure is 8 bar.
DIMENSIONS
- Length mm. 425 – Width mm. 215 – Height mm. 248
- Weight 14.0 kg
WARRANTY
The warranty is the official Lowara Xylem Water Solution one and lasts 24 months .
