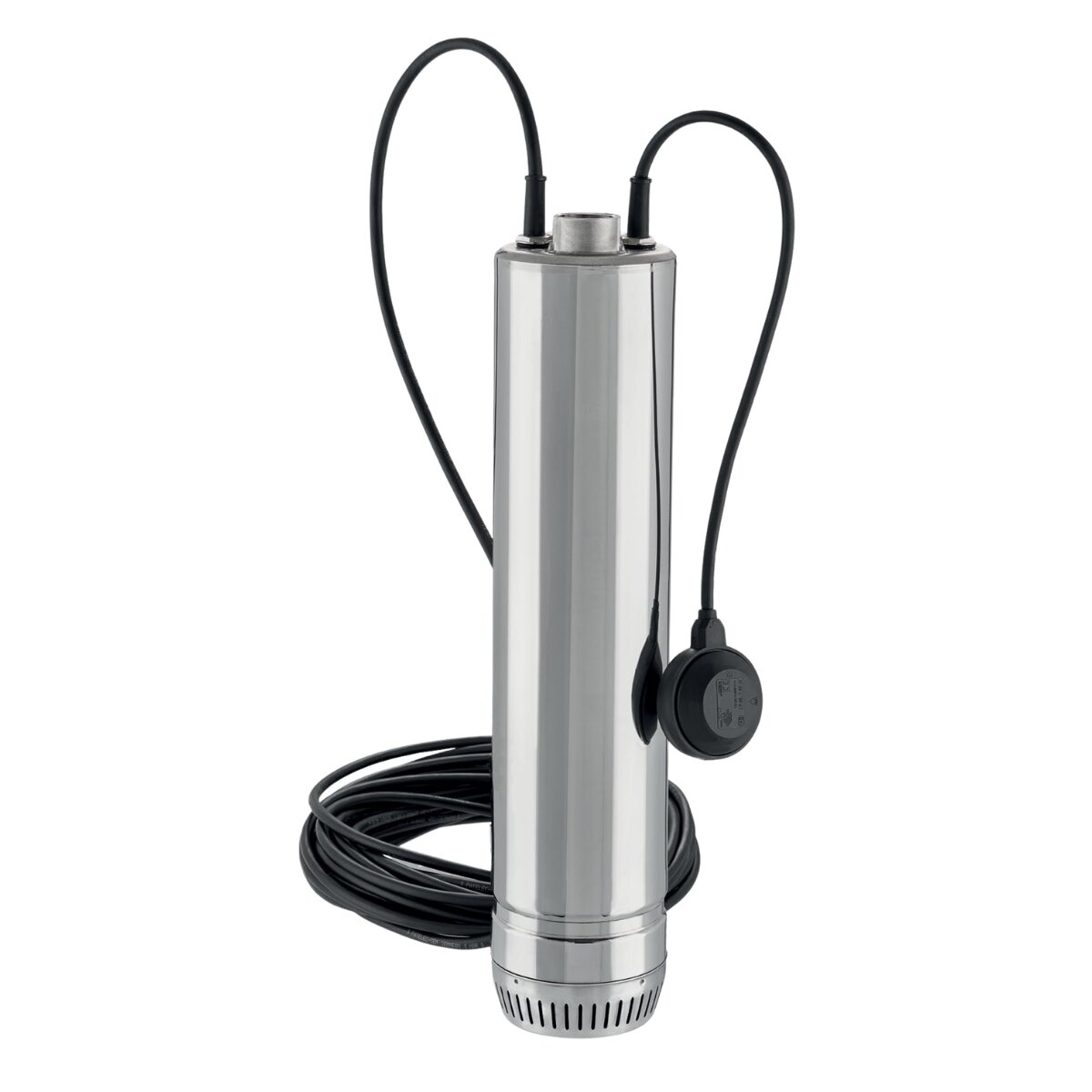

Lowara Scuba 3SC4/05/5 0.55 kW 0.75 HP submersible pump with float switch

Lowara Scuba 3SC4/05/5 CG 0.55 kW 230V submersible electric pump with float

kW 0.55 HP 0.75 - Flow rate range l/min 20/70 - Head range 40.8/17.8 m

The Lowara Scuba 3SC4/05/5 CG is a multistage, monobloc submersible electric pump designed for pumping clean water in domestic and civil applications. Ideal for water supply from wells, cisterns, and tanks, it is also suitable for irrigation, pressurization, rainwater harvesting, and washing systems.

This version is equipped with a float switch , which allows the pump to operate automatically based on the water level, simplifying system management and helping to prevent dry running when installed correctly.

The 0.55 kW (0.75 HP) single-phase motor integrates the capacitor and thermal protection with automatic reset, while the structure uses stainless steel components and technopolymer impellers to guarantee high resistance to corrosion and long life.

Thanks to its 4 hydraulic stages , maximum immersion depth of 17 metres and 20 metre H07RN8-F power cable, the Lowara Scuba represents a reliable and versatile solution for numerous water lifting and distribution applications.

Main features

• Monoblock multistage submersible electric pump
• Single-phase power supply 220-240 V - 50 Hz
• Rated power: 0.55 kW (0.75 HP)
• Nominal flow rate: 3 m³/h
• Float switch for automatic operation
• Motor with built-in capacitor and automatic reset thermal protection
• Main components in stainless steel
• Technopolymer impellers
• Vertical or horizontal installation
• 20m H07RN8-F power cable
• Maximum diving depth: 17 m
• Maximum liquid temperature: 40°C
• Maximum operating pressure: 10 bar
• Passage of solid bodies up to 2 mm
• Maximum sand in water: 25 g/m³

WARRANTY

The warranty is the official Lowara Italia one and lasts 24 months.
