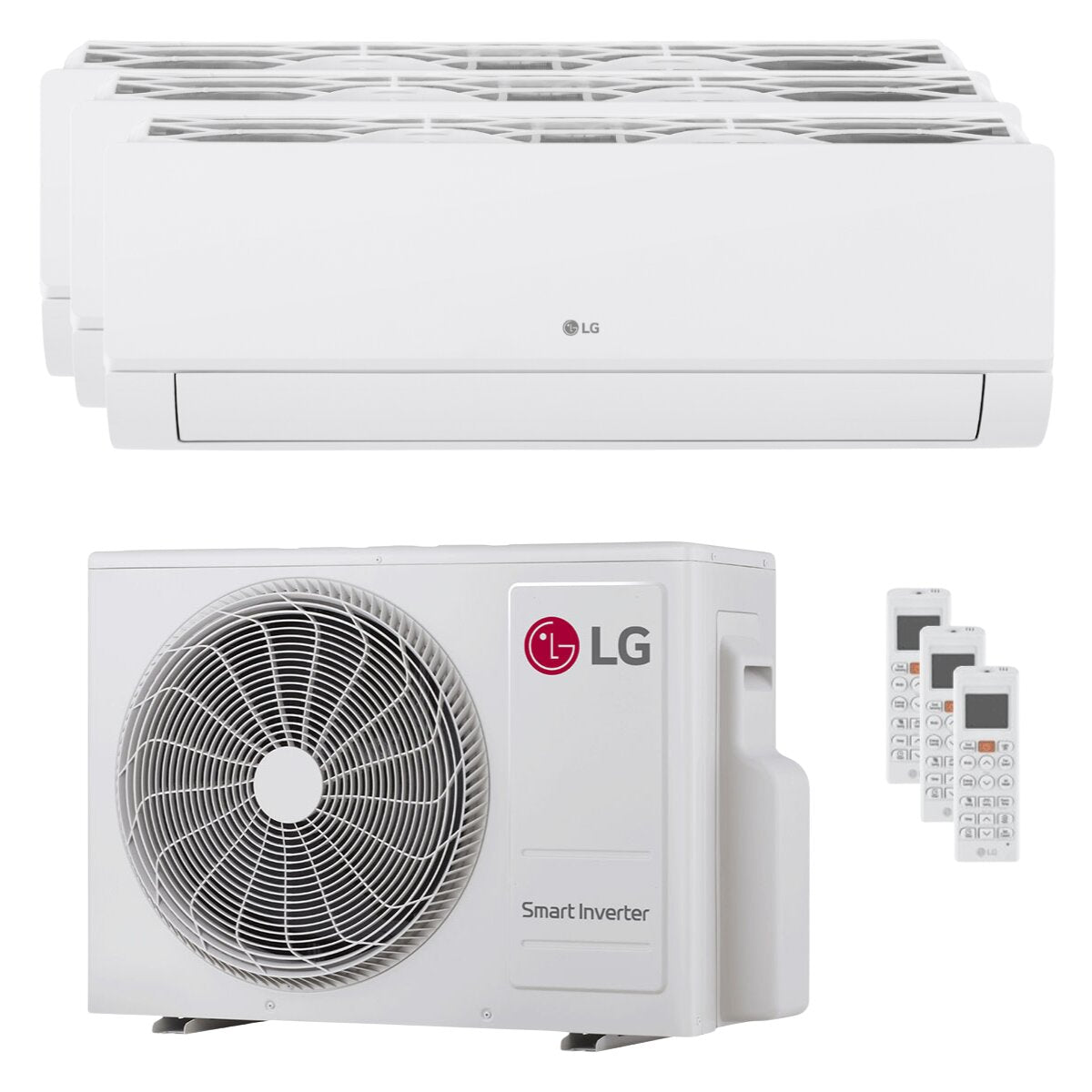

LG DUALCOOL Libero Smart trial split air conditioner 7000+9000+12000 BTU inverter A+++ wifi external unit 5.3 kW

The air conditioner kit is equipped with the following indoor units:

• 1 x 7000 BTU - Ideal for rooms from 10 to 15 sqm with an average height of 2.7 m
• 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
• 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m

The LG DUALCOOL Libero Smart air conditioner represents an advanced solution for home air conditioning, designed to offer high comfort, optimized consumption and intelligent management of the main functions. Thanks to Dual Inverter technology and the use of the eco-friendly R32 refrigerant with low environmental impact, this series guarantees efficient performance in both cooling and heating, reaching values up to energy class A++ in cooling and A+ in heating . The Twin Rotary DC Inverter compressor automatically modulates operating capacity, improving temperature stability, silence and energy savings , with a modulation range from 10% to 130% of capacity.

LG DUALCOOL Libero Smart is also designed to ensure superior living comfort thanks to the combination of integrated Wi-Fi , voice control , advanced air flow management and dedicated energy saving functions. Active Energy Control technology allows you to adjust energy consumption to four different operating levels based on environmental and usage needs.

DESIGN AND AIR QUALITY

LG DUALCOOL Libero Smart indoor units stand out for their modern and elegant design, featuring a matte white front and glossy side finishes that allow the air conditioner to easily integrate into any home environment. The clean lines and slim profiles enhance the unit's aesthetics while maintaining its compact size.

The indoor unit uses a BLDC inverter fan motor designed to ensure more precise modulation of operating speed compared to traditional AC motors. This system reduces noise, vibrations, and heat loss, ensuring particularly high acoustic comfort even during nighttime operation. In sleep mode, the noise level can reach just 19 dB(A).

Air distribution is optimized thanks to total air flow control with automatic 6-step vertical adjustment and 5-step horizontal adjustment , both manageable directly from the infrared remote control. The Comfort Air function automatically adjusts the position of the deflector based on the selected operating mode, directing the flow upward in cooling and downward in heating to avoid direct jets of air on the room's occupants and improve perceived comfort.

The Auto Cleaning function also helps keep the indoor unit drier and cleaner, improving hygiene and living comfort. The washable air filter helps trap dust and impurities and is easily removable for routine cleaning and maintenance.

TECHNOLOGY, FUNCTIONS AND ENERGY SAVINGS

LG DUALCOOL Libero Smart offers all the main operating modes to ensure comfort all year round: cooling, heating, ventilation and dehumidification . The Jet Cool function allows you to quickly cool rooms by temporarily increasing the air conditioning power, while the Fast Heating function accelerates reaching the desired temperature in heating mode.

Active capacity control allows you to select different energy consumption levels directly from the remote control. In normal mode, the air conditioner operates at 100% capacity, while the 80%, 60%, and 40% settings allow you to limit power consumption, adapting operation to the actual needs of the room and helping to reduce electricity consumption.

The Smart Diagnosis function allows you to monitor the operation of the unit and facilitate the identification of any anomalies directly via smartphone using the dedicated LG app.

The internal unit also integrates:

• Silence Mode for silent operation
• Energy Display for energy monitoring
• automatic air flow control
• electronic ventilation management
• infrared remote control supplied as standard .

The LG DUALCOOL Libero Smart air conditioner integrates Wi-Fi as standard for remote management via the LG ThinQ app available for Android and iOS . Using your smartphone or tablet, you can control the main functions of the air conditioner remotely, monitoring its operation and settings at any time.

Compatibility with Google Home also allows voice control of the main functions such as turning on, off, adjusting the temperature, setting the operating modes, adjusting the ventilation and monitoring the system, making managing the air conditioner even simpler and more intuitive.

It is wall- mounted by qualified and authorized personnel. Assembly is facilitated by the installation plate with anchoring screws , and maintenance and cleaning operations are facilitated by the removable lower panel and the clip for lifting the front panel.

ACCESSORIES SUPPLIED AS STANDARD

- Remote control

- Built-in WiFi.

WARRANTY

The warranty is the official LG one and lasts 2 years.

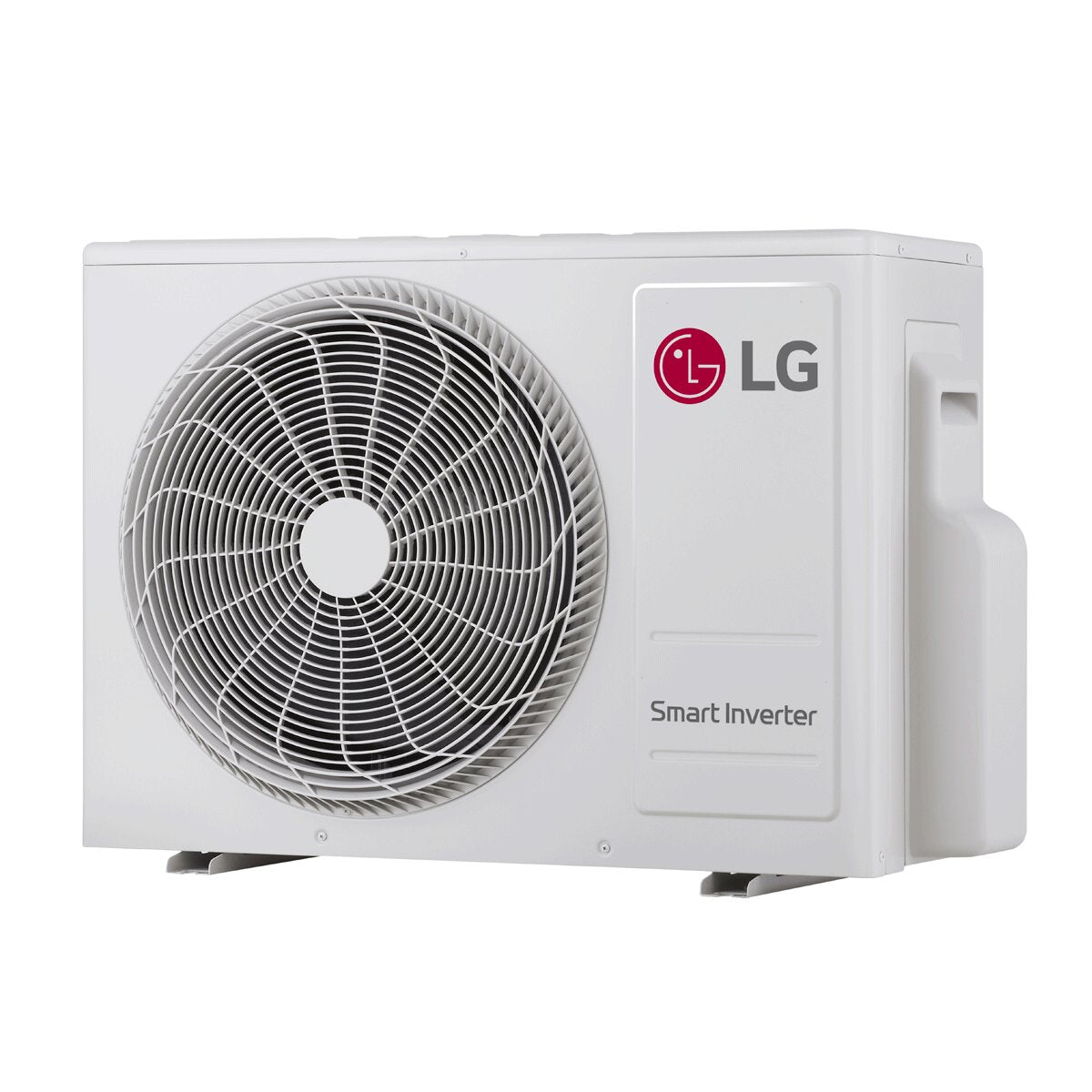

THE EXTERNAL UNIT

LG's new Multi outdoor unit (suffix A0) represents a generational update from the brand. Optimized inverter electronics and improved seasonal efficiency compared to the previous version translate into reduced consumption, especially in winter.

LG multi outdoor units adopt the low environmental impact R32 gas, proving to be particularly attentive to the environment thanks to a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to its predecessor R410A.

The 5.3 kW three-connection outdoor unit presented here has inverter technology and heat pump for both cooling and heating operation and represents the heart of the air conditioner.

Multisplit outdoor units offer the great advantage of air conditioning multiple rooms using a single outdoor unit and an indoor unit for each room ; they are particularly recommended where there is limited space for installing multiple outdoor units or when you want to reduce the visual impact of this air conditioning component on the facade of the property to be air conditioned.

This outdoor unit allows you to connect and power two or three LG indoor units, even with different power ratings; the indoor units will always operate independently and each will be equipped with its own control.

GUARANTEED SAVINGS

Their strength is flexibility, as these inverter air conditioners are so flexible that they can vary the compressor's rotation speed; this allows for significant energy savings, as less electricity is used to maintain the set temperature and air-conditions the room more quickly upon start-up. These units are equipped with hermetic Twin Rotary BLDC inverter compressors with direct start-up and linear capacity control with a range from a minimum of 10% to a maximum of 130%. Furthermore, the heat exchanger, featuring LG's exclusive Black Fin coating, is designed to provide the best performance even in extremely corrosive environments.

Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment. It guarantees the achievement of the highest energy classes and minimizes waste. This also ensures minimal vibrations and noise, placing it among the quietest outdoor units on the market and further improved, in this regard, in the new A0 version.

Particularly resistant to weather and atmospheric agents, this outdoor unit can be mounted either suspended or freestanding using separately sold brackets. Installation and maintenance are facilitated by the removable right panel for connection to the refrigerant circuit, with an integrated handle for easy transport and positioning of the unit; the removable top cover for access to the control components, with an integrated handle on the right side for easy transport and positioning of the unit; and the protective grille on the air outlet.

WARRANTY

The warranty is the official LG one and lasts 2 years.
