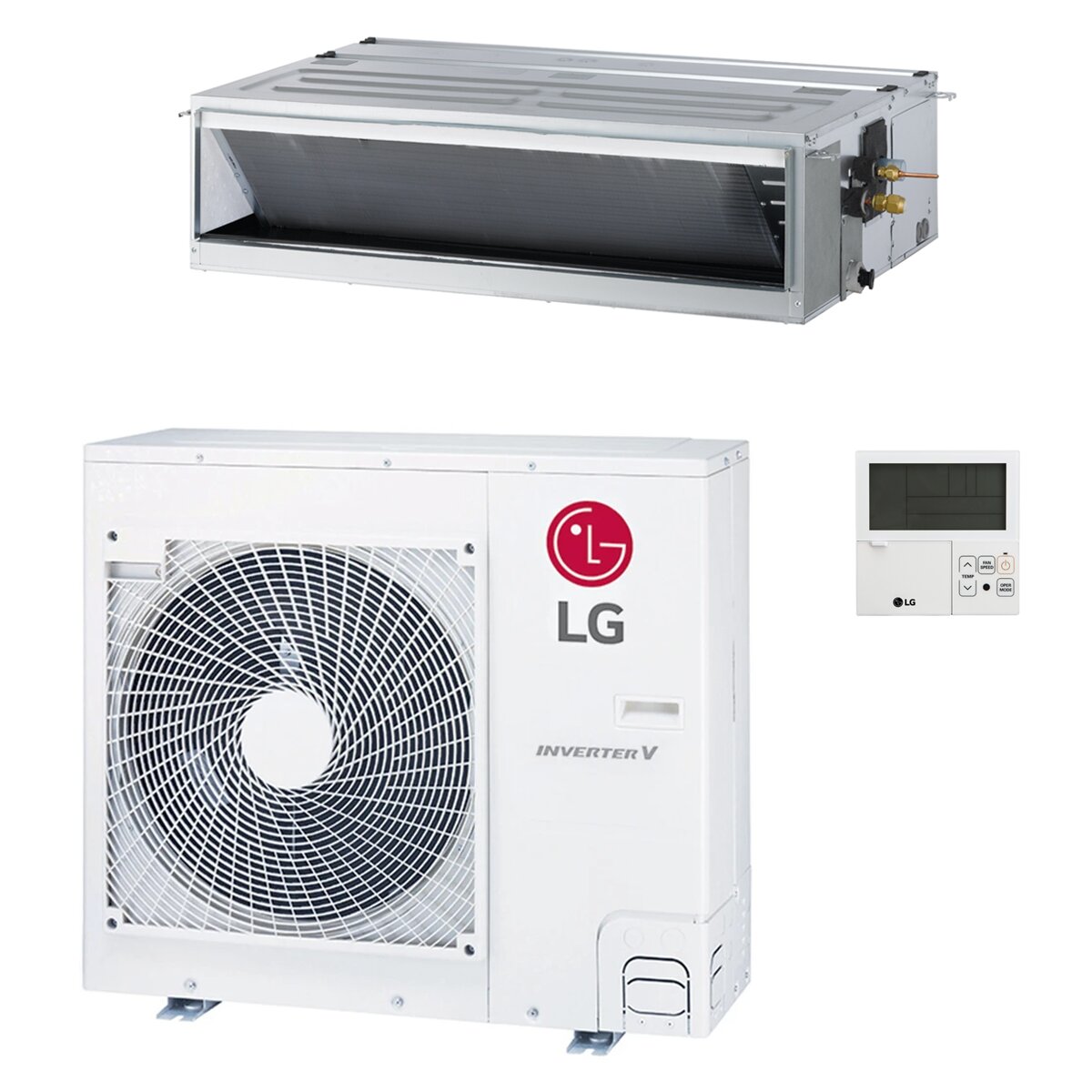

LG CM Standard 24000 BTU R32 Inverter A++/A Ducted Air Conditioner - HIGH HEADThe air conditioner kit is equipped with the following indoor units:
- 1 x 24000 BTU - Ideal for rooms from 80 to 100 sqm with an average height of 2.7 m

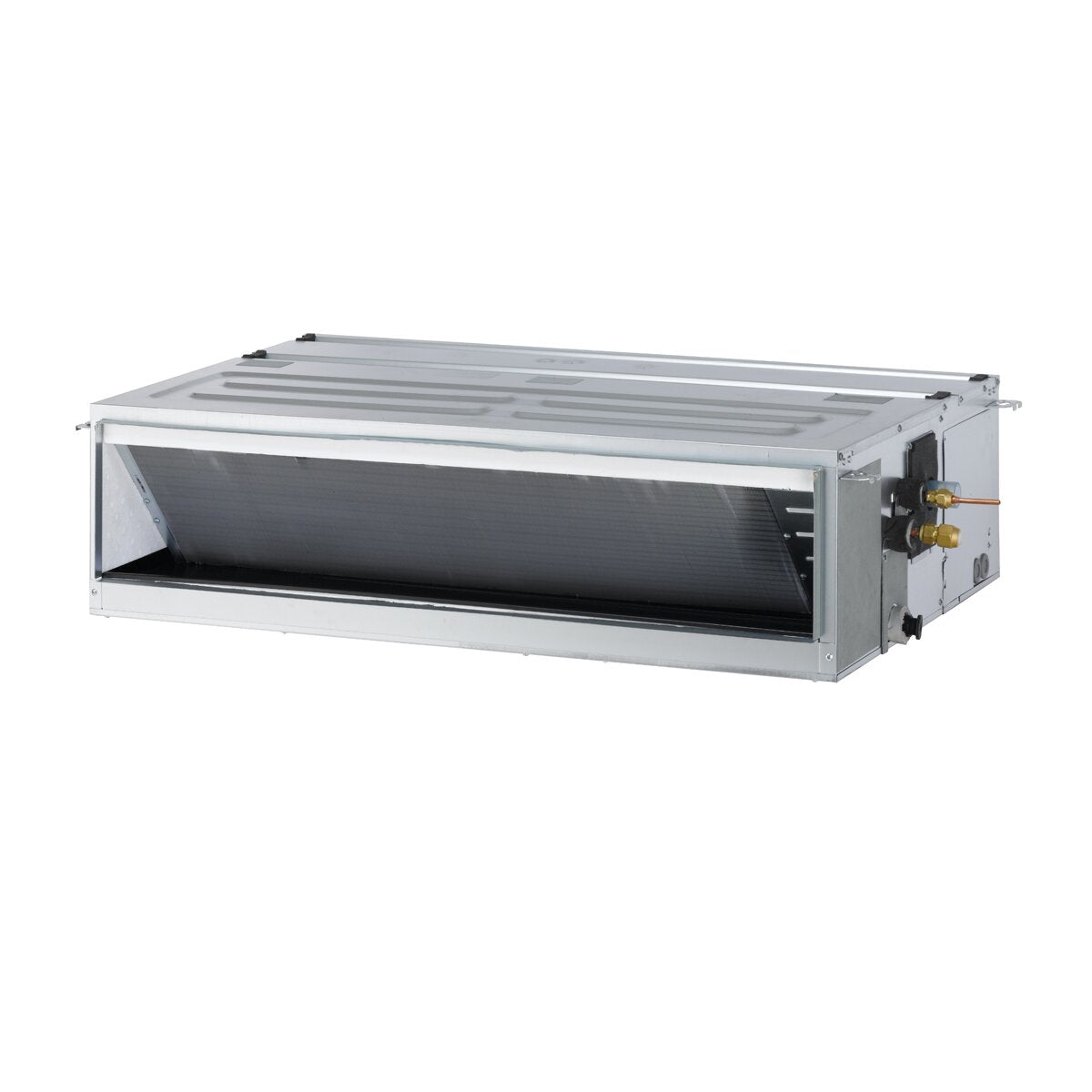

LG ducted air conditioners are designed to ensure discreet installation and harmonious integration into residential and commercial environments. The slim design allows you to optimize space without compromising performance: ideal for installation in false ceilings or spaces with limited height availability. Since it is a ducted unit, the air conditioner is not visible inside the room. Only the supply and return air vents remain exposed, contributing to a clean and modern aesthetic.
The main difference between LG low-head and high-head ducted units concerns the available static pressure (ESP) , or the capacity of the indoor unit to push air through the ducts. The low-head system is designed for small and medium distances, ensuring uniform thermal comfort in every corner of the room; while the high-head system allows air to be pushed even through long ducts, with curves or multiple vents , making it ideal for larger environments or more complex distributions (offices, villas, B&Bs, etc.).
LG ducted air conditioners are equipped with Inverter technology, use low environmental impact R32 refrigerant gas and are capable of energy performance up to class A++/A+.
AIR QUALITY AND WELL-BEING
The LG ducted unit features a dual protection filter designed to improve indoor air quality. This filter is designed to capture dust particles and other contaminants in the air, helping to maintain a healthier environment. The filter is easily removable, allowing for easy cleaning even in limited spaces.
LG LOW AND HIGH PRESSURE DUCTED
The LG ducted indoor unit offers several features designed to ensure optimal comfort and efficient management of the air-conditioned environment.
There are a series of technical features functional to the best use of the air conditioner: Cooling / Heating / Dehumidification and Ventilation operating modes for the best seasonal comfort; fan speed control allows you to adjust the fan speed on multiple levels to adapt the air flow to your needs; programmable timer: allows you to set the unit to automatically turn on and off at specific times, optimizing energy consumption and ensuring comfort at the desired time; double thermistor control: it is possible to detect the internal temperature both via the sensor integrated into the unit and via the sensor present in the wired control, this double detection ensures a more precise regulation of the room temperature. Additional settable modes can be viewed in the user manual supplied with the product.
The ducted units include a condensate drain pump that is used to drain condensate when this cannot occur by gravity. The ability to lift the condensate by 700mm guarantees the solution to any problem.
The prevalence of the unit's fans can be modified linearly using the wired control: it is possible to modify the rotation speed of the internal unit's fan and associate the machine with ducts of various sizes.
It is also possible, in the low prevalence Standard Inverter ducted units, to choose the direction of air intake (from below or from the back) . This flexibility facilitates installation in different configurations and environments, adapting to the structural needs of the space.
Furthermore, through appropriate spiral ducts (built-in or flexible) and a flow chamber, it is possible to operate in cooling/heating mode for multiple rooms simultaneously using a single internal unit. For this function, the appropriate optional accessory is required.
The noise level of the low prevalence ducted units has been considerably reduced, while increasing the useful static prevalence; in fact, the sound pressure level starting from 27 dB(A) is among the lowest on the market for units of the same type, ensuring discreet operation, a quiet environment and optimised silence .
Management is via the included wired control , or with the addition of the Wi-Fi module code PWFMDD200.ENCXLEU (optional accessory to be purchased separately) , the unit can be controlled remotely via smartphone or tablet, offering the possibility of managing the settings even when you are not at home. By integrating the Wi-Fi module, the unit becomes compatible with voice assistants such as Google Home and Alexa , allowing voice control of the main functions, including on/off, temperature adjustment and selection of operating modes.
Installation and any maintenance and/or repair operations are made easier, in fact in these cases it will not be necessary to open the entire panel since this panel is divided into a panel for the heat exchanger and one for the motor/fan, making access to the internal components simple and quick.
STANDARD ACCESSORIES
- Wired control
WARRANTY
The warranty is the official LG one and lasts 2 years.

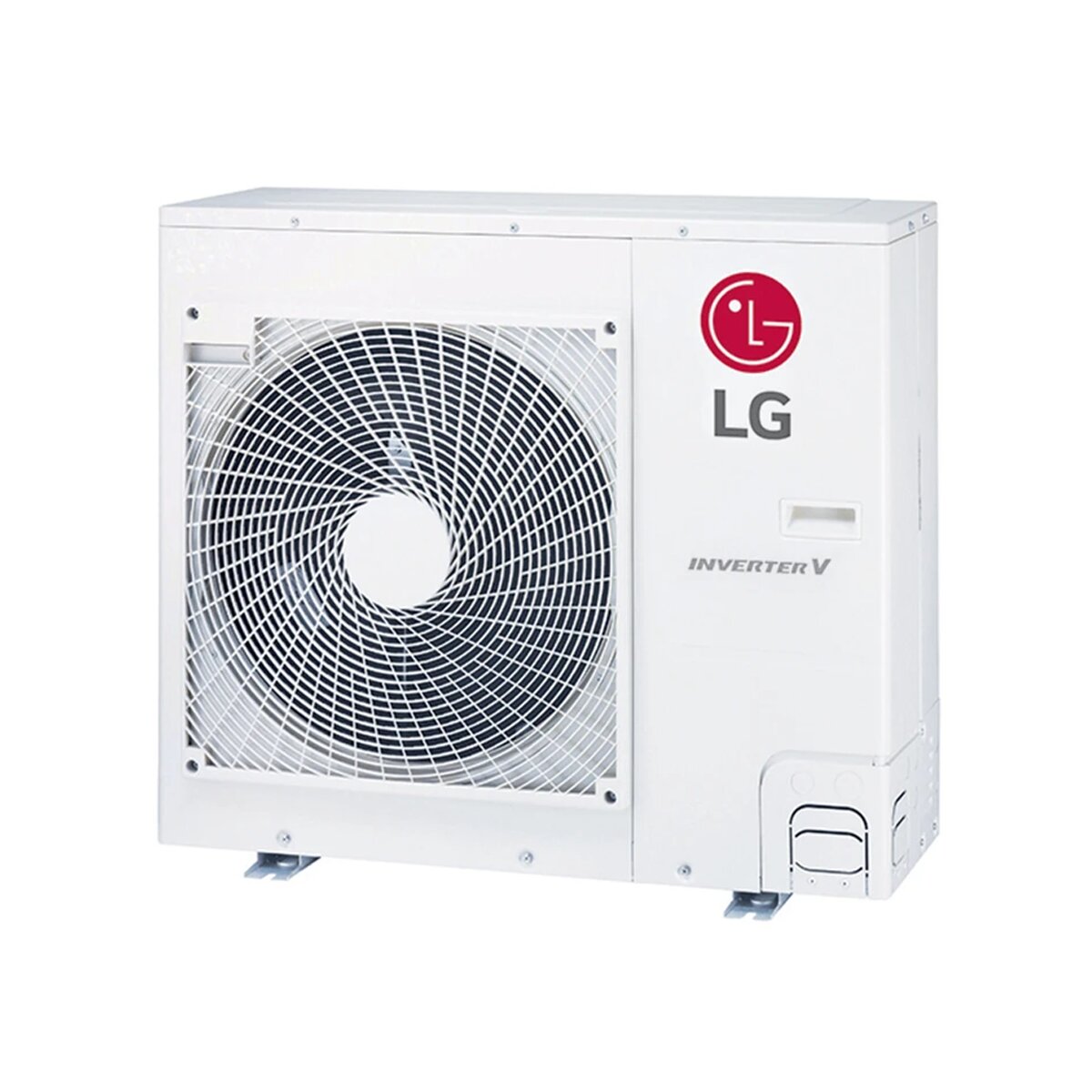

THE EXTERNAL UNIT
The universal external unit is the real beating heart of the air conditioner; it is environmentally friendly by virtue of the use of low GWP R32 gas and offers, thanks to the Inverter technology and the heat pump , always an operating power adequate to the real needs of the moment, both in summer for cooling and in winter for heating.
GUARANTEED SAVINGS
The external unit of the LG air conditioner always provides a power proportionate to the real air conditioning needs of the environment in which its internal unit is located, with a range from 6.8 to 10.0 kW.
Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibrations and noise, placing it among the quietest external units on the market .
Wide Louver Fin external heat exchanger which provides an improvement in exchange efficiency equal to 28% more than a traditional exchanger, coated with a GOLD FIN anti-corrosion treatment in a galvanic bath to provide better resistance to acid rain and saltiness in seaside areas.
Capacity delivery system consisting of 1 hermetic compressor of the Twin Rotary Dc inverter type with direct start.
Heat exchange fan with the outside of the helical type with suction on the rear side and horizontal delivery on the front side; low noise BLDC inverter motor .
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official LG Italy one and lasts 2 years.

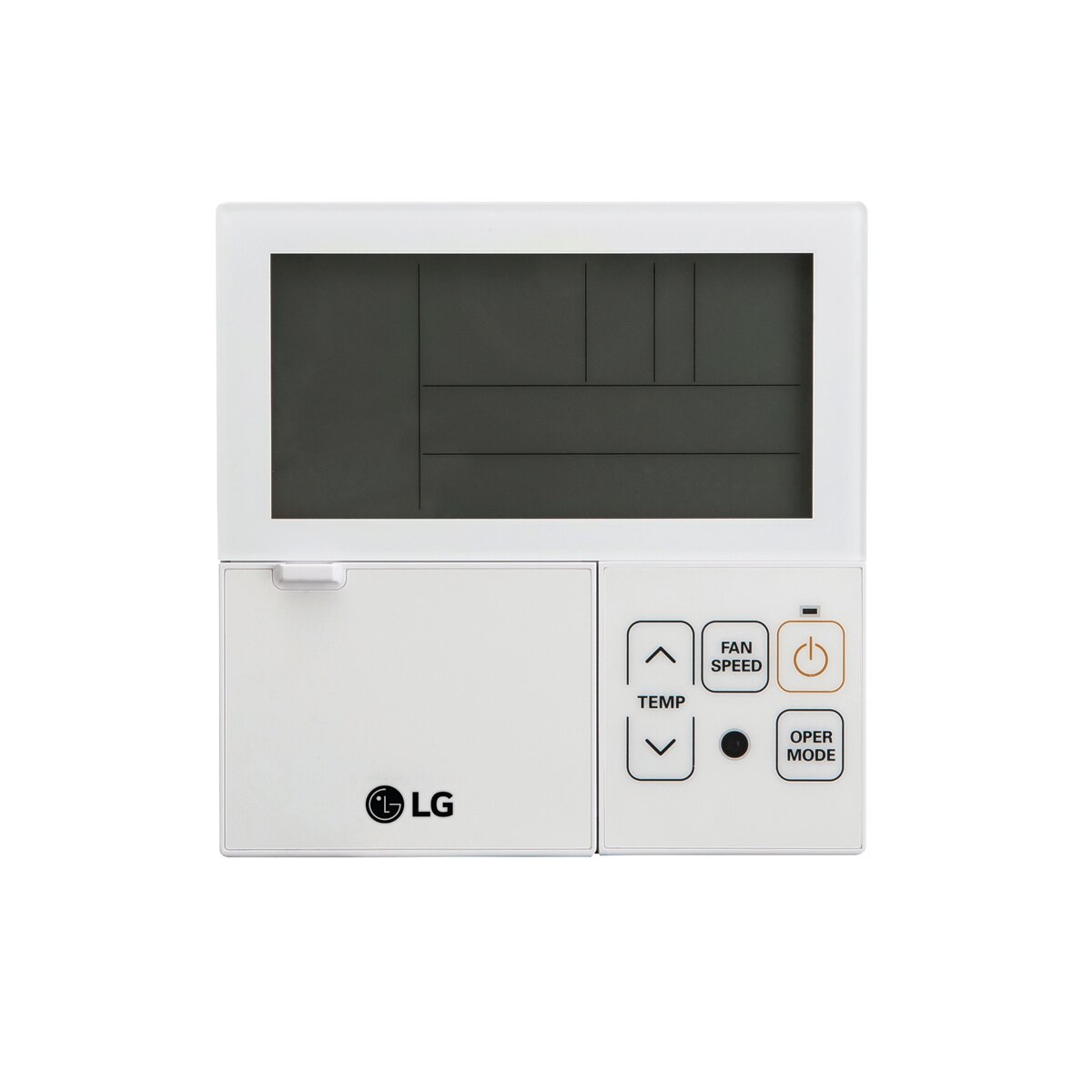

LG PREMTB001 Standard Wired Controller for LG Air Conditioning Systems
The LG PREMTB001 Standard wired control allows the management of LG air conditioning systems. The large LCD display, the blue backlighting and the elegant design make this accessory a complement that enhances the spaces. The use of the wired control allows the use of a weekly program for the management of the unit and allows the detection of the room temperature directly from the position in which it is located.
It has the following features and functions:
- ON-OFF function
- Fan speed
- Temperature regulation
- Display Backlight
- Infrared control receivers
- Sensor for detecting ambient temperature
- Air flow direction flap control
- Weekly timer (2 on/off cycles per day).
Compatible with LG series: Libero Smart - Atmosphere - ARTCOOL Mirror - Deluxe - 4-way cassette - Low prevalence ducted - Medium prevalence ducted - Ceiling - Console.
Includes 10m long cable supplied.
DIMENSIONS
- Width 120 mm_Height 120 mm_depth 15 mm
WARRANTY
The warranty is the official LG one and lasts 2 years.
