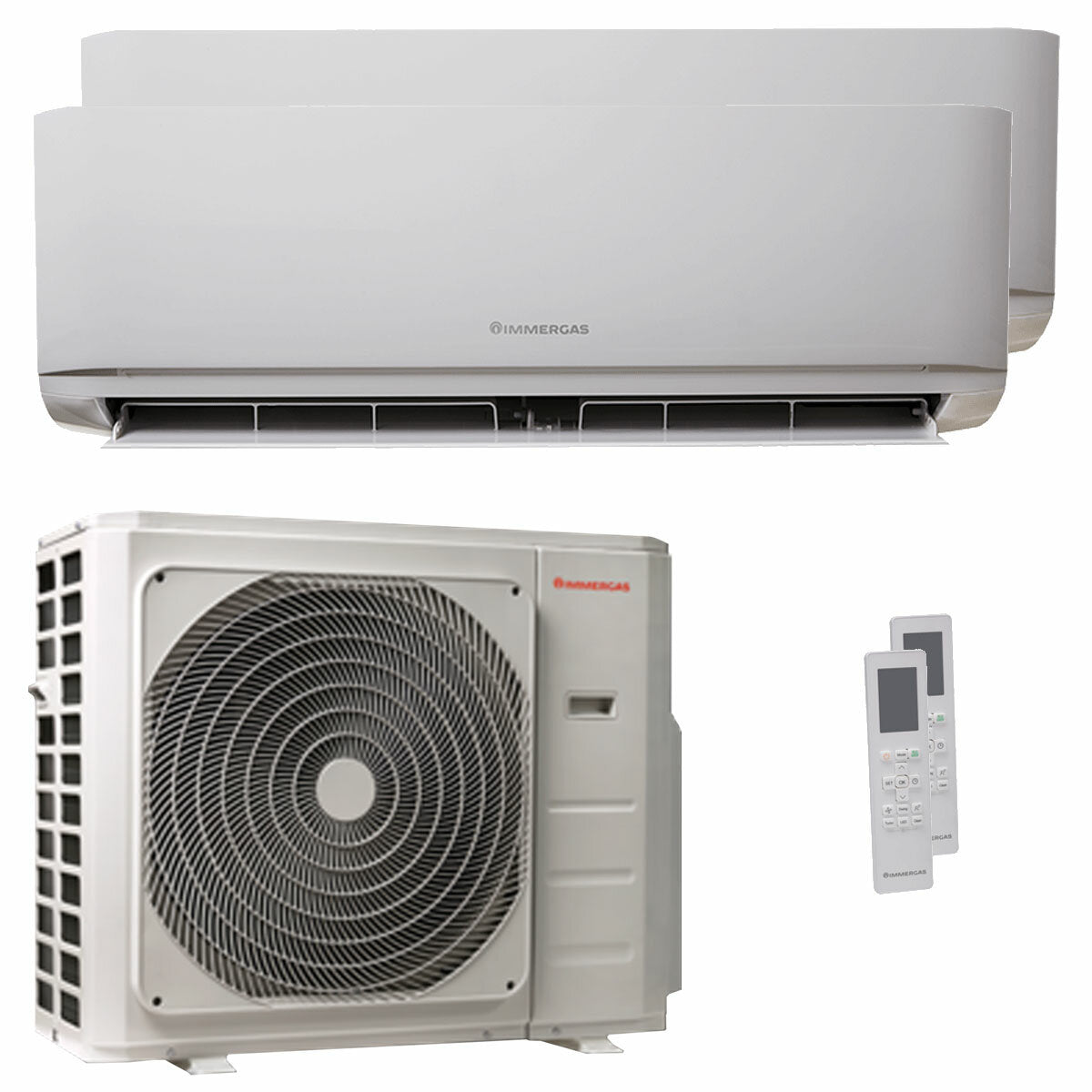

Immergas THOR dual split air conditioner 9000+12000 BTU inverter A++ external unit 6.2 kW The air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m
Immergas Thor air conditioners are an interesting innovation in the air conditioning panorama! They are characterized by their extreme efficiency, capable of guaranteeing greater comfort and the best performance up to energy class A++/A+ . Technologically advanced, they consist of an external inverter air/air heat pump unit and a split internal direct expansion unit , for whose operation the R32 refrigerant fluid with low environmental impact is used.
The internal units work in combination with the appropriate external units to create the monosplit or multisplit combinations in the range.
DESIGN AND AIR QUALITY
Aesthetically modern and compact with a backlit display for viewing the temperature, these air conditioners fit easily into any environment and style. The quality of the air is preserved by the presence of the filtering system which captures dust and allergens, ensuring the healthiness of the environments also by virtue of the presence of an additional activated carbon filter. The filter is easy to remove and insert in order to facilitate cleaning and maintenance operations.
TECHNOLOGY, COMFORT AND SAVINGS GUARANTEED
Immergas Thor air conditioners are capable of incredible performance up to energy class A++/A+ (cold/hot), with a wide operating range in cooling (up to 50°C externally) and in heating (up to -20°C externally). They use Inverter technology which automatically regulates the operating power, in this way there is more precise control of the desired temperature, a significant saving in electricity and a reduction in noise and vibrations.
These air conditioners have a series of functions designed to facilitate user comfort, guaranteeing functionality, efficiency and savings. Possibility of managing environmental comfort seasonally thanks to the Cooling/Heating/Dehumidification and Ventilation mode functions; Turbo mode to induce the air flow at maximum flow and reach the ideal temperature in the shortest time; two-level energy saving mode with ECO and GEAR functions; Follow Me function which allows the remote control to measure the temperature of its current position and send this signal to the air conditioner every 3 minutes in order to optimize the climate comfort inside the home; Breeze Away function to avoid the flow of air directly on the body and promote the well-being of users; using the Swing function it is possible to automatically swing the horizontal fins of the internal unit to direct the air flow vertically (manual vertical fins); Extremely quiet operation thanks to the Silence function to reduce noise to a minimum and the Sleep function which is used to save energy use during sleep, ensuring climate comfort in heating or cooling. Further functions that can be set are contained in the user manual supplied with the product.
The Immergas Thor air conditioner is managed via remote control , which is intuitive, practical and convenient; furthermore it can also be managed via optional WiFi code. 3.035060 available on Climamarket , by downloading the appropriate CLIMAsmart app conveniently on your smartphone.
Installation is flexible and quick and must be carried out by expert and qualified personnel, but it is facilitated by the presence of the installation template included as standard.
WARRANTY
The guarantee is that of Immergas and lasts 2 years.

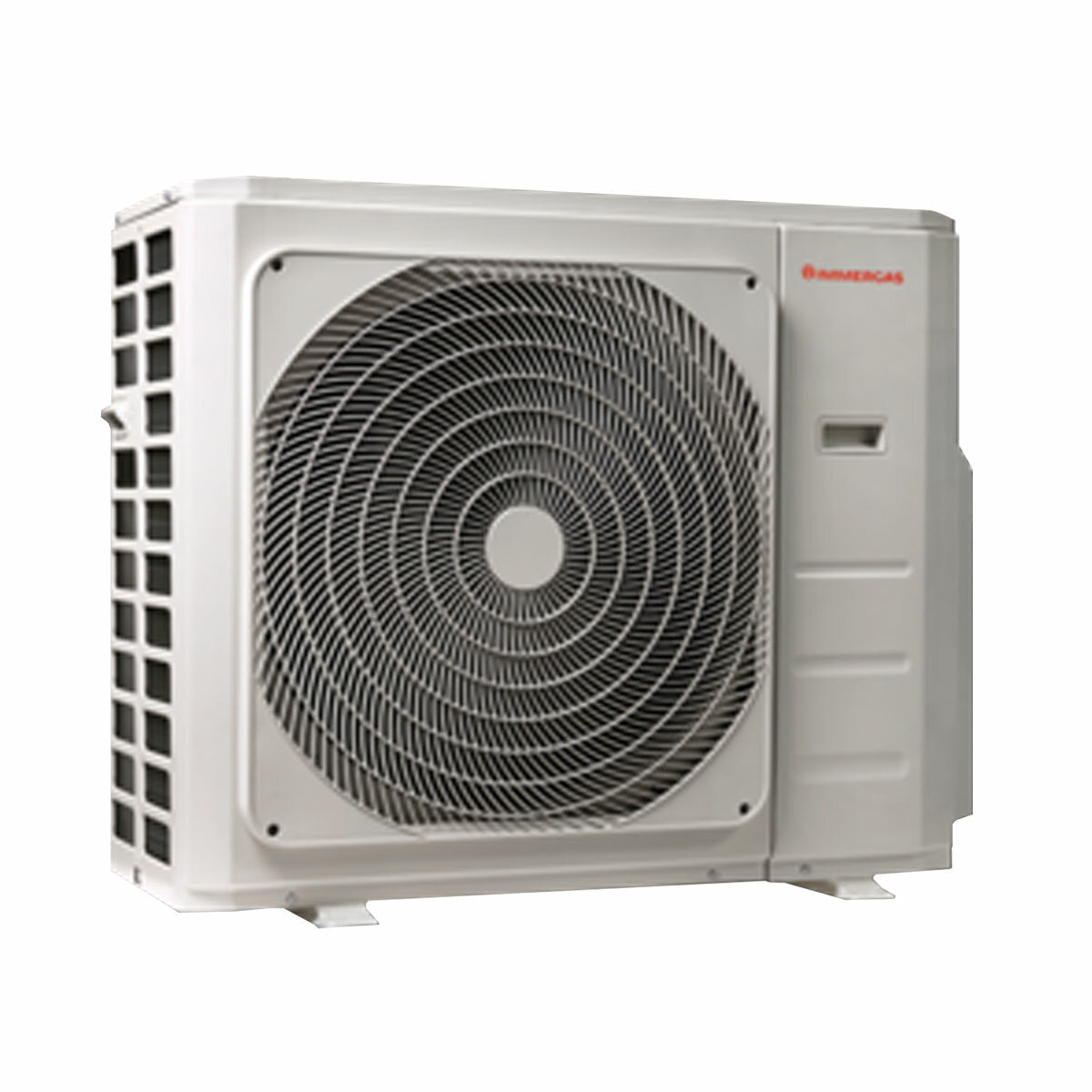

THE OUTDOOR UNIT
Immergas sets among its objectives the achievement of very high yields with extremely competitive energy classes , both in cooling and heating, up to A++ .
The three-connection external unit presented here is the true beating heart of the air conditioner; it is environmentally friendly by virtue of the use of low GWP R32 gas and offers, thanks to the Inverter technology and the heat pump , always an operating power adequate to the real needs of the moment, both in summer for cooling and in winter for heating.
The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.
This external unit allows you to connect and power two or three Immergas internal units of any series, even of different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS
The external unit of the Immergas air conditioner always provides a power proportionate to the real air conditioning needs of the environment in which its internal unit is located.
The Immergas Gotha and Thor series external unit mainly includes rotary compressor, inverter electronics, lamination capillary, 4-way valve for cycle reversal, finned coil for exchange with external air (with single fan). The refrigeration circuit is already pre-charged (R32 refrigerant); it is equipped with shut-off valves for the R32 circuit.
The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up.
Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market .
Since they are direct expansion machines, the entire range uses the low environmental impact R32 refrigerant fluid to operate the products. Since there is no water outside the house there is no risk of the pipes freezing; It is therefore a particularly suitable solution also for cold climate areas.
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The guarantee is the official Immergas one and lasts 2 years.
