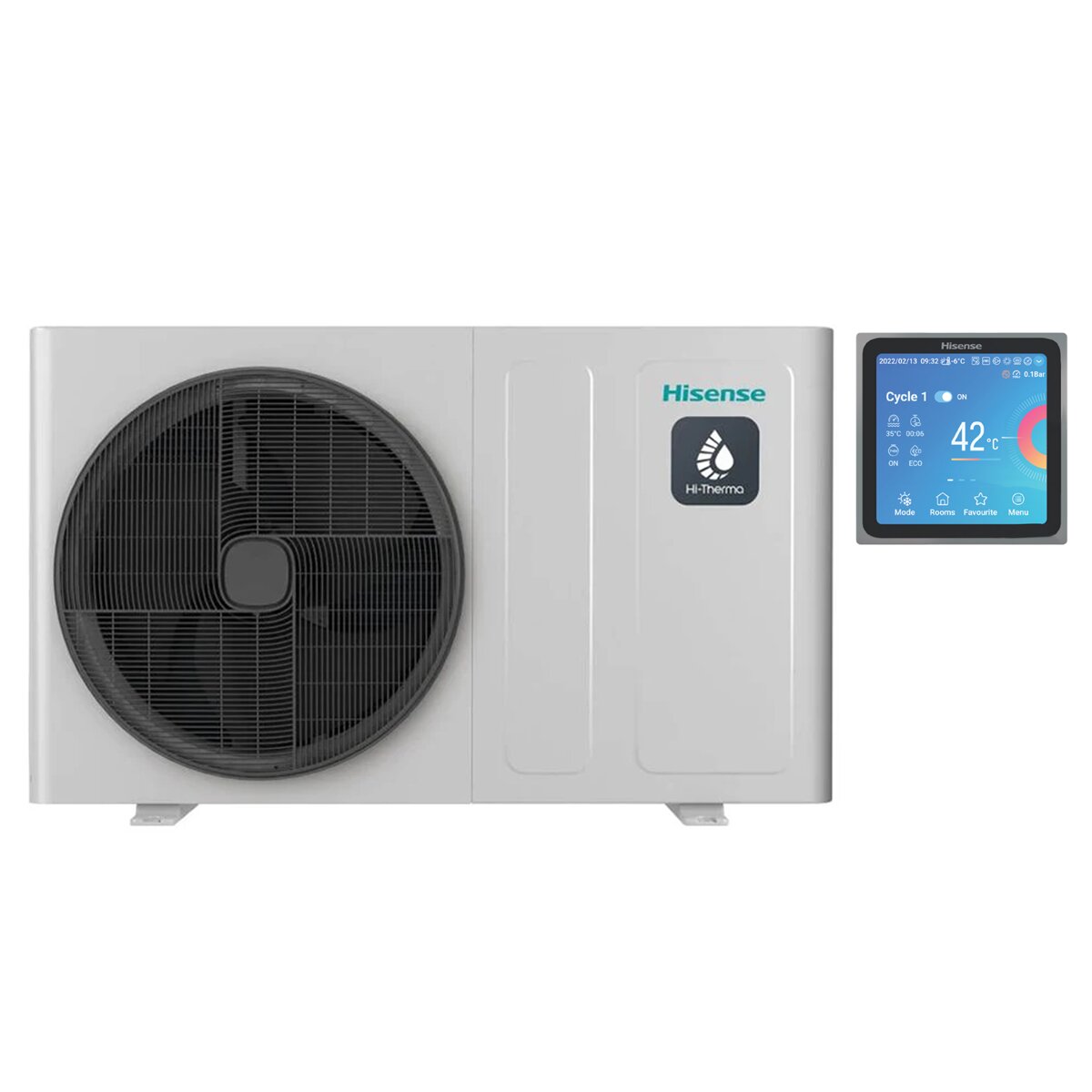

Hisense Hi-Therma 12 kW monobloc single-phase R32 A++ air-to-water heat pump

Roll over image to zoom in Click on image to zoom

Hisense Hi-Therma 12 kW monobloc single-phase R32 A++ air-to-water heat pump

Name: Hisense Hi-Therma 12 kW monobloc single-phase R32 A++ air-to-water heat pump
Brand: Hisense
SKU: AHZ-120HCDS1
Price: 4492.81 EUR
Availability: InStock

Save 57%

HisenseSKU: AHZ-120HCDS1

Price:

€4.492,81 €10.370,00

Quantity:

Share this product

Code: AHZ-120HCDS1
ID code: BF7685
Pre-code: HSE
Short description: The ATW Hisense Hi-Therma R32 gas heat pump is part of the new generation of heat pumps that guarantees heating, cooling and domestic hot water production with low energy consumption, with minimal noise emissions and excellent performance even at temperatures down to -25°C, making the most of the outside air as a free renewable energy source. The version proposed here is the 12 kW single-phase version, ideal for units up to 120 m2. First start-up is mandatory and included in the price.
Category: Heat pump
Type: Monobloc
Series: Hi-Therma
Benefits
Width x Height x Depth (mm): 1376X840X390
Weight (kg): 107
Suitable for rooms up to (sqm): 120
Inverter: Yes
Refrigerant gas: R32
WiFi: No
kW: 12
Power supply: Single-phase
Energy efficiency class (heating): A++
Minimum sound power – dB(A): 64
Maximum sound power – dB(A): 64
Minimum sound pressure – dB(A): 45
Maximum sound pressure – dB(A): 49
Performance: Standard

Download technical specifications

Hisense Hi-Therma 12 kW monobloc single-phase R32 A++ air-to-water heat pump

12 kW - Ideal for housing units up to 120 m2 with an average height of 2.7 m

The Hi-Therma air-to-water heat pump is the new Hisense heat pump equipped with all the latest generation functions. Designed to ensure maximum performance, the Hi-Therma heat pump is able to heat , cool and produce domestic hot water while maintaining maximum energy efficiency A+++ (water 35°C) and A++ (water 55°C) .

The Hi-Therma heat pump is of the monoblock type: a single space-saving component that guarantees simple and quick installation, allowing the hydraulic pipes to be directly connected to the system where possible, thus making the installer's work easier.

Numerous strong points: the new Hi-Therma heat pump guarantees excellent performance even in the most rigid climates where external temperatures of up to -25°C are reached, allowing for 65°C of water flow in heating and producing DHW up to 55°C.

Guaranteed savings and high comfort

Thanks to a new generation technology, the Hisense ATW Hi-Therma heat pump makes the most of the outside air as a renewable energy source to heat and cool indoor environments and produce ACS . The energy efficiency is very high, allowing to minimize costs and consumption and reach up to the A+++ energy class in heating.

The reduction of the environmental impact is guaranteed above all by the use of the R32 refrigerant gas, the most ecological on the market with a Global Warming Potential (GPW) 70% lower than R-410A, which also allows for better performance and heat exchange .

Maximum performance is guaranteed both in cooling with an external temperature of up to +46°C and in heating with an external temperature of up to -25°C ; furthermore, with the integration of an electric resistance (optional) immersed in the ACS tank, it is possible to set and reach up to 75°C to be able to carry out the water sterilization cycle .

Great attention to the quality of the materials used: the Hi-Therma heat pump is equipped with a high-efficiency Twin Rotary DC Inverter compressor that modulates speed and power based on the real needs of the environment and the moment. The compressor has a unique dual pressure chamber technology and a symmetrical position that allows to significantly reduce vibrations and noise, as well as improving performance even in low-frequency operation.

Minimal vibrations result in absolutely silent operation (45 dBA in Night mode), for a restful sleep.

Hisense Hi-Therma can work together with external heat sources such as a Solar Thermal system and/or a combustion boiler and independently manage two circuits with water at different temperatures, adapting to the characteristics of the different terminals present in the system; furthermore, through the Hisense thermostats or wall sensors (to be purchased separately), the Hi-Therma heat pump has the possibility of managing up to 7 different room temperatures in a totally autonomous manner.

Among the various advanced functions: night program , which can be set and programmed flexibly, screed drying , swimming pool heating and centralized control .

Great modularity of installation and use

The Hisense Hi-Therma heat pump has been specifically designed to ensure maximum ease of installation and maintenance : the unit is connected to the system only via the hydraulic pipes and there is no need to intervene on the refrigeration circuit or add additional refrigerant gas.

Hi-Therma can be combined with floor or traditional systems, with fan coils and fan-coils , can replace traditional boilers and can be integrated with a photovoltaic system so as to optimize self-consumption of the energy produced and reduce the need for the electricity grid, with solar thermal and with boilers for the production of domestic hot water. Already equipped with a hydronic module for a quick connection, for the production of ACS it is recommended to integrate it with an accumulator for greater availability in withdrawal.

The Hi-Therma monobloc heat pump is equipped with a full touch full colour remote control with a modern and elegant design: the high definition colour interface facilitates and enriches its use.

DIMENSIONS

Length: mm 1376 - Height: mm 840 - Depth: mm 390

Weight: 108 kg

WARRANTY

The warranty is the official Hisense one and lasts 2 years.
