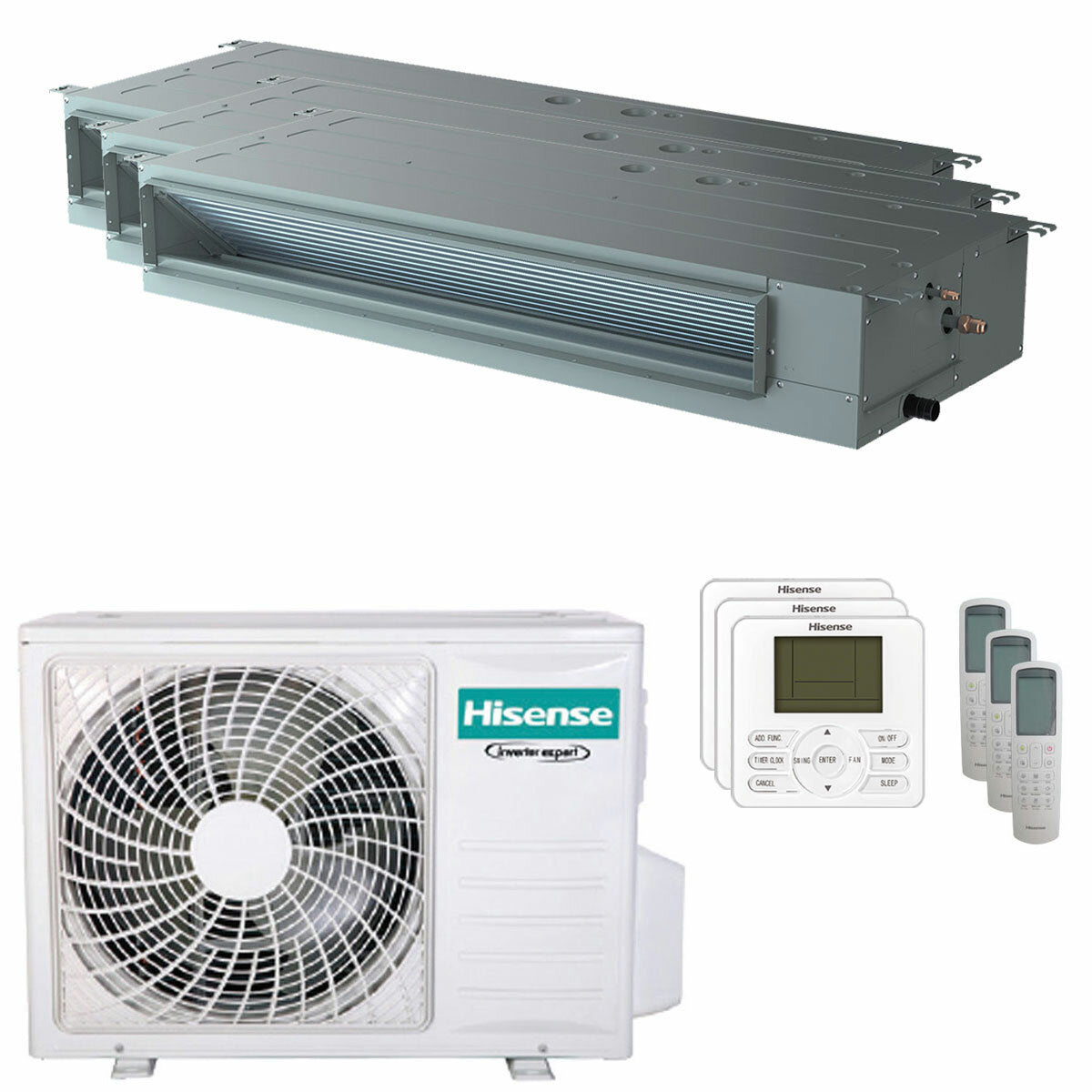

Hisense Ducted Air Conditioner ADT trial split 9000+9000+9000 BTU inverter A++ outdoor unit 7 kWThe air conditioner kit is equipped with the following indoor units:
- 3 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m

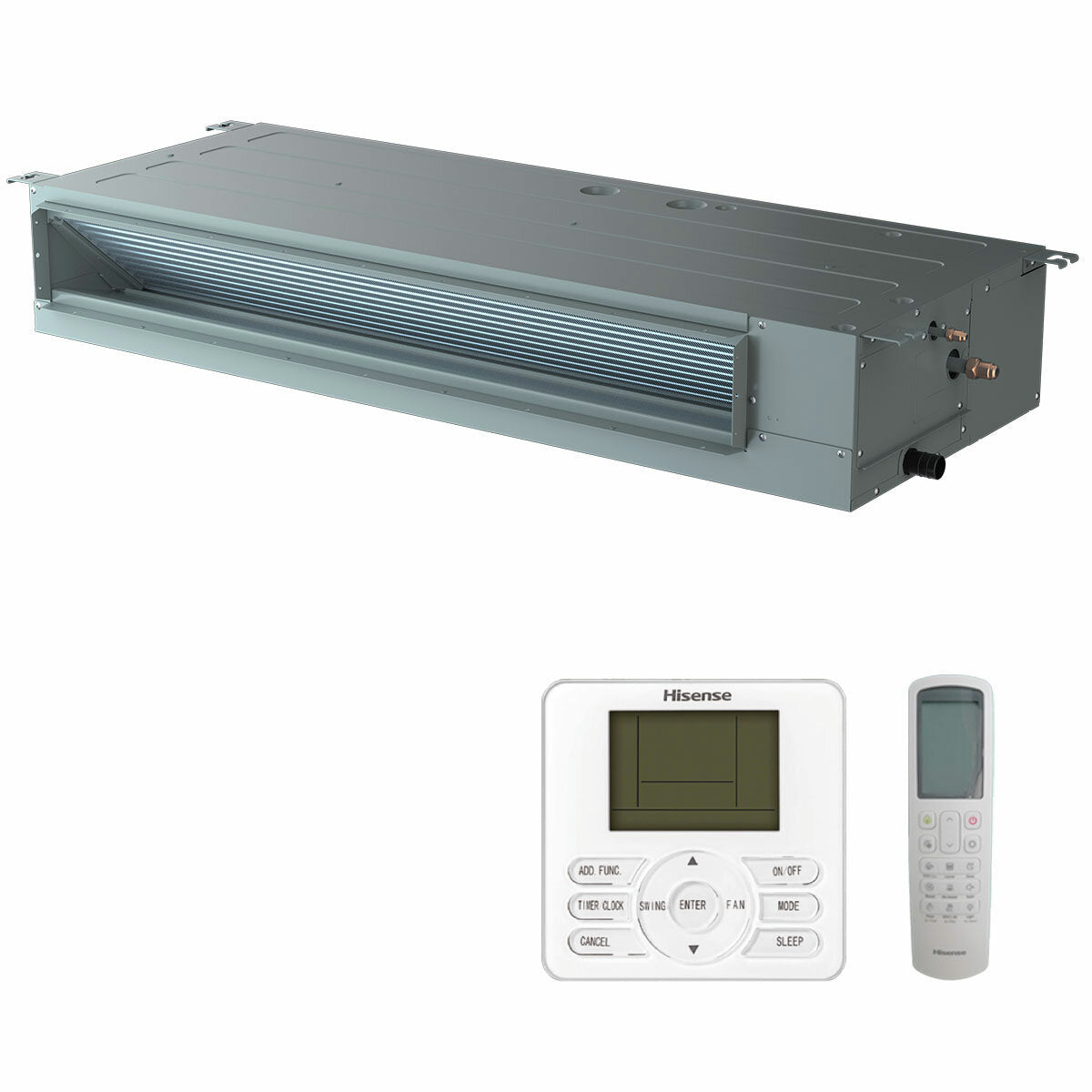

The indoor unit of the Hisense ADT series Ductable air conditioner represents a focal point for commercial and residential air conditioning. It is mounted in a hidden position, generally in a false ceiling and the air is diffused into the room through the special ventilation opening. The ductable air conditioner offers the great advantage of being invisible in fact, hiding the internal unit favors the aesthetics of the rooms and gives the possibility of using the walls for furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but there isn't... the air conditioner!
The Hisense ductable indoor units of the ADT Series are used together with the Inverter outdoor units to create combinations of Commercial and Residential monosplit and multisplit air conditioners with excellent energy performance, up to energy class A++ in cooling and A+ in heating .
DESIGN
The internal unit of the Hisense ADT Series ductable air conditioner has a linear and modern design adaptable to any working environment such as an office, a commercial activity, a hotel, etc ... but it is also ideal for home air conditioning by virtue of its defined but delicate contours that make it an integral and imperceptible part of your home, almost invisible to the eye, perfectly in harmony with any style and decor. The new design includes the aesthetic and technological innovation of the AIR 3D panel (optional and available only for the 2.6 kW and 5.2 kW models) designed for optimal air distribution thanks to the motorized grille which will allow directing homogeneous and automatic air flow towards the points of greatest interest, avoiding direct contact and promoting maximum environmental comfort.
CLEAN AIR AND WELL-BEING
The Hisense ADT Series ductable internal unit is equipped with a filter that retains dust and impurities present in the air, with simple removal and reinsertion to facilitate cleaning operations. It is also compatible with the HI-NANO air purification system (optional) which inhibits viruses and bacteria thanks to the release of negative and positive ions in every corner of the room to be air-conditioned; this system releases one million ions per cm³ into the air, preventing its proliferation and achieving, in just one hour, the removal of more than 90% of the H1N1 virus, and of the Sars-Cov2 virus.
TECHNOLOGY AND COMFORT
The internal unit of the Hisense ADT ductable air conditioner includes technology and well-being in a single product , offering a perfect climate and unparalleled comfort up to energy class A++. Equipped with a powerful and high-performance DC fan Inverter motor , this ductable indoor unit contains advanced technologies to guarantee efficiency, energy saving, silence and comfort. A series of functions that can be set make their use simple and practical, such as for example the Cooling, Heating, Dehumidification, Ventilation functions or the Auto function, which allow you to set the comfort temperature seasonally and in relation to your needs; weekly programming, Timer/Sleep, parameter control and many other modes that can be easily managed via remote control and can be further known and explored using the supplied user manual. The Hisense ADT Series ductable indoor units allow you to adjust the static pressure in order to facilitate assembly; on all the ductable units it will be possible to set the static pressure to ensure greater installation flexibility. Furthermore, the ADT Series models offer a dual installation and air inlet mode : if there is a limited distance between the wall and the unit, it will be possible to remove the lower panel of the indoor unit by opting for an air inlet. lower rather than rear air; this represents an excellent alternative in the presence of architectural impediments, however it is preferable to opt primarily for a rear air inlet as a lower air inlet could raise the noise level up to 5dB. It also has a float to control the water level and an integrated condensate drain pump which, working in synergy, allow you to manage the humidity in the rooms by conveying it into the indoor unit and expelling it correctly and gradually outside (especially during dehumidification). The Automatic restart provides for the restoration of the normal functionality of the indoor unit after a sudden stop of the electric current.
The Hisense ductable air conditioner is the ideal choice for hotel complexes, as in addition to the many technological and aesthetic features that make it one of the best options on the market, it also has an ON/OFF contact for hotel room control and fire control and lends itself to Twin, Triple and Quadri applications in the multi-split version.
The indoor units of this series are extremely silent and can also be managed via the Wi-Fi system (optional).
ACCESSORIES SUPPLIED AS STANDARD
- Remote control
- Wired control with remote control receiver (can NOT be used with centralized control).
WARRANTY
The guarantee is the official Hisense one and has a duration of 24 months.

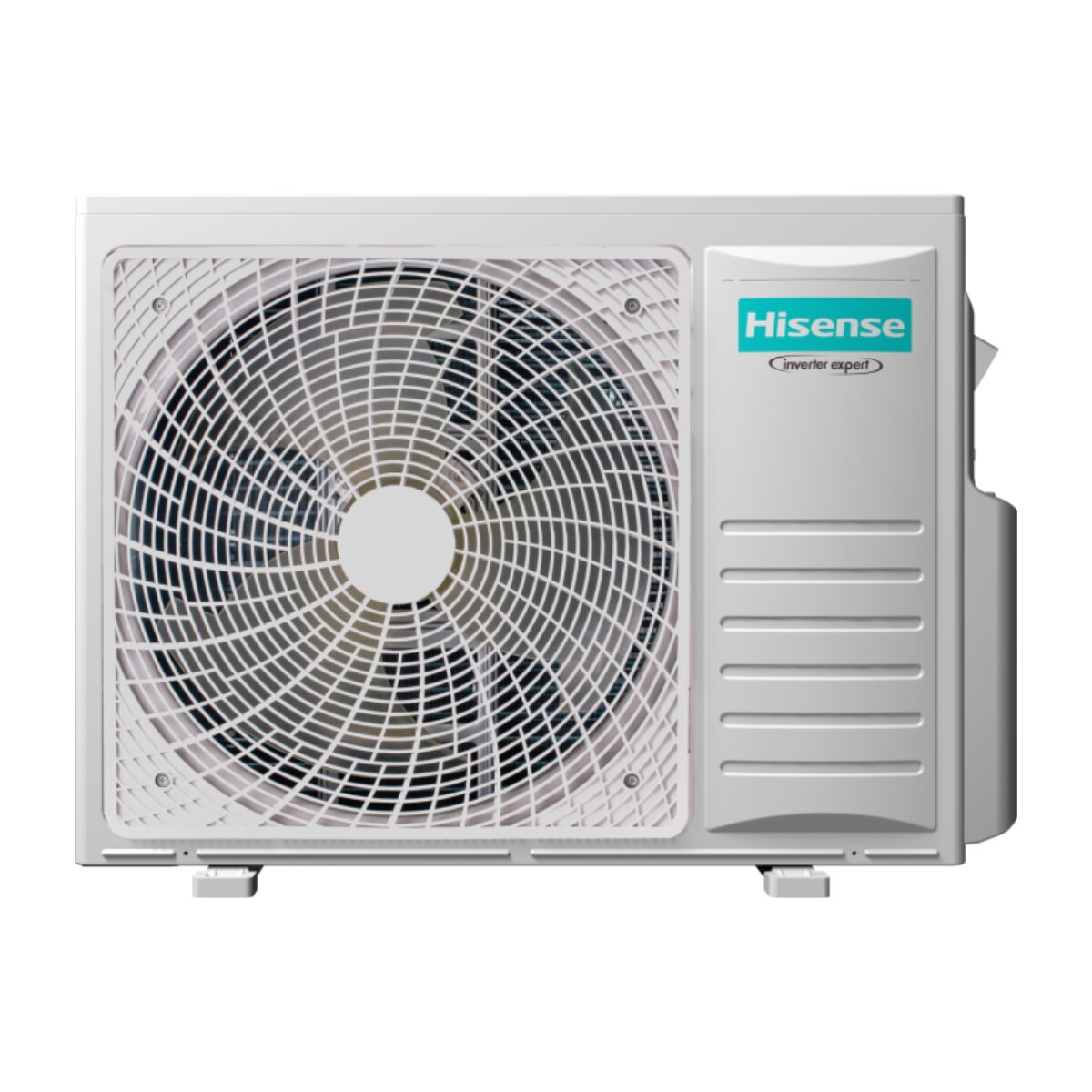

THE OUTDOOR UNIT
The outdoor unit for Hisense Multisplit air conditioners has Inverter and Heat Pump technology and represents the heart of the air conditioner. The unit is equipped with R32 gas and is equipped with latest generation technology; guarantees high efficiency and performance, silence and energy savings in every season.
The multisplit outdoor units offer the great advantage of air conditioning several rooms using only one outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for installing several outdoor units or when you want to reduce the visual impact of this air conditioning component on the facade of the building.
The outdoor unit described here has a nominal power of 7 kW and allows you to connect and power up to three Hisense indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The new Hisense Multisplit outdoor units are equipped with a double rotor BLDC Inverter compressor which allows for better balancing and reduction of machine vibrations, with consequent reduction in noise. Therefore, guaranteed silence and excellent performance and energy efficiency with an A++ class in cooling. All this is also guaranteed by the synergistic action of the DC Inverter fan and the electronic expansion valve .
These outdoor units are equipped with Smart Defrost technology which, in heating mode, activates automatic defrosting based on external weather conditions to prevent freezing of the unit and ensure maximum comfort even with temperatures as low as -20°C .
The dimensions of these outdoor units are reduced compared to previous versions to facilitate installation and placement even in small spaces.
WARRANTY
The warranty is the official Hisense one and has a duration of 24 months.
