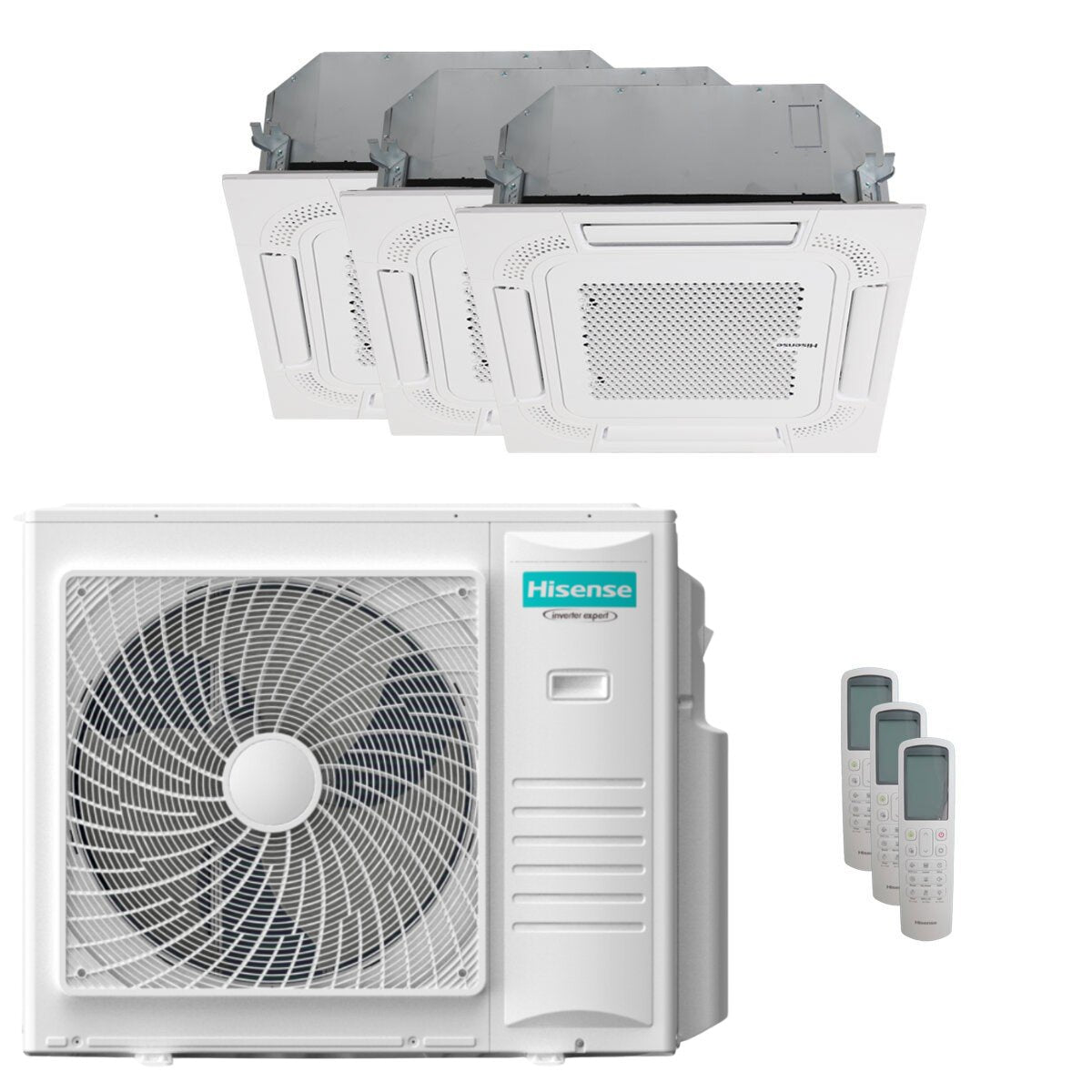

Hisense air conditioner Cassette ACT trial split 12000+18000+18000 BTU inverter A++ outdoor unit 10 kWThe air conditioner kit is equipped with the following indoor units:
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m
- 2 x 18000 BTU - Ideals for rooms from 50 to 60 sqm with an average height of 2.7 m

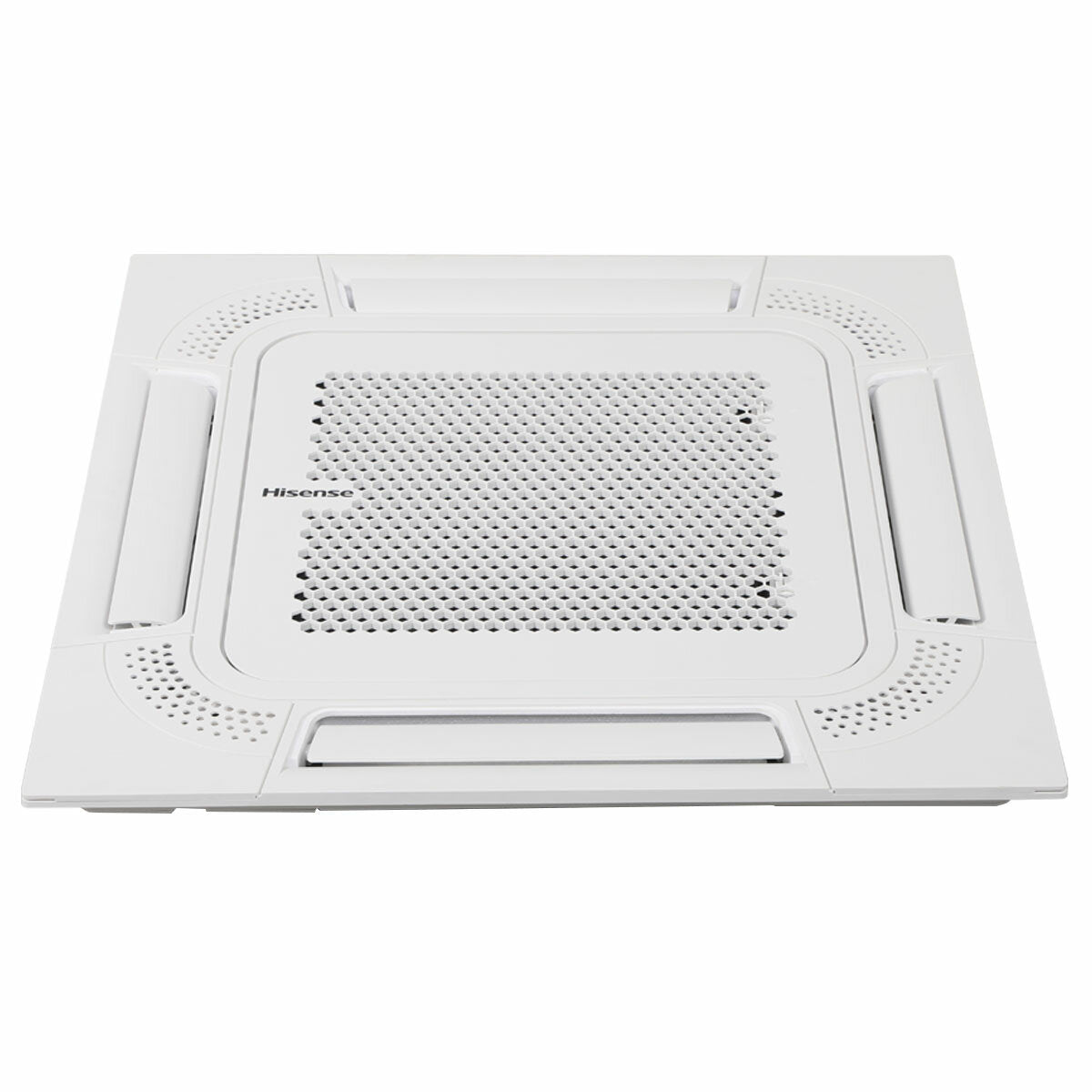

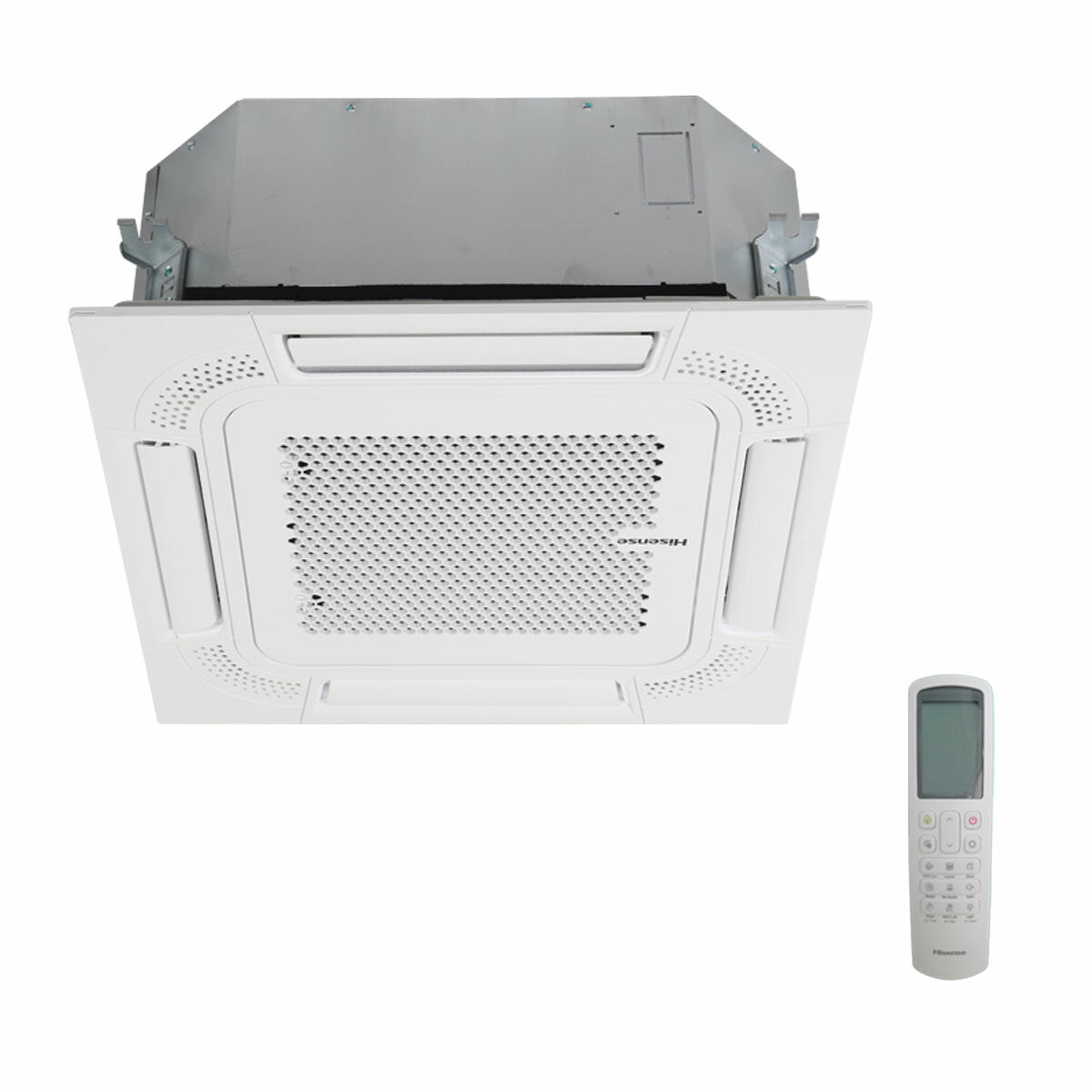

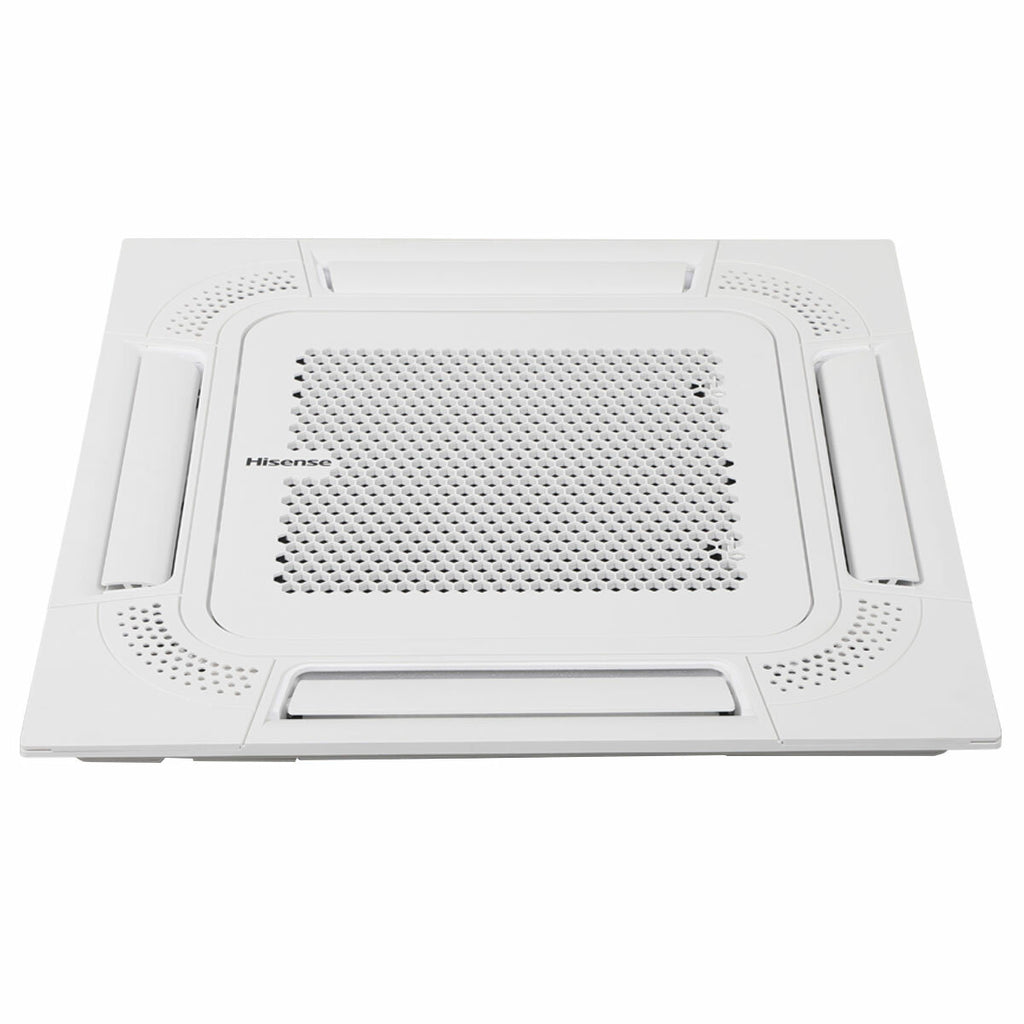

The indoor unit of the Hisense ACT Series 4-way Cassette Air Conditioner represents one of the focal points of commercial and residential air conditioning. The cassette is installed on the ceiling, generally recessed in a false ceiling and has the double great advantage of not occupying the walls and of diffusing the air in a more uniform way, favoring an ideal and imperceptible air conditioning of the rooms.
These indoor units are used together with the Inverter outdoor units to create combinations of Commercial and Residential monosplit and multisplit air conditioners with excellent energy performance, up to energy class A++ in cooling and A++ (A+ in the 5.0 kW version) in heating .
DESIGN
The Hisense ACT Series 4-way cassette has an elegant and modern design. Linear but captivating at the same time, adaptable to any working environment such as an office, a commercial activity, a hotel, etc... but it is also ideal for domestic air conditioning by virtue of its defined but delicate contours which make it an integral and imperceptible of your home. The new design includes the aesthetic and technological innovation of the panel , designed for optimal air distribution thanks to the adjustable fins and micro-holes which allow the air flow to be homogeneously directed towards the points of greatest interest, avoiding direct contact and promoting maximum environmental comfort.
CLEAN AIR AND WELL-BEING
The Hisense ACT Series cassette air conditioner is equipped with a filter that retains the impurities present in the air and dust, very simple removal and reinsertion to facilitate cleaning operations. It also features an integrated air renewal system : the air in the rooms is constantly regenerated thanks to the insertion of an external air intake which guarantees automatic renewal. The ACT Series is also compatible with the HI-NANO air purification system (optional) which inhibits viruses and bacteria thanks to the release of negative and positive ions in every corner of the room to be air-conditioned. This system releases one million ions per cm³ into the air, preventing its proliferation and achieving, in just one hour, the removal of more than 90% of the H1N1 virus, and of the Sars-Cov2 virus.
TECHNOLOGY AND COMFORT
The internal units of the Hisense ACT Series 4-way cassette air conditioner include technology and well-being in a single product capable of energy performance up to energy class A++/A++ (A++/A+ in the 5.0 kW version). The diffusion of air from the four sides, which can also be adjusted individually, offers a perfect climate and unparalleled comfort. Equipped with a powerful and high-performance DC fan Inverter motor , these cassette indoor units contain advanced technologies to guarantee efficiency, energy saving, silence and comfort. A series of functions that can be set make their use simple and practical, such as for example the Cooling, Heating, Dehumidification, Ventilation functions or the Auto function, which allow you to set the comfort temperature seasonally and in relation to your needs; weekly programming, Timer/Sleep, parameter control and many other modes that can be easily managed via remote control and can be further known and explored using the supplied user manual. The Hisense ACT Series cassette indoor units have temperature control which allows, during the winter season, to adjust (increase) the air flow in order to avoid stratifications and distribute the air evenly and uniformly, reaching any point of the environment to be air-conditioned with an incomparable result in the name of comfort and well-being of the users. The air conditioner also has a float to control the water level and an integrated condensate drain pump which, working in synergy, allow you to manage the humidity in the rooms by conveying it into the indoor unit and expelling it correctly and gradually outside (especially during the Dehumidification function). The Automatic restart provides for the restoration of the normal functionality of the indoor unit after a sudden stop of the electric current.
The Hisense ACT Series 4-way cassette indoor unit is the ideal choice for hotel complexes, as in addition to the many technological and aesthetic features that make it among the best on the market, it also has an ON/OFF contact for room control for hotels and for fire control and is suitable for Twin, Triple and Quadri applications in the multi-split version.
Extremely silent and manageable also via Wi-Fi system (optional) .
ACCESSORIES SUPPLIED AS STANDARD
- Remote control.
WARRANTY
The guarantee is the official Hisense one and has a duration of 2 years.

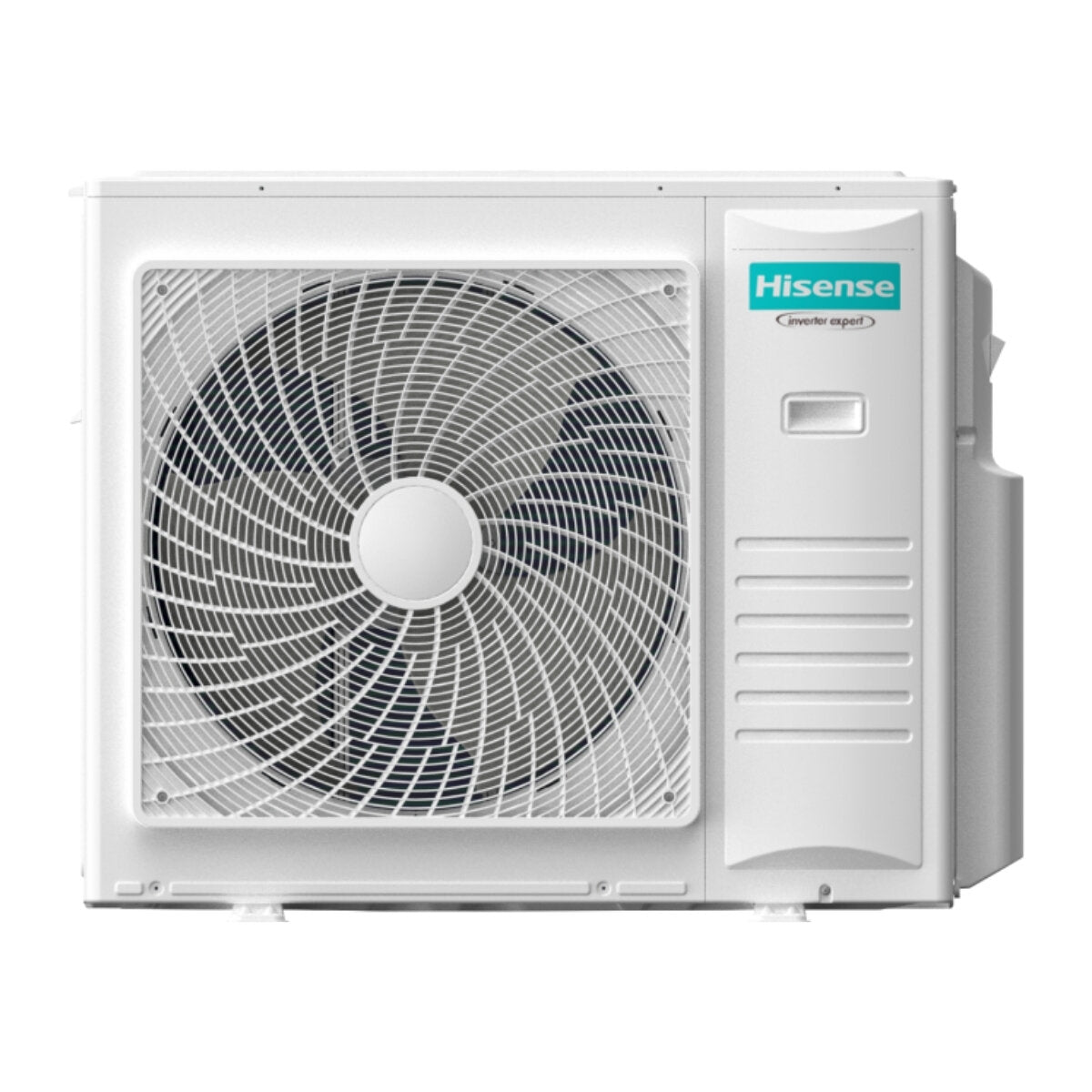

THE OUTDOOR UNIT
The outdoor unit for Hisense Multisplit air conditioners has Inverter and Heat Pump technology and represents the heart of the air conditioner. The unit is equipped with R32 gas and is equipped with latest generation technology; guarantees high efficiency and performance, silence and energy savings in every season.
The multisplit outdoor units offer the great advantage of air conditioning several rooms using only one outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for installing several outdoor units or when you want to reduce the visual impact of this air conditioning component on the facade of the building.
The outdoor unit described here has a nominal power of 10 kW and allows you to connect and power up to four Hisense indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The new Hisense Multisplit outdoor units are equipped with a double rotor BLDC Inverter compressor which allows for better balancing and reduction of machine vibrations, with consequent reduction in noise. Therefore, guaranteed silence and excellent performance and energy efficiency with an A++ class in cooling. All this is also guaranteed by the synergistic action of the DC Inverter fan and the electronic expansion valve .
These outdoor units are equipped with Smart Defrost technology which, in heating mode, activates automatic defrosting based on external weather conditions to prevent freezing of the unit and ensure maximum comfort even with temperatures down to -20°C .
The dimensions of these outdoor units are reduced compared to previous versions to facilitate installation and placement even in small spaces.
WARRANTY
The warranty is the official Hisense one and has a duration of 24 months.
