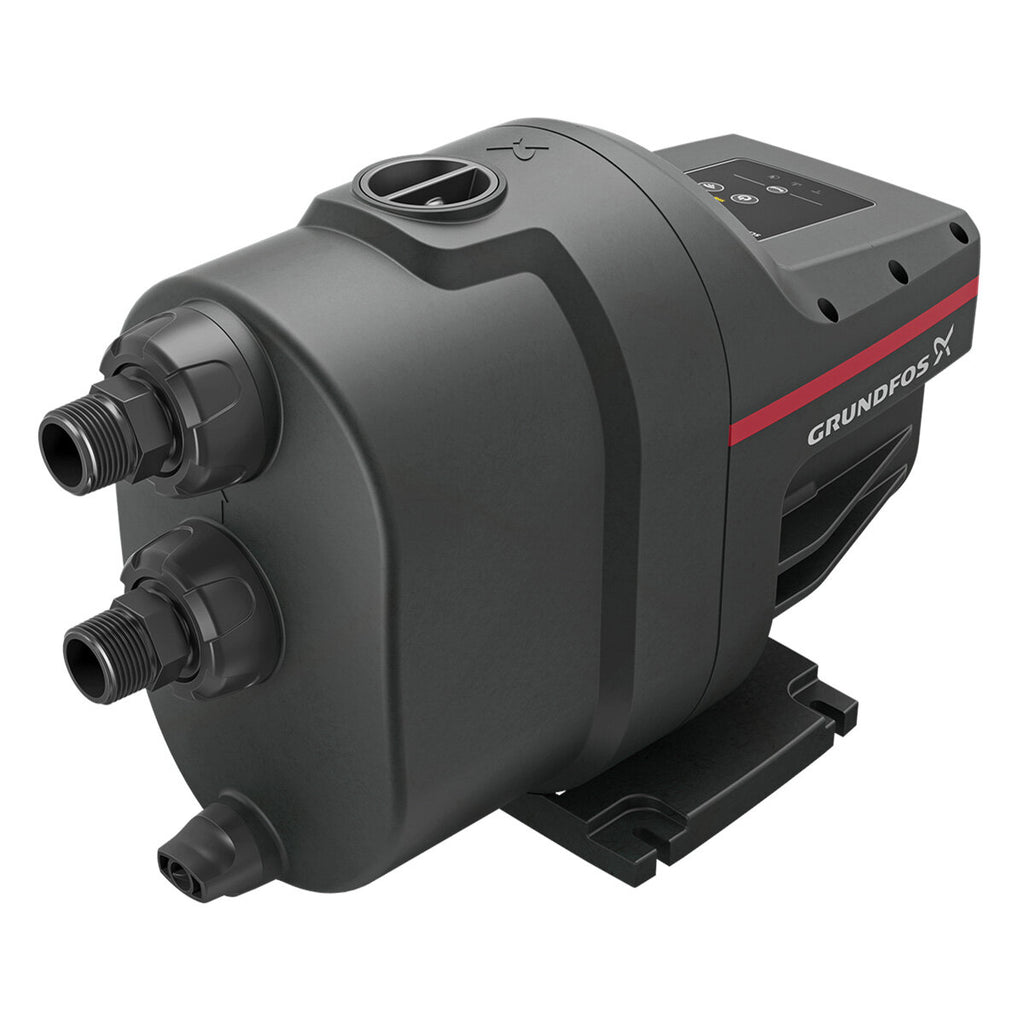

Grundfos SCALA1 3-45 single-phase centrifugal self-priming pump with Bluetooth
Cod. 99530405
- Nominal power 0,8 HP (0,58 kW) - Nominal flow rate: 3,59 m³ / h (60 lt / min.) - Nominal head: 25 m (44 m max.) - Suction: 1 - Delivery: 1 "
Self-priming up to 8 m, for residential use
Created to replace the old MQ series of electric pumps , Grundfos SCALA1 is the brand's new self-priming centrifugal pump, ideal for all residential or small commercial uses when there is a need for the self- priming function .
Used for a wide range of applications, the Grundfos SCALA1 self-priming pump is an all-in-one unit that is characterized by the high quality of its components and the simplicity of installation and use due to its compactness and the possibility of remote management via Smartphones and tablets.
The 3-45 variant with single- phase power supply is proposed here.
APPLICATIONS
The Grundfos SCALA1 single-phase centrifugal self-priming pump is ideal for use in domestic water systems , for pumping from level or even elevated tanks , for increasing pressure from the water mains. It can also be used in gardening, in small vegetable gardens and in light industrial environments such as fruit and vegetable departments or car washes where the liquid to be pumped is fairly clean water. Being self-priming, SCALA1 can also be used for sampling from wells with a maximum depth of 8 m.
By purchasing the appropriate accessories separately, it is also possible to connect two SCALA1 pump groups together to obtain a greater flow rate.
GUARANTEED SAVINGS AND HIGH COMFORT
Grundfos SCALA1 self-priming centrifugal pumps have high performance in terms of head and flow rate ; The model proposed here offers a nominal power of 0.8 HP (0.58 kW), a flow rate of 60 l / min (3.6 m 3 / h) and a nominal head of 25 m which can reach 44 m.
The SCALA1 are not very noisy and this model can work with a maximum operating pressure of 8 bar; the temperature of the pumped liquid can reach 45 ° C while the external temperature can reach up to 55 ° C.
Savings are guaranteed: Grundfos manufactures these pumps with high quality materials that allow them an exceptional durability over time. Electricity consumption is also low and efficiency is really high.
GREAT MODULARITY OF INSTALLATION AND USE
The Grundfos SCALA1 single-phase centrifugal self-priming pump takes up very little space , is handy and very easy to start. In fact, thanks to the integrated Bluetooth communication system , once installed and primed, it can be configured and started in a few simple steps using the Grundfos GO REMOTE application. The application allows the complete management of the pump remotely even in the case of two-pump systems. GO REMOTE allows you to view the operating status of the pump, the active settings and any malfunction or failure alarms.
However, the pump can also be set and managed from the integrated control panel characterized by the Grundfos Eye which lights up with lights with different symbols and colors, for quick and intuitive management.
A peculiar characteristic of the Grundfos SCALA1 electric pump is the completeness of the components because in addition to the high efficiency pump and motor, SCALA1 includes inside the membrane tank, the pressure and flow sensors, a regulator, the non-return valve and dry-running protection . The electric pump is ready for automatic starting and stopping according to the water request and is protected against any faults. Thanks to the technology that makes it self-priming, SCALA1 is able to lift water from a depth of 8 meters in less than 5 minutes; this feature also facilitates start-up in the event of dry running or leaks in the suction pipe. The Grundfos SCALA1 self-priming electric pump incorporates the important overtemperature protection functions (temporarily stops the motor in case of excessive operating temperatures) and automatic reset (can be deactivated) from dry running or in the event of an alarm.
ATTENTION! To ensure that the pump works correctly and its mechanical parts are not compromised, before starting it must be primed correctly by filling it with clean water through the appropriate hole.
DIMENSIONS
Width: 202 mm - Height: 316 mm - Depth: 466 mm
Weight: 12 kg.
WARRANTY
The guarantee is the official Grundfos guarantee and lasts for 24 months .
