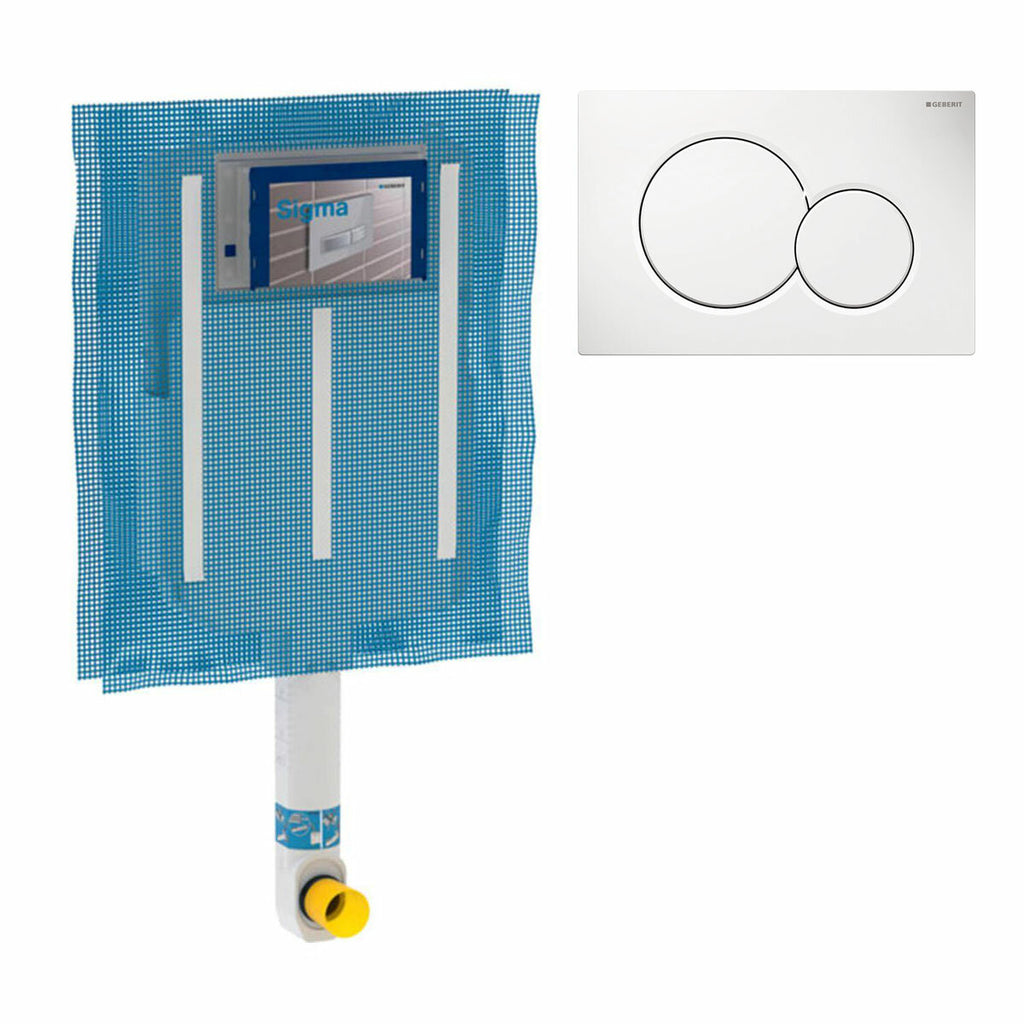

Sigma cistern 8 cm, 6/3 liters for floor toilet.

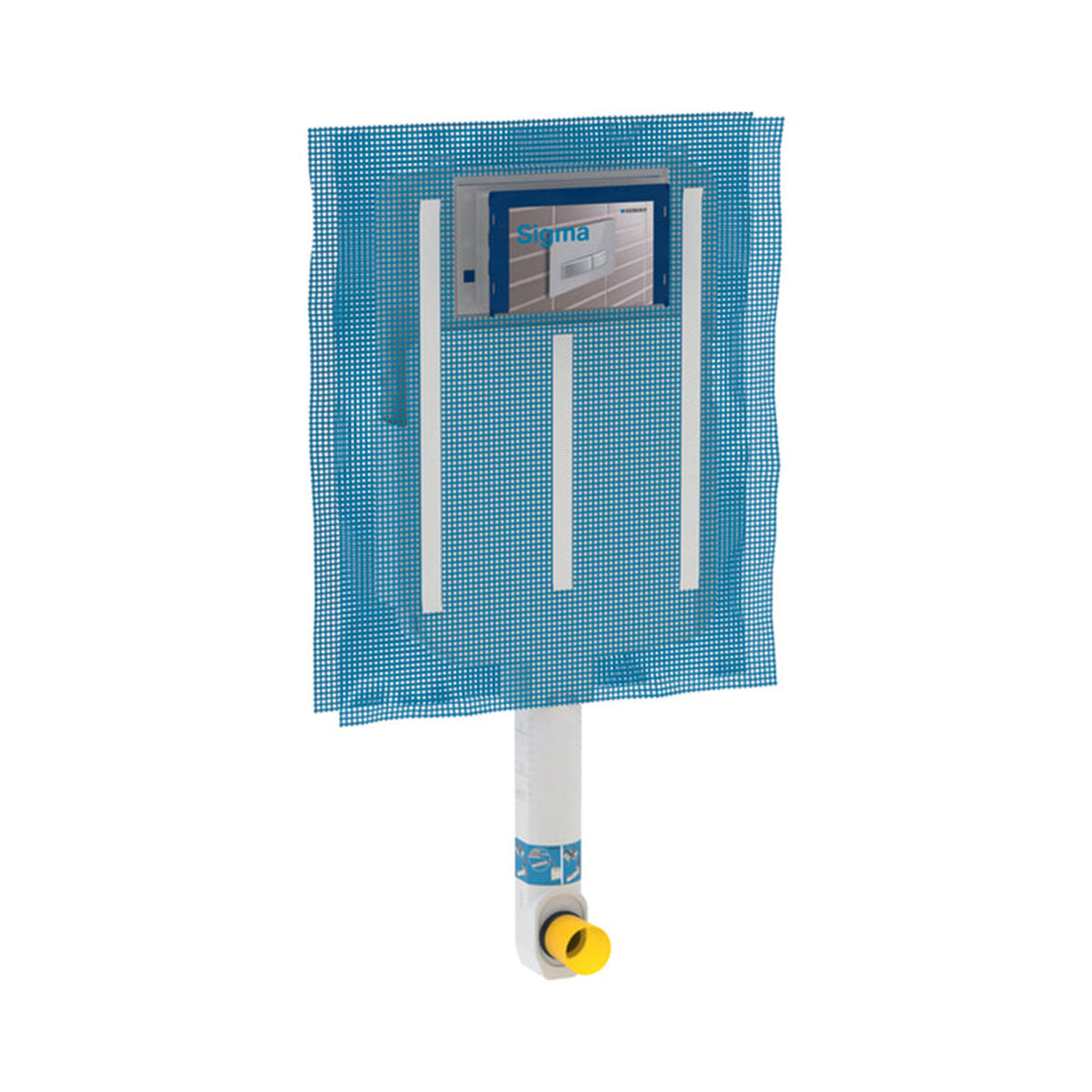

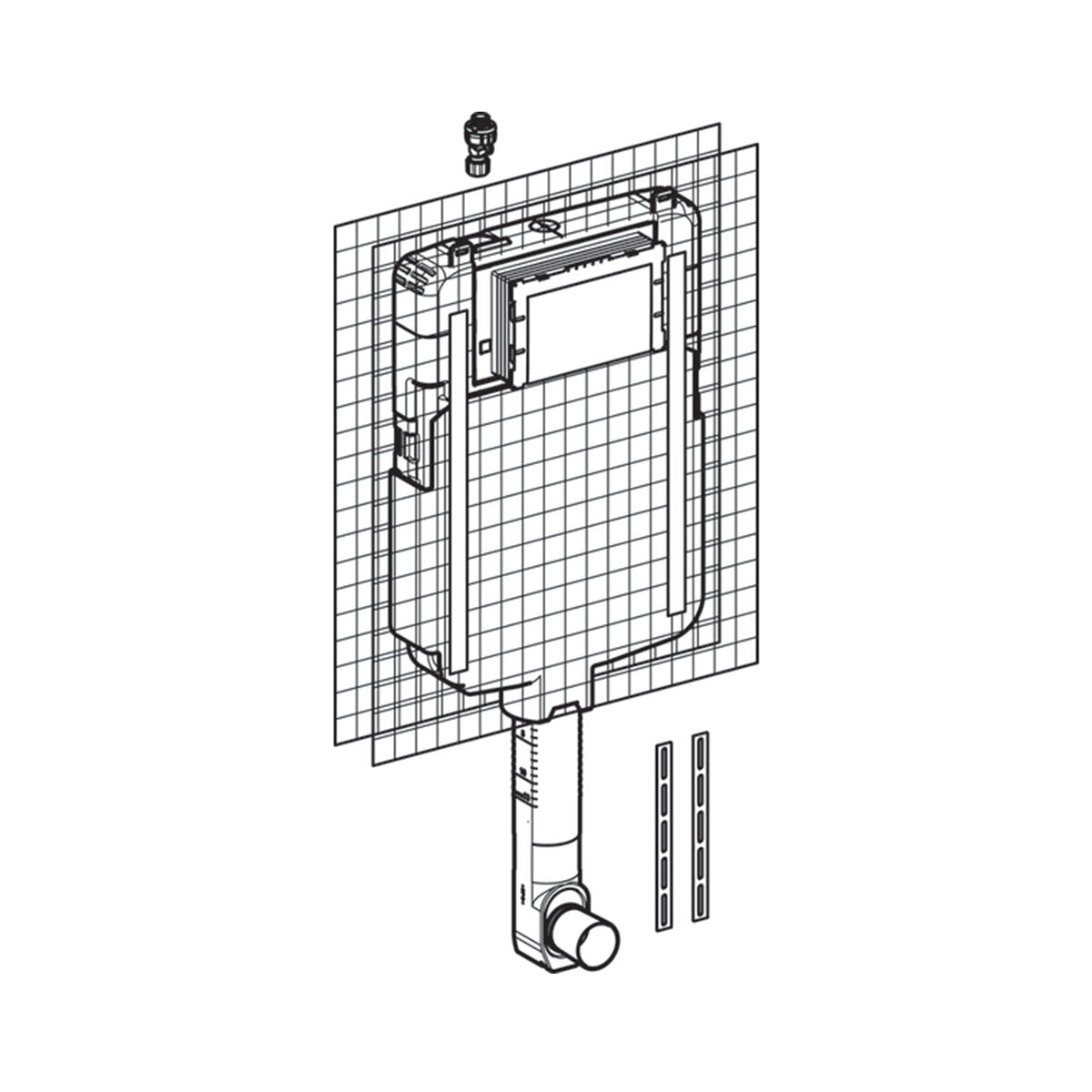

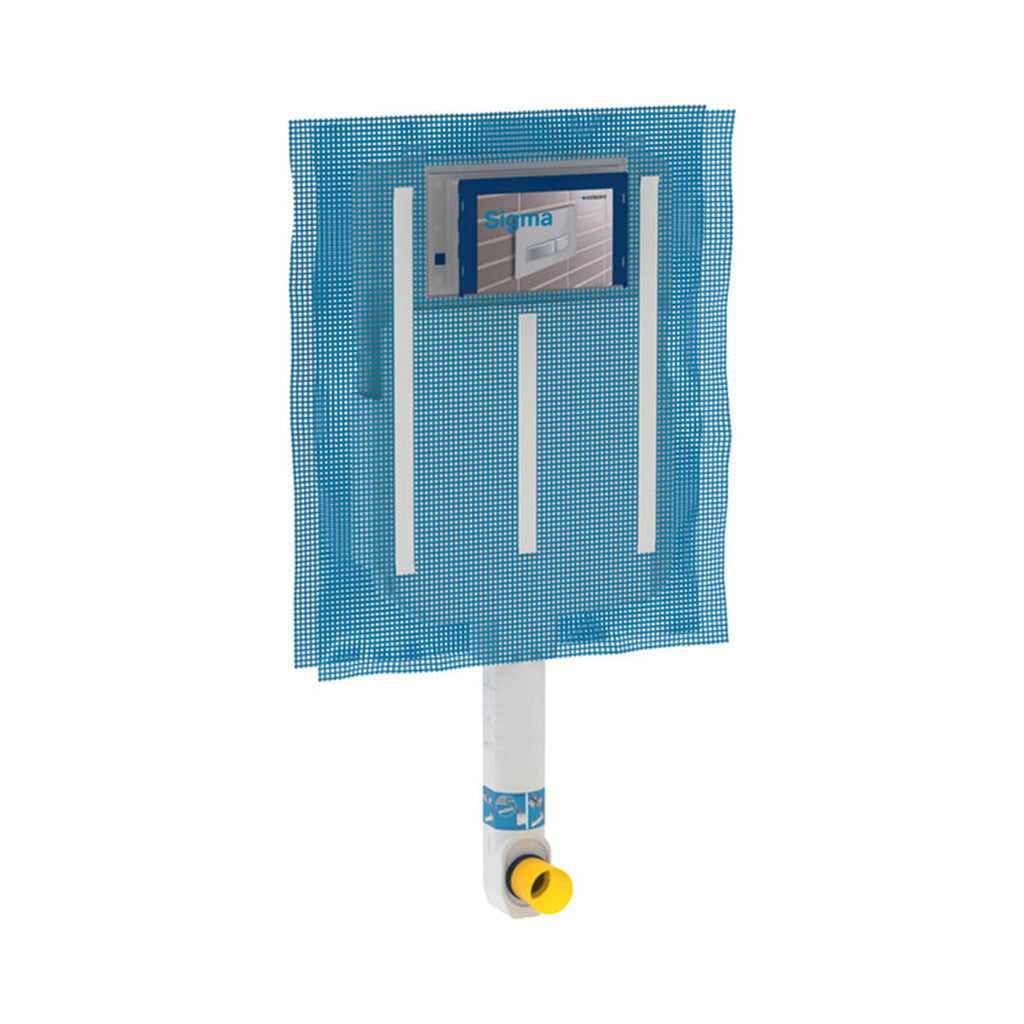

Geberit Combifix Sigma 8 is the complete solution for bathroom systems: designed for masonry construction, recessed installation in 8 cm masonry walls. The rinse is activated via the front control plate.
The Sigma 8 cassette provides maximum long-lasting performance and ease of assembly on site even in the most complicated conditions, thanks to the new super compact cassette body. The installation does not require tools or special procedures, on the contrary the advantage of the Sigma 8 cassette lies in its great versatility in terms of functions and mounting options. The cistern is factory assembled so that it can be quickly installed on site and connected to the water supply and drain pipes with the utmost ease. An advantage that also takes into account possible changes and future renovations. Sigma 8 cisterns are reliable as they are leak tested and have a 25 year spare parts availability guarantee. In addition, the flush volume of the Geberit Sigma8 concealed cistern can be limited to 4.5 liters. Therefore, it is exemplary in terms of water saving and has consistently achieved high scores, acquiring the WELL (Water Efficiency Label) brand .
Rinsing in one quantity, two quantities or with a chain.
Features:
• Built-in flush cistern with front operation
• Built-in cistern insulated against condensation
• Pre-assembled plaster holder net
• Flushing curve engaged
• Adjustable rinse curve of 2 cm upwards and 1 cm downwards
• Assembly and maintenance work on the concealed cistern without tools
• Water connection top left
• Site protection with shortenable inspection opening, suitable for flush control plates
Supplied material
• R 1/2 water connection, MF compatible, with integrated shut-off valve and knob
• Site protection with inspection opening
• Rinsing curve with expanded polystyrene cups
• Protective cap
• 2 fixing bars
• Fixing material

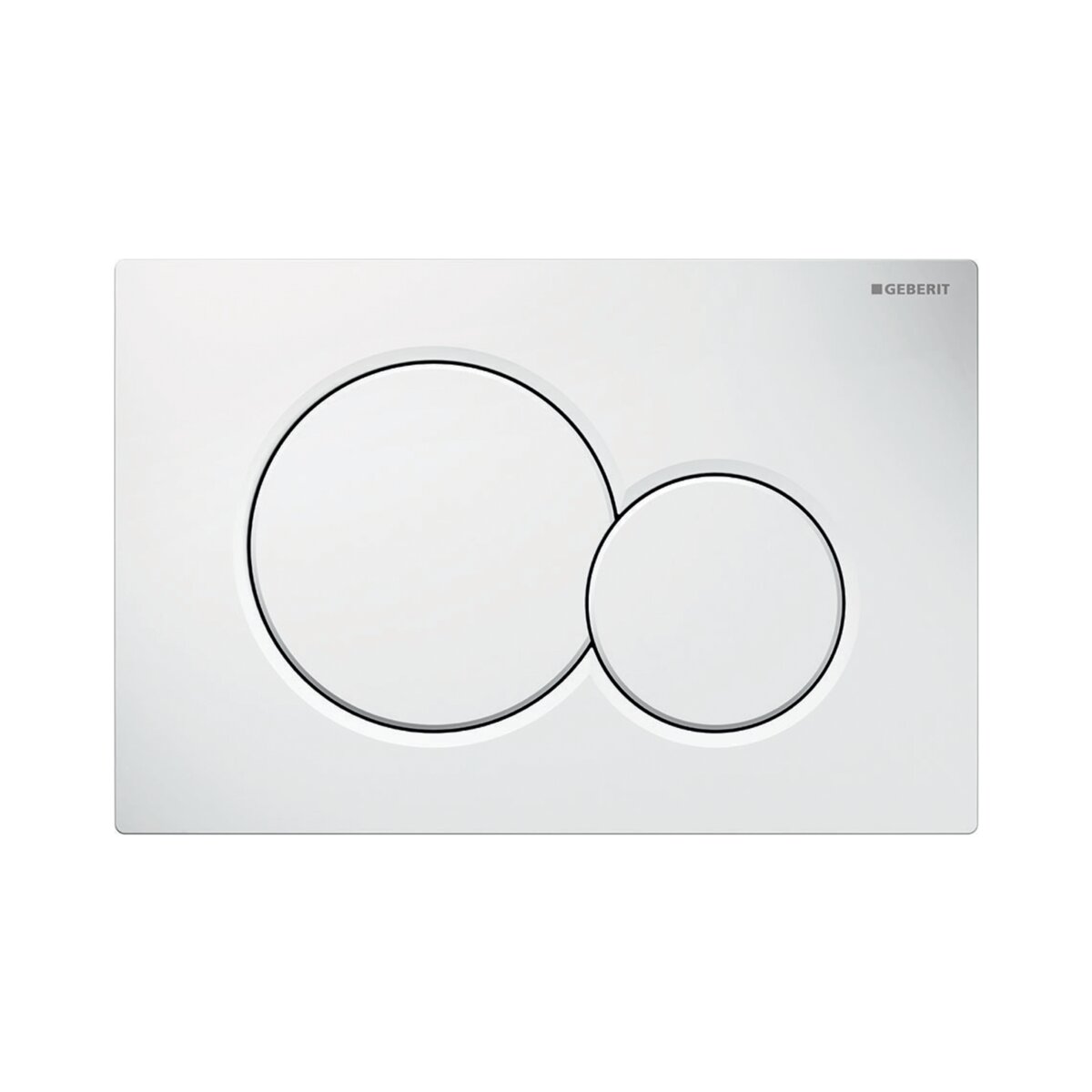

Geberit Sigma01 white flush plate with double button
The Geberit plates of the Sigma series represent the element that can give an original touch to the bathroom. With the Sigma01 plate , the Geberit brand has managed to combine style, elegance and functionality in a single product.
The Geberit control plates are the element of modernity that gives character to even the most minimal bathroom furnishings. The square lines, together with the double rounded frets, give an attractive appearance to the design, favored by the thinness of the edges and the more classic white color.
Geberit front plates not only look attractive, they also have versatile functions. Among them is the toilet sanitizer, suitable for most of the Geberit control plates of the Sigma series, through which it is possible to insert the sanitizing stick and give cleanliness and freshness to each rinse. Furthermore, the double controls allow to obtain a considerable water saving thanks to the two-quantity rinsing.
Thanks to continuous research and technology, Geberit Sigma flush plates are the perfect combination of function and comfort:
- Contactless rinsing
- Overflow rinse
- Sanitizing system for the toilet
- Flush wall installation
Property
- Dimensions (HxWxD) 246 mm x 164 mm x 13 mm
- Front operation
- Acoustically insulated control pins, quick adjustment without tools
- Actuation force <20 N
Supplied material
- Fixing frame
- 2 spacer pins
- 2 control pins
