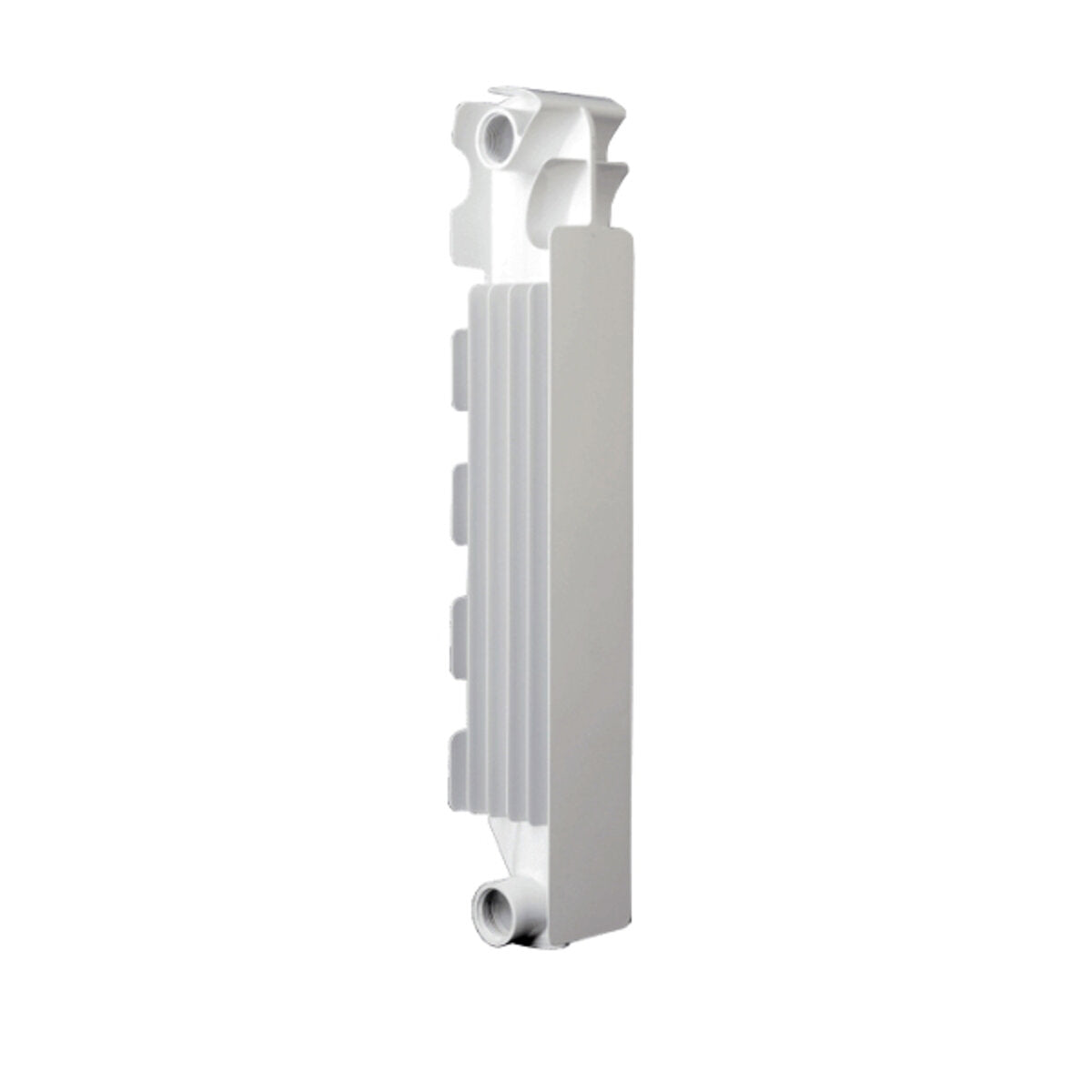

Fondital radiator in die-cast aluminum calidor super b4 single element center distance 600 mm

THE RADIATOR

in aluminum Calidor Super B4 was born from a research study to optimize the performance of radiators by offering a product with exceptional mechanical and energy performance.

The innovation was achieved by obtaining 3 international patents , giving life to a radiator that is also ideal for use with low temperature systems.

This jewel with an innovative design is perfect for any space and adapts to any environment, be it domestic, an office or even a hotel, its weight and its power allow for greater ease of handling and installation .

The treatments with chemical anti-corrosion protection, the painting by anaphoresis and finally with the double painting, make the radiator unalterable over time.

Furthermore, in the new Calidor Super B4 , thermo-electric fusion at controlled temperatures (PATENT PENDING), makes the process very effective in avoiding the formation of porosity and welding residues to the full advantage of durability.

The result is a radiator with a single 100% aluminum body, increasing its resistance, reliability and quality.

ENERGY SAVING

Calidor Super B4 is equipped with a new technology with an innovative shape that allows to obtain a high thermal yield , such as the openings on the back of the elements which allow to increase the convective type heat exchange .

TECHNICAL FEATURES

No. elements: 1

Wheelbase: 600

Thermal efficiency ΔT 50: 142.7 W

Thermal efficiency ΔT 30: 73.3 W

PLUS

No dirt deposits in the cap area

Absence of welding inside the water chamber (rust does not form)

Better aesthetics without external burrs

Superior mechanical resistance

Ecological process without material expenditure

DIMENSIONS

Height: cm. 65.8 - Width cm. 8.0 - Depth cm. 9.7

WARRANTY

The Calidor Super B4 radiator offers a 2 YEAR WARRANTY.
