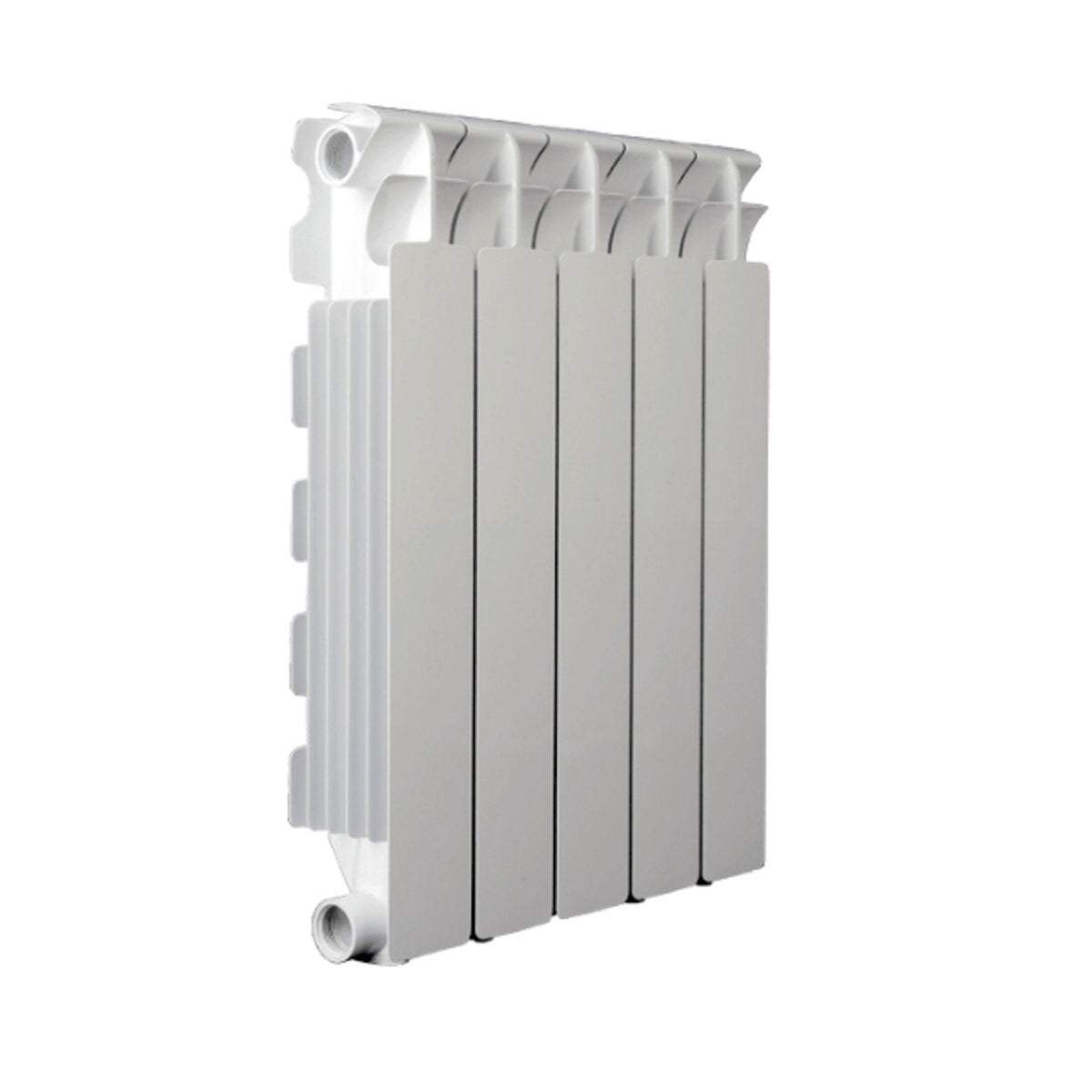

Fondital in die-cast aluminum calidor super b4 5 elements center distance 800 mm

THE RADIATOR

in aluminum Calidor Super B4 was born from a research study to optimize the performance of radiators by offering a product with exceptional mechanical and energy performance.

The innovation was achieved with the obtaining of 3 international patents , giving life to an ideal radiator also for use with low temperature systems.

This jewel with an innovative design is perfect for any space and adapts to any environment, be it home, an office or even a hotel, its weight and power allow for greater ease of handling and installation .

The treatments with chemical anticorrosion protection, painting with anaphoresis and finally with double painting, make the radiator unalterable over time.

Furthermore, in the new Calidor Super B4 , the thermo-electric fusion at controlled temperatures (PATENT PENDING), makes the process very effective in avoiding the formation of porosity and welding residues, all to the advantage of durability.

In this way, a radiator with a single body made of 100% aluminum is obtained, increasing its resistance, reliability and quality.

ENERGY SAVING

Calidor Super B4 is equipped with a new technology with an innovative conformation that allows to obtain a high thermal output , such as the openings on the back of the elements that allow to increase the convective heat exchange .

TECHNICAL FEATURES

No. of elements: 5

Wheelbase: 800

Thermal output ΔT 50: 872.5 W

Thermal output ΔT 30: 447.5 W

PLUS

No dirt deposits in the cap area

Absence of welds inside the water chamber (rust does not form)

Better aesthetics without external burrs

Superior mechanical resistance

Ecological process without waste of material

DIMENSIONS

Height: cm. 85.8 - Width cm. 40,0 - Depth cm. 9.7

WARRANTY

The Calidor Super B4 radiator offers a 2 YEAR WARRANTY.
