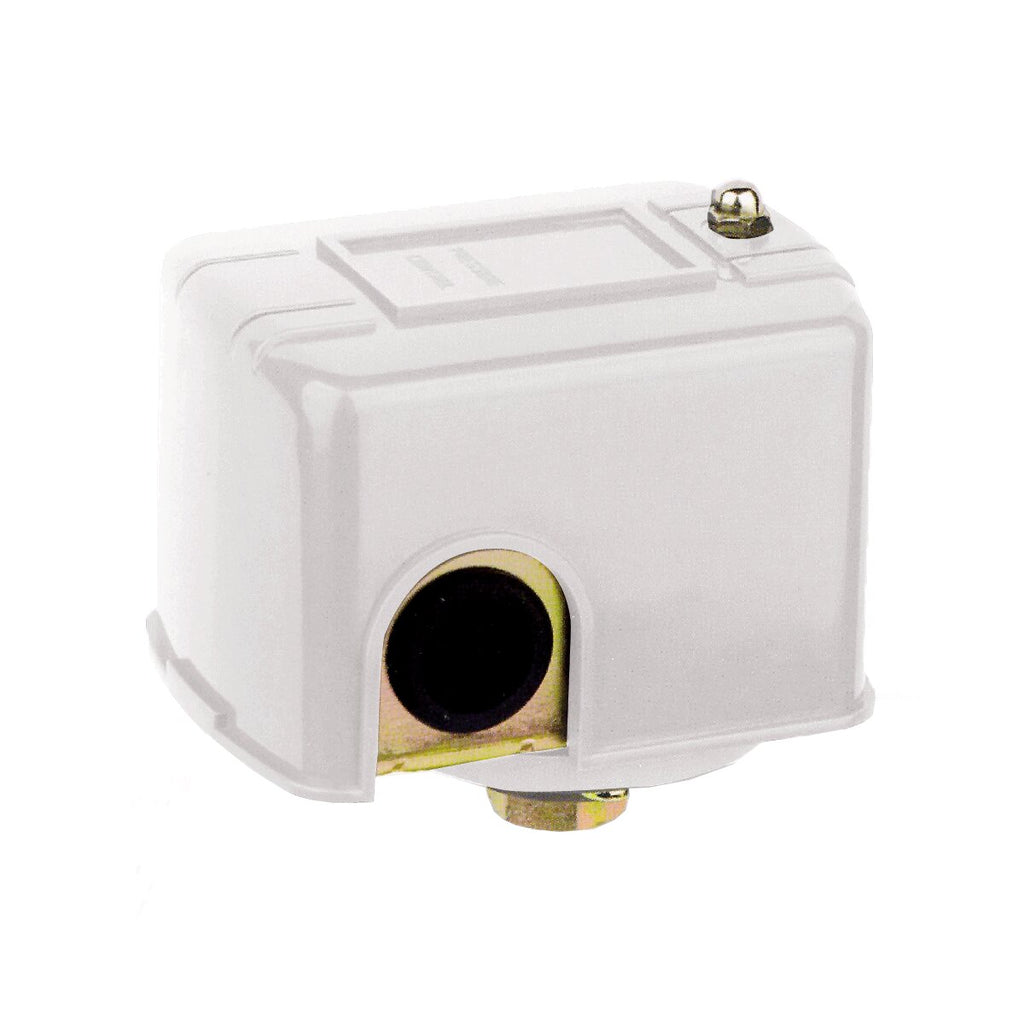

Fantini Cosmi B71A pressure switch for the direct control of single-phase/two-phase motors
The Fantini Cosmi B71A pressure switch is the regulation pressure switch for the direct control of the electric motor of pumps, compressors or domestic or industrial autoclave units, ideal for fluids (gas or liquids) that have chemical compatibility with the rubber membrane.
It features a double break switch per pole with silver alloy contacts, its function is to open the contacts when the pressure increases, thus regulating and detecting any anomalies. The bipolar contact allows you to control, without a contactor, electric motors up to 3A.
It is installed on a branch by expert and qualified technical personnel . Further specifications are contained in the user manual supplied with the product.
TECHNICAL FEATURES
- Rubber diaphragm sensitive element.
- Adjustable differential.
- G 1/4 female fitting.
- Lid in shockproof thermoplastic material.
- Steel metal parts.
- Earth connection.
- Connection output with 2 cable glands.
- Maximum controlled fluid temperature 70°C.
- Allowable pressure switch body temperature 60°C.
- Storage and transport temperature -15 ÷ 60°C.
DIMENSIONS
- Width 92 mm_Height 95 mm_Depth 67 mm
- Weight 0.35 kg
WARRANTY
The guarantee is the official Fantini Cosmi one and lasts 2 years.
