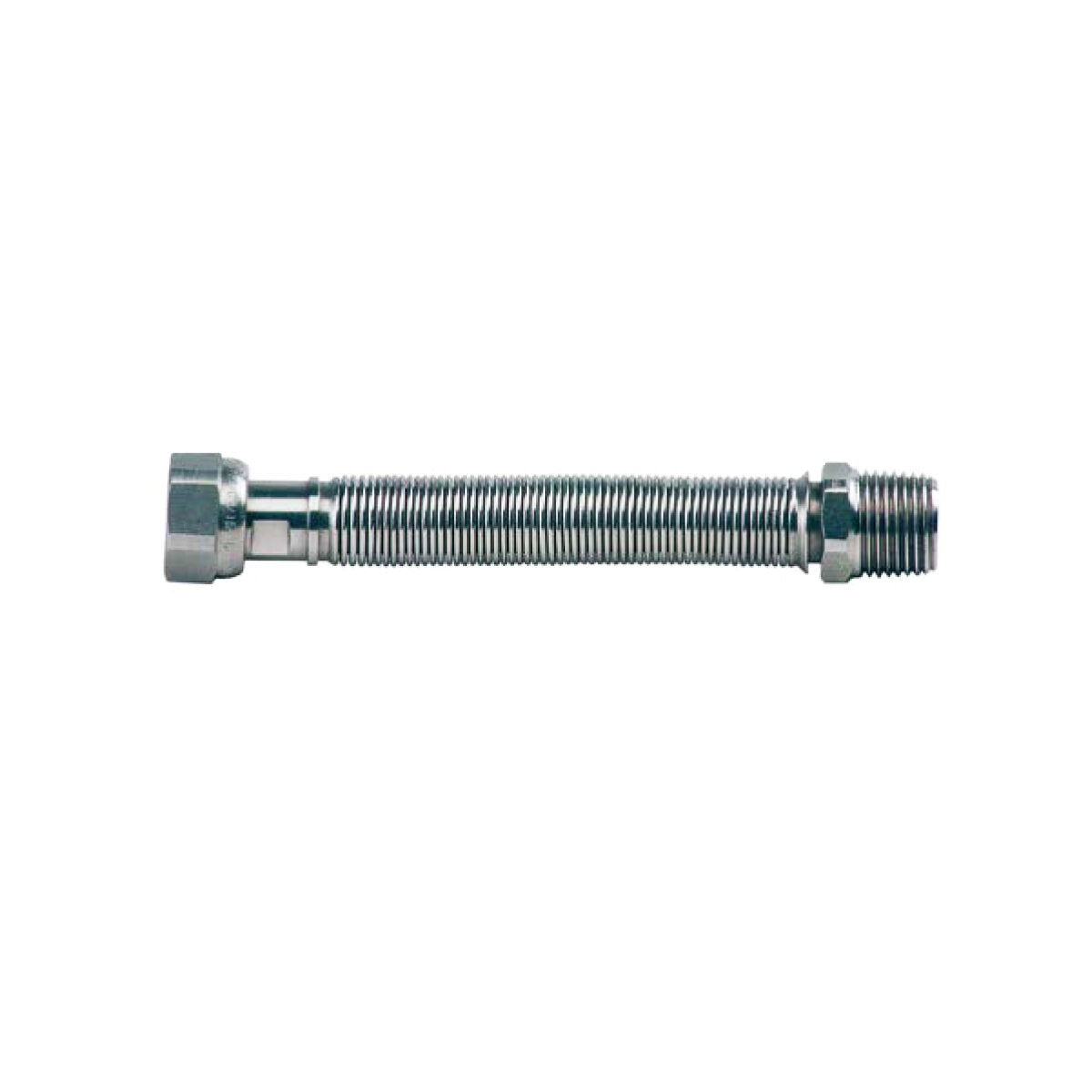

Extensible hose 3/4" x 3/4" M/F bare steel for water

FLEXIBLE PIPE 3/4" x 3/4" M/F EXTENSIBLE FROM 200 TO 400 mm FOR WATER IN BARE STAINLESS STEEL FOR BOILER CONNECTION, BOILER CONNECTION, HYDRAULIC CONNECTIONS.

The flexible hose is made of top quality stainless steel and, at both ends, is equipped with 3/4" Male and 3/4" Female fittings complete with EPDM rubber gaskets.

Its particular spiral shape makes it flexible and extensible from the initial length of 200 mm up to a maximum of 400 mm .

The hose is made of uncoated stainless steel .

It is mainly used to connect boilers to the water inlet and outlet of the sanitary circuit but can be used for many other purposes of a hydraulic nature.

The tube is suitable for use with water according to DM 174; the stainless steel nut has anti-torsion milling and is approved for connection to the water mains of boilers, water heaters, etc.

The hose can work at temperatures between -10 and +90°C; the maximum working pressure is 8 BAR.

DIMENSIONS

Length: 200/400mm

Diameter (DN): 15mm

Thickness: 0.21mm

Fittings M/F 3/4 x 3/4 .
