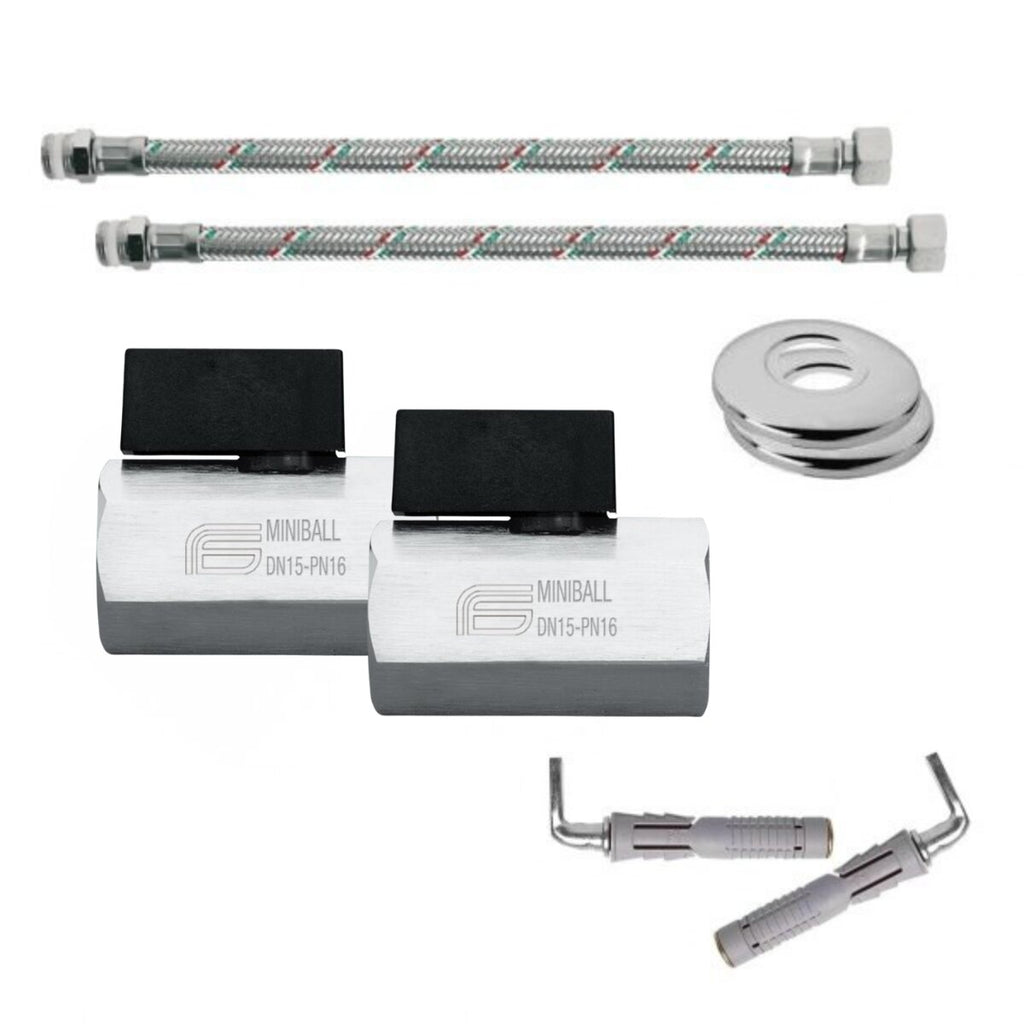

ELECTRIC WATER HEATER INSTALLATION KIT consisting of PAIR OF FLEXIBLE HOSES, PAIR OF MINIVALVES, PAIR OF FIXING PLUGS.
- Flexible hose for connection to the water heater, taps and drain cisterns. . .

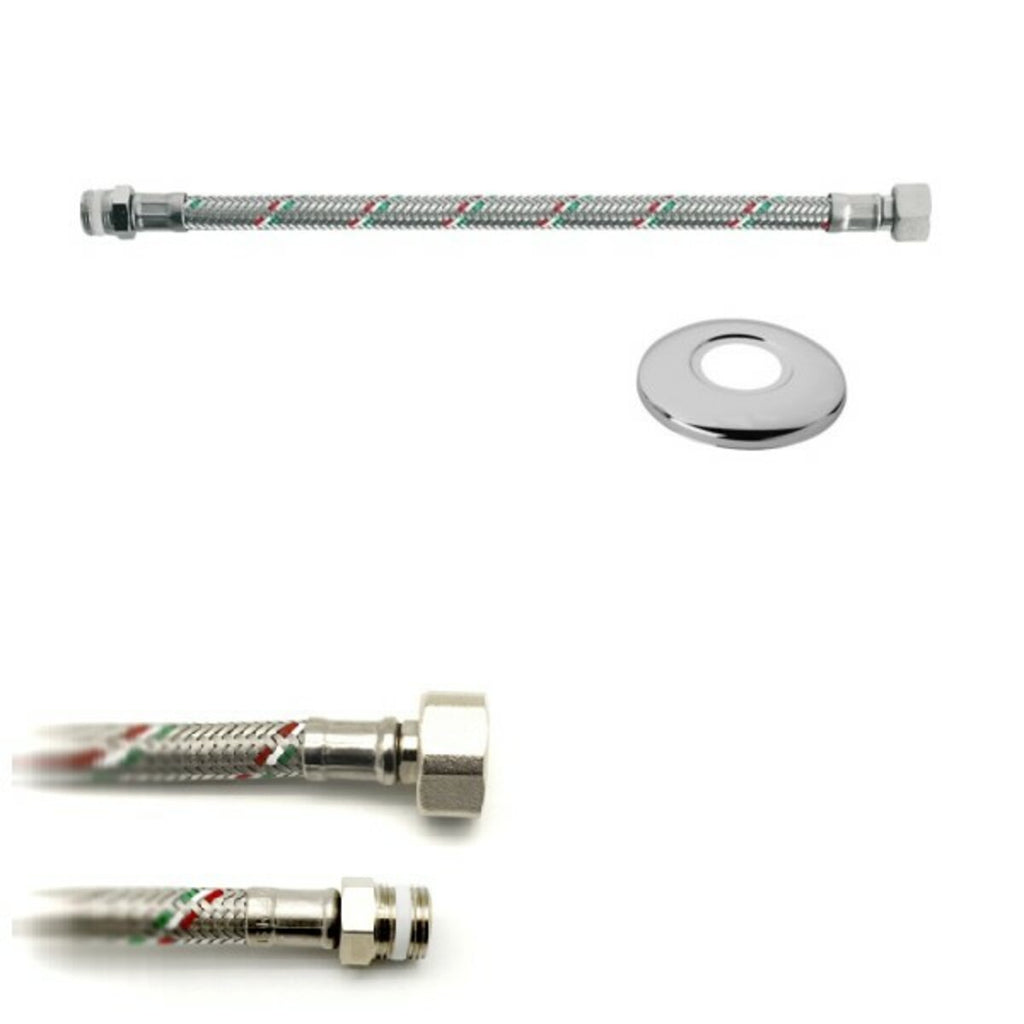

PARIS flexible hose model FLEXCORE® FXC with M (1/2 ”) F (1/2”) connections.
It allows the water connection of an infinite series of household appliances, sanitary fixtures, taps, water heaters and all the water accessories present in a water or heating system.
The inner tube is in polyurethane for sanitary and food use , it guarantees the total potability of the liquids that run through it since it does not release harmful substances, it is particularly resistant to hydrolysis, it can be used with liquids starting from -5 ° C, it has a excellent sealing even at 70 ° C and always a great flexibility, withstands up to a pressure of 10 BAR ; it has a high durability over time. FLEXCORE® is anti -crushing; the inner tube has a particular conformation that allows very tight bends even with a radius of only 25 mm.
The external part is made up of a flexible braid made of AISI 304 stainless steel filaments, particularly resistant to atmospheric and corrosive agents; its remarkable flexibility allows it to be used even in the tightest and most difficult spaces.
The anti-corrosion stainless steel fittings are available with both male and female connections and in various sizes, and are also equipped with gaskets incorporated in EPDM already inserted in the fitting.
In the versions with male fitting, it is supplied complete with a circular hole cover escutcheon.
PARIGI model FLEXCORE® anti-vibration flexible hoses are completely recyclable and resistant to UV rays ; they are built according to the highest quality standards and comply with the strictest national and international directives (DM 174 Italy - W270 Germany - GOST Russia - EN13618 EU)
They offer great ease of installation.
DIMENSIONS
Length: cm. 35 - Fittings: ½ ”M x ½” F
WARRANTY
The guarantee is the official Paris Industries guarantee and has a duration of 2 years.
- PAIR Male / Female ½" M x ½" F minivalves with hexagonal external section

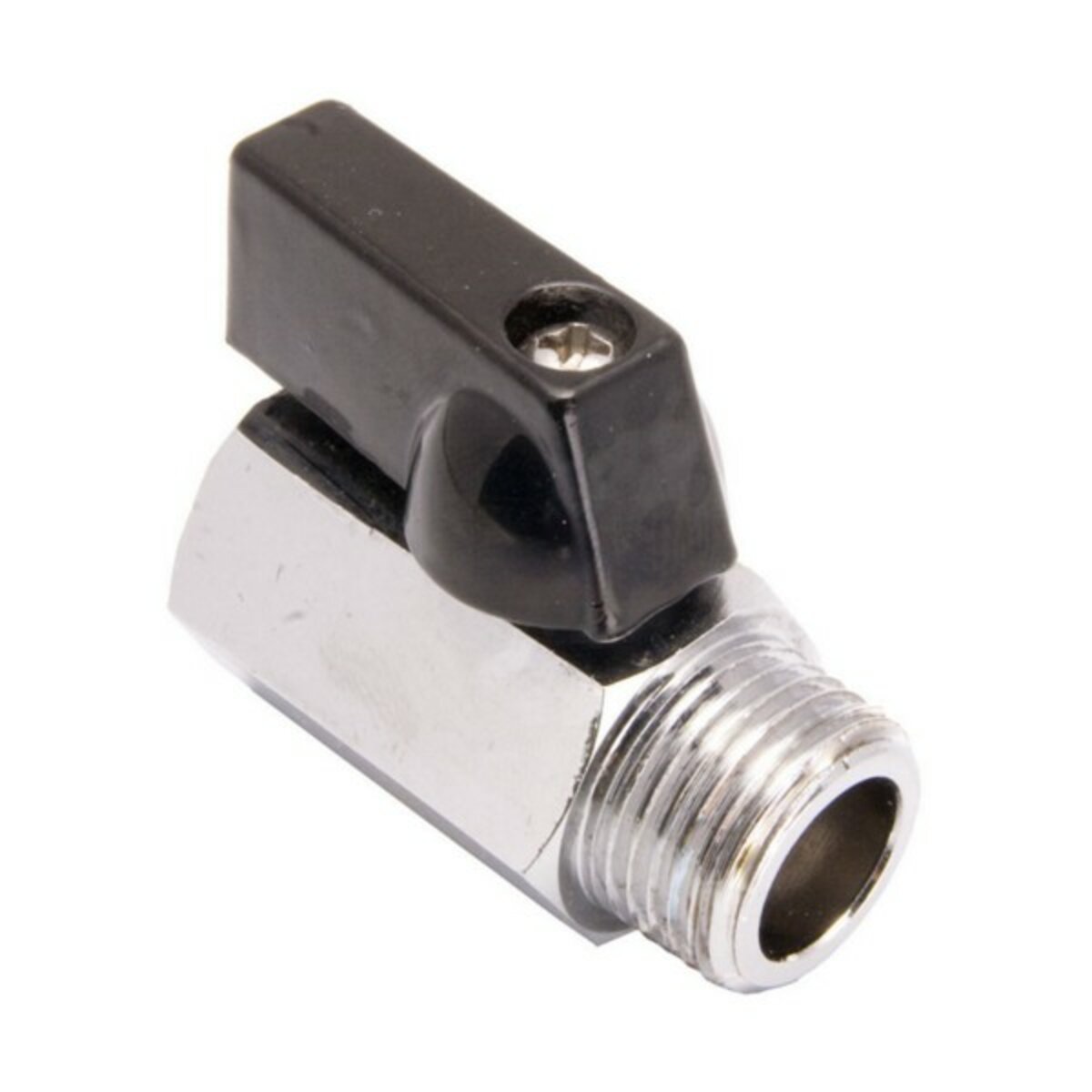

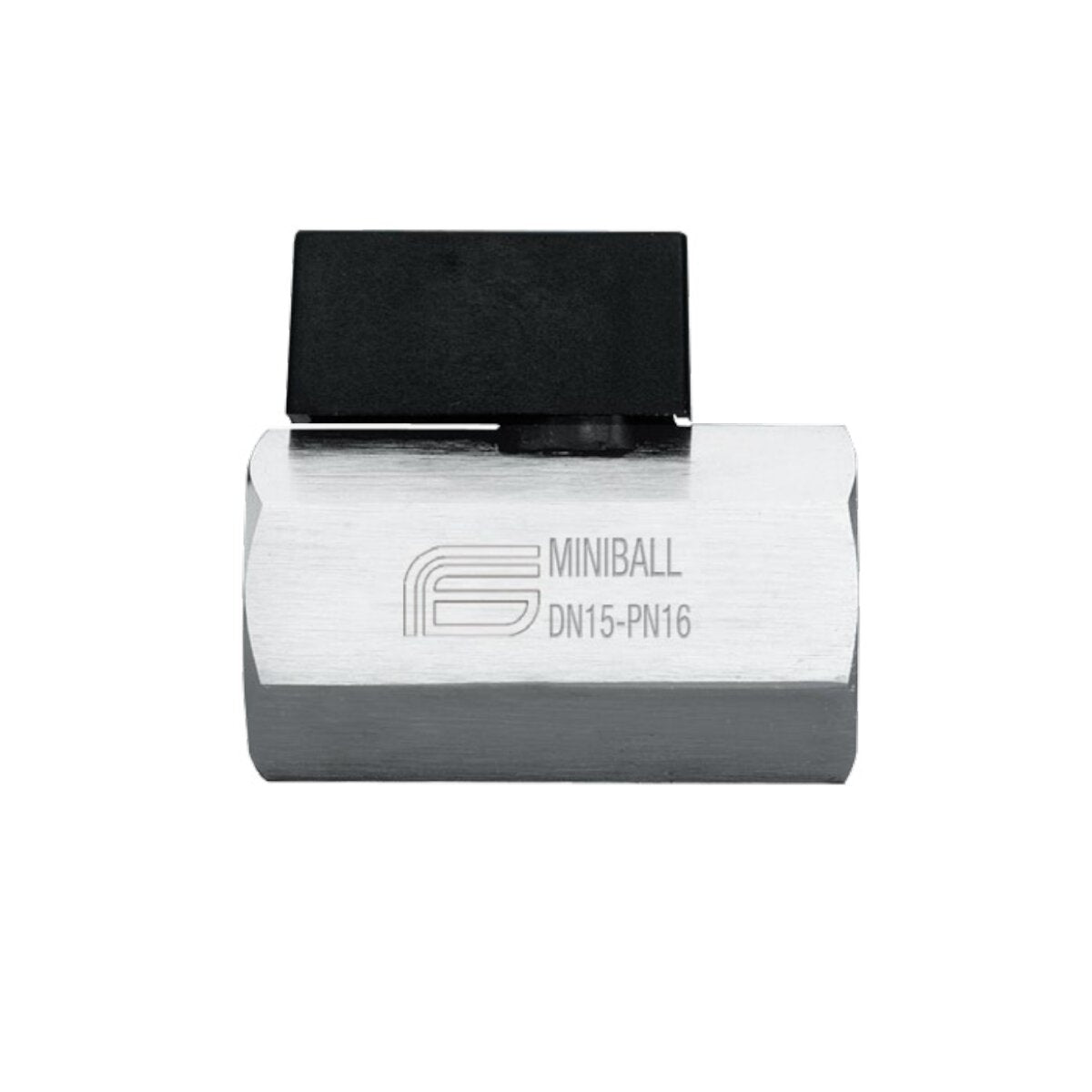

Male ½ ”x Female ½” ball minivalve specific for water or compressed air.
The ball Minivalve is a water shut -off valve with minimal dimensions , it is often used in conjunction with flexible pipes to control the passage of water from water heaters, taps and all the water accessories present in a water or heating system; its multiple fields of use allow it to work even with compressed air. Its dimensions allow it to be installed in the smallest spaces.
The body of the Minivalve is made of chromed or satin brass with an external hexagonal shape to facilitate its fixing with a wrench or fork, the ends accommodate the ½ "Male and ½" Female connection threads ; the minivalve is equipped with a flat lever cock for opening and closing which activates an internal ball mechanism with total closure guaranteed by the internal seals.
It excellently resists temperatures from -10 ° C to + 90 ° C so it can be used for both cold and hot water.
DIMENSIONS
Length: mm. 45 - Width: mm. 27 - Height mm. 40 - Fittings: ½ ”M x ½” F
WARRANTY
The warranty is the official one of the manufacturer and has a duration of 2 years.
- PAIR of wall mountings for water heater and waste cisterns

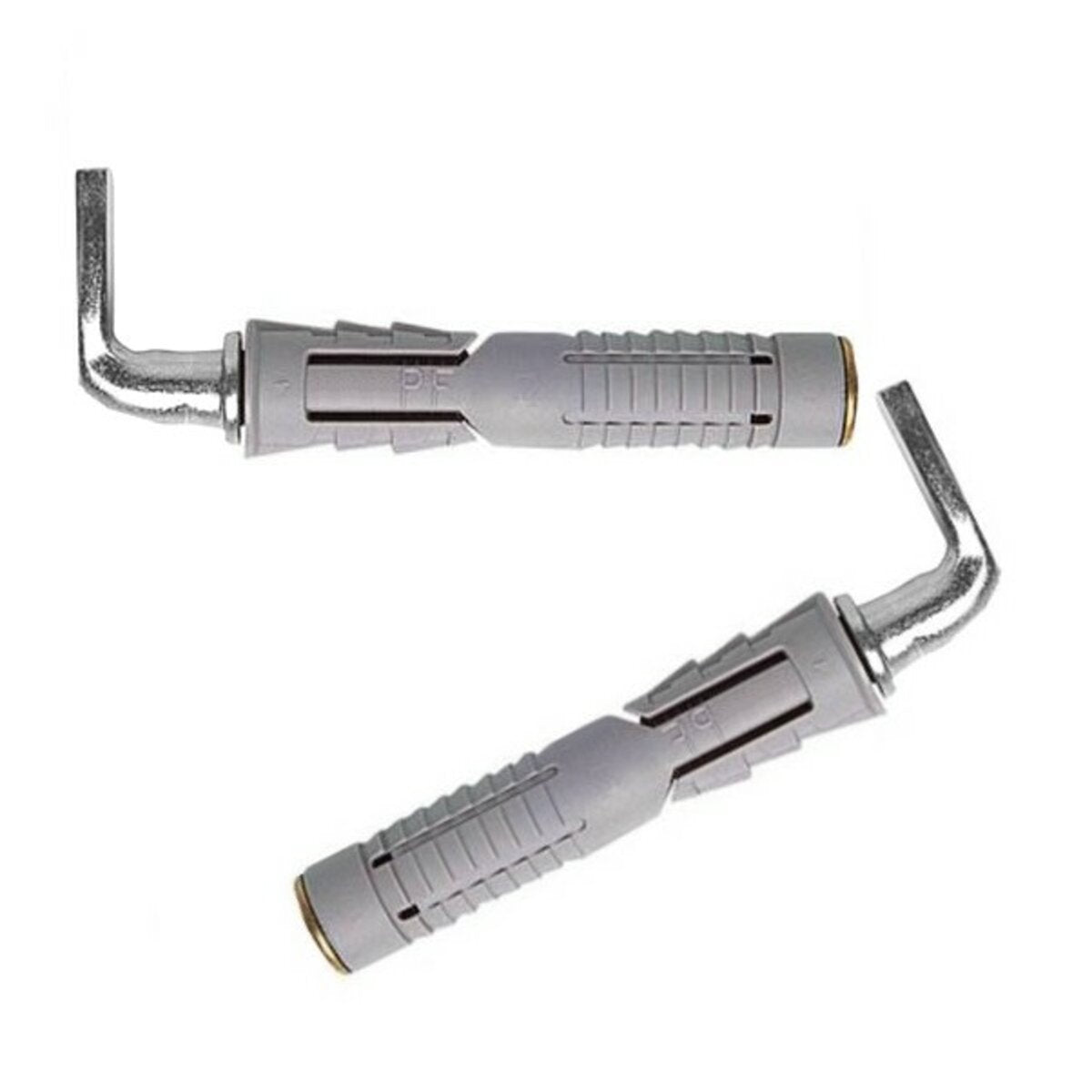

Pair of Wall Fixings composed of support unit, expander cone and plug.
They allow the wall support of water heaters, waste cisterns but their use is practically unlimited and aimed at supporting any suspended element of considerable weight.
Each is composed of:
- L-shaped support unit in steel 92 mm long. with 12 mm wide flat head. in the support area and the full length threaded body in the tightening area with a thickness of 10 mm. The support unit is equipped with the pronounced collar that prevents it from slipping into the dowel during screwing thus ensuring an easier installation. It is rustproof.
- Brass expander cone that allows expansion of the dowel during installation and is designed to facilitate fastening in semi-solid support materials. The expander cone has a serrated internal edge that anchors it firmly to the gusset.
- 71 mm long premium quality pure nylon gusset. and with a diameter of 14 mm. equipped with a pronounced collar that prevents the plug from sliding into the hole made for installation. The plug is designed to facilitate an easy insertion into the hole, it is equipped with two long ribs that prevent it from rotating in the installation hole and with anti-tear fins; during tightening, the controlled expansion of the dowel in four directions and against the first flange of the semi-solid brick allows a safe and resistant anchoring to the whole fixing .
The fixings are particularly resistant and support considerable vertical loads (Concrete: 1.2 KN / 122.3 Kg - Semi-solid brick 0.90 KN / 91.7 Kg for each one); they are used both on solid and semi-solid support materials (on semi-solid supports it is advisable to drill only in rotation) such as concrete, solid brick bricks, semi-solid bricks; they are installed using a 14mm drill bit. in diameter; they are supplied in pairs.
DIMENSIONS
Length: mm. 92 - Height mm. 35 - Fixing diameter mm. 14
WARRANTY
The warranty is the official one of the manufacturer and has a duration of 2 years.
