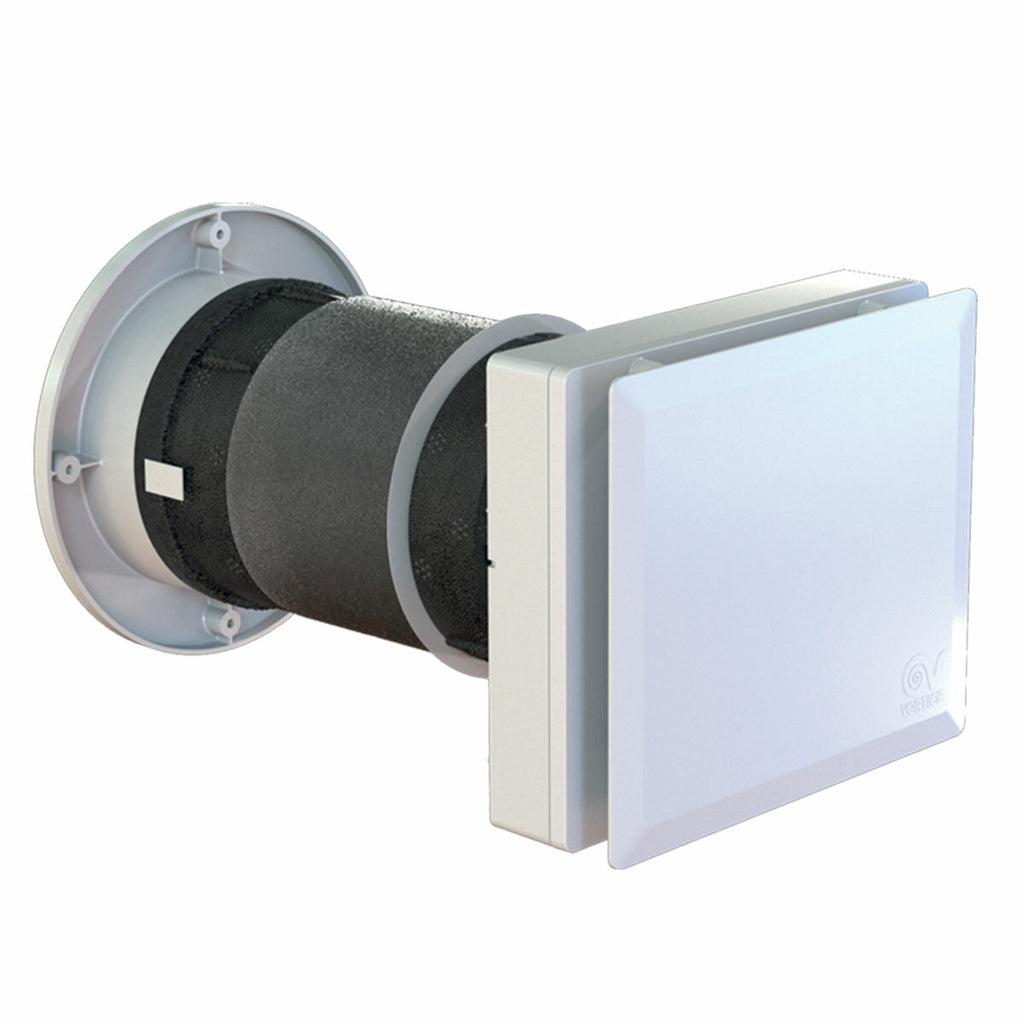

Vortice Vort HRW 60 Mono Evo HCS Decentralized controlled mechanical ventilation with heat recovery Ø 160 mm
The Vortice Vort HRW 60 Mono Evo HCS controlled mechanical ventilation system is the ideal solution for air exchange in residential and commercial premises of new or renovated buildings, characterized by high levels of thermal insulation; Since it is a decentralized system, it is suitable for the ventilation of single rooms up to 20 m2 with an average height of 2.70 m and requires a very low energy contribution .
The VMC Vortice Vort HRW 60 Mono Evo HCS it is suitable for mounting on perimeter walls with a thickness between 260 mm and 700 mm, with its compact design and high quality components it is visually pleasant and versatile, fitting easily into any environment. Vort HRW 60 Mono Evo HCS guarantees continuous and controlled air exchange, it is ideal in all closed places such as domestic environments but also in hotels, schools, offices and in all private and public places.
TECHNOLOGY, COMFORT AND SAVINGS GUARANTEED
System made of anti-shock and anti-UV plastic resin , with a nominal diameter of 160 mm, is equipped with a high efficiency storage heat exchanger (up to 90% at the minimum air flow rate) made of ceramic material and of the hexagonal cells to maximize the heat exchange surface. In winter operation, thanks to the periodic inversion of the direction of rotation of the motor fan, the exchange pack is cyclically heated by the extracted hot air and subsequently transfers most of this heat to the incoming cold fresh air, while in summer the logic is reverses.
Further technical features make this VMC unit one of the best on the market: low consumption EC motor fan , powered by low voltage and with shafts mounted on ball bearings, characterized by 5 operating speeds to favor the best compromise between flow rate treated air, consumption and sound emission are designed to operate clockwise and anti-clockwise and thus allow the product to operate in the Suction, Ventilation and Ventilation with heat recovery modes; relative humidity sensor and a brightness sensor for automatic operation of the product, both integrated into the chassis, as well as the mechanical system for rapid closing of the air supply; two air filters , an IsoCoarse 65% and a coarser pre-filter for dust, both easily removable for cleaning and maintenance operations; electrical insulation class II (grounding is not required); signaling of the condition of saturated filters and external rubber molded grilles which can also be mounted from the inside to simplify installation and include an easily removable anti-insect net to facilitate cleaning operations.
The VMC Vortice Vort HRW 60 Mono Evo HCS has five operating modes :
-
Continuous ventilation with heat recovery : the fan periodically reverses the direction of rotation to allow the flow of the heat previously accumulated in the exchanger to be transferred to a lower temperature;
-
Ventilation in supply mode : the fan always operates in supply mode, introducing fresh air into the room;
-
Ventilation in extraction mode : the fan always operates in extraction mode, extracting stale air from the environment;
-
Automatic : the recuperator, working in synergy with the relative humidity sensor, manages the air flows independently and automatically;
-
Night : with the lights off/weak the fan works at minimum speed, regardless of the relative humidity values detected.
Extremely silent , this ventilation unit is supplied as standard with a remote control through which it is possible to manage the machine remotely and set the various parameters as desired; further technical and operating specifications can be found in the user manual supplied with the product.
It is installed on the wall by qualified and authorized technical personnel.
Thanks to this technology, the energy efficiency of the properties in which we live is improved , reducing heating and air conditioning costs , but above all it really promotes well-being and living comfort. Furthermore, the introduction of fresh air drawn from outside and appropriately filtered into the rooms, the expulsion of internal stale air and the recovery of the energy contained in the expulsion air through a high efficiency exchanger , bring great and real benefits to our health, also significantly impacting the reduction of airborne transmission of infectious forms.
TECHNICAL FEATURES
- Nominal Duct Diameter: 160 mm
- Insulation: 2nd class
- Max absorbed power: 7 w
- Voltage: 220-240V
- Max recovery efficiency 90%
- Filter class: ISOCoarse 65%
- Flow rate (m3/h):
- Boost 60 m3/h
-
High Performance 45 m3/h
-
Night 10 m3/h
-
Performance 35 m3/h
-
Quiet 25 m3/h
DIMENSIONS
- Width 231 mm_Height 200 mm_Total depth 356 mm
- Internal connection diameter: 146 mm
- Weight: 3.30 kg
WARRANTY
The guarantee is the official Vortice one and lasts 2 years .
