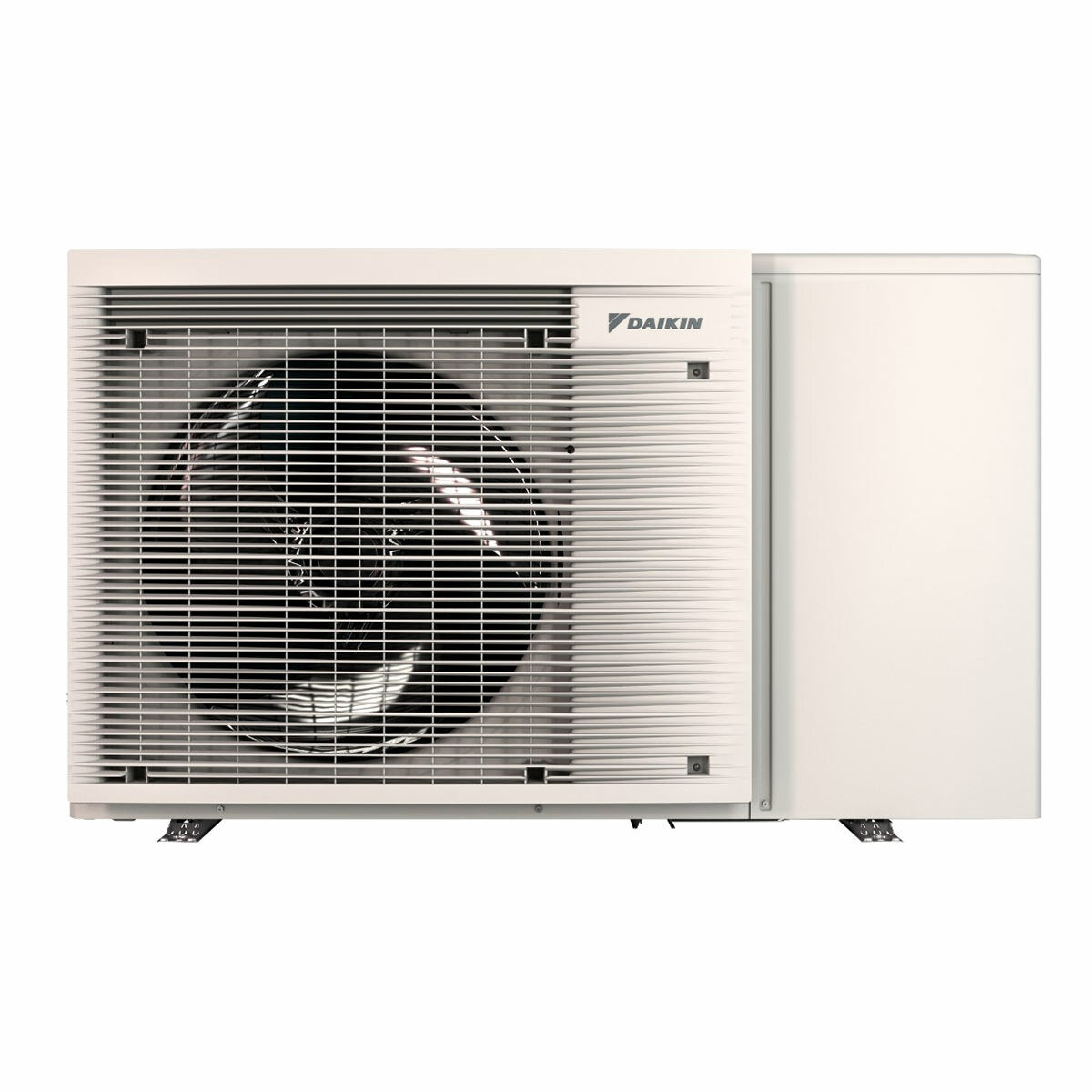

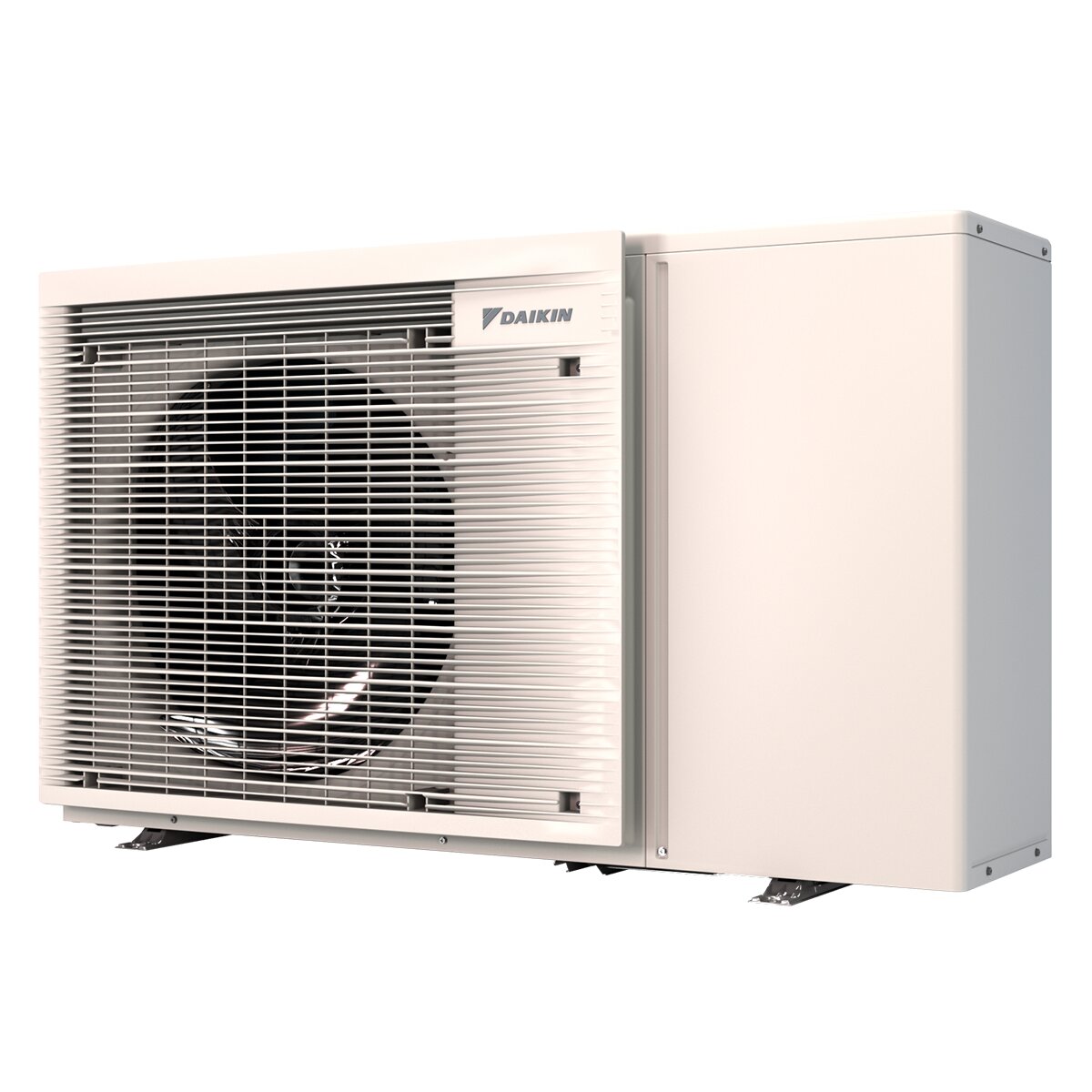

Daikin Mini Chiller EWYA-DV3P 6 kW R32 single phase air-to-water heat pump

Daikin Mini Chiller EWYA-DV3P 6 kW single-phase air-to-water heat pump with hydronic module

Ideal for rooms up to 40 m2 with an average height of 2.7 m

The Daikin Mini Chiller EWYA-DV3P air-to-water heat pump is a compact , air-cooled unit and is offered here in the 4.52 kW cooling and 6.08 kW heating heat pump version. Daikin Mini Chillers are the most modern and efficient system for heating and cooling homes, offices, shops, etc., perfect for residential and small commercial applications .

This reversible monobloc system provides heating and cooling and is the ideal solution for indoor environments with limited space. The hydraulic components are included , integrated into the unit, as is the refrigerant circuit.

CUTTING EDGE DESIGN AND TECHNOLOGY

The Daikin Mini Chiller heat pump has an extremely functional design: the white front grille with horizontal lines hides the fan from view, also reducing the perception of noise; furthermore, its particular geometry reduces the contact surface with the air, improving its circulation. Sound power of only 61 db(A) , with the possibility of further reducing the noise by enabling the silent mode.

This heat pump uses R32 refrigerant gas which offers a low global warming potential (GWP) 68% lower than R410A, and ensures greater energy efficiency and lower CO2 emissions.

It features a wide operating range : production of domestic hot water up to 65°C for multiple heating applications; up to -25°C low ambient temperature in heating mode for the most critical applications.

Precision and incredible performance thanks to the Full Inverter technology designed by Daikin which includes a DC Swing/Scroll compressor with Inverter, DC fans with Inverter and a pump kit with Inverter as standard. Swing compressors reduce friction and vibrations because they are equipped with a cylinder and deflector with fewer moving parts, therefore they are more reliable and efficient than normal rotary compressors. The applied Inverter technology, on the other hand, allows for limited stops and restarts, reducing energy consumption (up to 30%) and maintaining more stable temperatures.

High level full and partial load performance, SCOP in average climate conditions 35 °C at 4.52 with heating energy performance up to class A+++.

INSTALLATION COMFORT AND FLEXIBILITY

The Daikin Mini Chiller is the ideal compact solution when you have little space, it can even be installed under a window.

Installation , maintenance and commissioning can be carried out easily thanks to the mobile electrical panel, an innovation introduced by Daikin which allows installers to easily access the hydraulic and refrigerant components of the unit.

The unit works perfectly with various types of radiant bodies, such as fan coils, underfloor heating systems and convectors.

The Hydronic Module allows for direct connection to the system; for sanitary applications, however, integration with an accumulator is recommended.

This heat pump can be managed both via on-board control and remotely thanks to the connection to the included standard WLAN card . It will be necessary to download the Onecta App available on Google Play and App Store to easily access the programming, control and monitoring functions via your smartphone. Daikin Onecta is compatible with Amazon Alexa and Google Assistant voice commands.

DIMENSIONS

- Height 770 mm_Width 1250 mm_Depth 362 mm

- Weight 88 kg

WARRANTY

The warranty is the official Daikin one and lasts 2 years.
