Daikin Mini Chiller EWYA-DV3P 9 kW R32 single phase air-to-water heat pump

Roll over image to zoom in Click on image to zoom

Daikin Mini Chiller EWYA-DV3P 9 kW R32 single phase air-to-water heat pump

Name: Daikin Mini Chiller EWYA-DV3P 9 kW R32 single phase air-to-water heat pump
Brand: Daikin
SKU: EWYA008DV3P
Price: 4107.64 EUR
Availability: OutOfStock

Save 47%

DaikinSKU: EWYA008DV3P

Price:

€4.107,64 €7.779,94

Quantity:

Share this product

Code: EWYA008DV3P
ID code: CAC787
Pre-code: DKN
Short description: Daikin EWYA-DV3P monobloc air-to-water heat pump 9 kW providing heating and cooling, ideal for indoor environments with a space of 80 m2.
Category: Heat pump
Type: Monobloc
Series: EWYA-DV3P
Benefits
Width x Height x Depth (mm): 1250X770X362
Suitable for rooms up to (sqm): 80
Inverter: Yes
Refrigerant gas: R32
WiFi: Yes
kW: 9
Power supply: Single-phase
Energy efficiency class (heating): A+++
Energy efficiency class (cooling): A++
Minimum sound power – dB(A): 60
Minimum sound pressure – dB(A): 47

Download technical specifications

Daikin EWYA-DV3P heat pump with hydronic module and integrated inverter technology and R-32 gas

9 kW - Ideal for units of approximately 80 m2 with an average height of 2.7 m

DAIKIN EWYA-DV3P air-to-water heat pumps are the most modern and efficient system for heating and cooling homes, offices, shops; they are mini chillers ideal for residential and small commercial applications . The new mini chiller represents the most compact heat pump solution, as it consists of a single external unit. It is therefore ideal in case of limited space.

The unit offers improved performance:
› Operation down to -25°C
› LWT of 60°C at -5°C without backup heater
› Suitable for small new buildings or for the replacement of existing systems

It perfectly matches with any heating and cooling system: combination with underfloor heating applications; Three solutions for air conditioning and/or heating with fan coil: wall-mounted, underfloor and ducted.

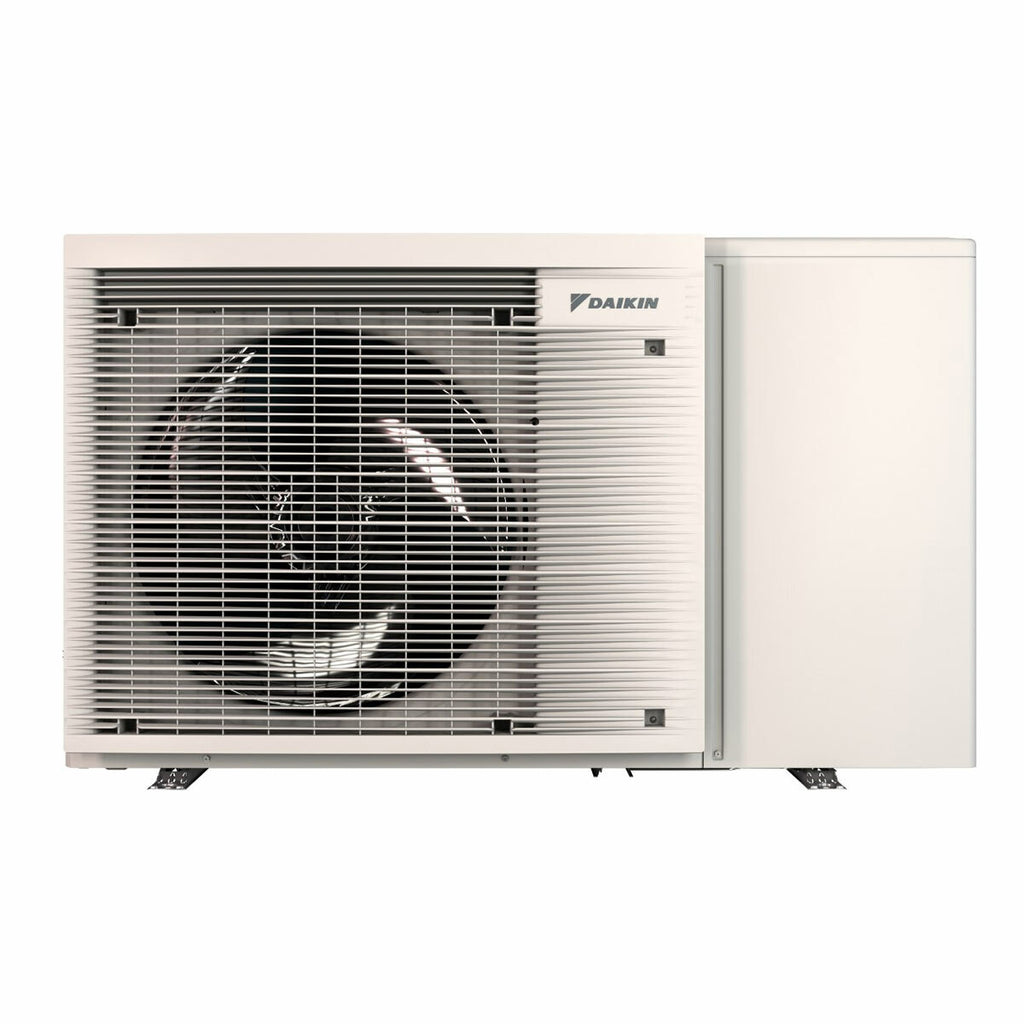

The white front grille with horizontal lines hides the fan from view, reducing the perception of the noise produced by the unit.
The uniform, light grey panelling delicately integrates into the environment in which the unit is installed, allowing it to blend in perfectly with any context.

The shape of the fan has been renewed to reduce the contact surface with the air and improve its circulation.

› The mobile electrical panel is an absolute novelty of this air-cooled mini chiller.
› Helps installers easily access the unit's hydraulic and refrigerant components.
› Maintenance and commissioning can therefore be carried out easily.

GUARANTEED SAVINGS AND HIGH COMFORT

The DAIKIN EWYA-DV3P air -to-water heat pumps guarantee excellent energy efficiency , are extremely quiet during operation and meet the most stringent requirements in terms of operating temperatures. They are among the quietest units on the market (60 dBA - sound power).

The units incorporate the latest technological innovations: ozone-friendly R-32 refrigerant , DC inverter compressors, low-noise fans and microprocessor control. They are specially designed to ensure easy installation and maintenance. Daikin is the first company in the world to have introduced R-32 heat pumps and air conditioners to the market. This type of refrigerant has numerous environmental advantages. It is very energy efficient and allows the use of a lower CO2 equivalent refrigerant charge. This is due to its lower GWP (global warming potential) and the lower amount of refrigerant required compared to R-410A units. For this reason, R-32 is the ideal solution for achieving the objectives set by the new European regulation on fluorinated gases. Installation and maintenance operations are similar to those used for R-410A. As it is a pure refrigerant, R-32 is also easier to recover and reuse.

They are already equipped with an integrated hydraulic kit: no buffer tank required, standard inverter-driven pump, main flow sensor and switch included which give absolute reliability , reduced energy consumption and minimal vibrations which translate into extremely quiet operation.

They also include Swing compressors, equipped with a unified cylinder and deflector with fewer moving parts that reduce vibrations and friction, ensuring greater reliability and efficiency compared to normal rotary compressors.

› Standard WLAN card connection included
› Air-to-water heat pump for heating and cooling
› All-in-one monoblock unit, hydraulic components included

SAVE ON PURCHASE AND INSTALLATION

Savings start right at the time of purchase and installation.

The EWYA range meets the technical requirements and can benefit from the 50% and 65% tax deduction .

GREAT MODULARITY OF INSTALLATION AND USE

The Daikin EWYA-DV3P heat pump systems guarantee high performance in a wide temperature range . They are equipped with an output to connect and integrate the unit to existing heat sources to offer greater savings and optimal comfort in all weather conditions. The units are compact and have a small footprint ; they can be transported even through narrow passages and take up very little space at the installation site, the latter is Easy to carry out thanks to the plug and play mode”.

The Hydronic Module allows for direct connection to the system; for sanitary applications, however, integration with an accumulator is recommended.

This heat pump can be managed both via on-board control and remotely thanks to the connection to the included standard WLAN card . It will be necessary to download the Onecta App available on Google Play and App Store to easily access the programming, control and monitoring functions via your smartphone. Daikin Onecta is compatible with Amazon Alexa and Google Assistant voice commands.
