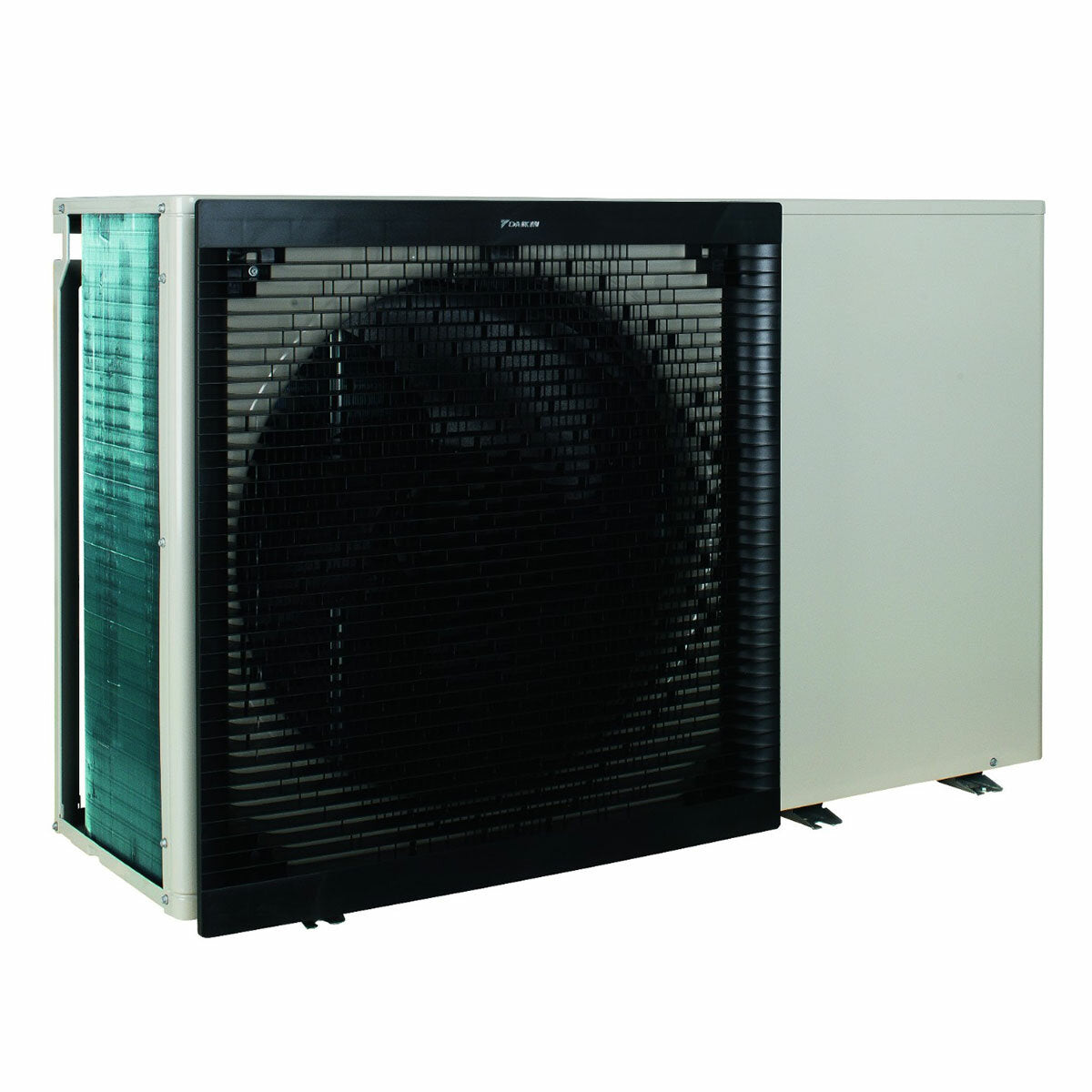

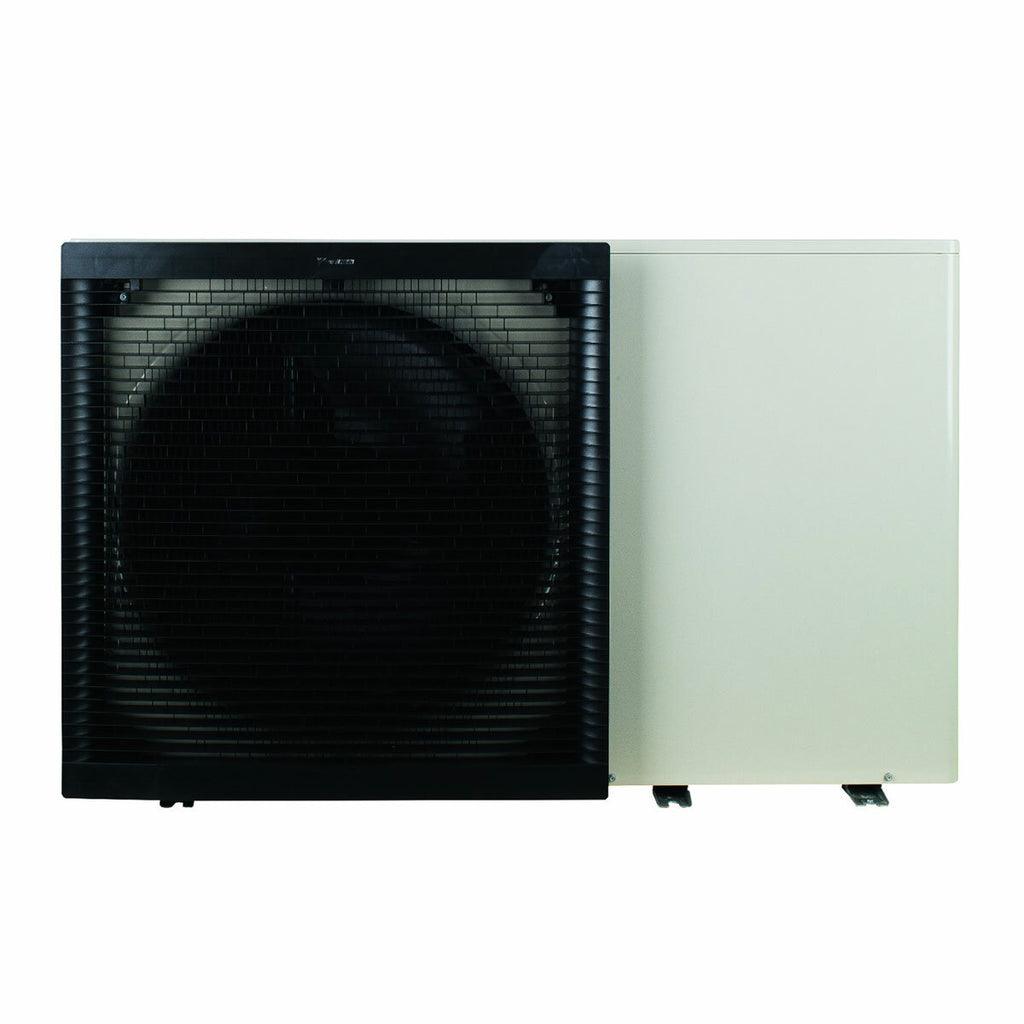

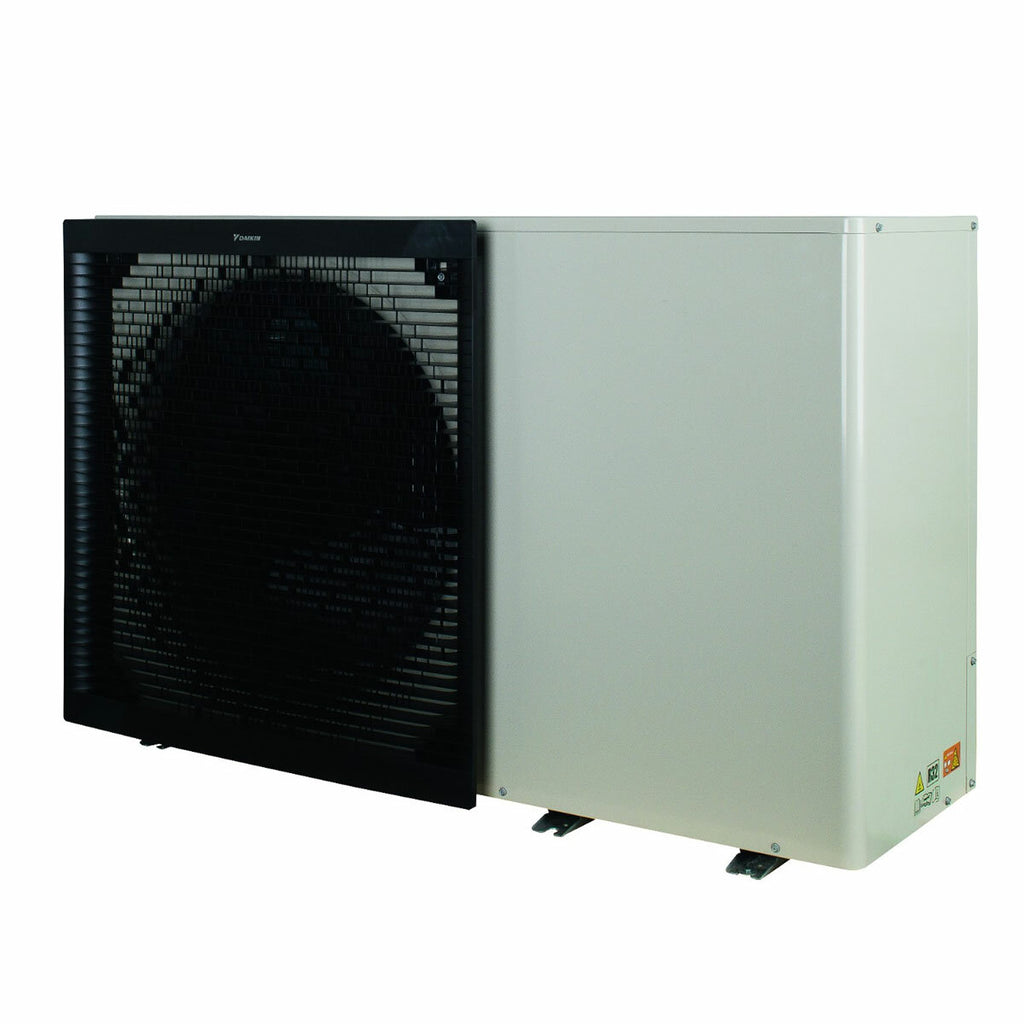

Daikin air/water heat pump 9 kW single-phase power supply with R32 A++ gas hydronic module

Daikin EWYA-DV3P: THE COMPACT GENERATION OF DAIKIN HEAT PUMPS

9 kW - Ideal for units of about 90 sqm with a calculated average height of 2.7 m

The enormous experience in the field of air conditioning has allowed Daikin to create a one-of-a-kind heat pump that encompasses all the potential of modern technologies in a more compact and much less bulky product, thanks to the conversion of the classic double ventilation into a mono and without neglecting aesthetics and design.

GUARANTEED SAVINGS AND HIGH COMFORT

Daikin EWYA-DV3P heat pumps guarantee excellent energy efficiency, are extremely silent during operation and meet the most stringent requirements in terms of operating temperatures. The units integrate the most recent technological innovations: the use of R-32 gas reduces the environmental impact by 68% compared to R-410A systems and involves a direct reduction in energy consumption thanks to the high energy efficiency in class A++. Furthermore, they are specially designed to ensure ease of installation and maintenance.

They are already equipped with an integrated hydraulic kit: expansion vessel, water pressure sensor, plate heat exchanger, electronic boards, standard inverter-driven pump, main flow sensor and switch included which give absolute reliability, reduced energy consumption and minimum vibrations which translate into extremely silent operation.

They also include Swing compressors, featuring a unified cylinder and baffle with fewer moving parts that reduce vibration and friction, ensuring greater reliability and efficiency than conventional rotary compressors. Inverter -driven compressors regulate the speed of the compressor by adapting its operation to actual demand. This allows you to limit stops and restarts by reducing energy consumption (up to 30%) while maintaining more stable temperatures.

GREAT INSTALLATION AND USE MODULARITY

Daikin EWYA-DV3P heat pump systems guarantee high performance in a wide range of temperatures down to -25°C. They are equipped with an outlet to connect and integrate the unit to existing heat sources to offer greater savings and optimal comfort in all weather conditions. The units are compact and small in size ; they can also be transported through narrow passages and take up very little space in the place of installation, easy to implement thanks to the plug and play mode and the controller included in the package. Thanks to this device it is possible to upload starting parameters via USB, modify parameters remotely, monitor and view error codes via the high resolution color display.

The hydronic module allows you to connect directly to the system; however, integration with an accumulator is recommended for sanitary applications.

Thanks to the state-of-the-art MM-2 controller, included in the package, it is possible to upload the starting parameters via USB; change parameters remotely; monitor operation through error codes. In addition, it is equipped with a high resolution color display and based on Atherma 3 MM.

TECHNICAL DATA

-Cooling capacity: kW 9.35

-Heating capacity: 9.37 kW

-SEER: 5.62

-EER: 3.35

- COP: 4.91

-SCOP and energy class: 3.44 - A++

DIMENSIONS

Length: mm. 1380 - Depth: mm. 460 - Height mm. 870

WARRANTY

The warranty is the Official Daikin one and has a duration of 24 months.
