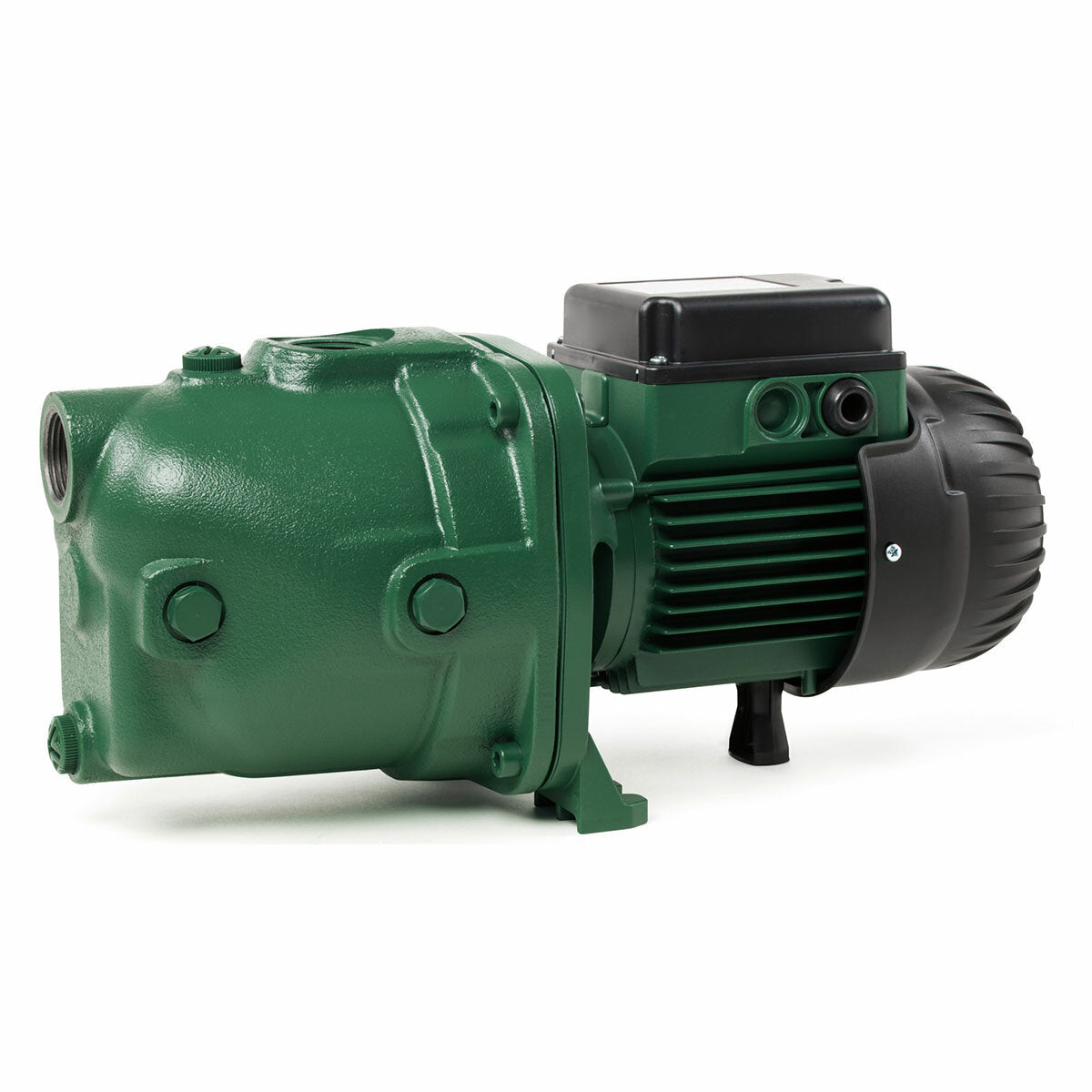

DAB JET 132 M IE2 0.85 kW/ 1.15 HP single-phase self-priming centrifugal electric pump
Nominal power 0.85 kW/1.15 HP - Flow rate range 10 – 80 l/min - Head range 45.6 - 27.2 m - Delivery 1”
JET are DAB 's surface centrifugal pumps ideal for residential uses when there is a need for the self-priming function. They have a high suction power even in the presence of air in the suction duct.
In the creation of JET pumps, DAB uses the best materials to ensure resistance and long life: the pump body is made of cast iron, the impeller, the diffuser, the venturi tube and the sand guard are made of technopolymer for high resistance to abrasion; the motor support is made of die-cast aluminium, the shim rings are made of stainless steel, the mechanical seal is made of carbon and ceramic.
The asynchronous motor is closed and cooled by ventilation from the outside. Electrical overheating protection and capacitor are standard equipment. The rotor is very silent because it is mounted on oversized ball bearings that are greased for life for greater durability.
The model presented here is DAB JET 132 M with IE 2 engine as per EU 2019/1781 - EU 2021/341 regulation.
APPLICATIONS
JET DAB self-priming electric pumps are ideal for use in domestic water systems . They can also be used in gardening, in small vegetable gardens and in light industrial environments where the liquid to be pumped is quite clean and has a density close to water.
GUARANTEED SAVINGS AND HIGH COMFORT
JET self-priming centrifugal pumps have high performance in terms of head and flow rate ; The model proposed here has a nominal power of 1 kW (or 1.36 HP), a flow rate range from 10 to 80 l/min (0.6 – 4.8 m 3 /h) and reaches a prevalence of 45.6 m.
The JETs are not very noisy and this model can work with a maximum operating pressure of 4.8 bar; the temperature of the pumped liquid can vary between 0 and 35°C while the external temperature can reach up to 40°C.
Savings are guaranteed: DAB PUMPS makes these pumps with excellent quality materials which allow them to last exceptionally over time.
LARGE MODULARITY OF INSTALLATION AND USE
The JET electric pump must be installed in a fixed horizontal position. It takes up very little space , is easy to handle and very simple to start.
ATTENTION! In order for the pump to work correctly and its mechanical parts not to be compromised, before starting it must be primed correctly by filling it with clean water through the appropriate hole.
DIMENSIONS
Length: 414 mm – Width: 263 mm – Height: 203 mm – Delivery: 1”
Weight: 13.5 kg
WARRANTY
The warranty is the Official DAB Water Technology one and lasts 24 months .
