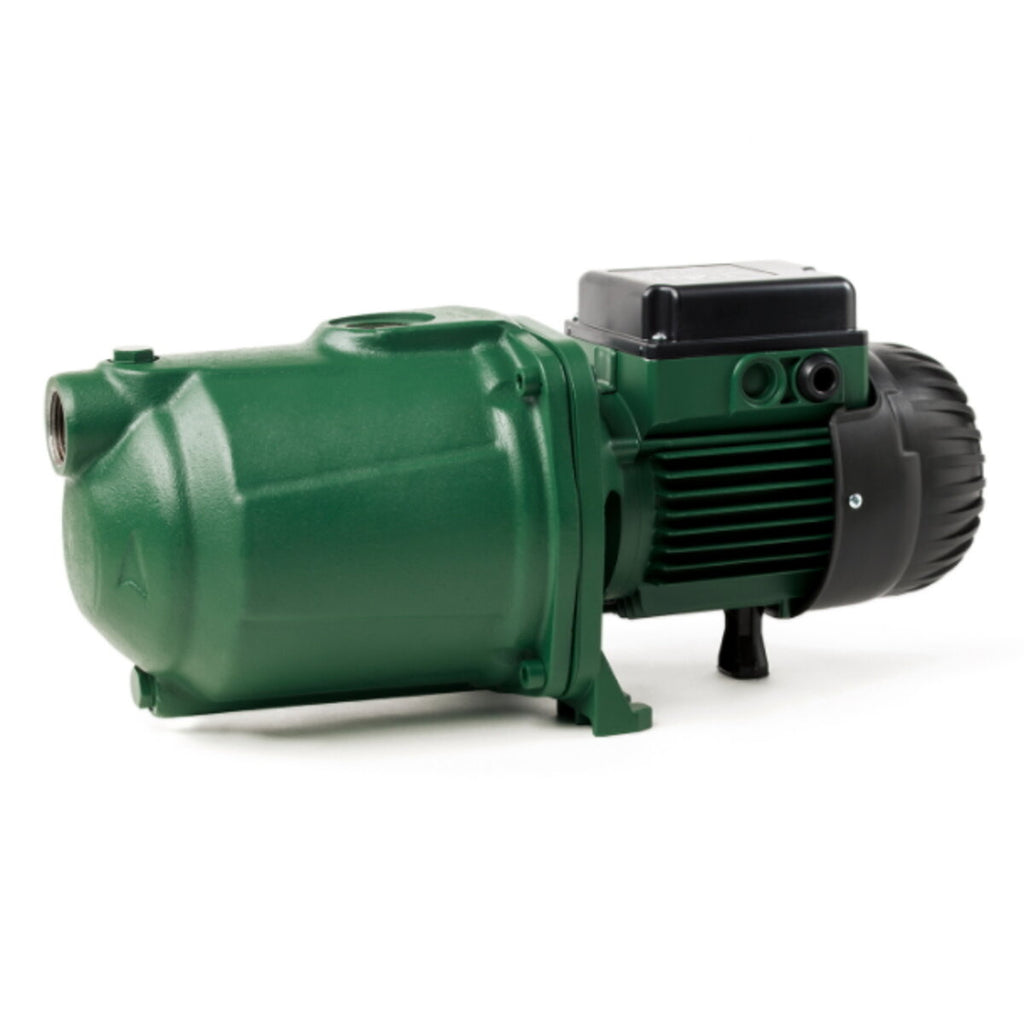

DAB EURO 30/50 M IE2 single-phase multistage centrifugal electric pump
Nominal power 0.45 kW/0.6 HP - Flow rate range 10 – 50 l/min - Head range 40.2 - 30 m - Delivery 1”
DAB 's EURO multistage centrifugal electric pumps are considered among the quietest pumps in their category ; with horizontal axis, they are ideal for water supply in domestic environments. The model proposed here is the 30/50 M , single phase.
The model presented here is DAB EURO 30/50 M with IE 2 engine as per EU 2019/1781 - EU 2021/341 regulation.
APPLICATIONS
The EURO 30/50 M multistage centrifugal electric pump is suitable for domestic uses such as water supply and pressurization; it is also used for the irrigation of vegetable gardens and gardens and the movement of water in general.
GUARANTEED SAVINGS AND HIGH COMFORT
The EURO 30/50 M multistage centrifugal electric pump is capable of providing performance at the highest levels. It is characterized by a die-cast aluminum motor support, AISI 304 steel seal cover, carbon/ceramic mechanical seal, AISI 304 steel rotor shaft; the impellers, diffuser and diffuser bodies are in technopolymer; the stainless steel shim rings. The motor is asynchronous with continuous service.
The EURO 30/50 M multistage centrifugal electric pump includes thermoamperometric protection and permanent capacitor.
The temperature of the liquid used can range from 0 to +35°C for domestic use, and can reach up to +40°C for other uses. The pumped liquid must have characteristics similar to those of clean water: it must be free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral.
LARGE MODULARITY OF INSTALLATION AND USE
The EURO 30/50 M multistage centrifugal electric pump belongs to the wide category of DAB electric pumps suitable for domestic use. The pump body is made of 200 UNI ISO 185 cast iron. Before starting it is necessary to check that the pump is primed correctly, ensuring that it is completely filled with clean water through the appropriate hole positioned on the pump body. This operation is essential for the correct functioning of the pump and for its mechanical seal.
The installation can be fixed or portable with the pump axis in a horizontal position.
DIMENSIONS
Length 378 mm – Width 175 mm – Height 194 mm
Weight: 11.7 kg.
WARRANTY
The warranty is the Official DAB Water Technology one and lasts 24 months .
