DAB E 25 ejector for DP self-priming electric pump

DAB E 25 ejector for DP self-priming electric pump

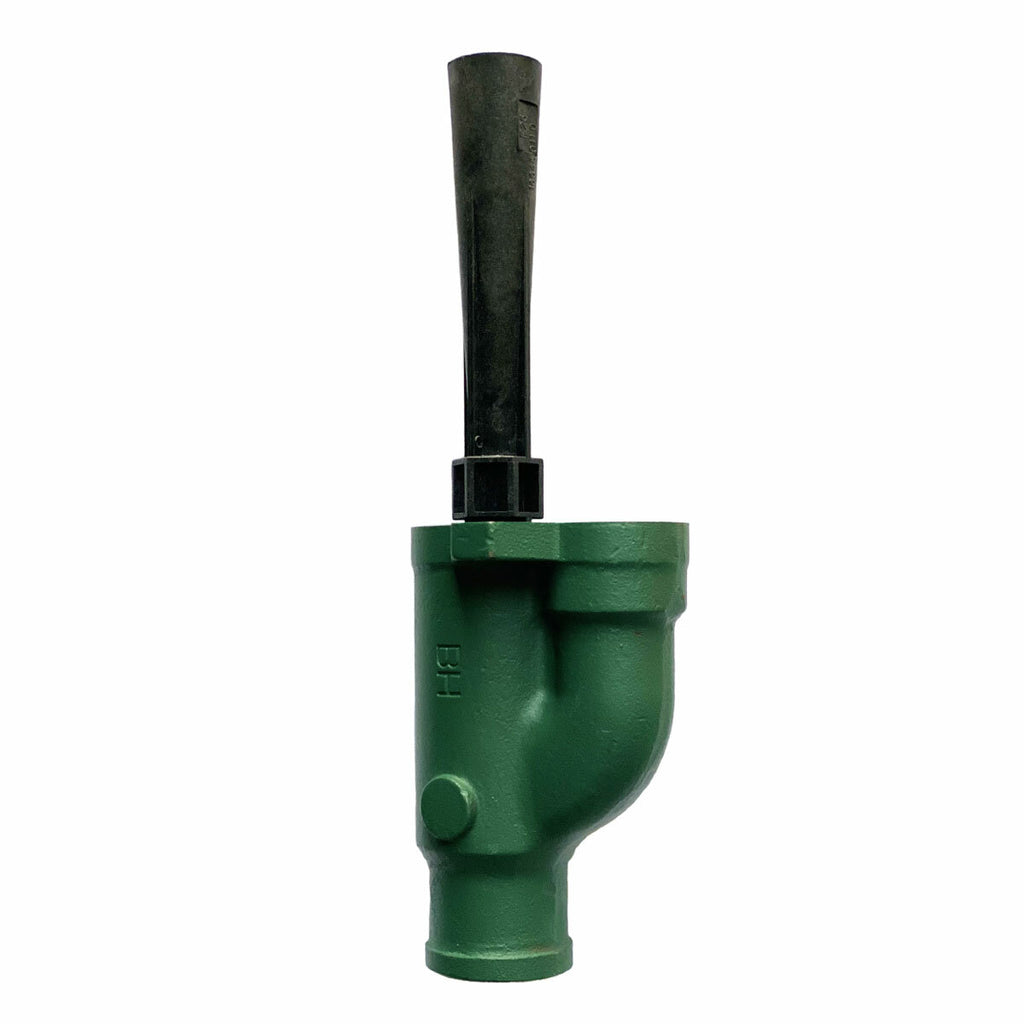

The DAB E 25 ejector is designed to be combined with the DP series self-priming pumps to increase their performance in terms of suction. For example, if combined with the DP 151 M self-priming pump, suctions up to 21 meters deep can be reached.

The E 25 ejector is introduced in wells of 4 or greater diameter. To make it, DAB uses the best materials to ensure resistance and long life: the body is in cast iron, the Venturi tube is in technopolymer and the nozzle is in brass.

DIMENSIONS

Height: 295 mm - Width: 97 mm.

WARRANTY

The warranty is the Official DAB Water Technology one and has a duration of 24 months.
