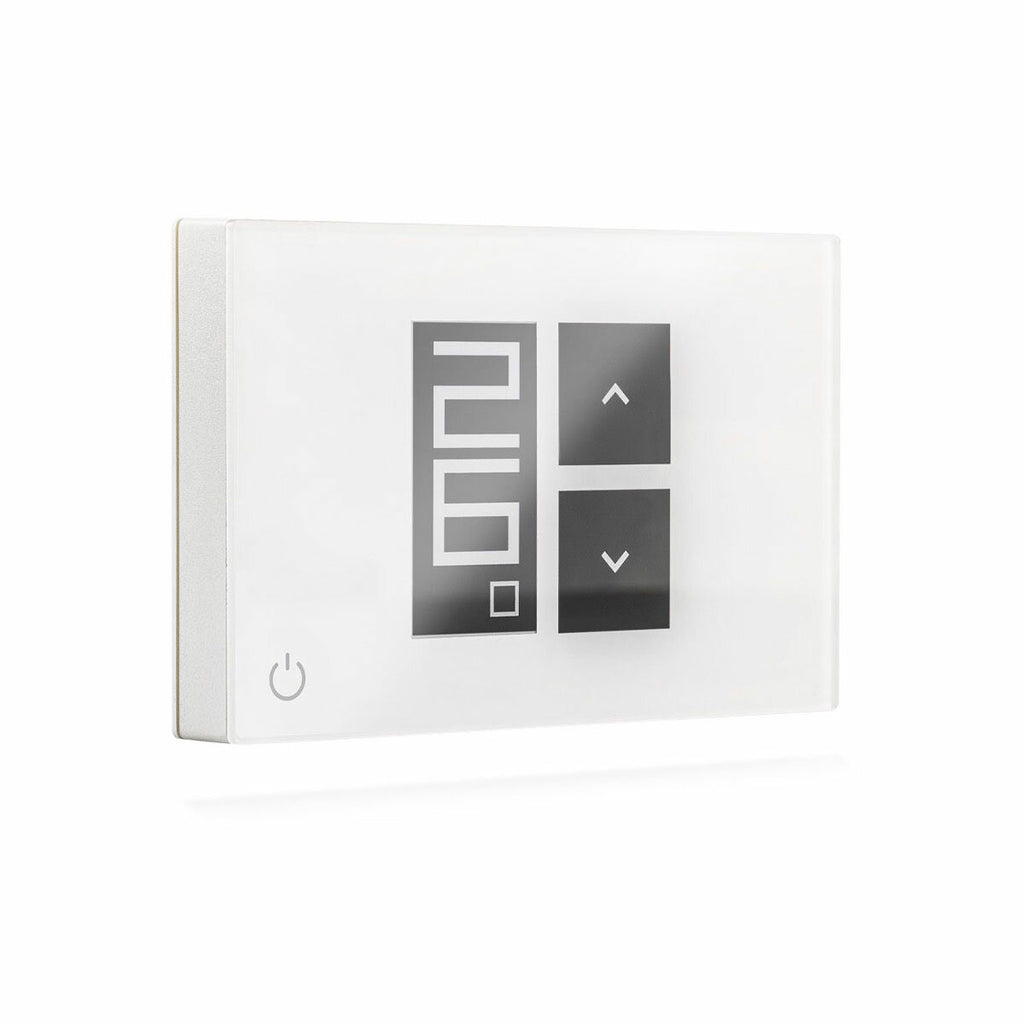

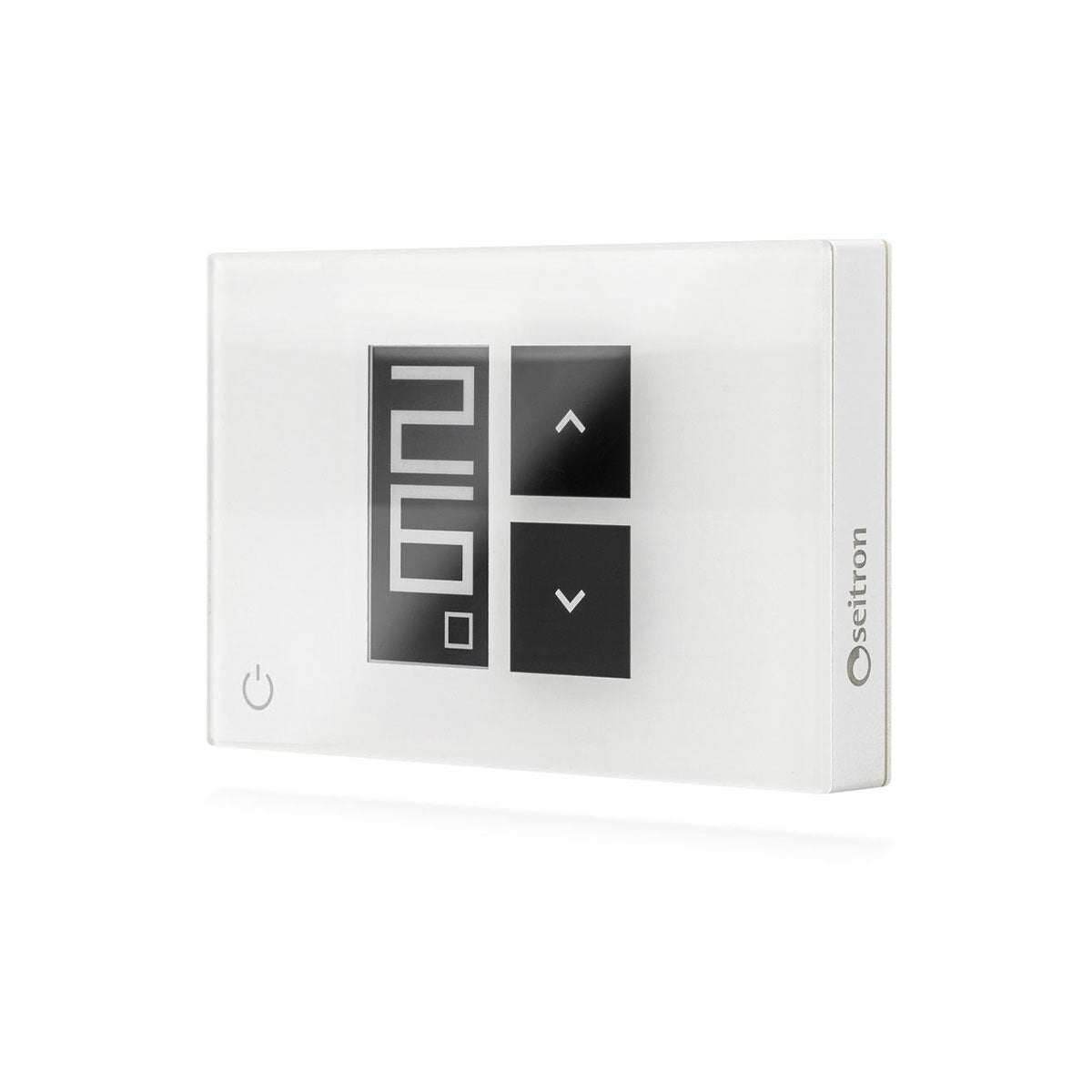

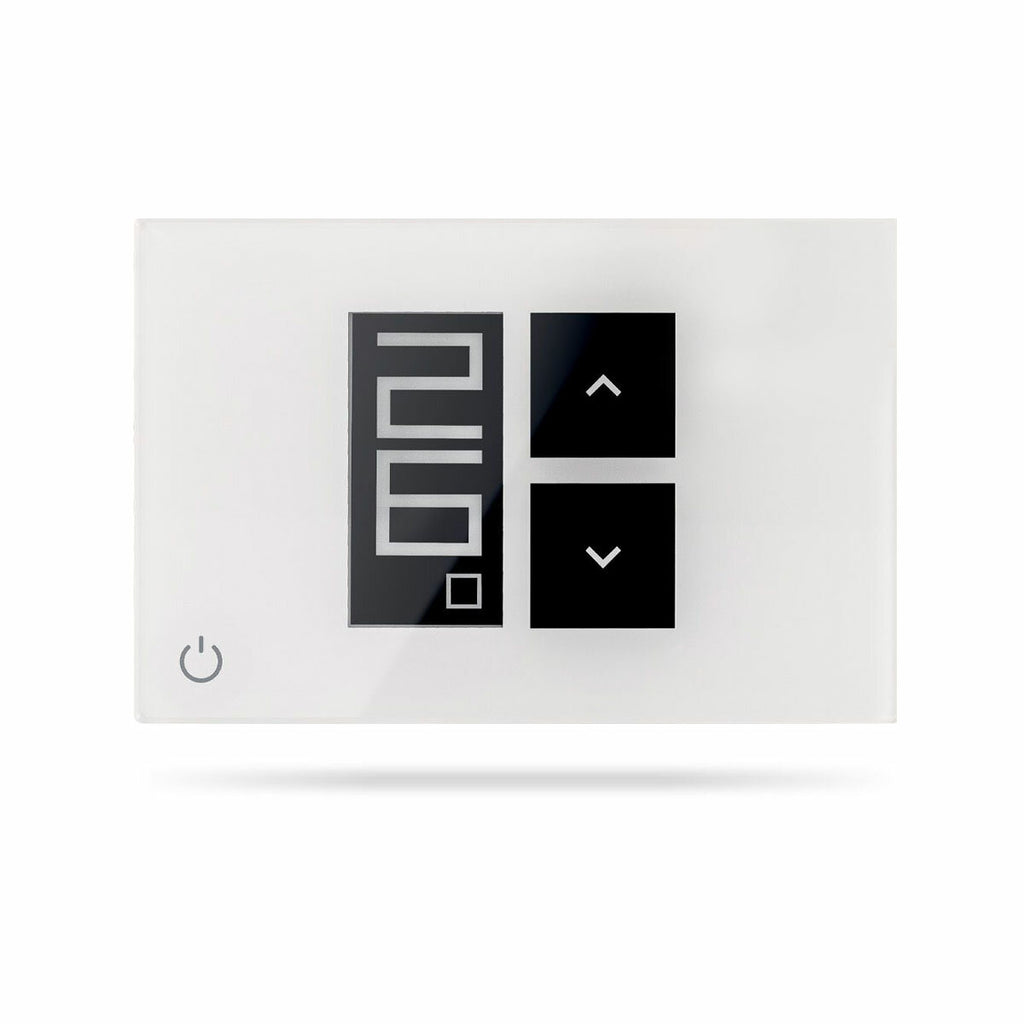

Seitron Wi-Time Wall weekly Wi-Fi chronothermostat
The Seitron Wi-Time Wall weekly Wi- Fi chronothermostat allows you to comfortably remotely control a boiler, a pellet stove, a heat pump or any other device that can usually be managed with an on-off thermostat or chronothermostat or with a switch, whether installed inside or outside the home. Equipped with Wi-Fi, just download the Seitron Smart App on your smartphone or tablet and manage it comfortably in any place and/or time. Wi-Time Wall is also compatible with Alexa and Google Home, allowing you to increase comfort within your own home.
Wi-Time Wall is one of the most versatile and easy to use chronothermostats. It allows you to program weekly: through the management of the system you have the possibility of significantly reducing consumption, having lower emissions and clear savings on bills. It is equipped with a non-backlit E-Paper display through which it provides all the operating information. The display can be viewed in two modes: minimal and complete. Suitable for all heating or cooling systems, it has a modern and elegant design that allows it to be placed in any environment.
GUARANTEED SAVINGS AND HIGH COMFORT
The Seitron Wi-Time Wall weekly Wi-Fi chronothermostat has many functions and is very easy to program! Its display allows you to check all the functions and programming settings. Simple to use because it offers weekly programming with hourly intervals specially designed for the widest fields of use. In heating mode, when the ambient temperature detected by the internal sensor is lower than the set one, the Wi-Time Wall activates the relay to start the boiler. In cooling mode, when the ambient temperature detected by the internal sensor is higher than the set one, the Wi-Time Wall activates the relay to start the cooling system.
The change from heating mode to cooling mode and vice versa is not automatic but must be set manually. Each single operating period can manage a Comfort or Economy operating range with temperatures that can be set for each of them via the Seitron Smart App or via the chronothermostat itself. Wi-Time Wall also allows manual switching on and off of the boiler together with general switching off of the chronothermostat.
The Seitron Wi-Time Wall weekly Wi-Fi chronothermostat also has the Antifreeze Function with the possibility of setting the temperature to protect the system from any damage caused by too cold temperatures and the Hysteresis Adjustment Function to set the internal temperature difference between the switching off and on of the connected heating device (boiler, pellet stove, heat pump, etc.) when the set room temperature is reached.
Furthermore, the Seitron Wi-Time Wall weekly Wi-Fi chronothermostat is set up for the connection of a remote probe (optional).
TECHNICAL FEATURES
- E-Paper display - Not backlit
- Power supply 85..264 Vac 50..60 Hz
- Absorbed power lower than 2W
- Relay contact capacity max 3A 250 Vac SPDT
- WiFi 802.11b/g/n
- Weekly programming
- Setting range +5.0..+40.0 °C
- Measurement range -10.0..+50.0 °C
- Accuracy 0.1 °C
- Antifreeze function
- Adjustable boost mode (30-60-90min)
- Adjustment range 15min
- Internal sensor NTC 10 K Ohm ±1% @ 25°C
- IP30 degree of protection
- Class Reg.2013/811/CE V
DIMENSIONS
Width: 122 mm - Height: 82 mm - Depth: 15 mm
WARRANTY
The warranty is the official Seitron one and has a duration of 24 months.
