Cordivari Ardesia column radiator 4 columns/6 elements - Height 1800 Interaxis 1744 (mm)
Ideal for rooms up to approximately 14 m2 with an average height of 2.7 m
Column radiators offer a unique combination of efficiency, aesthetics and versatility, making them an excellent alternative to traditional aluminum radiators . The reasons why multi-column systems are preferred to traditional aluminum radiators are many and are based on their vertical structure with multiple columns that allows for a greater heat exchange surface , on the high heat conduction capacity with much faster times and on an attractive, versatile and timeless aesthetic that can be integrated into any environment and is characterized by durability.

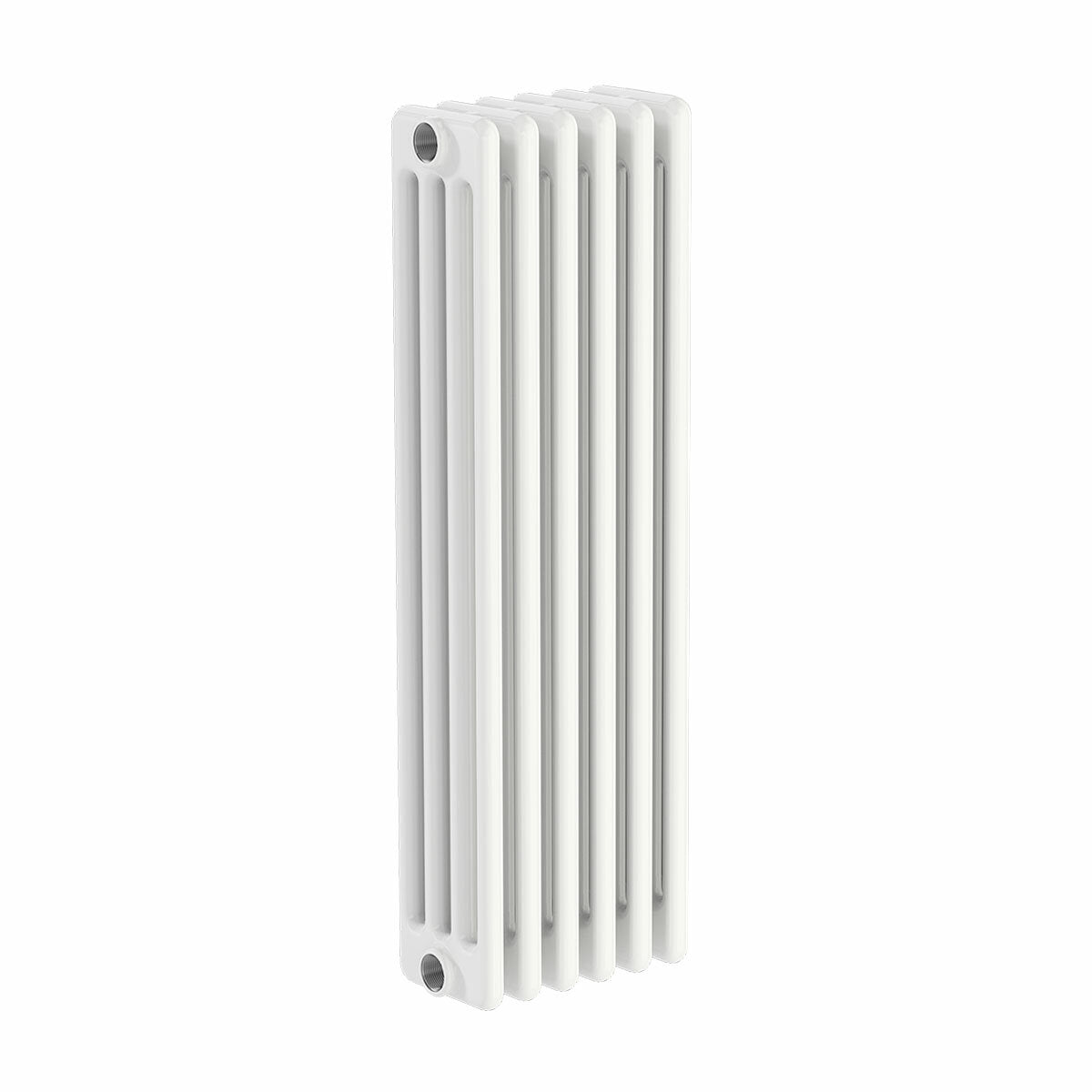

The Cordivari Ardesia column radiator proposed here consists of a block of 6 elements in a single battery with 4 columns and offers excellent thermal efficiency thanks to the large exchange surface, heating the rooms quickly and uniformly. They are versatile systems and customizable in size and design, adapting to any space and style, furthermore, they guarantee durability and ease of maintenance resulting in an aesthetic and functional choice: this model has a standard height of 1800 - Interaxis 1744 - Width 276 (mm) and is proposed in the white RAL 9010 - R01 color version.
A special feature of this model is the configuration of the lateral and opposite connections which also allow the block to be inverted and installed on the opposite side, meeting any needs and/or architectural limitations of the installation site; the vent valve is supplied with a 1/2 connection , as are the inlet and outlet connections with 1/2 .
The design of the Ardesia Cordivari column radiators is peculiar and tubular . The column structure gives a timeless elegance and the industrial-chic style marries with fine materials and refined finishes, transforming an everyday object into a real design complement, capable of combining aesthetics and practicality in an impeccable way.
The painting is carried out exclusively using ecological epoxy powder paints through a process of 12 distinct phases (DIN 55900-1,-2) to ensure excellent results that last over the years and an unparalleled brilliance . The heads are stamped in carbon steel sheet and the tubes are in electro-welded carbon steel ø 25 mm . The robotic welding between the elements is performed using a pulsed spray welding process, to guarantee extreme executive precision, absolute cleanliness, stability and reliability of the production lines in pure Cordivari style.
Wall installation must be carried out by qualified and authorised technical personnel, with the aid of special supports which can be purchased separately.
NB: further technical specifications can be viewed in the attached technical sheet.
TECHNICAL FEATURES
- Operation: hot water
- Maximum operating pressure: 10 bar
- Test pressure: 13 bar
- Max temperature: 110°C
- Minimum flow rate in % of nominal flow rate: 18
- (75/65/20°C) ΔT 50 = W 1360
- Number of elements: 6
- Number of columns: 4
DIMENSIONS
- Width 276 mm_Height 1800 mm_Depth 148 mm
- Wheelbase 1744 mm
- Single element thickness 46 mm
- Empty weight (single element): 5.22 kg
WARRANTY
The guarantee is the official Cordivari one and lasts 2 years.
