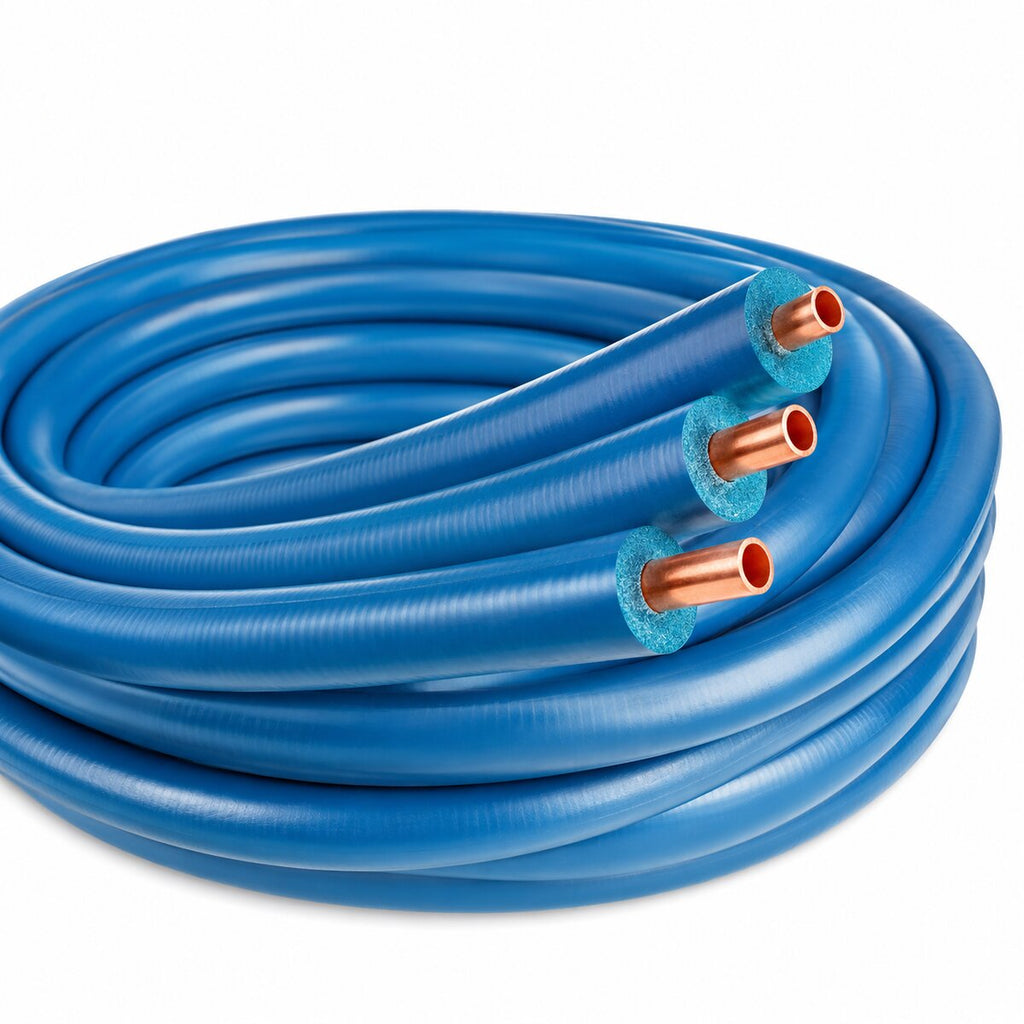

SMISOL Clim Aeterna™ Insulated Copper Pipe for Air Conditioning and Refrigeration 7/8 x1- (22,22)
SMISOL Clim Aeterna™ insulated copper tube is designed for applications in the air conditioning and refrigerant gas transport sectors, ensuring high performance, safety and environmental sustainability.
Manufactured in accordance with the EN 12735-1 standard, the pipe is equipped with a high-efficiency closed-cell expanded polyethylene insulating sheath, designed to reduce heat loss, condensation formation and improve the system's energy efficiency.
The special insulating sheath offers high resistance to water vapor diffusion and greater UV protection, making it ideal for installation in environments subject to strong solar radiation. The coating is also CFC- and HCFC-free, compliant with European Regulation EEC/EU 2037/2000, and made with halogen-free flame-retardant materials.
Thanks to the high construction quality, continuous diameter control via laser gauge and careful internal cleaning of the pipe, SMISOL Clim Aeterna™ guarantees reliability, safe coupling with the fittings and long life over time.
The circular insulating structure adheres perfectly to the copper surface, improving thermal insulation and helping to prevent energy losses.
Ideal for : Air conditioning systems, HVAC systems, Transport of R32, R290 and compatible refrigerant gases, Residential and commercial applications.
Main features
-
Copper tube compliant with EN 12735-1
-
Insulating sheath in closed-cell expanded polyethylene
-
High resistance to UV rays
-
Excellent barrier against the diffusion of steam
-
High-performance thermal insulation
-
CFC and HCFC free material
-
Halogen-free flame retardant
-
High resistance to external chemical agents
-
Clean internal surface for maximum system efficiency
-
EPD environmental certification
Technical data
-
Outer diameter: 22.22 mm
-
Copper thickness: 1 mm
-
Nominal diameter: 7/8
-
Thermal conductivity: λ ≤ 0.038 W/m°C
-
Fire reaction class: BL-s1,d0
-
Refrigerant compatibility: R32, R290 and other refrigerant gases
Warranty
The warranty is the official KME one and lasts 2 years.
