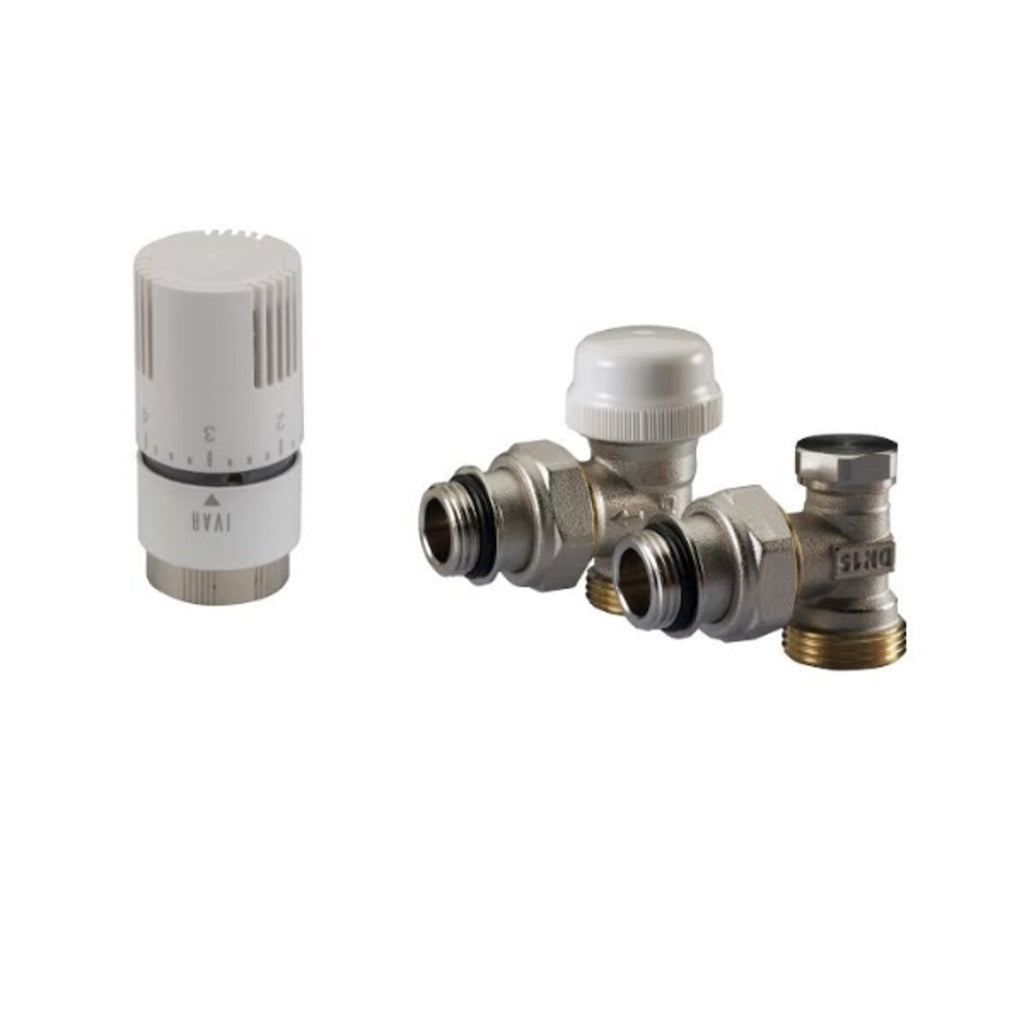

IVAR THERMOSTATIC KIT WITH 3/8" CONNECTION ON THE RADIATOR
Composed of:
Thermostatic head T1500 Series for thermostatic and thermostatizable valves on heating radiators.
The T1500 Series thermostatic head with built-in liquid sensor is used in combination with IVAR radiator valves.
Its pleasant design with clean lines allows it to integrate perfectly to complete any model of heating radiator and in any environment.
It is mounted on the radiator water delivery management valve and replaces the water inlet adjustment knob; it is equipped with a liquid sensitive element of particular sensitivity which makes it extremely precise and reliable.
GUARANTEED SAVINGS AND HIGH COMFORT
The T1500 Series thermostatic head transforms the water flow adjustment knob of the radiator into a real object for controlling the room temperature . It is equipped with a graduated scale that indicates the COLD position (corresponding to 6.5 °C) and a further five intermediate adjustment positions with partials, each of which corresponds to a temperature that reaches up to 28 °C. It will therefore always be possible to easily set the desired temperature in the room where the radiator is installed. Contrary to the classic radiator valves which simply allow you to adjust the water inlet flow, the thermostatic head allows you to choose the desired temperature in the room so that, by continuously detecting the room temperature, it automatically adjusts the flow of water circulating in the radiator and keeps the temperature constant . The advantages can be found in the considerable comfort it offers as by mounting them on all the radiators it is possible to set the same temperature in all the rooms and no longer feel temperature differences between one room and another or it is possible to deliberately set different temperatures in the rooms and keep them that way. There is also immediate energy saving which involves the use of the thermostatic valve which, by automatically regulating the flow of water in the radiator, avoids useless waste of energy due to the usual bad adjustments of the manual valves. The control is complete with a temperature limiting device and a set temperature blocking device .
It can be used at ambient temperatures with a maximum limit of 50 °C; carrier fluid temperature range up to 100 °C.
The knob is a compound of PC and ABS in white RAL 9003, the ring nut is in nickel-plated brass, the cartridge and the control rod are in POM, the thermostat is liquid expansion.
Installation is quick and easy; the dimensions are very small.
DIMENSIONS
Length: 77 mm - Diameter: 38 mm - Connection: M30 x 1.5
IVAR thermostatic angle valve with 3/8" connections for radiators
The IVAR 3/8" angle valve with thermostatic option is mounted on heating radiators and has the function of managing the incoming flow of the system carrier liquid.
It has a pleasant and discreet design that integrates well with all radiator models and in any environment.
GUARANTEED SAVINGS AND HIGH COMFORT
The IVAR 3/8" angle valve with thermostatic option expresses the particular care that IVAR dedicates to both the design and construction of the articles.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the valve body allow it to be installed on all radiator models.
The valve body is in chromed brass, the obturator control stem is in stainless steel for a particular efficiency and durability over time, the hydraulic seals already incorporated are in EPDM, the coupling union to the radiator connection thread is complete of a rubber ring that allows it to be fixed without using additional gaskets or hydraulic hemp.
It can be used at ambient temperatures with a maximum limit of 50 °C; carrier fluid temperature range up to 100 °C.
Installation is quick and easy; the dimensions are very small. The connection to the heating system pipes must be carried out exclusively with IVAR fittings suitable for the type and size of the pipes.
IVAR angle lockshield with 3/8" connections for radiators
The 3/8" IVAR angle lockshield is mounted on heating radiators and has the function of managing the outflow of the system carrier liquid and achieving perfect balance of the radiator in the heating system.
It has a pleasant and discreet design that integrates well with all radiator models and in any environment.
GUARANTEED SAVINGS AND HIGH COMFORT
The IVAR 3/8" angle lockshield expresses the particular care that IVAR dedicates to both the design and construction of the items.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the body allow it to be installed on all radiator models.
The lockshield body is in chromed brass, the internal components are in stainless steel for a particular efficiency and durability over time, the hydraulic seals already incorporated are in EPDM, the coupling union to the radiator connection thread is complete with a rubber ring which allows it to be fixed without using additional gaskets or hydraulic hemp, the cap is in white RAL 9003 ABS.
It can be used at ambient temperatures with a maximum limit of 50 °C; carrier fluid temperature range up to 100 °C.
Installation is quick and easy; the dimensions are very small. The connection to the heating system pipes must be carried out exclusively with IVAR fittings suitable for the type and size of the pipes.
WARRANTY
The guarantee is the official IVAR guarantee of 2 years.
