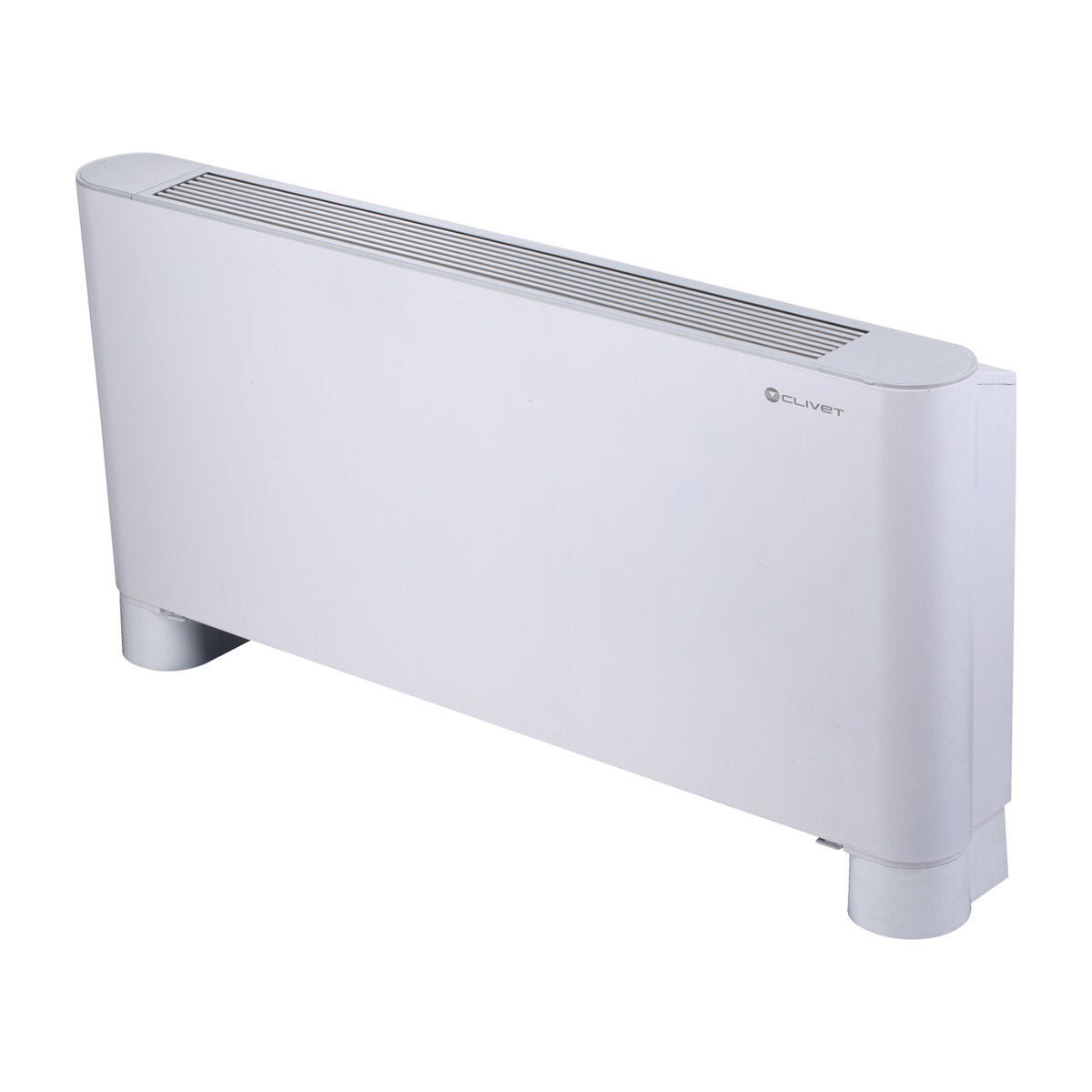

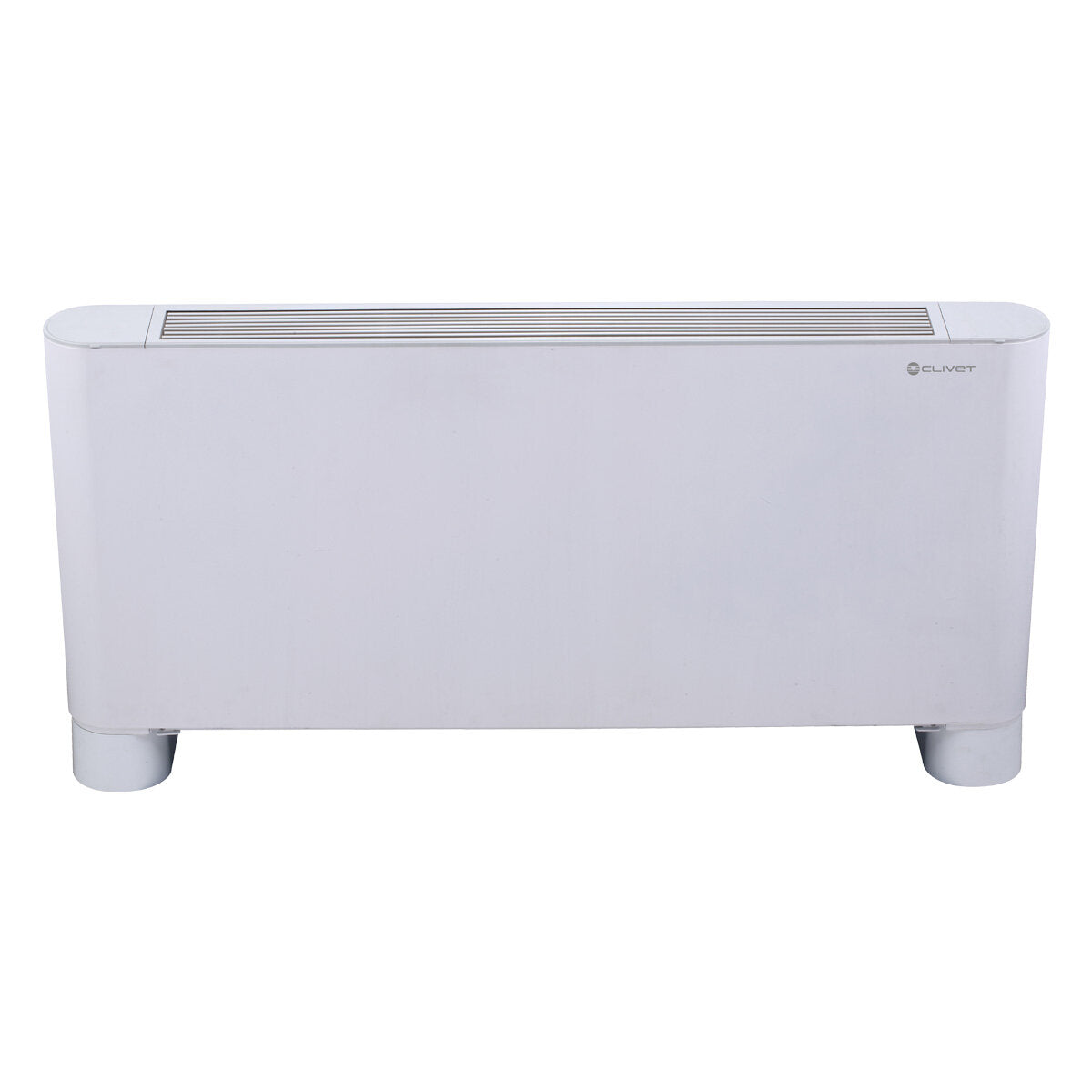

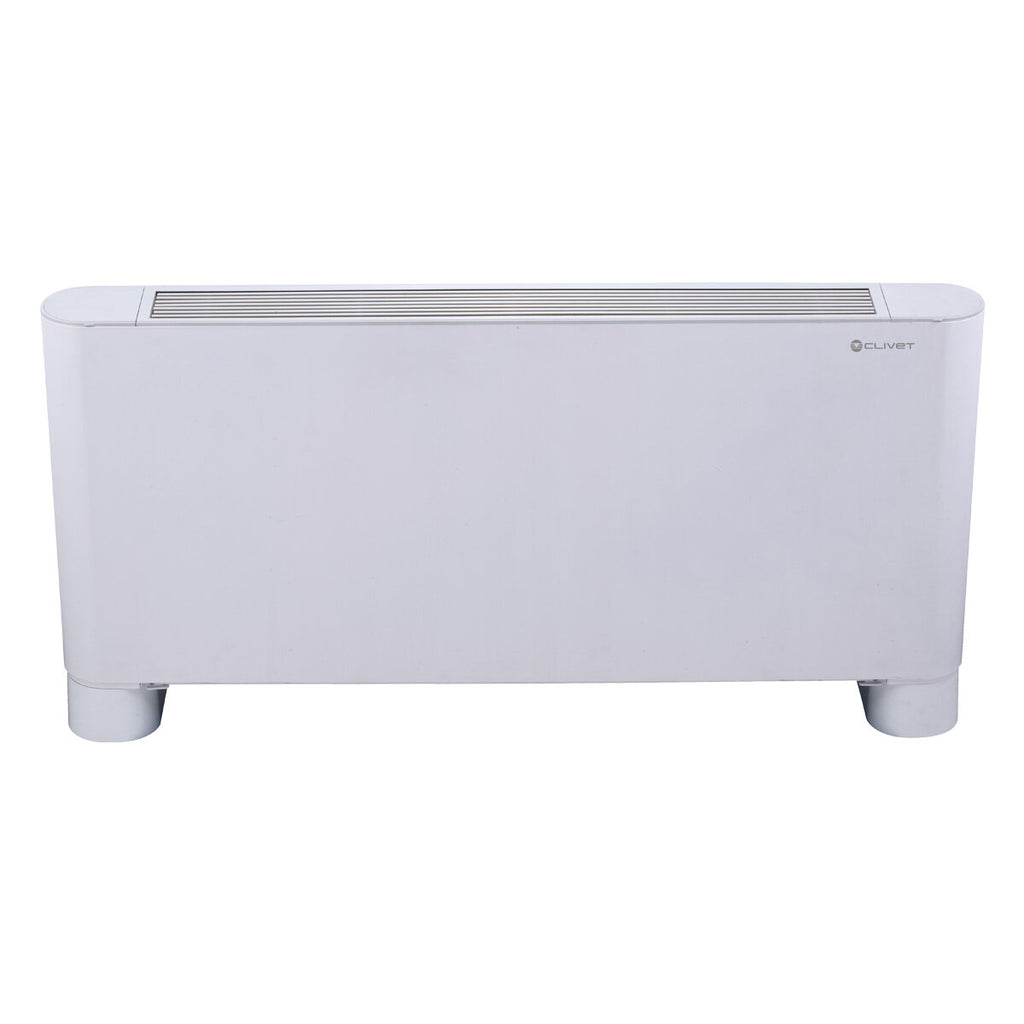

Clivet Aura fan coil unit CFFAC 3 CC2 R3
The Aura fan coil has a thermal power of 3.05 kW in heating and 2.65 kW in cooling.
Heating function: ideal for units of about 30 square meters with a calculated average height of 2.7 meters
Cooling function: ideal for units of about 20 square meters with a calculated average height of 2.7 meters
The new Fancoil Clivet Aura fits perfectly into a wide range of configurability to make it suitable for domestic and tertiary environments and thanks to the available control systems, it is compatible with single, group or centralized management.
The aesthetics of the Aura fan coil was designed by Italian designers and fits harmoniously into modern and elegant environments, domestic or tertiary. In fact, thanks to the reduced thickness of 200 mm it is possible to insert it even in the narrowest environments without neglecting the availability of space, thus reducing the bulk.
Aura fan coils are available in a wide variety of configurations. The CFFAC 3 CC2 R3 model with 2-pipe AC motor is exposed with cabinet and can be installed vertically and horizontally, both on the wall and on the ceiling. It is composed of a copper / aluminum exchanger, with hydrophilic coating, an electrical panel, L-shaped basin, 3/4 '' water connections, condensate drain (diameter 18.5 mm), centrifugal fan, washable filter (class G2) , galvanized sheet metal casing. The water connections can be moved to the opposite side of the unit by simply turning the heat exchanger. The Aura CFFAC fan coil is equipped with a terminal block that allows compatibility with the optional KJRP-86 user interface that can be installed either on the machine or on the wall; 3-speed ventilation control; ELFOcontrol3 and BMS Modbus compatibility; Silent operation and easy cleaning.

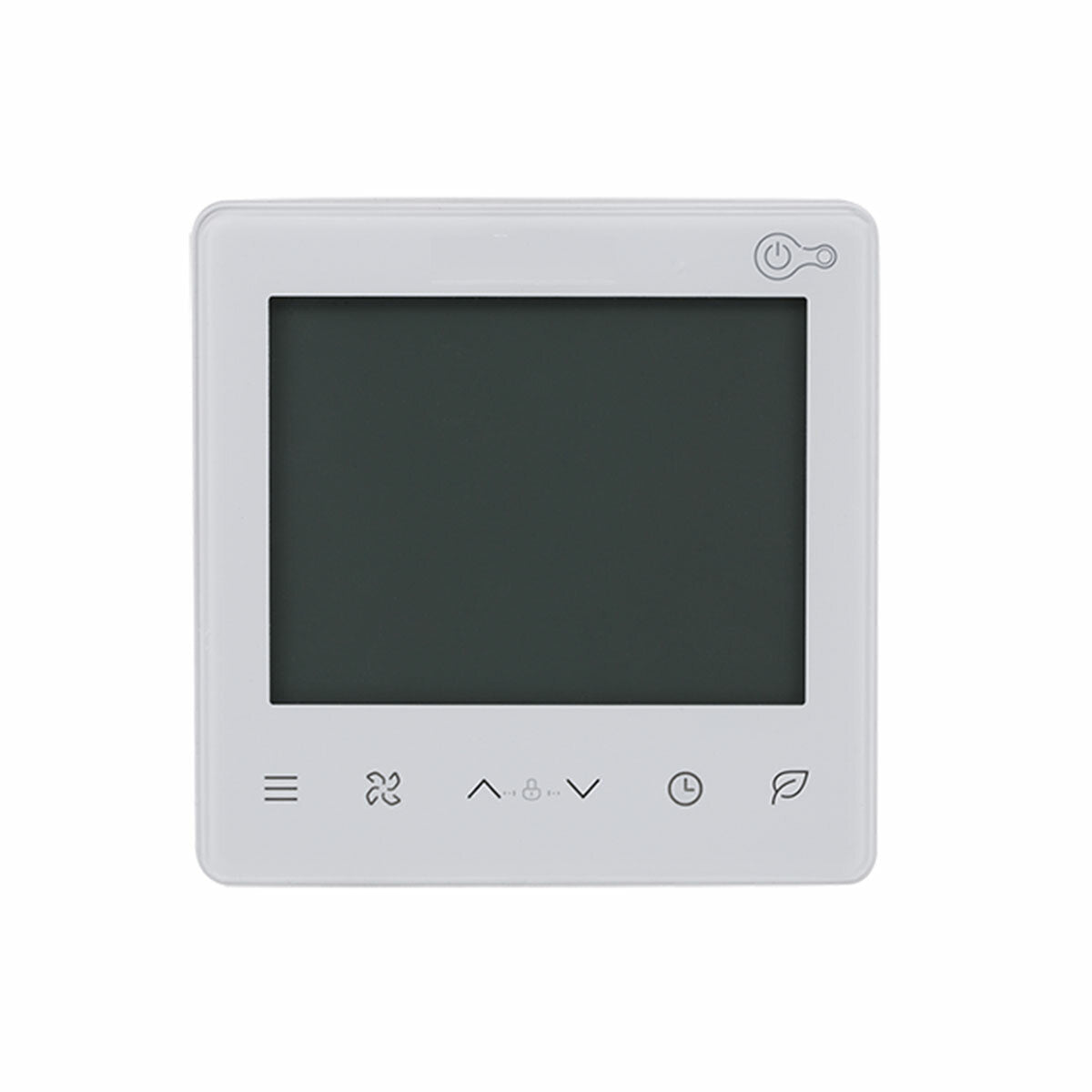

A separately purchased Wired Interface (KJRP-86R) completes the unit. The touch screen and backlit allow the best of usability for the user, whether installed on the machine or remotely. The wired user interface can be installed on the machine, from both sides, or remoted to the wall thanks to the KJRP-86 wall installation box (optional).
DIMENSIONS
Length: mm. 1020 - Height: mm. 495 - Depth: mm. 200.
OPTIONAL ACCESSORIES
-Electromechanical thermostat on board the machine (KJRP-86R)

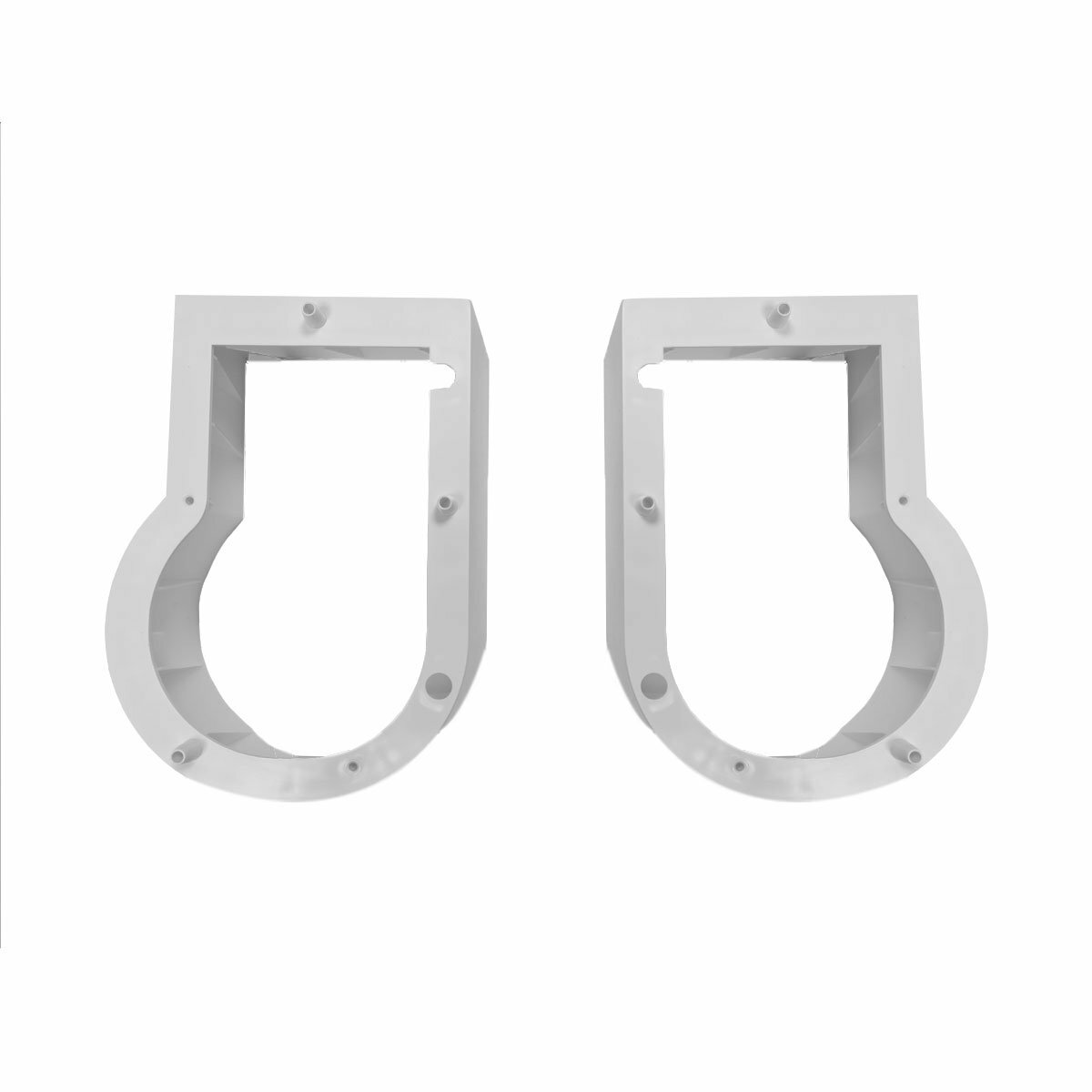

-Kit feet
WARRANTY
The warranty is the Official Clivet one and has a duration of 24 months.
