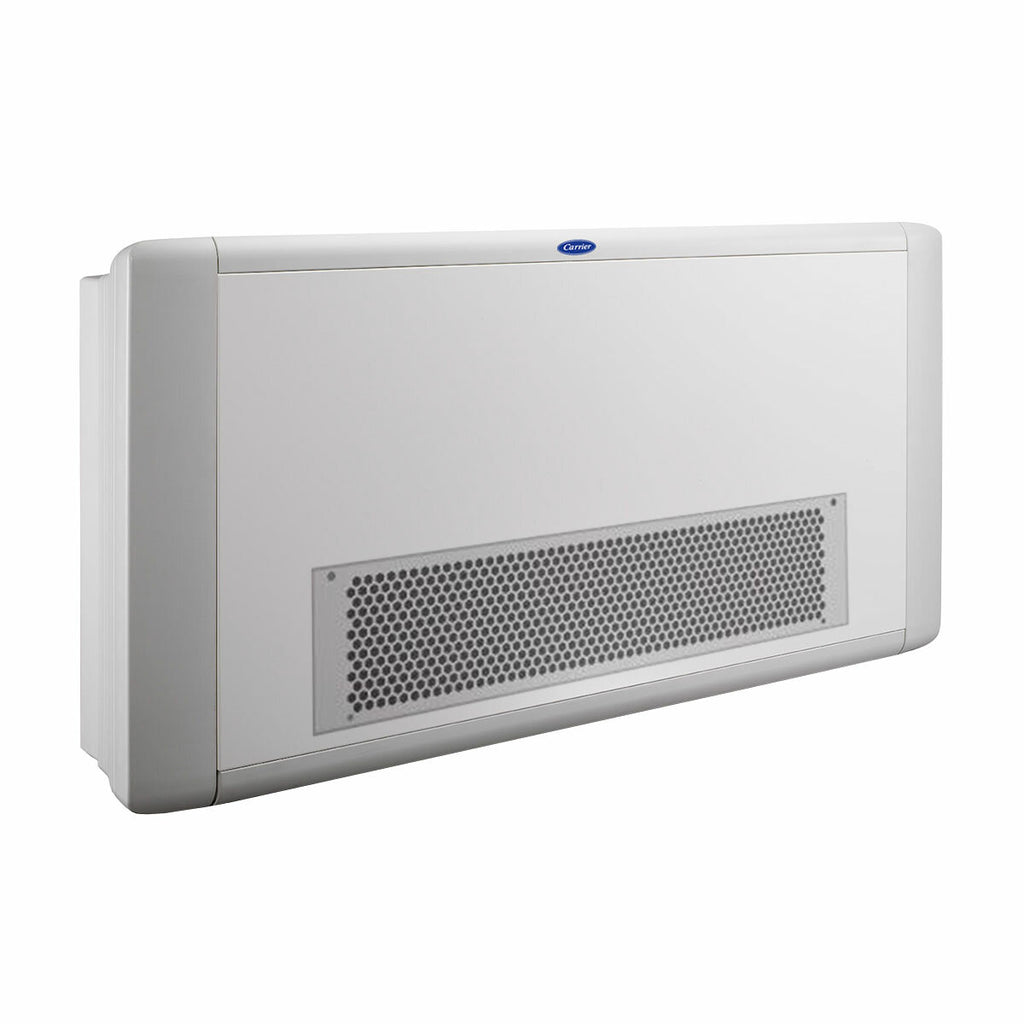

Carrier Idrofan 42NR135FV----B- fan coil unit with cabinet 1.65 - 1.35 kW
Heating function: ideal for units of approximately 15 sqm with an average calculated height of 2.7 m
Cooling function: ideal for units of approximately 10 sqm with an average calculated height of 2.7 m
Heating performance 1.65 kW - Cooling performance 1.35 kW
Carrier's Idrofan 42NR 2-pipe wall-mounted fan coil is the model that meets all needs: it has a modern design, excellent energy efficiency and guarantees better air quality as well as maximum silence.
LARGE MODULARITY OF INSTALLATION AND USE
Thanks to its simple and elegant design (winner of the ADI Design award) it is the ideal solution for multiple applications: hotel chains, large offices and commercial buildings. Its curved lines and receding surfaces create a play of light and shadow of great aesthetic effect and convey a sensation of lightness and perfect integration with the surrounding environment. The elegant and compact piece of furniture features a front panel in white painted sheet metal and a gray air intake grille mounted directly on the front side, adapting to installation in any environmental context.
The Carrier Idrofan 42NR fan-coil has 5 speeds numbered from V1 to V5, so it is always possible to find the one suitable for your air conditioning needs. Optimization of comfort and reduction of energy costs is maximum. The 42NR fan coil is available in the version with cabinet for visible installation, both vertical and horizontal. The asynchronous motor is particularly silent and has high versatility as it allows you to respond promptly to the needs of comfort and efficiency. The electrical power supply is 230V. Carrier, world leader in air conditioning, guarantees the highest manufacturing standards in terms of quality and reliability; this is also demonstrated by the over 1 million units sold since the birth of the model.
GUARANTEED SAVINGS AND HIGH COMFORT
It has particularly low electrical absorption which guarantees excellent energy efficiency; offers high standards of comfort as it is extremely quiet during operation. The Carrier range of fan coils adapts perfectly to the new reference requirements for buildings with reduced energy consumption, offering greater energy savings and immediate comfort for users. Its success is due to low energy consumption and construction features based on modularity, ease of installation with time reduced to a minimum and high reliability.
The model in question features the changeover probe and the TZ-type control directly on board, equipped with:
- Power button for turning the fan coil on/off;
- Mode button for manual adjustment of the heating/cooling functions indicated by specific red/blue LEDs;
- Ventilation adjustment button with different speeds that can be set manually, the Economy mode for energy saving and the Auto mode, all signaled from time to time by specific LEDs;
- Temperature Selector Knob with a range from + 10°C. at + 30°C;
- Antifreeze function which activates at temperatures below 7°C;
- Night and Darkening mode which acts on the operating LED lights;
- Self Test.
DIMENSIONS
Width: 840 mm – Height: 607 mm - Depth: 252 mm
Weight: 20 kg
WARRANTY
The warranty is the official Carrier one and has a duration of 24 months.
